Edit product details -

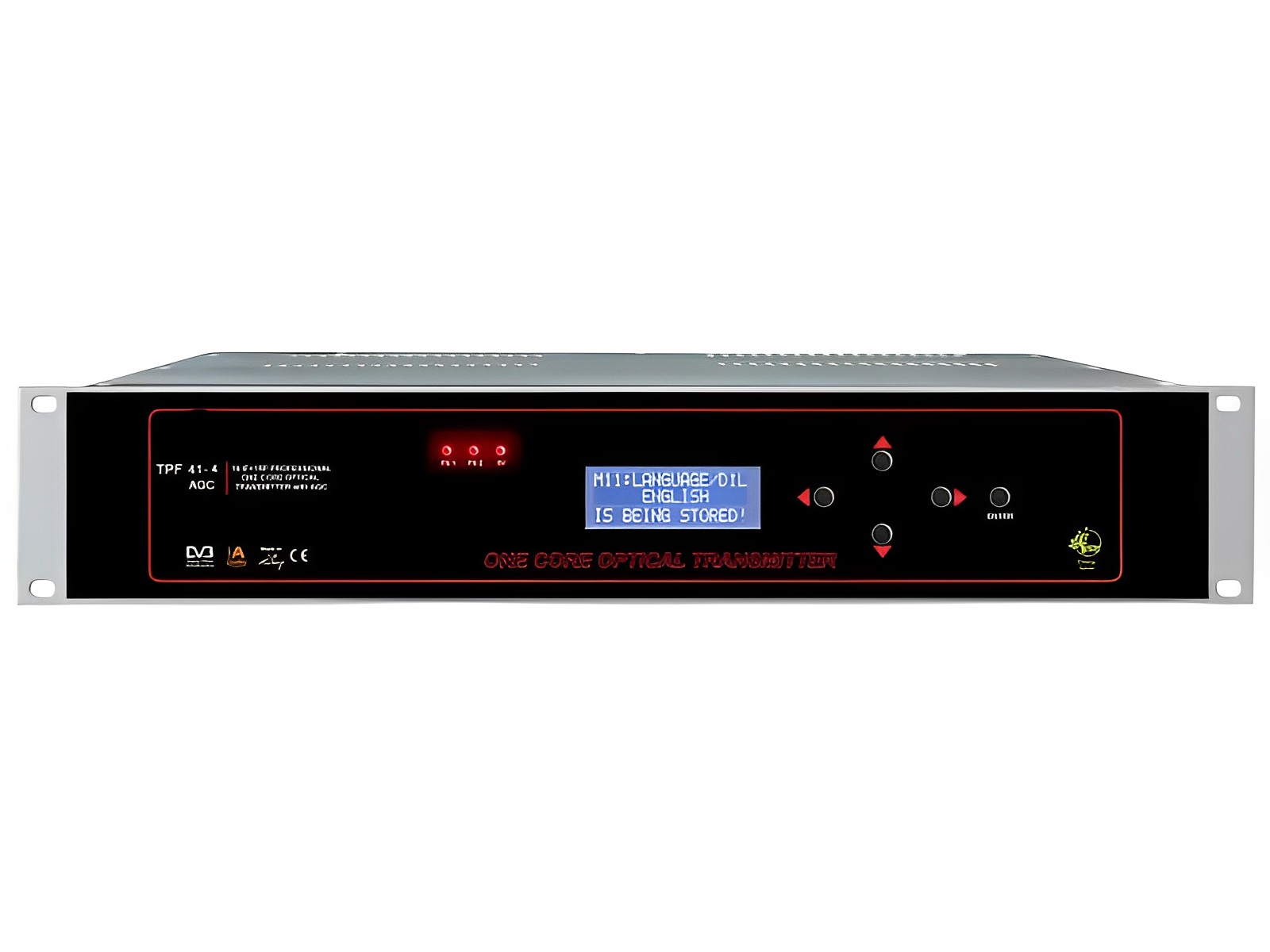

Fiber Optic Transmitter (16 if + 1 Rf)
Preview
Save
Save and Continue Edit
Copy product
Delete
ID
Created on
12/13/2023 10:32:12 AM
Updated on
12/20/2023 4:21:46 PM
URL of the product page
https://alderishop.com/fiber-optic-transmitter-16-if-1-rf-2/
Product type
Simple product
Grouped product
Bundled product
Published
Visibility
Fully visible
In search results
On product detail pages
Not visible
Product template
Default Product Template
Standard
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Product name
Short description
Full description
<ul><li>4 Satellites (16 Polarity Quads</li><li>quattro</li><li>C-Band</li><li>MDU LNB Support) and RF Digital portability via single fiber core</li><li>Max. 64 Divisibility</li><li>Front panel gain adjustment for each input</li><li>Voltage led indicators</li><li>LNB Voltage short circuit protection</li><li>LNB voltage control with ON-OFF switch</li><li>Automatic fan control</li><li><li>Input 17 F Connector (16IF+1RF) (75 Ohm)</li><li>Output 1 SC/APC (Full Band) Optical Connector</li><li>TERR Frequency Range 47-870MHZ</li><li>Satellite Frequency Range 950-2150MHZ</li><li>Satellite Gain 23dB ±2</li><li>Terri Gain(DVB-C/DVB-T) 15 dB ± 1</li><li>Gain Adjustment 0-15 dB (with multi-turn trimpot)</li><li>Optical Wavelength Width 1270-1570 nm (CWDM)</li><li>Max. Terr Signal Input 90 dB ± 5</li><li>Max. Satellite Signal Input 80 dB ± 5</li><li>Optical Output Power 4 mW (6dBm)</li><li>Supply Power 100-240 VAC 50 W</li><li>Operating Temperature -40+85°C</li><li>Dimensions 480x285x90mm</li><li>Weight 4300gr</li></li></ul>
4 Satellites (16 Polarity Quads
quattro
C-Band
MDU LNB Support) and RF Digital portability via single fiber core
Max. 64 Divisibility
Front panel gain adjustment for each input
Voltage led indicators
LNB Voltage short circuit protection
LNB voltage control with ON-OFF switch
Automatic fan control
Input 17 F Connector (16IF+1RF) (75 Ohm)
Output 1 SC/APC (Full Band) Optical Connector
TERR Frequency Range 47-870MHZ
Satellite Frequency Range 950-2150MHZ
Satellite Gain 23dB ±2
Terri Gain(DVB-C/DVB-T) 15 dB ± 1
Gain Adjustment 0-15 dB (with multi-turn trimpot)
Optical Wavelength Width 1270-1570 nm (CWDM)
Max. Terr Signal Input 90 dB ± 5
Max. Satellite Signal Input 80 dB ± 5
Optical Output Power 4 mW (6dBm)
Supply Power 100-240 VAC 50 W
Operating Temperature -40+85°C
Dimensions 480x285x90mm
Weight 4300gr
Product name
Short description
Full description
<ul><li>4 Satellites (16 Polarity Quads</li><li>quattro</li><li>C-Band</li><li>MDU LNB Support) and RF Digital portability via single fiber core</li><li>Max. 64 Divisibility</li><li>Front panel gain adjustment for each input</li><li>Voltage led indicators</li><li>LNB Voltage short circuit protection</li><li>LNB voltage control with ON-OFF switch</li><li>Automatic fan control</li><li><li>Input 17 F Connector (16IF+1RF) (75 Ohm)</li><li>Output 1 SC/APC (Full Band) Optical Connector</li><li>TERR Frequency Range 47-870MHZ</li><li>Satellite Frequency Range 950-2150MHZ</li><li>Satellite Gain 23dB ±2</li><li>Terri Gain(DVB-C/DVB-T) 15 dB ± 1</li><li>Gain Adjustment 0-15 dB (with multi-turn trimpot)</li><li>Optical Wavelength Width 1270-1570 nm (CWDM)</li><li>Max. Terr Signal Input 90 dB ± 5</li><li>Max. Satellite Signal Input 80 dB ± 5</li><li>Optical Output Power 4 mW (6dBm)</li><li>Supply Power 100-240 VAC 50 W</li><li>Operating Temperature -40+85°C</li><li>Dimensions 480x285x90mm</li><li>Weight 4300gr</li></li></ul>
4 Satellites (16 Polarity Quads
quattro
C-Band
MDU LNB Support) and RF Digital portability via single fiber core
Max. 64 Divisibility
Front panel gain adjustment for each input
Voltage led indicators
LNB Voltage short circuit protection
LNB voltage control with ON-OFF switch
Automatic fan control
Input 17 F Connector (16IF+1RF) (75 Ohm)
Output 1 SC/APC (Full Band) Optical Connector
TERR Frequency Range 47-870MHZ
Satellite Frequency Range 950-2150MHZ
Satellite Gain 23dB ±2
Terri Gain(DVB-C/DVB-T) 15 dB ± 1
Gain Adjustment 0-15 dB (with multi-turn trimpot)
Optical Wavelength Width 1270-1570 nm (CWDM)
Max. Terr Signal Input 90 dB ± 5
Max. Satellite Signal Input 80 dB ± 5
Optical Output Power 4 mW (6dBm)
Supply Power 100-240 VAC 50 W
Operating Temperature -40+85°C
Dimensions 480x285x90mm
Weight 4300gr
Product name
Short description
Full description
<ul><li>4 أقمار صناعية (16 قطبية رباعية</li><li>دعم MDU LNB) إمكانية النقل الرقمي للترددات اللاسلكية عبر قلب ألياف واحد</li><li>تعديل كسب اللوحة الأمامية لكل إدخال</li><li>مؤشرات الجهد بقيادة</li><li>حماية ماس كهربائى لجهد LNB</li><li>التحكم في جهد LNB مع مفتاح التشغيل والإيقاف</li><li>التحكم التلقائي في المروحة</li><li><li>موصل الإدخال 17 F (16IF+1RF) (75 أوم)</li><li>مخرج 1 موصل بصري SC/APC (نطاق كامل).</li><li>نطاق تردد TERR 47-870 ميجا هرتز</li><li>نطاق تردد الأقمار الصناعية 950-2150 ميجا هرتز</li><li>كسب القمر الصناعي 23 ديسيبل ± 2</li><li>Terri Gain (DVB-C/DVB-T) 15 ديسيبل ± 1</li><li>ضبط الكسب من 0 إلى 15 ديسيبل (مع أداة القطع متعددة المنعطفات)</li><li>عرض الطول الموجي البصري 1270-1570 نانومتر (CWDM)</li><li>الأعلى. مدخل إشارة Terr 90 ديسيبل ± 5</li><li>الأعلى. دخل إشارة القمر الصناعي 80 ديسيبل ± 5</li><li>طاقة الخرج البصري 4 ميجاوات (6 ديسيبل مللي أمبير)</li><li>طاقة إمداد 100-240 فولت تيار متردد 50 وات</li><li>درجة حرارة التشغيل -40+85 درجة مئوية</li><li>الأبعاد 480 × 285 × 90 ملم</li><li>الوزن 4300 جرام</li></li></ul>
4 أقمار صناعية (16 قطبية رباعية
دعم MDU LNB) إمكانية النقل الرقمي للترددات اللاسلكية عبر قلب ألياف واحد
تعديل كسب اللوحة الأمامية لكل إدخال
مؤشرات الجهد بقيادة
حماية ماس كهربائى لجهد LNB
التحكم في جهد LNB مع مفتاح التشغيل والإيقاف
التحكم التلقائي في المروحة
موصل الإدخال 17 F (16IF+1RF) (75 أوم)
مخرج 1 موصل بصري SC/APC (نطاق كامل).
نطاق تردد TERR 47-870 ميجا هرتز
نطاق تردد الأقمار الصناعية 950-2150 ميجا هرتز
كسب القمر الصناعي 23 ديسيبل ± 2
Terri Gain (DVB-C/DVB-T) 15 ديسيبل ± 1
ضبط الكسب من 0 إلى 15 ديسيبل (مع أداة القطع متعددة المنعطفات)
عرض الطول الموجي البصري 1270-1570 نانومتر (CWDM)
الأعلى. مدخل إشارة Terr 90 ديسيبل ± 5
الأعلى. دخل إشارة القمر الصناعي 80 ديسيبل ± 5
طاقة الخرج البصري 4 ميجاوات (6 ديسيبل مللي أمبير)
طاقة إمداد 100-240 فولت تيار متردد 50 وات
درجة حرارة التشغيل -40+85 درجة مئوية
الأبعاد 480 × 285 × 90 ملم
الوزن 4300 جرام
Product name
Short description
Full description
<ul><li>4 Uydu (16 Polarite Quad</li><li>Quattro</li><li>C-Band</li><li>MDU LNB Desteği) ve RF Dijital tek fiber core üzerinden taşınabilme</li><li>Max. 64 Bölünebilme</li><li>Her giriş için ön panelden kazanç ayarı</li><li>Voltaj led göstergeleri</li><li>LNB Voltaj kısa devre koruması</li><li>ON-OFF anahtarı ile LNB voltaj kontrolü</li><li>Otomatik fan kontrolü</li><li><li>Giriş<span style="white-space:pre"> </span>17 F Konnektör (16IF+1RF) (75 Ohm)</li><li>Çıkış<span style="white-space:pre"> </span>1 SC/APC (Full Band) Optik Konnektör</li><li>TERR Frekans Aralığı<span style="white-space:pre"> </span>47-870MHZ</li><li>Uydu Frekans Aralığı<span style="white-space:pre"> </span>950-2150MHZ</li><li>Uydu Kazanç <span style="white-space:pre"> </span>23dB ±2</li><li>Terr Kazanç(DVB-C/DVB-T)<span style="white-space:pre"> </span>15 dB ± 1</li><li>Kazanç Ayarı<span style="white-space:pre"> </span>0-15 dB (with multi-turn trimpot)</li><li>Optik Dalga Boyu Genişliği<span style="white-space:pre"> </span>1270-1570 nm (CWDM)</li><li>Max. Terr Sinyal Girişi<span style="white-space:pre"> </span>90 dB ± 5</li><li>Max. Uydu Sinyal Girişi<span style="white-space:pre"> </span>80 dB ± 5</li><li>Optik Çıkış Gücü<span style="white-space:pre"> </span>4 mW (6dBm)</li><li>Besleme Gücü <span style="white-space:pre"> </span>100-240 VAC 50 W</li><li>Çalışma Sıcaklığı <span style="white-space:pre"> </span>-40+85°C</li><li>Ölçüler <span style="white-space:pre"> </span>480x285x90mm</li><li>Ağırlık <span style="white-space:pre"> </span>4300gr</li></li></ul>
4 Uydu (16 Polarite Quad
Quattro
C-Band
MDU LNB Desteği) ve RF Dijital tek fiber core üzerinden taşınabilme
Max. 64 Bölünebilme
Her giriş için ön panelden kazanç ayarı
Voltaj led göstergeleri
LNB Voltaj kısa devre koruması
ON-OFF anahtarı ile LNB voltaj kontrolü
Otomatik fan kontrolü
Giriş
17 F Konnektör (16IF+1RF) (75 Ohm)
Çıkış
1 SC/APC (Full Band) Optik Konnektör
TERR Frekans Aralığı
47-870MHZ
Uydu Frekans Aralığı
950-2150MHZ
Uydu Kazanç
23dB ±2
Terr Kazanç(DVB-C/DVB-T)
15 dB ± 1
Kazanç Ayarı
0-15 dB (with multi-turn trimpot)
Optik Dalga Boyu Genişliği
1270-1570 nm (CWDM)
Max. Terr Sinyal Girişi
90 dB ± 5
Max. Uydu Sinyal Girişi
80 dB ± 5
Optik Çıkış Gücü
4 mW (6dBm)
Besleme Gücü
100-240 VAC 50 W
Çalışma Sıcaklığı
-40+85°C
Ölçüler
480x285x90mm
Ağırlık
4300gr
