Edit product details -
Mattress pressing and packing machine
Preview
Save
Save and Continue Edit
Copy product
Delete
ID
Created on
2/6/2024 2:56:01 PM
Updated on
10/26/2024 9:46:07 AM
URL of the product page
https://alderishop.com/mattress-pressing-and-packing-machine-2/
Product type
Simple product
Grouped product
Bundled product
Published
Visibility
Fully visible
In search results
On product detail pages
Not visible
Product template
Default Product Template
Standard
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Product name
Short description
Full description

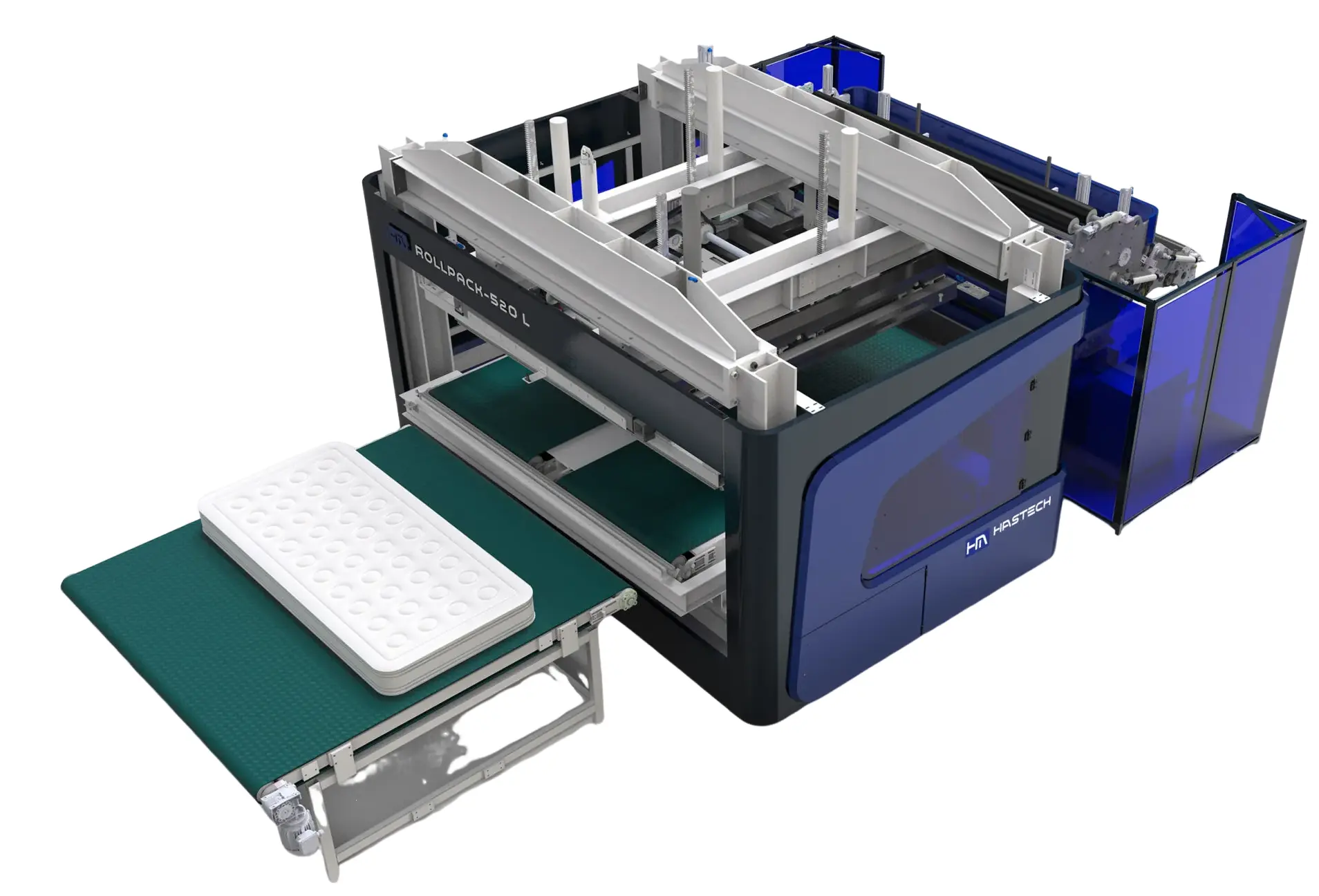

<p></p><p></p><ul><li>The 520-L mattress packing machine is a cost-effective pressing and packing machine. The sturdy construction of the piston provides up to 60</li><li>tons of compressive force.</li><li>In this machine the bed in the machine is compressed into the bag by the machine. After placing the bed on the inlet conveyor, the machine</li><li>closes the open mouth of the package with a hot jaw and then wraps the packages automatically.</li><li>The beam diameter can be adjusted automatically from the operation panel.</li><li>3 working modes can be selected:</li><li>Standard package</li><li>Luxury package</li><li>Prince Roll Pack</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Full Pack 520 L Technical Specifications"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Full Pack 520 L Technical Specifications</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Capacity"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Capacity</td><td data-sheets-value="{"1":2,"2":"1 piece / Min."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1 piece / Min.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Bed Size / Max. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Bed Size / Max. Mattress Size</td><td data-sheets-value="{"1":2,"2":"210 x 210cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">210 x 210cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Min Bed Size / Min. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Min Bed Size / Min. Mattress Size</td><td data-sheets-value="{"1":2,"2":"180x70cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">180x70cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Mattress Height / Max Mattress Height"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Mattress Height / Max Mattress Height</td><td data-sheets-value="{"1":2,"2":"50cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Mattress Roll Diameter / Exit Diameter"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Mattress Roll Diameter / Exit Diameter</td><td data-sheets-value="{"1":2,"2":"25 – 50 cm (Adjustable)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">25 – 50 cm (Adjustable)</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max Press Force / Max. press force"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max Press Force / Max. press force</td><td data-sheets-value="{"1":2,"2":"40 – 60 Tons"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40 – 60 Tons</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Rollpack Packaging Type / Roll Pack Packaging"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Rollpack Packaging Type / Roll Pack Packaging</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1. Standard"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1. Standard</td><td data-sheets-value="{"1":2,"2":"PE Film + Bonding / PE Film + Heat Sealing"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">PE Film + Bonding / PE Film + Heat Sealing</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2. Stretch"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">2. Stretch</td><td data-sheets-value="{"1":2,"2":"Rolling with Strech Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Rolling with Strech Film</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"3. Stretch/PE Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3. Stretch/PE Film</td><td data-sheets-value="{"1":2,"2":"Stretch Film Roll or PE Film / Rolling with Strech Film or PE"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Stretch Film Roll or PE Film / Rolling with Strech Film or PE</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"General Requirements"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">General Requirements</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Weight / Weight Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Weight / Weight Type</td><td data-sheets-value="{"1":2,"2":"8.300KG"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">8.300KG</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Power Requirement"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Power Requirement</td><td data-sheets-value="{"1":2,"2":"17 kW 380 V 3 Phase"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">17 kW 380 V 3 Phase</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Air Pressure"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Air Pressure</td><td data-sheets-value="{"1":2,"2":"6-7 Bars"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">6-7 Bars</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Shipping Dimension"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Shipping Dimension</td><td data-sheets-value="{"1":2,"2":"3.8 x 6.8 x 2.95 m."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3.8 x 6.8 x 2.95 m.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"CE"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">CE</td><td data-sheets-value="{"1":2,"2":"Available / Yes"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Available / Yes</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin>
The 520-L mattress packing machine is a cost-effective pressing and packing machine. The sturdy construction of the piston provides up to 60
tons of compressive force.
In this machine the bed in the machine is compressed into the bag by the machine. After placing the bed on the inlet conveyor, the machine
closes the open mouth of the package with a hot jaw and then wraps the packages automatically.
The beam diameter can be adjusted automatically from the operation panel.

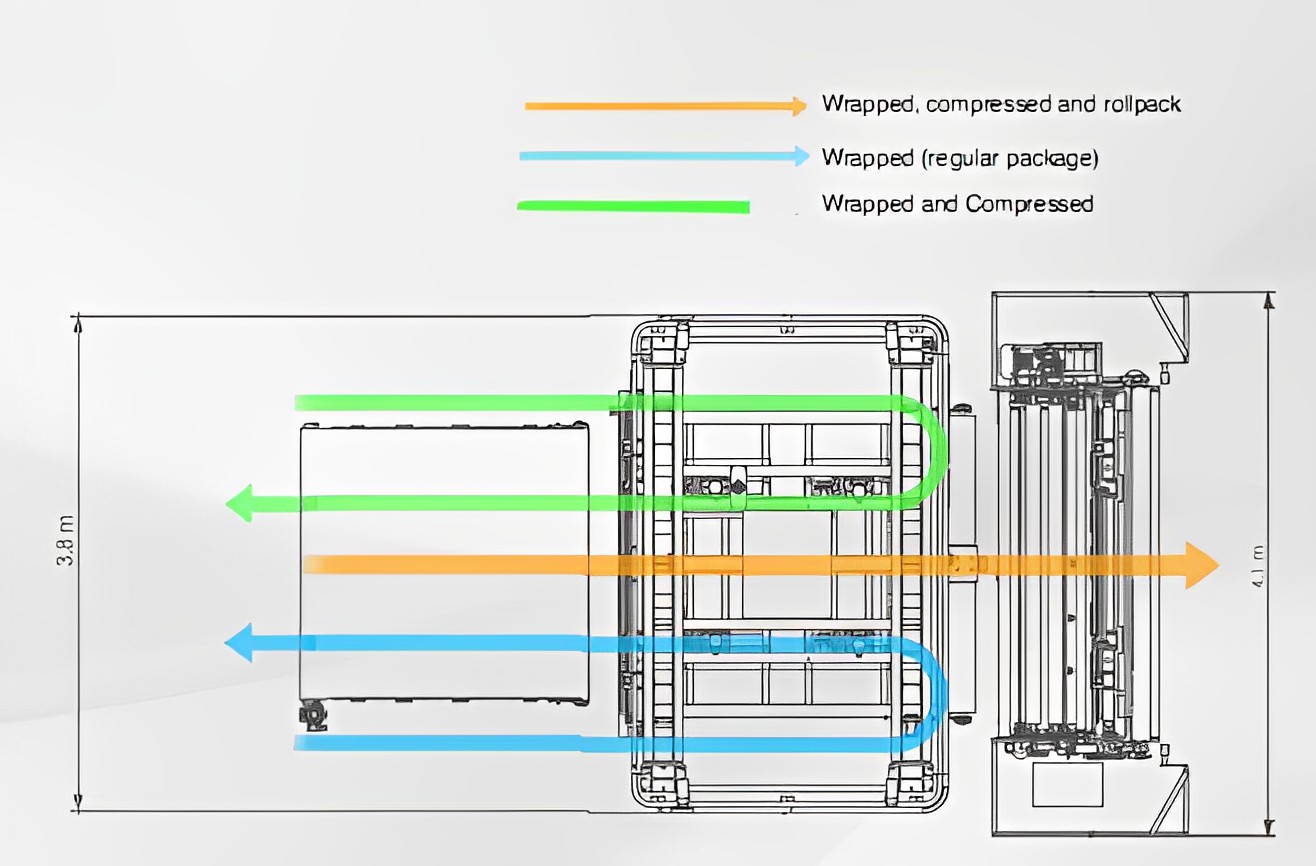

3 working modes can be selected:
Standard package
Luxury package
Prince Roll Pack

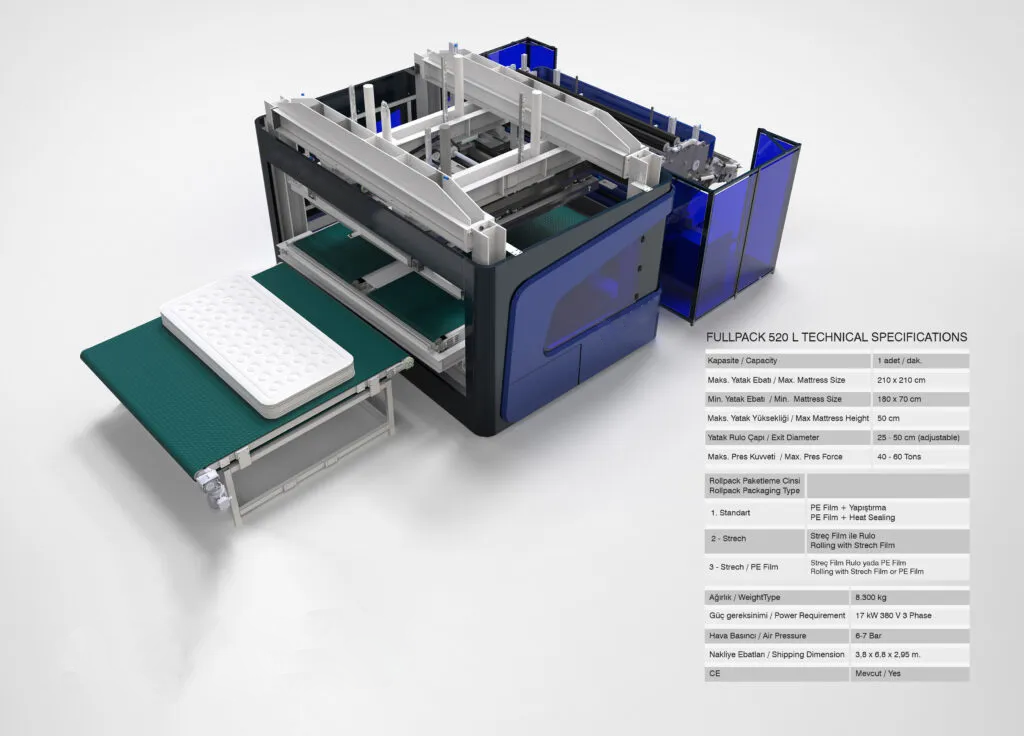

Full Pack 520 L Technical Specifications
Capacity
1 piece / Min.
Max. Bed Size / Max. Mattress Size
210 x 210cm
Min Bed Size / Min. Mattress Size
180x70cm
Max. Mattress Height / Max Mattress Height
50cm
Mattress Roll Diameter / Exit Diameter
25 – 50 cm (Adjustable)
Max Press Force / Max. press force
40 – 60 Tons
Rollpack Packaging Type / Roll Pack Packaging
1. Standard
PE Film + Bonding / PE Film + Heat Sealing
2. Stretch
Rolling with Strech Film
3. Stretch/PE Film
Stretch Film Roll or PE Film / Rolling with Strech Film or PE
General Requirements
Weight / Weight Type
8.300KG
Power Requirement
17 kW 380 V 3 Phase
Air Pressure
6-7 Bars

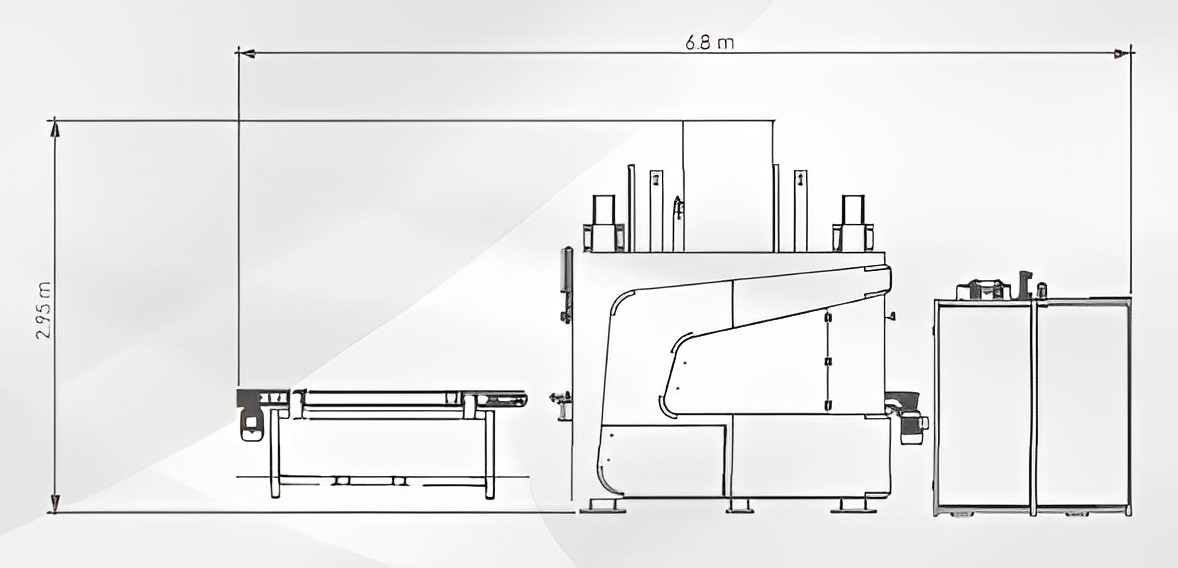

Shipping Dimension
3.8 x 6.8 x 2.95 m.
CE
Available / Yes
Product name
Short description
Full description
<ul><li>The 520-L mattress packing machine is a cost-effective pressing and packing machine. The sturdy construction of the piston provides up to 60</li><li>tons of compressive force.</li><li>In this machine the bed in the machine is compressed into the bag by the machine. After placing the bed on the inlet conveyor, the machine</li><li>closes the open mouth of the package with a hot jaw and then wraps the packages automatically.</li><li>The beam diameter can be adjusted automatically from the operation panel.</li><li>3 working modes can be selected:</li><li>Standard package</li><li>Luxury package</li><li>Prince Roll Pack</li></ul><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Full Pack 520 L Technical Specifications"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Full Pack 520 L Technical Specifications</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Capacity"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Capacity</td><td data-sheets-value="{"1":2,"2":"1 piece / Min."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1 piece / Min.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Bed Size / Max. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Bed Size / Max. Mattress Size</td><td data-sheets-value="{"1":2,"2":"210 x 210cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">210 x 210cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Min Bed Size / Min. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Min Bed Size / Min. Mattress Size</td><td data-sheets-value="{"1":2,"2":"180x70cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">180x70cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Mattress Height / Max Mattress Height"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Mattress Height / Max Mattress Height</td><td data-sheets-value="{"1":2,"2":"50cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Mattress Roll Diameter / Exit Diameter"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Mattress Roll Diameter / Exit Diameter</td><td data-sheets-value="{"1":2,"2":"25 – 50 cm (Adjustable)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">25 – 50 cm (Adjustable)</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max Press Force / Max. press force"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max Press Force / Max. press force</td><td data-sheets-value="{"1":2,"2":"40 – 60 Tons"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40 – 60 Tons</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Rollpack Packaging Type / Roll Pack Packaging"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Rollpack Packaging Type / Roll Pack Packaging</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1. Standard"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1. Standard</td><td data-sheets-value="{"1":2,"2":"PE Film + Bonding / PE Film + Heat Sealing"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">PE Film + Bonding / PE Film + Heat Sealing</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2. Stretch"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">2. Stretch</td><td data-sheets-value="{"1":2,"2":"Rolling with Strech Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Rolling with Strech Film</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"3. Stretch/PE Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3. Stretch/PE Film</td><td data-sheets-value="{"1":2,"2":"Stretch Film Roll or PE Film / Rolling with Strech Film or PE"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Stretch Film Roll or PE Film / Rolling with Strech Film or PE</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"General Requirements"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">General Requirements</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Weight / Weight Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Weight / Weight Type</td><td data-sheets-value="{"1":2,"2":"8.300KG"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">8.300KG</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Power Requirement"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Power Requirement</td><td data-sheets-value="{"1":2,"2":"17 kW 380 V 3 Phase"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">17 kW 380 V 3 Phase</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Air Pressure"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Air Pressure</td><td data-sheets-value="{"1":2,"2":"6-7 Bars"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">6-7 Bars</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Shipping Dimension"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Shipping Dimension</td><td data-sheets-value="{"1":2,"2":"3.8 x 6.8 x 2.95 m."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3.8 x 6.8 x 2.95 m.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"CE"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">CE</td><td data-sheets-value="{"1":2,"2":"Available / Yes"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Available / Yes</td></tr></tbody></table>
The 520-L mattress packing machine is a cost-effective pressing and packing machine. The sturdy construction of the piston provides up to 60
tons of compressive force.
In this machine the bed in the machine is compressed into the bag by the machine. After placing the bed on the inlet conveyor, the machine
closes the open mouth of the package with a hot jaw and then wraps the packages automatically.
The beam diameter can be adjusted automatically from the operation panel.
3 working modes can be selected:
Standard package
Luxury package
Prince Roll Pack
Full Pack 520 L Technical Specifications
Capacity
1 piece / Min.
Max. Bed Size / Max. Mattress Size
210 x 210cm
Min Bed Size / Min. Mattress Size
180x70cm
Max. Mattress Height / Max Mattress Height
50cm
Mattress Roll Diameter / Exit Diameter
25 – 50 cm (Adjustable)
Max Press Force / Max. press force
40 – 60 Tons
Rollpack Packaging Type / Roll Pack Packaging
1. Standard
PE Film + Bonding / PE Film + Heat Sealing
2. Stretch
Rolling with Strech Film
3. Stretch/PE Film
Stretch Film Roll or PE Film / Rolling with Strech Film or PE
General Requirements
Weight / Weight Type
8.300KG
Power Requirement
17 kW 380 V 3 Phase
Air Pressure
6-7 Bars
Shipping Dimension
3.8 x 6.8 x 2.95 m.
CE
Available / Yes
Product name
Short description
Full description
<p></p><p></p><ul><li>إن ماكينة تعبئة المراتب طراز 520-L عبارة عن ماكينة ضغط وتغليف فعالة من حيث التكلفة.</li><li> يوفر الهيكل القوي للمكبس ما يصل إلى 60 طنًا من قوة الضغط.</li><li>في هذه الآلة يتم ضغط السرير الموجود في الآلة في الكيس بواسطة الآلة. </li><li>بعد وضع السرير على ناقل المدخل، تقوم الآلة بإغلاق الفم المفتوح للعبوة</li><li>بفك ساخن ومن ثم تغليف العبوات تلقائيًا.</li><li>يمكن ضبط قطر الحزمة تلقائيًا من لوحة التشغيل.</li><li>يمكن اختيار 3 أوضاع عمل:</li><li>الحزمة القياسية</li><li>الحزمة فاخرة</li><li>حزمة الأمير رول</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"HM FULLPACK-520 L المواصفات الفنية "}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">HM FULLPACK-520 L المواصفات الفنية</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1 قطعة "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">1 قطعة</td><td data-sheets-value="{"1":2,"2":"السعة "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">السعة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"210 × 210 سم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">210 × 210 سم</td><td data-sheets-value="{"1":2,"2":"الحد الأقصى لمقاس المرتبة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">الحد الأقصى لمقاس المرتبة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"180×70 سم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">180×70 سم</td><td data-sheets-value="{"1":2,"2":"الحد الأدنى لمقاس المرتبة "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">الحد الأدنى لمقاس المرتبة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"50 سم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">50 سم</td><td data-sheets-value="{"1":2,"2":" الحد الأقصى لارتفاع المرتبة "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">الحد الأقصى لارتفاع المرتبة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":" 25 - 50 سم (قابل للتعديل)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">25 - 50 سم (قابل للتعديل)</td><td data-sheets-value="{"1":2,"2":"قطر المرتبة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">قطر المرتبة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":" 40 – 60 طن"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">40 – 60 طن</td><td data-sheets-value="{"1":2,"2":"أقصى قوة الضغط "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">أقصى قوة الضغط</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"نوع التغليف "}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">نوع التغليف</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"فيلم PE / فيلم PE + ختم حراري"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">فيلم PE / فيلم PE + ختم حراري</td><td data-sheets-value="{"1":2,"2":"1.شريط تغليف قياسي "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">1.شريط تغليف قياسي</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"تغليف من خلال رول نايلون ستريج"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">تغليف من خلال رول نايلون ستريج</td><td data-sheets-value="{"1":2,"2":"2. نايلون ستريج"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">2. نايلون ستريج</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"تغليف من خلال نايلون ستريج أو فيلم PE "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">تغليف من خلال نايلون ستريج أو فيلم PE</td><td data-sheets-value="{"1":2,"2":"3. PE فيلم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">3. PE فيلم</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"المتطلبات العامة"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">المتطلبات العامة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"8.300 كجم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">8.300 كجم</td><td data-sheets-value="{"1":2,"2":"الوزن / نوع الوزن"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">الوزن / نوع الوزن</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"17 كيلو واط 380 فولت 3 مراحل"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">17 كيلو واط 380 فولت 3 مراحل</td><td data-sheets-value="{"1":2,"2":"متطلبات الطاقة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">متطلبات الطاقة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"6-7 بارات"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">6-7 بارات</td><td data-sheets-value="{"1":2,"2":"ضغط جوي"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">ضغط جوي</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"3.8 × 6.8 × 2.95 م."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">3.8 × 6.8 × 2.95 م.</td><td data-sheets-value="{"1":2,"2":"أبعاد الشحن"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">أبعاد الشحن</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"متاح / نعم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">متاح / نعم</td><td data-sheets-value="{"1":2,"2":"شهادة CE المعتمدة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">شهادة CE المعتمدة</td></tr></tbody></table>
إن ماكينة تعبئة المراتب طراز 520-L عبارة عن ماكينة ضغط وتغليف فعالة من حيث التكلفة.
يوفر الهيكل القوي للمكبس ما يصل إلى 60 طنًا من قوة الضغط.
في هذه الآلة يتم ضغط السرير الموجود في الآلة في الكيس بواسطة الآلة.
بعد وضع السرير على ناقل المدخل، تقوم الآلة بإغلاق الفم المفتوح للعبوة
بفك ساخن ومن ثم تغليف العبوات تلقائيًا.
يمكن ضبط قطر الحزمة تلقائيًا من لوحة التشغيل.
يمكن اختيار 3 أوضاع عمل:
الحزمة القياسية
الحزمة فاخرة
حزمة الأمير رول
HM FULLPACK-520 L المواصفات الفنية
1 قطعة
السعة
210 × 210 سم
الحد الأقصى لمقاس المرتبة
180×70 سم
الحد الأدنى لمقاس المرتبة
50 سم
الحد الأقصى لارتفاع المرتبة
25 - 50 سم (قابل للتعديل)
قطر المرتبة
40 – 60 طن
أقصى قوة الضغط
نوع التغليف
فيلم PE / فيلم PE + ختم حراري
1.شريط تغليف قياسي
تغليف من خلال رول نايلون ستريج
2. نايلون ستريج
تغليف من خلال نايلون ستريج أو فيلم PE
3. PE فيلم
المتطلبات العامة
8.300 كجم
الوزن / نوع الوزن
17 كيلو واط 380 فولت 3 مراحل
متطلبات الطاقة
6-7 بارات
ضغط جوي
3.8 × 6.8 × 2.95 م.
أبعاد الشحن
متاح / نعم
شهادة CE المعتمدة
Product name
Short description
Full description
<p></p><p></p><ul><li>520-L Model yatak paketleme, uygun maliyetli pres ve rollpack makinesidir. Presin Sağlam Yapısı 60 tona kadar sıkıştırma kuvveti sağlar.</li><li>Bu makine, torba içerisinde makinaya yerleştirilen yatak makina tarafından preslenip Rollpack yapılır. Yatağı giriş konveyörüne</li><li>yerleştirdikten sonra makine sıcak çene/erle ambalajın açık ağzını yapıştırır ve sonrasında otomatik olarak rollpack yapar.</li><li>Rollpack çapı operatör panelinden otomatik olarak ayarlanabilir.</li><li>3 çalışma modu seçilebilir;</li><li>Standart Paket</li><li>PRenslenmiş Paket</li><li>Prenslenmiş Rulo Paket</li></ul><p><google-sheets-html-origin style=""><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Full Pack 520 L Teknik Özellikleri"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Full Pack 520 L Teknik Özellikleri</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Kapasite / Capacity"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Kapasite / Capacity</td><td data-sheets-value="{"1":2,"2":"1 adet / Dak."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1 adet / Dak.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maks. Yatak Ebatı / Max. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Maks. Yatak Ebatı / Max. Mattress Size</td><td data-sheets-value="{"1":2,"2":"210 x 210cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">210 x 210cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Min Yatak Ebatı / Min. Mattress Size"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Min Yatak Ebatı / Min. Mattress Size</td><td data-sheets-value="{"1":2,"2":"180 x 70 cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">180 x 70 cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maks. Yatak Yüksekliği / Max Mattress Height"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Maks. Yatak Yüksekliği / Max Mattress Height</td><td data-sheets-value="{"1":2,"2":"50 cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50 cm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Yatak Rulo Çapı / Exit Diameter"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Yatak Rulo Çapı / Exit Diameter</td><td data-sheets-value="{"1":2,"2":"25 – 50 cm (Adjustable)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">25 – 50 cm (Adjustable)</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maks Press Kuvveti / Max. Press Force"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Maks Press Kuvveti / Max. Press Force</td><td data-sheets-value="{"1":2,"2":"40 – 60 Tons"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40 – 60 Tons</td></tr></tbody></table><p><google-sheets-html-origin style=""><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Rollpack Paketleme Cinsi / Roll Pack Packaging"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Rollpack Paketleme Cinsi / Roll Pack Packaging</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1. Standart"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1. Standart</td><td data-sheets-value="{"1":2,"2":"P E Film + Yapıştırma / P E Film + Heat Sealing"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">P E Film + Yapıştırma / P E Film + Heat Sealing</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2. Strech"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">2. Strech</td><td data-sheets-value="{"1":2,"2":"Streç Film ile Rulo / Rolling with Strech Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Streç Film ile Rulo / Rolling with Strech Film</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"3. Strech / P E Film"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3. Strech / P E Film</td><td data-sheets-value="{"1":2,"2":"Streç Film Rulo yada P E Film / Rolling with Strech Film or P E"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Streç Film Rulo yada P E Film / Rolling with Strech Film or P E</td></tr></tbody></table><p><google-sheets-html-origin style=""><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="305"><col width="417"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Genel Gereksinimleri"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Genel Gereksinimleri</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Ağırlık / Weight Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ağırlık / Weight Type</td><td data-sheets-value="{"1":2,"2":"8.300 KG"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">8.300 KG</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Güç Gereksinimi / Power Requriement"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Güç Gereksinimi / Power Requriement</td><td data-sheets-value="{"1":2,"2":"17 kW 380 V 3 Phase"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">17 kW 380 V 3 Phase</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Hava Basıncı / Air Pressure"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hava Basıncı / Air Pressure</td><td data-sheets-value="{"1":2,"2":"6-7 Bar"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">6-7 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Nakliye Ebatları / Shipping Dimension"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Nakliye Ebatları / Shipping Dimension</td><td data-sheets-value="{"1":2,"2":"3,8 x 6,8 x 2,95 m."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3,8 x 6,8 x 2,95 m.</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"CE"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">CE</td><td data-sheets-value="{"1":2,"2":"Mevcut / Yes"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Mevcut / Yes</td></tr></tbody></table><br>
520-L Model yatak paketleme, uygun maliyetli pres ve rollpack makinesidir. Presin Sağlam Yapısı 60 tona kadar sıkıştırma kuvveti sağlar.
Bu makine, torba içerisinde makinaya yerleştirilen yatak makina tarafından preslenip Rollpack yapılır. Yatağı giriş konveyörüne
yerleştirdikten sonra makine sıcak çene/erle ambalajın açık ağzını yapıştırır ve sonrasında otomatik olarak rollpack yapar.
Rollpack çapı operatör panelinden otomatik olarak ayarlanabilir.
3 çalışma modu seçilebilir;
Standart Paket
PRenslenmiş Paket
Prenslenmiş Rulo Paket
Full Pack 520 L Teknik Özellikleri
Kapasite / Capacity
1 adet / Dak.
Maks. Yatak Ebatı / Max. Mattress Size
210 x 210cm
Min Yatak Ebatı / Min. Mattress Size
180 x 70 cm
Maks. Yatak Yüksekliği / Max Mattress Height
50 cm
Yatak Rulo Çapı / Exit Diameter
25 – 50 cm (Adjustable)
Maks Press Kuvveti / Max. Press Force
40 – 60 Tons
Rollpack Paketleme Cinsi / Roll Pack Packaging
1. Standart
P E Film + Yapıştırma / P E Film + Heat Sealing
2. Strech
Streç Film ile Rulo / Rolling with Strech Film
3. Strech / P E Film
Streç Film Rulo yada P E Film / Rolling with Strech Film or P E
Genel Gereksinimleri
Ağırlık / Weight Type
8.300 KG
Güç Gereksinimi / Power Requriement
17 kW 380 V 3 Phase
Hava Basıncı / Air Pressure
6-7 Bar
Nakliye Ebatları / Shipping Dimension
3,8 x 6,8 x 2,95 m.
CE
Mevcut / Yes
