Edit product details - Sliding gate - operating time 10 seconds

Copy product

Created on

2/14/2024 10:50:09 AM

Updated on

3/26/2024 12:13:03 PM

URL of the product page

https://alderishop.com/sliding-gate-operating-time-10-seconds-2/

Product type

Published

Visibility

Product name

Short description

Full description

<ul><li>The steel barrier has a modern look thanks to its aesthetic structure, and is very safe and durable with its full iron parts.</li><li>The steel barrier never puts your safety at risk by offering 100% working performance with its hydraulic working system.</li><li>It is the only example of modern security whose iron parts are highly resistant to external dangers.</li><li>Product Dimensions: 6000 x 344 x 3000</li><li><span data-sheets-root="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technical information:&quot;}" data-sheets-userformat="{&quot;2&quot;:513,&quot;3&quot;:{&quot;1&quot;:0},&quot;12&quot;:0}" style="">Technical information:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="218"><col width="261"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tip&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Tip</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;STEEL BARRIER&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">STEEL BARRIER</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Arm dimension&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Arm dimension</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40x100 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40x100 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net passage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Net passage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3-6 mt.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3-6 mt.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Motor power&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor power</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0,55-0,75 Kw&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">0,55-0,75 Kw</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Supply voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Supply voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380V 3 Faz 50/60 Hz&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">380V 3 Faz 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Control unit&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Control unit</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-Mag or optional PLC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">T-Mag or optional PLC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Working system&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Working system</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Opening time&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Opening time</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10-lsec.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">10-lsec.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating pressure min.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Operating pressure min.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;30 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">30 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating pressure max.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Operating pressure max.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;50 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manually opening/closing&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manually opening/closing</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hand pump&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hand pump</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic oil type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil type</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic oil no. 32 or 46&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil no. 32 or 46</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic hose&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic hose</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3/8 R2 330 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Emniyet sistemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Emniyet sistemi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Safety system Wireless safety photocell&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Safety system Wireless safety photocell</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ip standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ip standard</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP54&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">IP54</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ambient Operating Temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ambient Operating Temperature</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20°C min +70°C max&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">-20°C min +70°C max</td></tr></tbody></table></google-sheets-html-origin></li></ul>

The steel barrier has a modern look thanks to its aesthetic structure, and is very safe and durable with its full iron parts.
The steel barrier never puts your safety at risk by offering 100% working performance with its hydraulic working system.
It is the only example of modern security whose iron parts are highly resistant to external dangers.

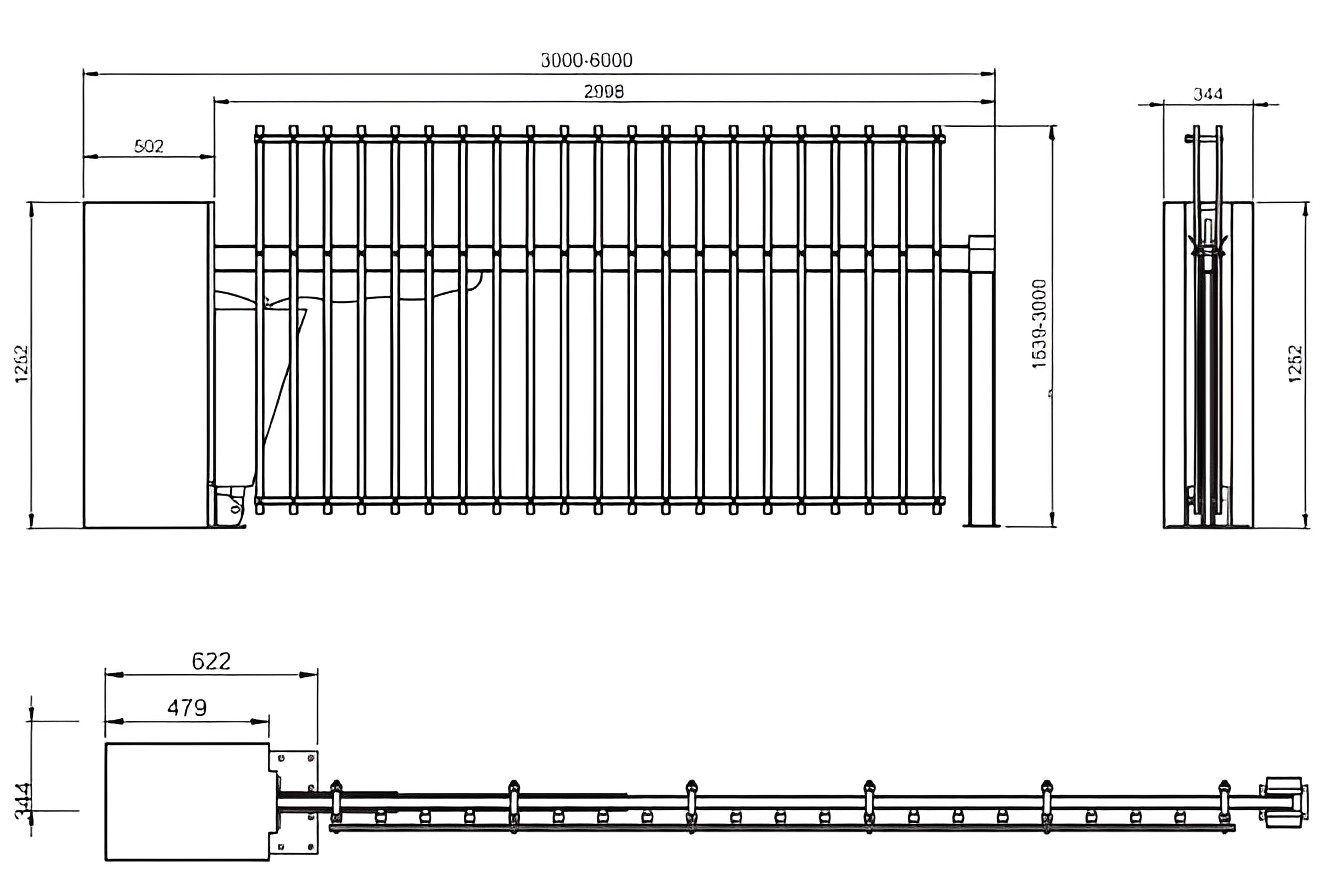

Product Dimensions: 6000 x 344 x 3000

Technical information:

Tip	STEEL BARRIER
Arm dimension	40x100 mm
Net passage	3-6 mt.
Motor power	0,55-0,75 Kw
Supply voltage	380V 3 Faz 50/60 Hz
Control unit	T-Mag or optional PLC
Working system	Hydraulic
Opening time	10-lsec.
Operating pressure min.	30 bar
Operating pressure max.	50 bar
Manually opening/closing	Hand pump
Hydraulic oil type	Hydraulic oil no. 32 or 46
Hydraulic hose	3/8 R2 330 bar
Emniyet sistemi	Safety system Wireless safety photocell
Ip standard	IP54
Ambient Operating Temperature	-20°C min +70°C max

Product name

Short description

Full description

<ul><li>The steel barrier has a modern look thanks to its aesthetic structure, and is very safe and durable with its full iron parts.</li><li>The steel barrier never puts your safety at risk by offering 100% working performance with its hydraulic working system.</li><li>It is the only example of modern security whose iron parts are highly resistant to external dangers.</li><li>Product Dimensions: 6000 x 344 x 3000</li><li><span data-sheets-root="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technical information:&quot;}" data-sheets-userformat="{&quot;2&quot;:513,&quot;3&quot;:{&quot;1&quot;:0},&quot;12&quot;:0}">Technical information:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="218"><col width="261"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tip&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Tip</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;STEEL BARRIER&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">STEEL BARRIER</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Arm dimension&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Arm dimension</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40x100 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40x100 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net passage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Net passage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3-6 mt.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3-6 mt.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Motor power&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor power</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0,55-0,75 Kw&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">0,55-0,75 Kw</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Supply voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Supply voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380V 3 Faz 50/60 Hz&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">380V 3 Faz 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Control unit&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Control unit</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-Mag or optional PLC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">T-Mag or optional PLC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Working system&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Working system</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Opening time&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Opening time</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10-lsec.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">10-lsec.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating pressure min.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Operating pressure min.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;30 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">30 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating pressure max.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Operating pressure max.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;50 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manually opening/closing&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manually opening/closing</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hand pump&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hand pump</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic oil type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil type</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic oil no. 32 or 46&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil no. 32 or 46</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic hose&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic hose</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3/8 R2 330 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Emniyet sistemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Emniyet sistemi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Safety system Wireless safety photocell&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Safety system Wireless safety photocell</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ip standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ip standard</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP54&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">IP54</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ambient Operating Temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ambient Operating Temperature</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20°C min +70°C max&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">-20°C min +70°C max</td></tr></tbody></table></google-sheets-html-origin></li></ul>

The steel barrier has a modern look thanks to its aesthetic structure, and is very safe and durable with its full iron parts.
The steel barrier never puts your safety at risk by offering 100% working performance with its hydraulic working system.
It is the only example of modern security whose iron parts are highly resistant to external dangers.
Product Dimensions: 6000 x 344 x 3000

Technical information:

Tip	STEEL BARRIER
Arm dimension	40x100 mm
Net passage	3-6 mt.
Motor power	0,55-0,75 Kw
Supply voltage	380V 3 Faz 50/60 Hz
Control unit	T-Mag or optional PLC
Working system	Hydraulic
Opening time	10-lsec.
Operating pressure min.	30 bar
Operating pressure max.	50 bar
Manually opening/closing	Hand pump
Hydraulic oil type	Hydraulic oil no. 32 or 46
Hydraulic hose	3/8 R2 330 bar
Emniyet sistemi	Safety system Wireless safety photocell
Ip standard	IP54
Ambient Operating Temperature	-20°C min +70°C max

Product name

Short description

Full description

<ul><li>يتميز الحاجز الفولاذي بمظهر عصري بفضل هيكله الجمالي، وهو آمن للغاية ومتين بأجزاءه الحديدية الكاملة.</li><li>لا يعرض الحاجز الفولاذي سلامتك أبدًا للخطر من خلال عرض أداء عمل بنسبة 100٪ من خلال نظام العمل الهيدروليكي الخاص به.</li><li>إنه المثال الوحيد للأمن الحديث حيث تتمتع أجزائه الحديدية بمقاومة شديدة للأخطار الخارجية.</li><li>أبعاد المنتج: 6000 × 344 × 3000</li><li>المعلومات التقنية:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="283"><col width="172"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;STEEL BARRIER&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">STEEL BARRIER</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;النوع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">النوع</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40 × 100 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40 × 100 ملم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;البعد الذراع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">البعد الذراع</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3-6 متر.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3-6 متر.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مرور صافي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">مرور صافي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.55-0.75 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">0.55-0.75 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قوة المحرك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">قوة المحرك</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380 فولت 3 فاز 50/60 هرتز&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">380 فولت 3 فاز 50/60 هرتز</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مصدر التيار&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">مصدر التيار</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-Mag أو PLC اختياري&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">T-Mag أو PLC اختياري</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وحدة التحكم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">وحدة التحكم</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;هيدروليكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">هيدروليكي</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نظام العمل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">نظام العمل</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10 ثواني.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">10 ثواني.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وقت مفتوح&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">وقت مفتوح</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;30 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">30 bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ضغط التشغيل دقيقة.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">ضغط التشغيل دقيقة.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;50 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50 bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ضغط التشغيل الأقصى.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">ضغط التشغيل الأقصى.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مضخة يدوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">مضخة يدوية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الفتح/الإغلاق يدويًا&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الفتح/الإغلاق يدويًا</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الزيت الهيدروليكي رقم. 32 أو 46&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الزيت الهيدروليكي رقم. 32 أو 46</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نوع الزيت الهيدروليكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">نوع الزيت الهيدروليكي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3/8 R2 330 bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خرطوم هيدروليكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">خرطوم هيدروليكي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نظام الأمان خلية ضوئية للسلامة اللاسلكية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">نظام الأمان خلية ضوئية للسلامة اللاسلكية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأنظمة الأمنية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الأنظمة الأمنية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP54&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">IP54</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معيار الملكية الفكرية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">معيار الملكية الفكرية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20 درجة مئوية كحد أدنى +70 درجة مئوية كحد أقصى&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">-20 درجة مئوية كحد أدنى +70 درجة مئوية كحد أقصى</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل المحيطة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">درجة حرارة التشغيل المحيطة</td></tr></tbody></table></google-sheets-html-origin><br><br></li></ul>

يتميز الحاجز الفولاذي بمظهر عصري بفضل هيكله الجمالي، وهو آمن للغاية ومتين بأجزاءه الحديدية الكاملة.
لا يعرض الحاجز الفولاذي سلامتك أبدًا للخطر من خلال عرض أداء عمل بنسبة 100٪ من خلال نظام العمل الهيدروليكي الخاص به.
إنه المثال الوحيد للأمن الحديث حيث تتمتع أجزائه الحديدية بمقاومة شديدة للأخطار الخارجية.
أبعاد المنتج: 6000 × 344 × 3000

المعلومات التقنية:

STEEL BARRIER	النوع
40 × 100 ملم	البعد الذراع
3-6 متر.	مرور صافي
0.55-0.75 كيلو واط	قوة المحرك
380 فولت 3 فاز 50/60 هرتز	مصدر التيار
T-Mag أو PLC اختياري	وحدة التحكم
هيدروليكي	نظام العمل
10 ثواني.	وقت مفتوح
30 bar	ضغط التشغيل دقيقة.
50 bar	ضغط التشغيل الأقصى.
مضخة يدوية	الفتح/الإغلاق يدويًا
الزيت الهيدروليكي رقم. 32 أو 46	نوع الزيت الهيدروليكي
3/8 R2 330 bar	خرطوم هيدروليكي
نظام الأمان خلية ضوئية للسلامة اللاسلكية	الأنظمة الأمنية
IP54	معيار الملكية الفكرية
-20 درجة مئوية كحد أدنى +70 درجة مئوية كحد أقصى	درجة حرارة التشغيل المحيطة

Product name

Short description

Full description

<ul><li>Estetik yapısı sayesinde modern bir görüntü sunan Steel Bariyer komple demir aksamı ile oldukça güvenli ve sağlamdır.</li><li>Steel Bariyer hidrolik çalışma sistemiyle %100 çalışma performansı sergileyerek güvenliğinizi asla riske atmaz.</li><li>Demir aksamı dışarıdan gelebilecek tehlikelere karşı son derece dayanıklı yapısıyla modern bir güvenliğin tek örneğidir.</li><li>Ürün Boyutları : 6000 x 344 x 3000</li><li><span data-sheets-root="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Teknik Özellikler&quot;}" data-sheets-userformat="{&quot;2&quot;:513,&quot;3&quot;:{&quot;1&quot;:0},&quot;12&quot;:0}" style="">Teknik Özellikler:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="218"><col width="277"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tip&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Tip</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;STEEL BARRIER&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">STEEL BARRIER</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kol boyutu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Kol boyutu</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40x100mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">40x100mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net geçiş&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Net geçiş</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3-6 mt.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3-6 mt.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Motor gücü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor gücü</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0,55-0,75Kw&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">0,55-0,75Kw</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Besleme gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Besleme gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380V 3 Faz 50/60Hz&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">380V 3 Faz 50/60Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kontrol ünitesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Kontrol ünitesi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-Mag veya isteğe bağlı PLC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">T-Mag veya isteğe bağlı PLC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma sistemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Çalışma sistemi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Açılış zamanı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Açılış zamanı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10 saniye.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">10 saniye.</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma basıncı min.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Çalışma basıncı min.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;30 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">30 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma basıncı maks.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Çalışma basıncı maks.</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;50 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">50 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manuel olarak açma/kapama&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel olarak açma/kapama</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;El pompası&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">El pompası</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik yağ tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik yağ tipi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik yağı no. 32 veya 46&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik yağı no. 32 veya 46</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik hortum&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik hortum</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3/8 R2 330 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Emniyet sistemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Emniyet sistemi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Emniyet sistemi Kablosuz emniyet fotoseli&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Emniyet sistemi Kablosuz emniyet fotoseli</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP standardı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">IP standardı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP54&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">IP54</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ortam Çalışma Sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Ortam Çalışma Sıcaklığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20°C minimum +70°C maksimum&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">-20°C minimum +70°C maksimum</td></tr></tbody></table></google-sheets-html-origin></li></ul>

Estetik yapısı sayesinde modern bir görüntü sunan Steel Bariyer komple demir aksamı ile oldukça güvenli ve sağlamdır.
Steel Bariyer hidrolik çalışma sistemiyle %100 çalışma performansı sergileyerek güvenliğinizi asla riske atmaz.
Demir aksamı dışarıdan gelebilecek tehlikelere karşı son derece dayanıklı yapısıyla modern bir güvenliğin tek örneğidir.
Ürün Boyutları : 6000 x 344 x 3000

Teknik Özellikler:

Tip	STEEL BARRIER
Kol boyutu	40x100mm
Net geçiş	3-6 mt.
Motor gücü	0,55-0,75Kw
Besleme gerilimi	380V 3 Faz 50/60Hz
Kontrol ünitesi	T-Mag veya isteğe bağlı PLC
Çalışma sistemi	Hidrolik
Açılış zamanı	10 saniye.
Çalışma basıncı min.	30 bar
Çalışma basıncı maks.	50 bar
Manuel olarak açma/kapama	El pompası
Hidrolik yağ tipi	Hidrolik yağı no. 32 veya 46
Hidrolik hortum	3/8 R2 330 bar
Emniyet sistemi	Emniyet sistemi Kablosuz emniyet fotoseli
IP standardı	IP54
Ortam Çalışma Sıcaklığı	-20°C minimum +70°C maksimum
