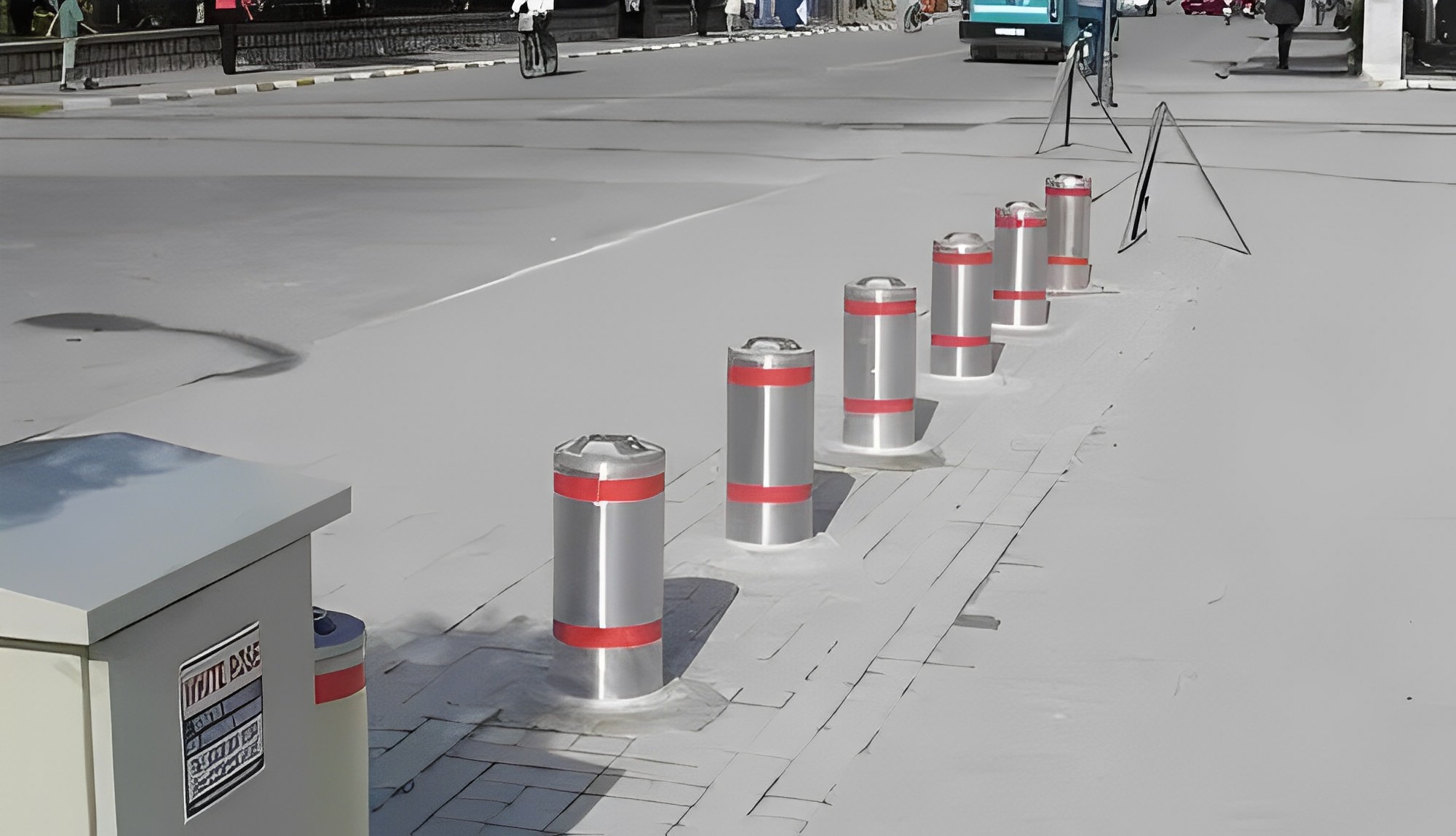

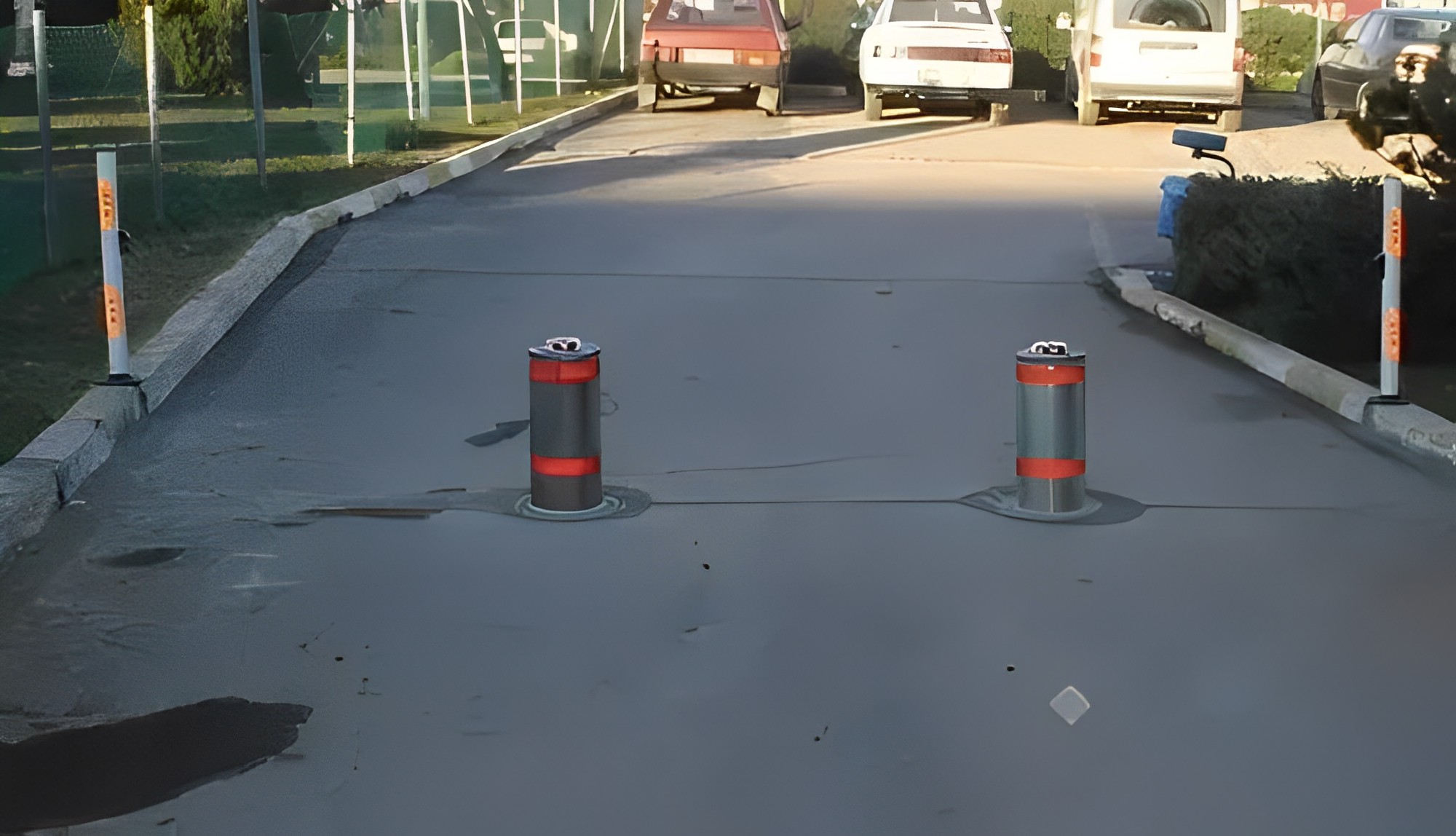

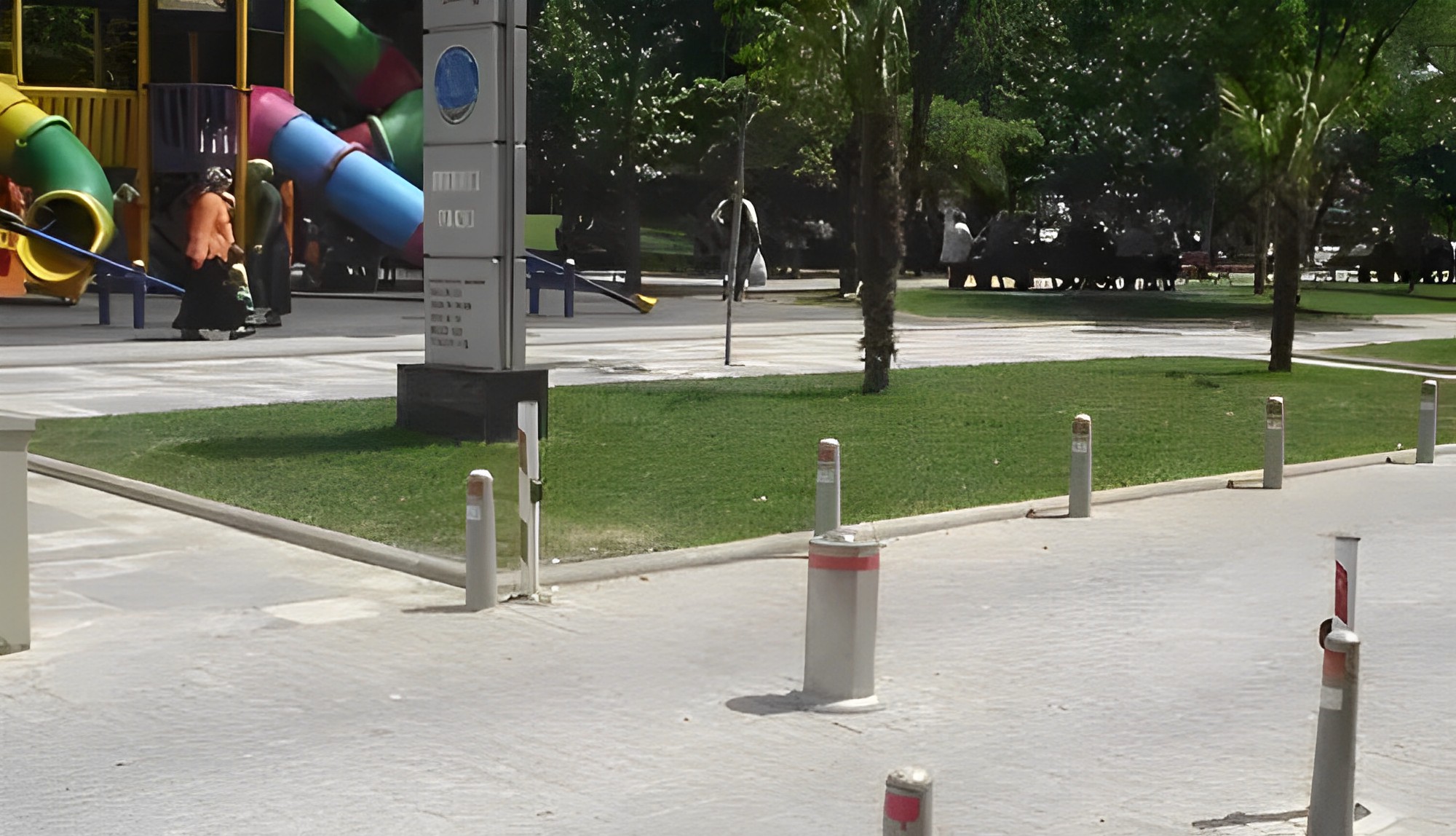

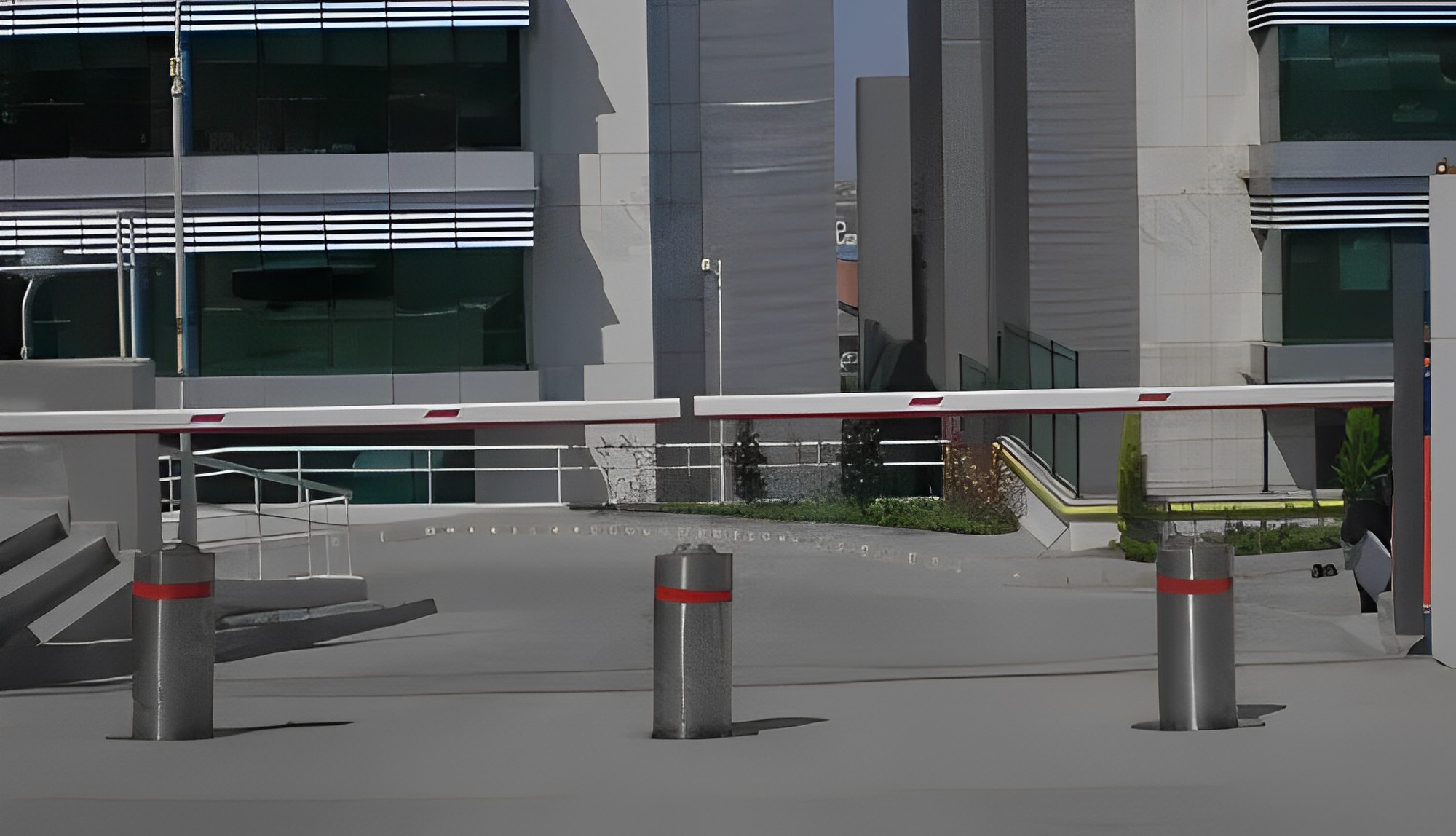

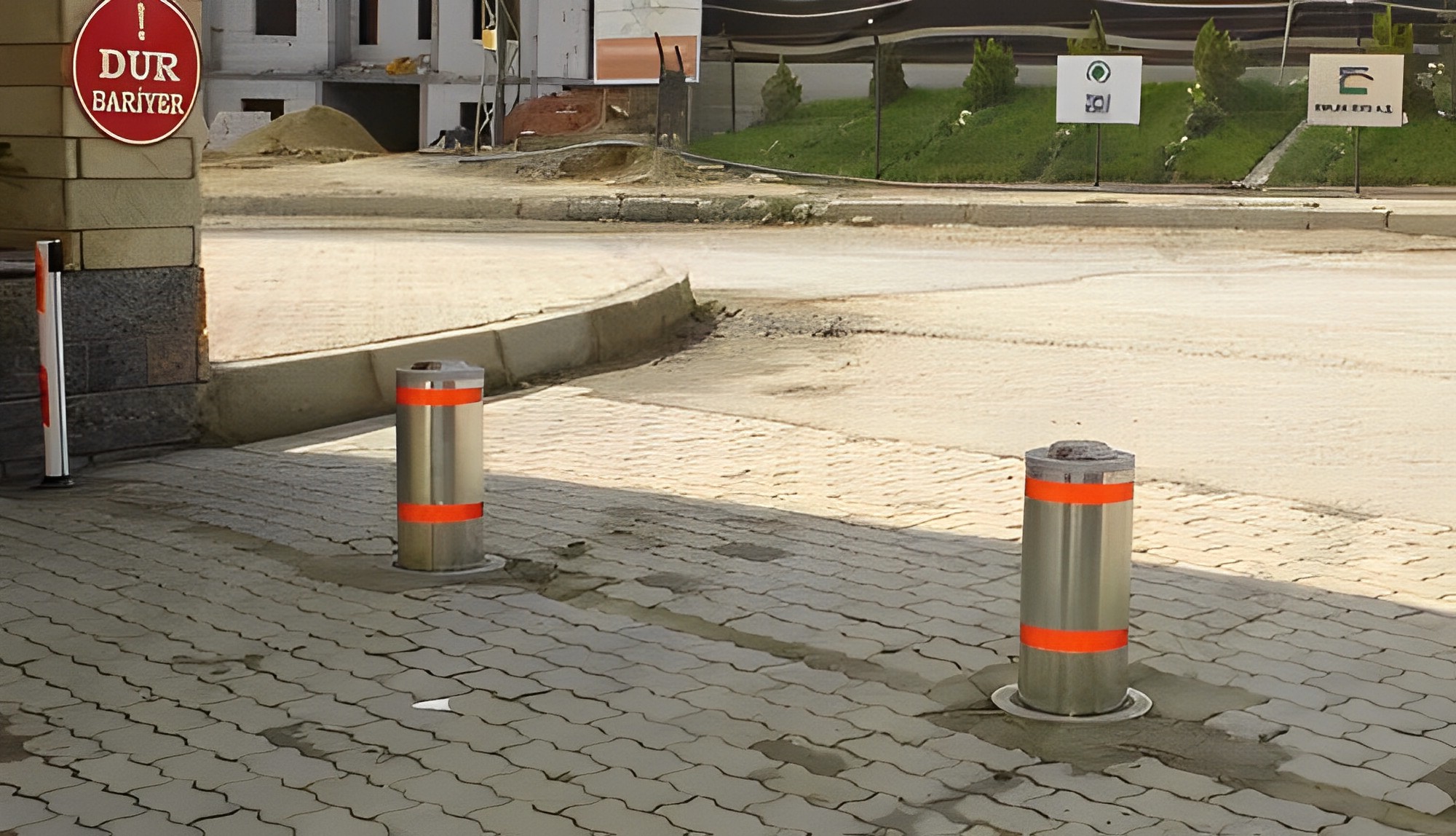

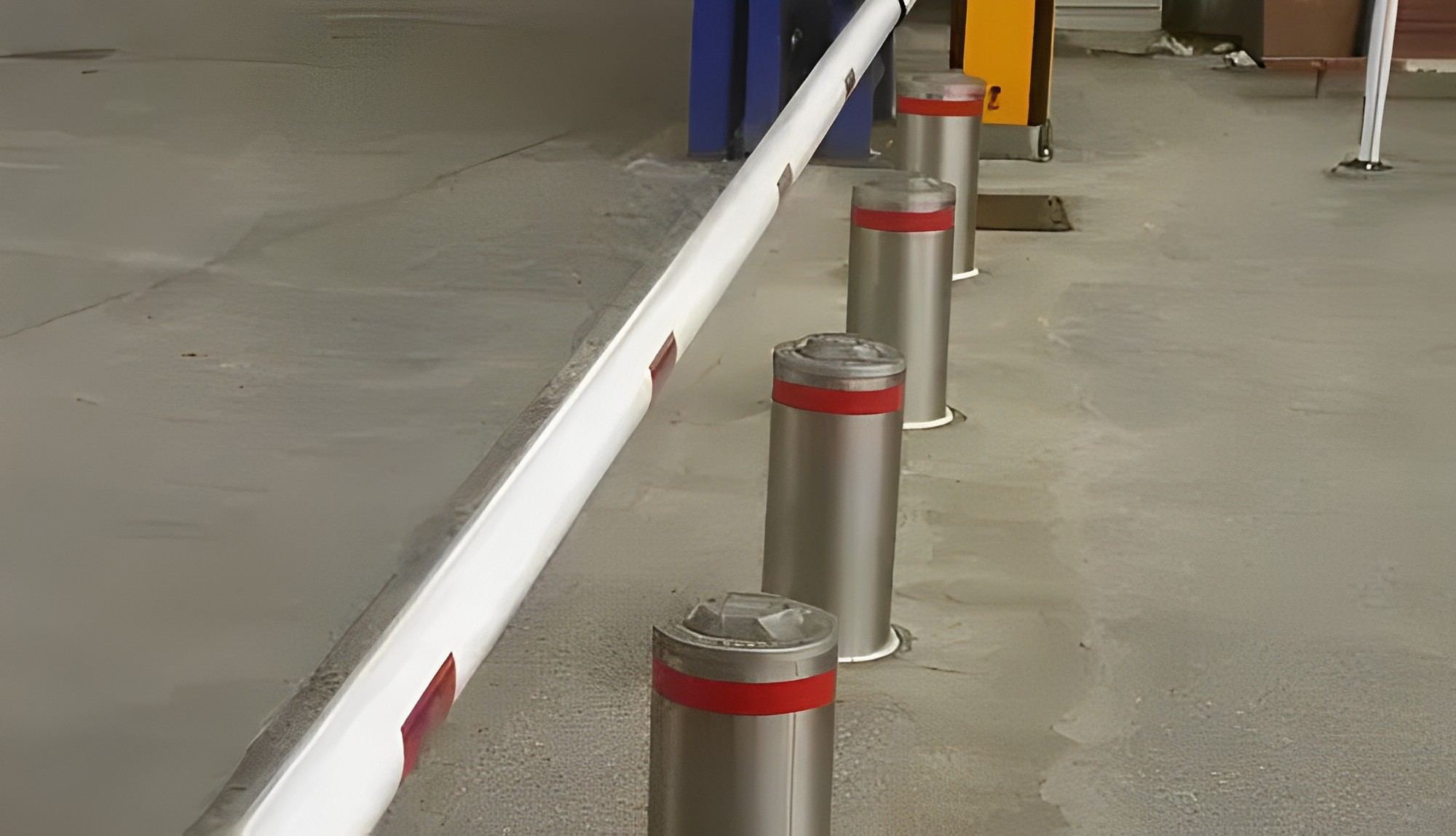

Wherever high security is needed, it is used due to its stainless steel build and hydraulic system technology.

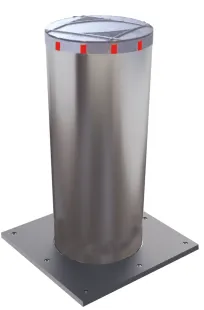

Tank PS Series Rising Bollard is very strong and durable and suitable for heavy duty use as well as being commonly used against
assassination & attack attempts by use of vehicles.
The item offers perfect security performance.

Technical information:

Type	TANK PS SERIES

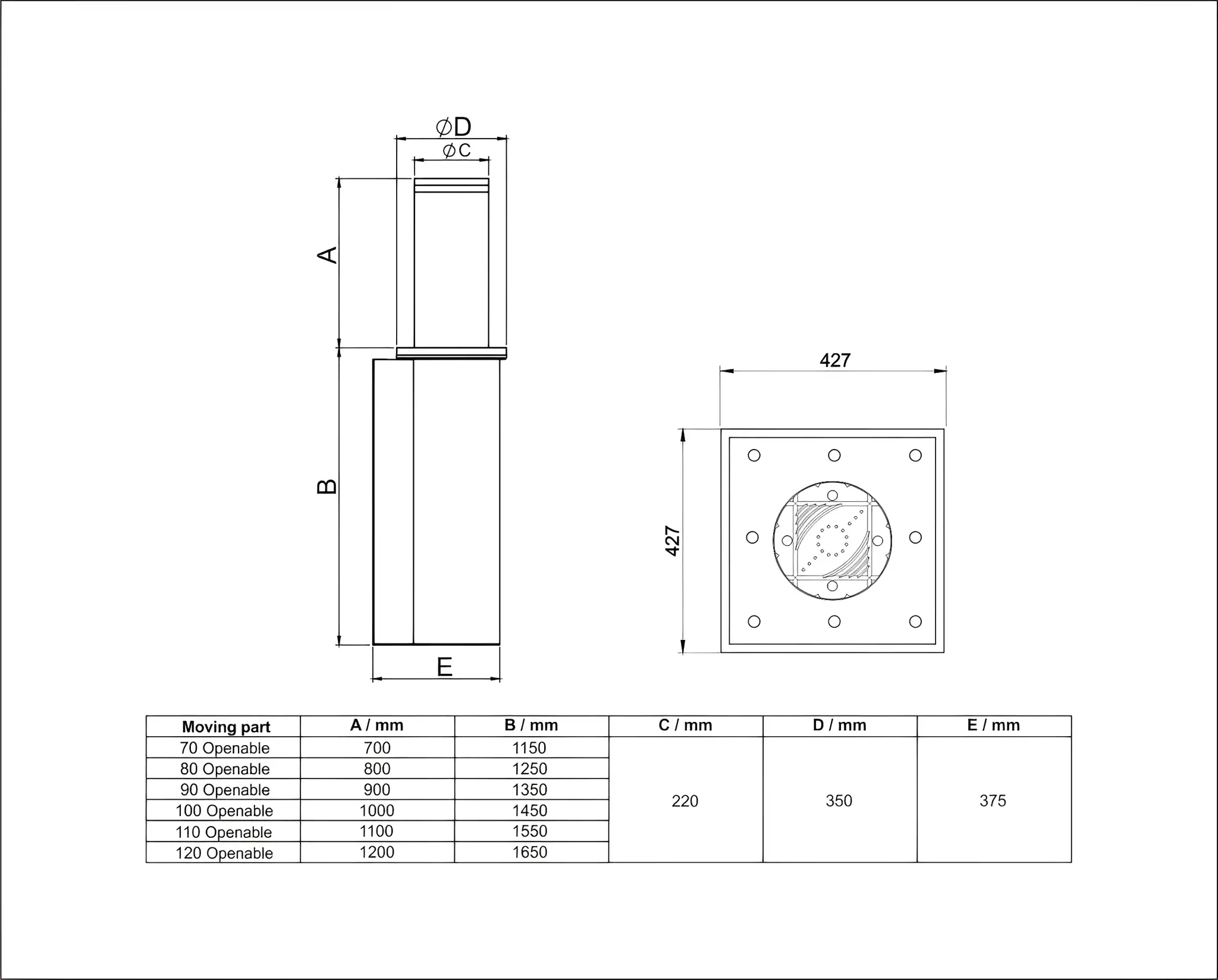

Dimensions	700x220x22mm
Model	TPS-1	TPS-2	TPS-3	TPS-4	TPS-5	TPS-6
Rising bollard number of	Unary	Binary	Triad	Quad	Quinary	Senary
Moving part	On 20mm ST37 steel pipe, 2mm 316 quality, stainless
Working system	Hydraulic
Power source	380 V 3 Phase 50/60 Hz
Control unit	12 input - 8 output PLC
Current draw	2,2 A	4.4 A	6A		8A	11A
Motor power	1.1 KW	2.2 KW	3 KW		4 KW	5,5 KW
Turn on-turn off duration	4-6 seconds
Continuously of operation	100%
Lifting power per rising bollard	628 Kg
Limit switch type	Adjustable motor operational duration
Minimum operational pressure	30 Bar
Maximum operational pressure	50 Bar
Manuel opening	Through ball valve
Manuel shut down	Optional hand pump
Hydraulic oil type	Hydraulic oil No.32 or 46
Rai colour for bollard	Polisage stainless steel
Notification light	Specially designed led system in top-hat
Hydraulic pipe	3/8 R2 330 Bar
Operational temperature	-20°C min +70°C max
Bollard ground weight	246 Kg	246 Kg x 2	246 Kg x 3	246 Kg x 4	246 Kg x 5	246 Kg x 6
