Edit product details - Hydraulic road blocker - operating time 4...

Copy product

Created on

2/14/2024 10:50:09 AM

Updated on

2/20/2024 10:55:57 AM

URL of the product page

https://alderishop.com/hydraulic-road-blocker-operating-time-4-seconds-2/

Product type

Published

Visibility

Product name

Short description

Full description

<ul><li>Defender Road Blocker's strength is at IWA 14 standards It is designedso that even after colliding with a vehicle, it can still operate.</li><li>Doesn’t require deep-digging of the ground.</li><li>Offers safe passage for the user meanwhile providing optimal security.</li><li><span data-sheets-root="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technical information:&quot;}" data-sheets-userformat="{&quot;2&quot;:513,&quot;3&quot;:{&quot;1&quot;:0},&quot;12&quot;:0}">Technical information:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="217"><col width="193"><col width="174"><col width="161"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Type&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Type</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DEFENDER SERIES&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">DEFENDER SERIES</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Model&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Model</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF200&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF200</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF300&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF300</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF400</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Length</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2 mt</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3 mt</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4 mt</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Moving part&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Moving part</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheets are S235JR Quality steel - Top sheet 10mm / Front and lateral sheets 3-4mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Sheets are S235JR Quality steel - Top sheet 10mm / Front and lateral sheets 3-4mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Working system&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Working system</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Hydraulic</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Power source&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Power source</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380 V 3 Phase 50/60 Hz&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">380 V 3 Phase 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Control unit&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Control unit</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-MAG control unit / optional PLC&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">T-MAG control unit / optional PLC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Current draw&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Current draw</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,8 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3,8 A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,15 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">5,15 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Motor power&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor power</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,5 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1,5 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,2 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2,2 KW</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Number of pistons&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Number of pistons</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Single Piston&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Single Piston</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Double Piston&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Double Piston</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Turn on-turn off duration&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Turn on-turn off duration</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4-6 second&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4-6 second</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Continuously of operation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Continuously of operation</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:1}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Lifting power&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Lifting power</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;900 Kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">900 Kg</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1800 Kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1800 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Limit switch type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Limit switch type</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Adjustable motor operation duration&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Adjustable motor operation duration</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Minimum operational pressure&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Minimum operational pressure</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;20 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">20 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maximum operational pressure&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Maximum operational pressure</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">75 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manuel opening&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel opening</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Through ball valve&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Through ball valve</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manuel shutdown&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel shutdown</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional hand pump&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Optional hand pump</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic oil type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil type</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32 or 46 Number hydraulic oil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">32 or 46 Number hydraulic oil</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hydraulic pipe&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic pipe</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3/8 R2 330 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operational temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Operational temperature</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20°C min +70°C max&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20°C min +70°C max</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Accumulator support&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Accumulator support</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;None&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">None</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Emergency shut down&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Emergency shut down</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Optional</td></tr></tbody></table></google-sheets-html-origin></span></li></ul>

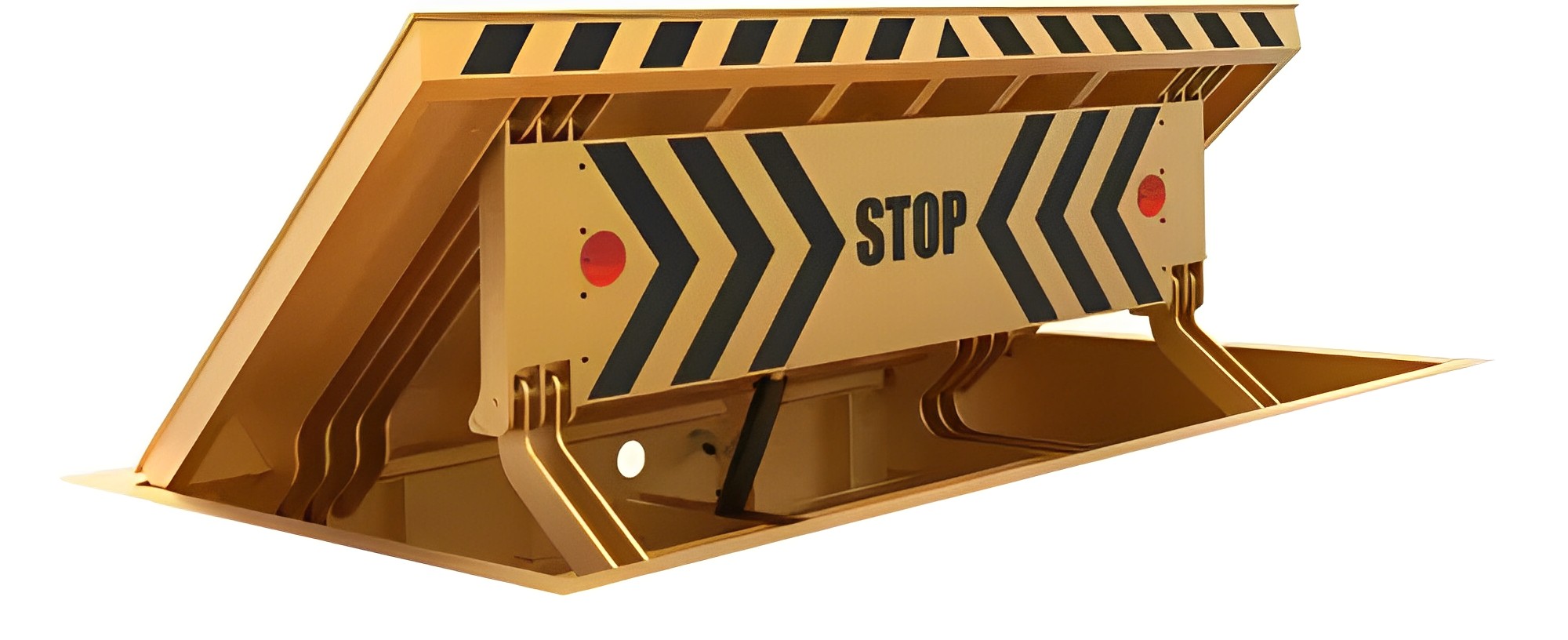

Defender Road Blocker's strength is at IWA 14 standards It is designedso that even after colliding with a vehicle, it can still operate.
Doesn’t require deep-digging of the ground.
Offers safe passage for the user meanwhile providing optimal security.

Technical information:

Type	DEFENDER SERIES
Model	WDF200	WDF300	WDF400
Length	2 mt	3 mt	4 mt
Moving part	Sheets are S235JR Quality steel - Top sheet 10mm / Front and lateral sheets 3-4mm
Working system	Hydraulic
Power source	380 V 3 Phase 50/60 Hz
Control unit	T-MAG control unit / optional PLC
Current draw	3,8 A		5,15 A
Motor power	1,5 KW		2,2 KW
Number of pistons	Single Piston		Double Piston
Turn on-turn off duration	4-6 second
Continuously of operation	100%
Lifting power	900 Kg		1800 Kg
Limit switch type	Adjustable motor operation duration
Minimum operational pressure	20 Bar
Maximum operational pressure	75 Bar
Manuel opening	Through ball valve
Manuel shutdown	Optional hand pump
Hydraulic oil type	32 or 46 Number hydraulic oil
Hydraulic pipe	3/8 R2 330 Bar
Operational temperature	-20°C min +70°C max
Accumulator support	None
Emergency shut down	Optional

Product name

Short description

Full description

Defender Road Blocker's strength is at IWA 14 standards It is designedso that even after colliding with a vehicle, it can still operate.
Doesn’t require deep-digging of the ground.
Offers safe passage for the user meanwhile providing optimal security.

Technical information:

Type	DEFENDER SERIES
Model	WDF200	WDF300	WDF400
Length	2 mt	3 mt	4 mt
Moving part	Sheets are S235JR Quality steel - Top sheet 10mm / Front and lateral sheets 3-4mm
Working system	Hydraulic
Power source	380 V 3 Phase 50/60 Hz
Control unit	T-MAG control unit / optional PLC
Current draw	3,8 A		5,15 A
Motor power	1,5 KW		2,2 KW
Number of pistons	Single Piston		Double Piston
Turn on-turn off duration	4-6 second
Continuously of operation	100%
Lifting power	900 Kg		1800 Kg
Limit switch type	Adjustable motor operation duration
Minimum operational pressure	20 Bar
Maximum operational pressure	75 Bar
Manuel opening	Through ball valve
Manuel shutdown	Optional hand pump
Hydraulic oil type	32 or 46 Number hydraulic oil
Hydraulic pipe	3/8 R2 330 Bar
Operational temperature	-20°C min +70°C max
Accumulator support	None
Emergency shut down	Optional

Product name

Short description

Full description

<ul><li>تم تصميمه وفقًا لمعايير IWA 14، لمواصلة العمل حتى في ظل التأثيرات القوية للمركبة.</li><li>إنه لا يتنازل عن الأمان الأمثل حتى في المناطق التي لا يمكن حفرها بعمق، ويوفر تحكمًا آمنًا في الوصول للمستخدم من خلال أداء التشغيل المستمر.</li><li>المعلومات التقنية:<br><font color="#000000" face="Arial"><span style="font-size: 13.3333px;"><br></span><google-sheets-html-origin style="font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="150"><col width="175"><col width="182"><col width="181"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DEFENDER SERIES&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">DEFENDER SERIES</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;النوع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">النوع</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF200&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF200</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF300&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF300</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF400</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الموديل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الموديل</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2 طن متر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2 متر</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3 طن متر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3 متر</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4 طن متر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4 متر</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الطول&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الطول</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الصفائح مصنوعة من الفولاذ عالي الجودة S235JR - الصفائح العلوية 10 مم / الصفائح الأمامية والجانبية 3-4 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">الصفائح مصنوعة من الفولاذ عالي الجودة S235JR - الصفائح العلوية 10 مم / الصفائح الأمامية والجانبية 3-4 مم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جزء متحرك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">جزء متحرك</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;هيدروليكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">هيدروليكي</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نظام العمل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">نظام العمل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380 فولت 3 مراحل 50/60 هرتز&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">380 فولت 3 مراحل 50/60 هرتز</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مصدر الطاقة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">مصدر الطاقة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وحدة التحكم T-MAG / PLC اختياري&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">وحدة التحكم T-MAG / PLC اختياري</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وحدة التحكم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">وحدة التحكم</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,8 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3,8 A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,15 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">5,15 A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;السحب الحالي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">السحب الحالي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,5 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1,5 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,2 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2,2 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قوة المحرك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">قوة المحرك</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مكبس واحد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">مكبس واحد</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مكابس مزدوجة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">مكابس مزدوجة</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عدد المكابس&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">عدد المكابس</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4-6 ثانية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4-6 ثانية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تشغيل وإيقاف المدة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">تشغيل وإيقاف المدة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:1}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;استمرارية التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">استمرارية التشغيل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;900 كجم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">900 كجم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1800 كجم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1800 كجم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قوة الرفع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">قوة الرفع</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مدة تشغيل المحرك قابلة للتعديل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">مدة تشغيل المحرك قابلة للتعديل</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحد من نوع التبديل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الحد من نوع التبديل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;20 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">20 Bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحد الأدنى من الضغط التشغيلي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الحد الأدنى من الضغط التشغيلي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">75 Bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أقصى ضغط تشغيلي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">أقصى ضغط تشغيلي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;صمام عالمي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">صمام عالمي</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;افتتاح مانويل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">افتتاح مانويل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مضخة يدوية اختيارية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">مضخة يدوية اختيارية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;إغلاق مانويل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">إغلاق مانويل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عدد 32 أو 46 زيت هيدروليك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">عدد 32 أو 46 زيت هيدروليك</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نوع الزيت الهيدروليكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">نوع الزيت الهيدروليكي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3/8 R2 330 Bar</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأنابيب الهيدروليكية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">الأنابيب الهيدروليكية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">درجة حرارة التشغيل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غير متاح&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">غير متاح</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دعم المجمع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">دعم المجمع</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خياري&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">خياري</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;إغلاق طارئ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">إغلاق طارئ</td></tr></tbody></table></google-sheets-html-origin></font></li></ul>

تم تصميمه وفقًا لمعايير IWA 14، لمواصلة العمل حتى في ظل التأثيرات القوية للمركبة.
إنه لا يتنازل عن الأمان الأمثل حتى في المناطق التي لا يمكن حفرها بعمق، ويوفر تحكمًا آمنًا في الوصول للمستخدم من خلال أداء التشغيل المستمر.

المعلومات التقنية:

DEFENDER SERIES			النوع
WDF200	WDF300	WDF400	الموديل
2 متر	3 متر	4 متر	الطول
الصفائح مصنوعة من الفولاذ عالي الجودة S235JR - الصفائح العلوية 10 مم / الصفائح الأمامية والجانبية 3-4 مم			جزء متحرك
هيدروليكي			نظام العمل
380 فولت 3 مراحل 50/60 هرتز			مصدر الطاقة
وحدة التحكم T-MAG / PLC اختياري			وحدة التحكم
3,8 A		5,15 A	السحب الحالي
1,5 كيلو واط		2,2 كيلو واط	قوة المحرك
مكبس واحد		مكابس مزدوجة	عدد المكابس
4-6 ثانية			تشغيل وإيقاف المدة
100%			استمرارية التشغيل
900 كجم		1800 كجم	قوة الرفع
مدة تشغيل المحرك قابلة للتعديل			الحد من نوع التبديل
20 Bar			الحد الأدنى من الضغط التشغيلي
75 Bar			أقصى ضغط تشغيلي
صمام عالمي			افتتاح مانويل
مضخة يدوية اختيارية			إغلاق مانويل
عدد 32 أو 46 زيت هيدروليك			نوع الزيت الهيدروليكي
3/8 R2 330 Bar			الأنابيب الهيدروليكية
-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى			درجة حرارة التشغيل
غير متاح			دعم المجمع
خياري			إغلاق طارئ

Product name

Short description

Full description

<ul><li>IWA 14 standartlarında üretilmekte olan Defender Road Blocker güçlü araç çarpmalarında bile çalışmaya devam edebilecek şekilde tasarlanmıştır.</li><li>Derin kazılamayan alanlarda bile optimum güvenlikten ödün vermemekte olup sürekli çalışma performansıyla kullanıcıya güvenli geçiş kontrolü sağlamaktadır.</li><li><span data-sheets-root="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Teknik Özellikler&quot;}" data-sheets-userformat="{&quot;2&quot;:513,&quot;3&quot;:{&quot;1&quot;:0},&quot;12&quot;:0}" style="">Teknik Özellikler:<br><br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="217"><col width="193"><col width="174"><col width="161"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tip&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Tip</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DEFENDER SERIES&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">DEFENDER SERIES</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Modeli&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Modeli</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF200&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF200</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF300&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF300</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WDF400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">WDF400</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Uzunluk&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Uzunluk</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2 mt</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3 mt</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4 mt&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4 mt</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hareketli parça&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hareketli parça</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Saclar S235JR Kalite çeliktir - Üst sac 10mm / Ön ve yan saclar 3-4mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Saclar S235JR Kalite çeliktir - Üst sac 10mm / Ön ve yan saclar 3-4mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma sistemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Çalışma sistemi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Hidrolik</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Güç kaynağı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Güç kaynağı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;380 V 3 Faz 50/60 Hz&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">380 V 3 Faz 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kontrol ünitesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Kontrol ünitesi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;T-MAG kontrol ünitesi / opsiyonel PLC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">T-MAG kontrol ünitesi / opsiyonel PLC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mevcut çizim&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Mevcut çizim</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,8 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3,8 A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,15 A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">5,15 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Motor gücü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor gücü</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,5 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1,5 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,2 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2,2 KW</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Piston sayısı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Piston sayısı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tek Pistonlu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Tek Pistonlu</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çift Pistonlu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Çift Pistonlu</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Açma-kapama süresi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Açma-kapama süresi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4-6 saniye&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4-6 saniye</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sürekli çalışma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Sürekli çalışma</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:1}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kaldırma gücü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Kaldırma gücü</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;900 Kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">900 Kg</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1800 Kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1800 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Limit anahtarı tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Limit anahtarı tipi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ayarlanabilir motor çalışma süresi&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Ayarlanabilir motor çalışma süresi</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Minimum çalışma basıncı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Minimum çalışma basıncı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;20 bar&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">20 bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maksimum çalışma basıncı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Maksimum çalışma basıncı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 Bar&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">75 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manuel açma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel açma</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Küresel vana aracılığıyla&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Küresel vana aracılığıyla</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Manuel kapatma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel kapatma</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Opsiyonel el pompası&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Opsiyonel el pompası</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik yağ tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik yağ tipi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32 veya 46 Numara hidrolik yağı&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">32 veya 46 Numara hidrolik yağı</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hidrolik boru&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hidrolik boru</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3/8 R2 330 Bar&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3/8 R2 330 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Çalışma sıcaklığı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-20°C minimum +70°C maksimum&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20°C minimum +70°C maksimum</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Akümülatör desteği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Akümülatör desteği</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hiçbiri&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Hiçbiri</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Acil kapatma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Acil kapatma</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İsteğe bağlı&quot;}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">İsteğe bağlı</td></tr></tbody></table></google-sheets-html-origin></span><br></li></ul>

IWA 14 standartlarında üretilmekte olan Defender Road Blocker güçlü araç çarpmalarında bile çalışmaya devam edebilecek şekilde tasarlanmıştır.
Derin kazılamayan alanlarda bile optimum güvenlikten ödün vermemekte olup sürekli çalışma performansıyla kullanıcıya güvenli geçiş kontrolü sağlamaktadır.

Teknik Özellikler:

Tip	DEFENDER SERIES
Modeli	WDF200	WDF300	WDF400
Uzunluk	2 mt	3 mt	4 mt
Hareketli parça	Saclar S235JR Kalite çeliktir - Üst sac 10mm / Ön ve yan saclar 3-4mm
Çalışma sistemi	Hidrolik
Güç kaynağı	380 V 3 Faz 50/60 Hz
Kontrol ünitesi	T-MAG kontrol ünitesi / opsiyonel PLC
Mevcut çizim	3,8 A		5,15 A
Motor gücü	1,5 KW		2,2 KW
Piston sayısı	Tek Pistonlu		Çift Pistonlu
Açma-kapama süresi	4-6 saniye
Sürekli çalışma	100%
Kaldırma gücü	900 Kg		1800 Kg
Limit anahtarı tipi	Ayarlanabilir motor çalışma süresi
Minimum çalışma basıncı	20 bar
Maksimum çalışma basıncı	75 Bar
Manuel açma	Küresel vana aracılığıyla
Manuel kapatma	Opsiyonel el pompası
Hidrolik yağ tipi	32 veya 46 Numara hidrolik yağı
Hidrolik boru	3/8 R2 330 Bar
Çalışma sıcaklığı	-20°C minimum +70°C maksimum
Akümülatör desteği	Hiçbiri
Acil kapatma	İsteğe bağlı
