Edit product details -

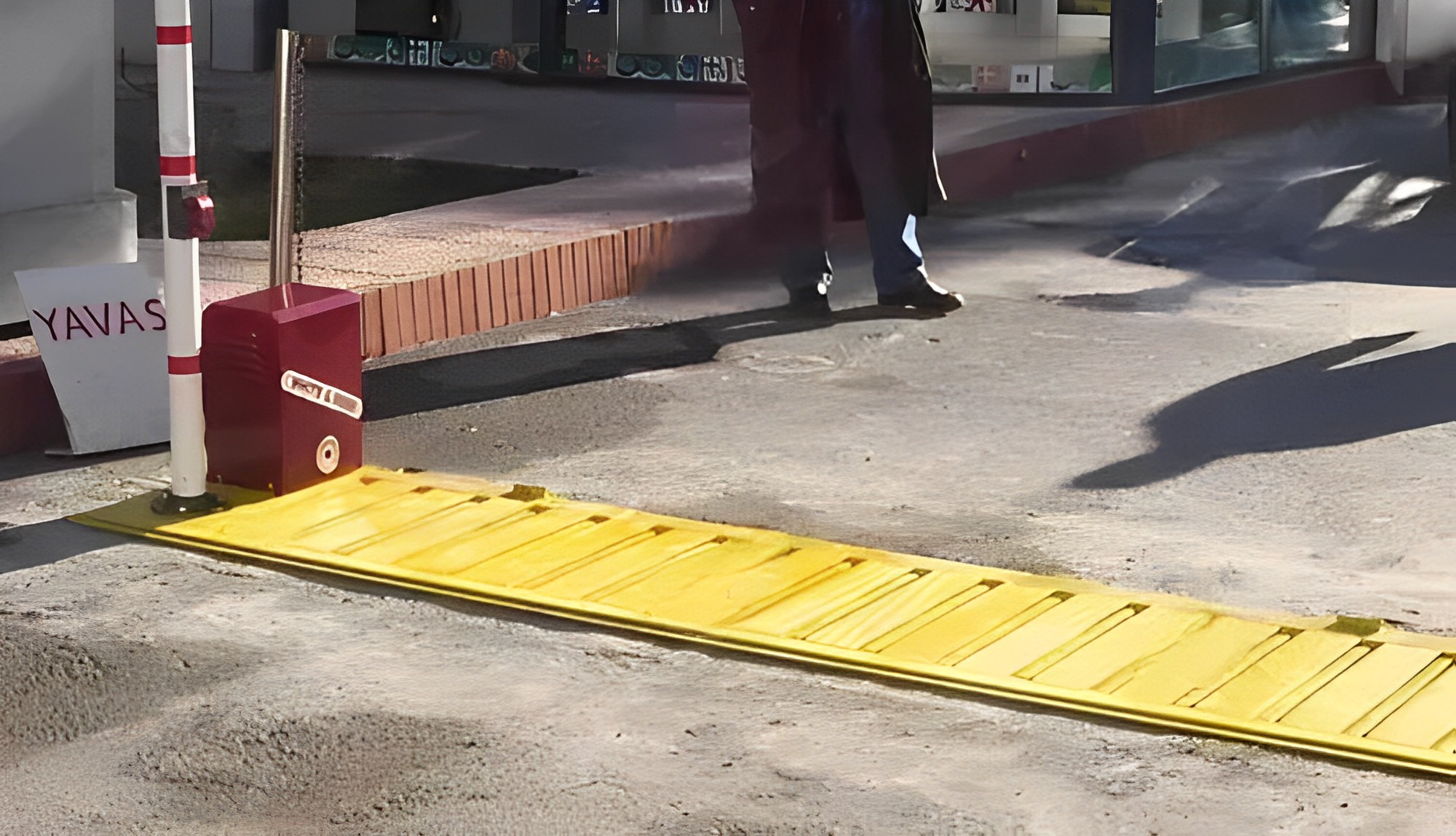

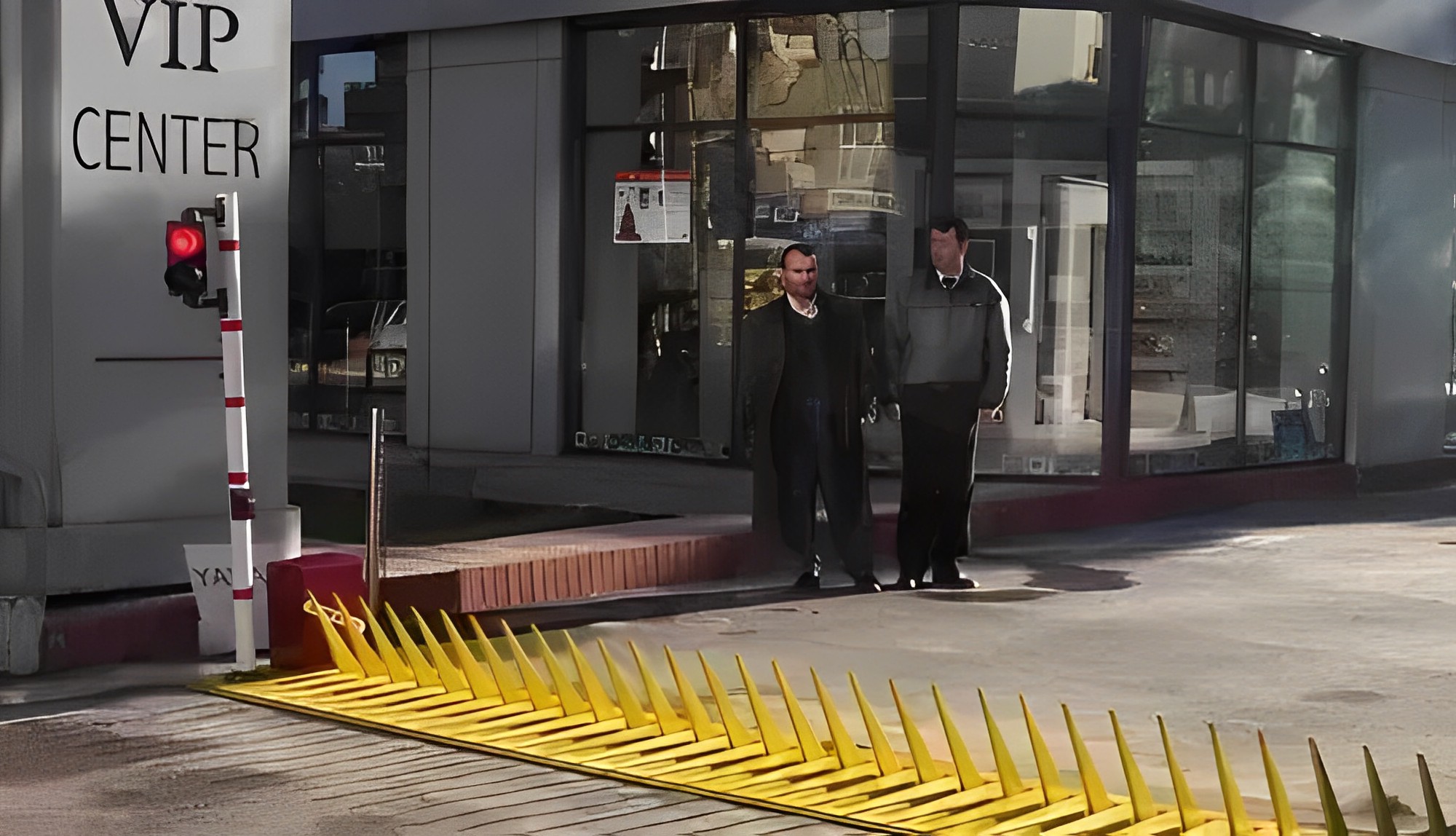

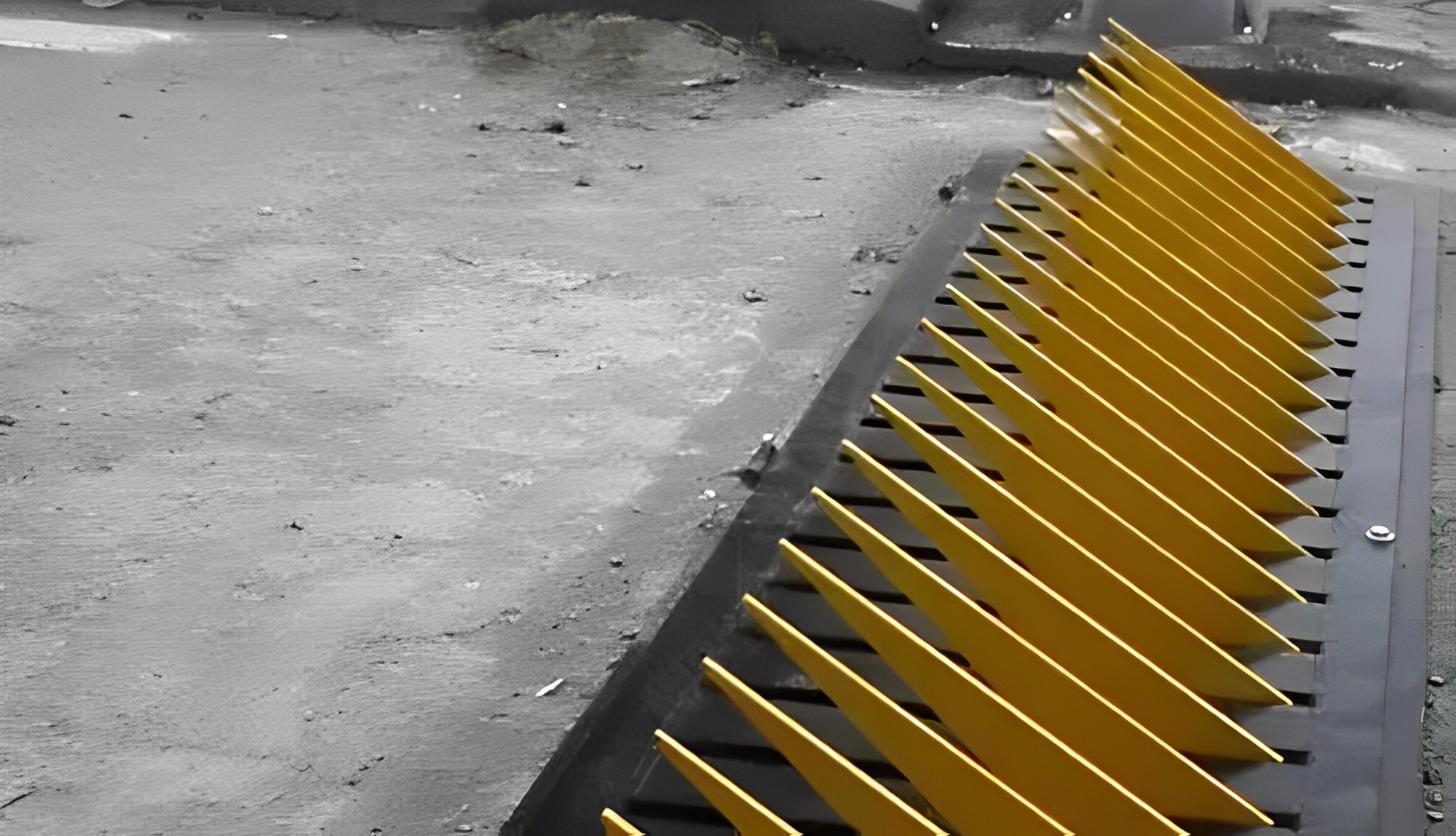

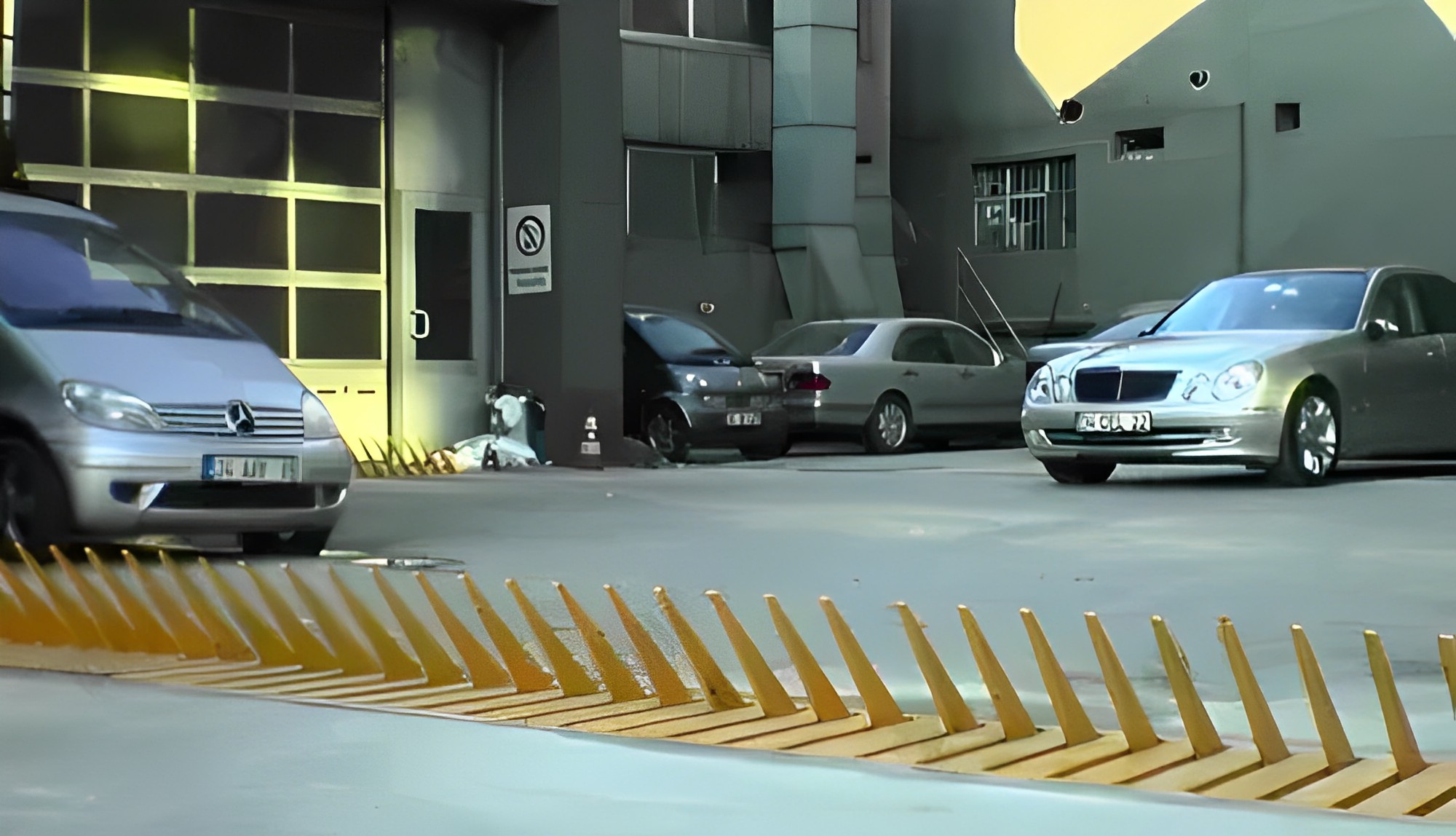

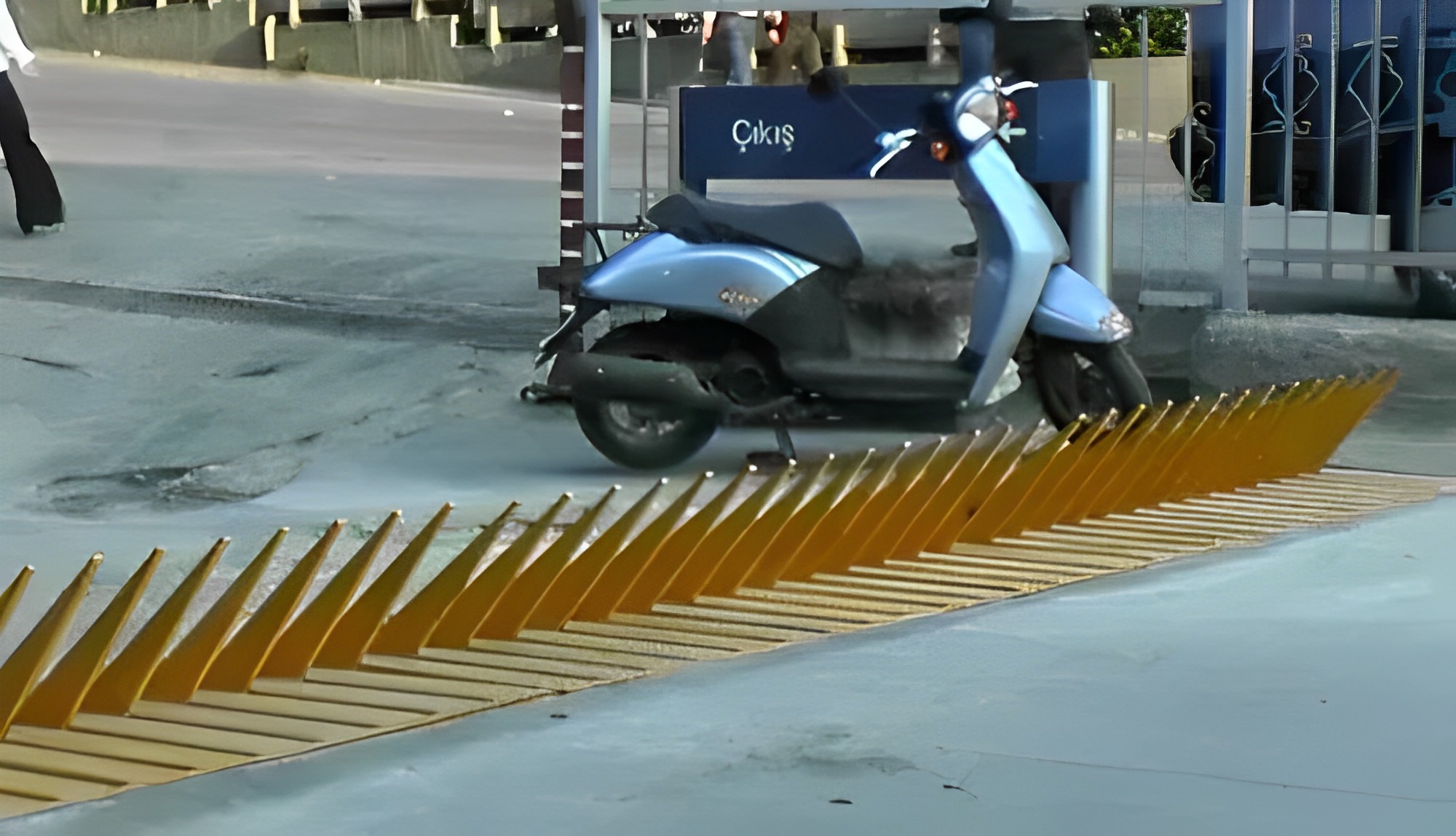

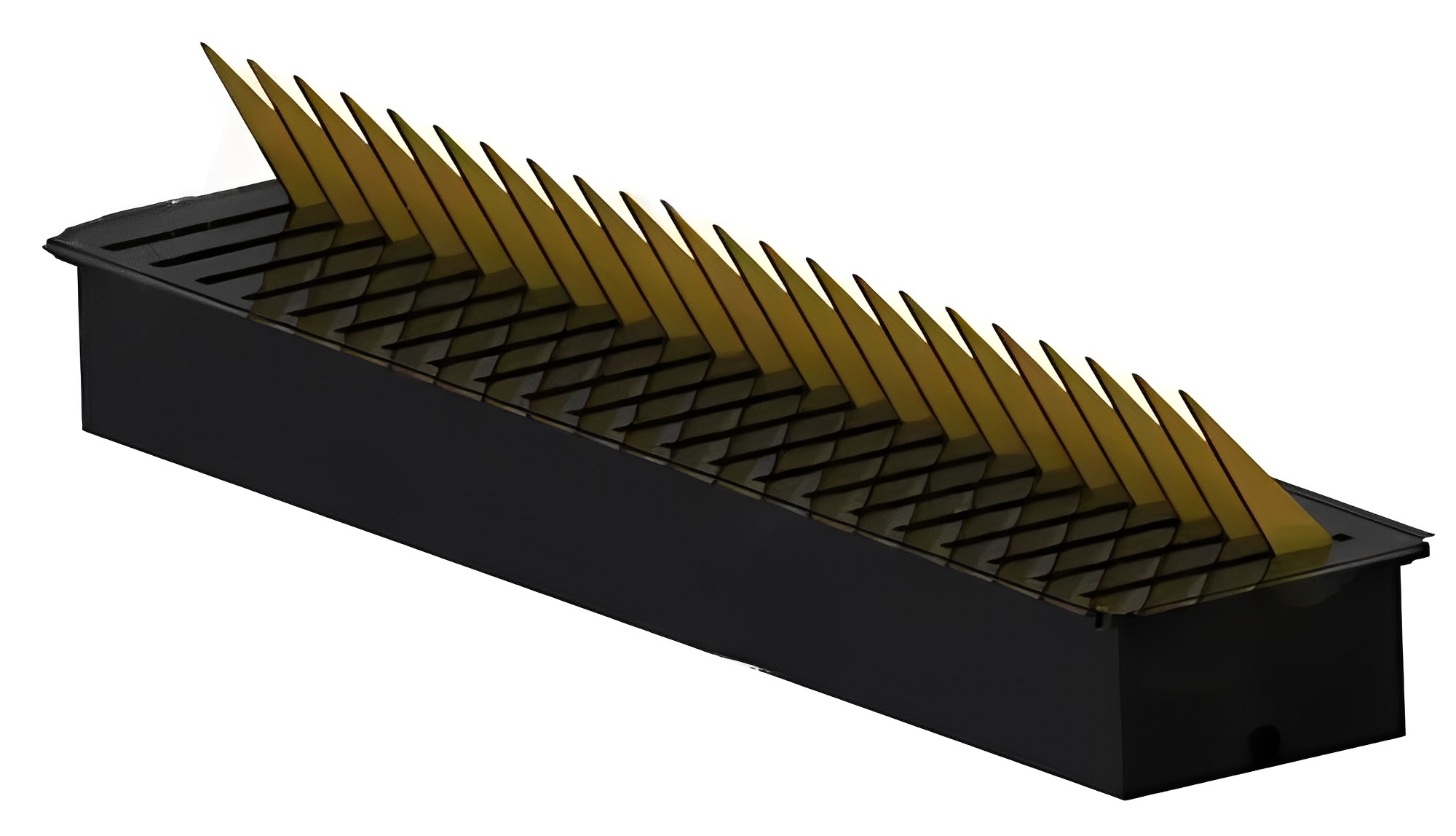

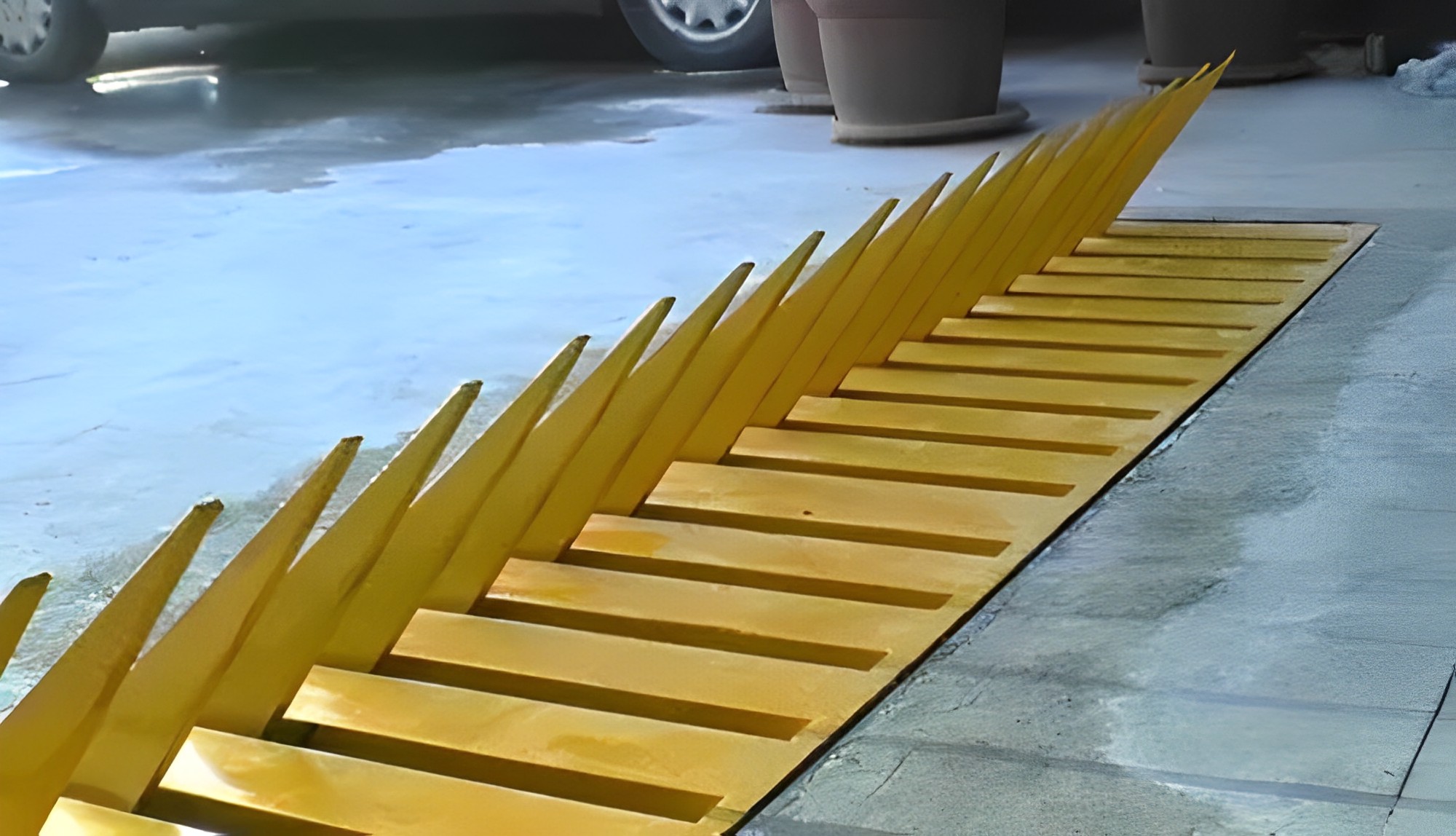

Fork barrier for vehicles - height 300 mm
Preview
Save
Save and Continue Edit
Copy product
Delete
ID
Created on
2/14/2024 10:50:09 AM
Updated on
2/29/2024 1:03:21 PM
URL of the product page
https://alderishop.com/fork-barrier-for-vehicles-height-300-mm-2/
Product type
Simple product
Grouped product
Bundled product
Published
Visibility
Fully visible
In search results
On product detail pages
Not visible
Product template
Default Product Template
Standard
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Product name
Short description
Full description
<ul><li>While other traps only puncture a car's tyres, with their 300mm high and 20mm thick steel blades, they cause significant damage to theunderside of the car and prevent the car from entering.</li><li>Technical information:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="223"><col width="96"><col width="95"><col width="115"><col width="105"><col width="100"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Type"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Type</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"APACHI SERIES"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APACHI SERIES</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Dimensions"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Dimensions</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"H.30cm openable"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">H.30cm openable</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Model"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Model</td><td data-sheets-value="{"1":2,"2":"APC3702 "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APC3702</td><td data-sheets-value="{"1":2,"2":"APC3703"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APC3703</td><td data-sheets-value="{"1":2,"2":"APC3704 "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APC3704</td><td data-sheets-value="{"1":2,"2":"APC3705 "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APC3705</td><td data-sheets-value="{"1":2,"2":"APC3706"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">APC3706</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Length"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Length</td><td data-sheets-value="{"1":2,"2":"2 mt"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2 mt</td><td data-sheets-value="{"1":2,"2":" 3 mt"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3 mt</td><td data-sheets-value="{"1":2,"2":"4 mt"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">4 mt</td><td data-sheets-value="{"1":2,"2":" 5 mt "}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">5 mt</td><td data-sheets-value="{"1":2,"2":"6 mt"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">6 mt</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Moving part"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Moving part</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"ST 37 Quality Steel Sheet 20mm thickness 1500mm blade length"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; text-align: center;">ST 37 Quality Steel Sheet 20mm thickness 1500mm blade length</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Working system"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Working system</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"Hydraulic"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Hydraulic</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Power source"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Power source</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"380 V 3 Phase 50/60 Hz"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">380 V 3 Phase 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Control unit"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Control unit</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"T-MAG control unit or (optional PLC)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">T-MAG control unit or (optional PLC)</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Current draw"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Current draw</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"1,58 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1,58 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Motor power"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Motor power</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"0,55 KW"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">0,55 KW</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Number of pistons"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Number of pistons</td><td rowspan="1" colspan="2" data-sheets-value="{"1":3,"3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1</td><td rowspan="1" colspan="3" data-sheets-value="{"1":3,"3":2}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">2</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Turn on-turn off duration"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Turn on-turn off duration</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"4-6sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; text-align: center;">4-6sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Continuously of operation"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Continuously of operation</td><td rowspan="1" colspan="5" data-sheets-value="{"1":3,"3":1}" data-sheets-numberformat="{"1":3,"2":"0%","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; text-align: center;">100%</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Lifting power"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Lifting power</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"500 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">500 Kg</td><td rowspan="1" colspan="3" data-sheets-value="{"1":2,"2":"1000 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">1000 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Limit switch type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Limit switch type</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"Adjustable motor operation duration"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Adjustable motor operation duration</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Minimum operational pressure"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Minimum operational pressure</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"20 Bar"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">20 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maximum operational pressure"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Maximum operational pressure</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"75 Bar"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">75 Bar</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Manuel opening"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel opening</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"Through ball valve"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Through ball valve</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Manuel shut down"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Manuel shut down</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"Optional hand pump"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Optional hand pump</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Hydraulic oil type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic oil type</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"Hydraulic oil No.32 or 46"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Hydraulic oil No.32 or 46</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Hydraulic pipe"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Hydraulic pipe</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"3/8 R2 330 Bars"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">3/8 R2 330 Bars</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Operational temperature"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Operational temperature</td><td rowspan="1" colspan="5" data-sheets-value="{"1":2,"2":"-20aC min +70‘C max"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20aC min +70‘C max</td></tr></tbody></table></google-sheets-html-origin></li></ul>
While other traps only puncture a car's tyres, with their 300mm high and 20mm thick steel blades, they cause significant damage to theunderside of the car and prevent the car from entering.
Technical information:
Type
APACHI SERIES

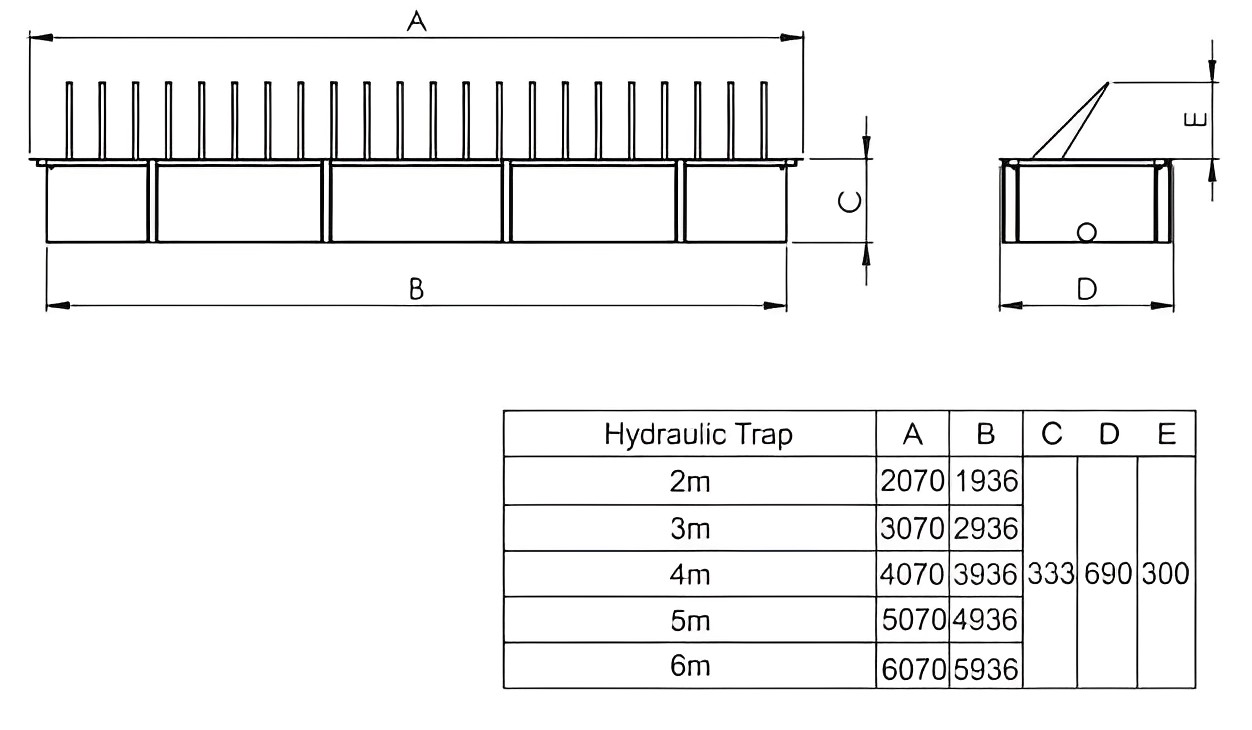

Dimensions
H.30cm openable
Model
APC3702
APC3703
APC3704
APC3705
APC3706
Length
2 mt
3 mt
4 mt
5 mt
6 mt
Moving part
ST 37 Quality Steel Sheet 20mm thickness 1500mm blade length
Working system
Hydraulic
Power source
380 V 3 Phase 50/60 Hz
Control unit
T-MAG control unit or (optional PLC)
Current draw
1,58 A
Motor power
0,55 KW
Number of pistons
1
2
Turn on-turn off duration
4-6sn
Continuously of operation
100%
Lifting power
500 Kg
1000 Kg
Limit switch type
Adjustable motor operation duration
Minimum operational pressure
20 Bar
Maximum operational pressure
75 Bar
Manuel opening
Through ball valve
Manuel shut down
Optional hand pump
Hydraulic oil type
Hydraulic oil No.32 or 46
Hydraulic pipe
3/8 R2 330 Bars
Operational temperature
-20aC min +70‘C max
