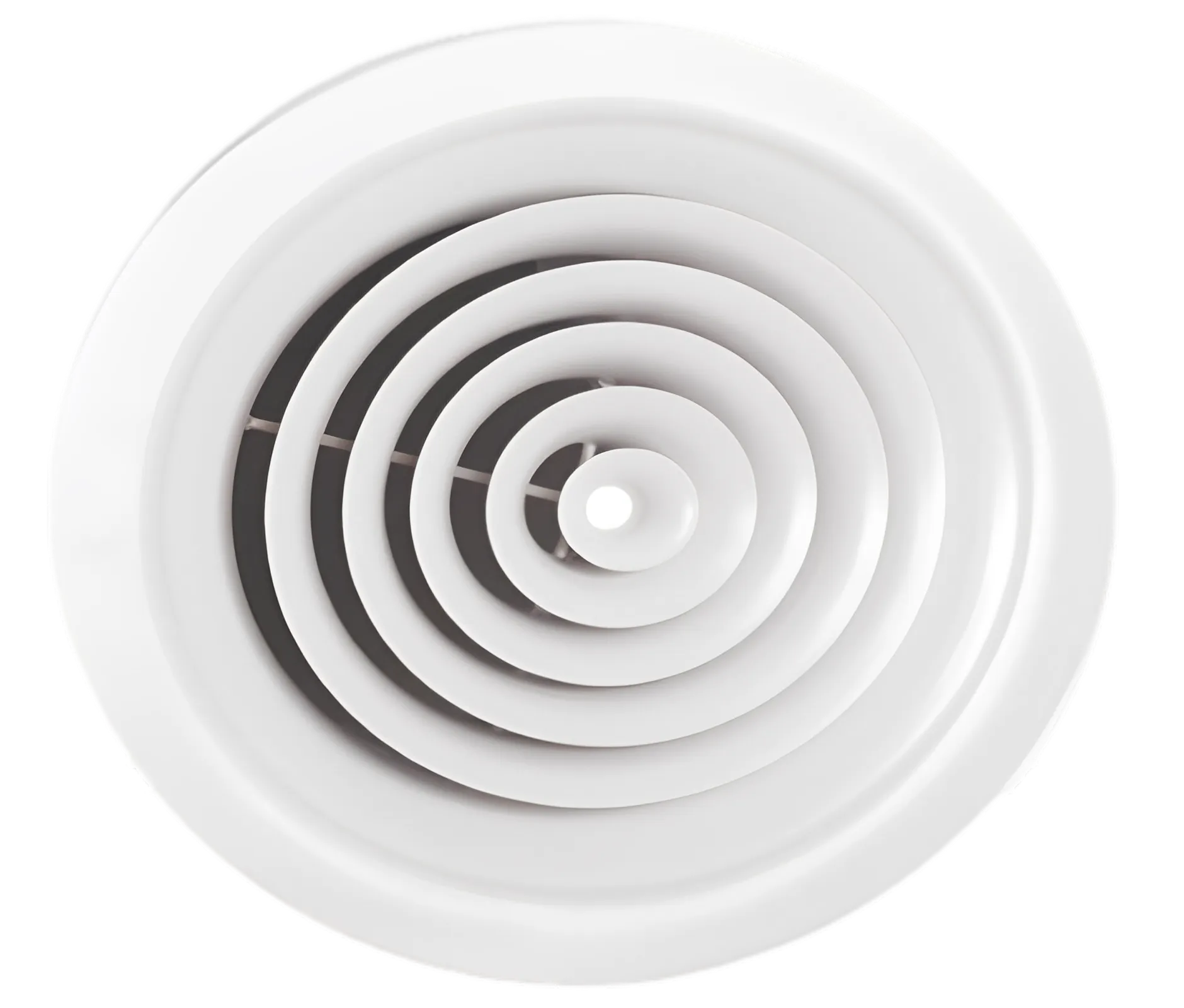

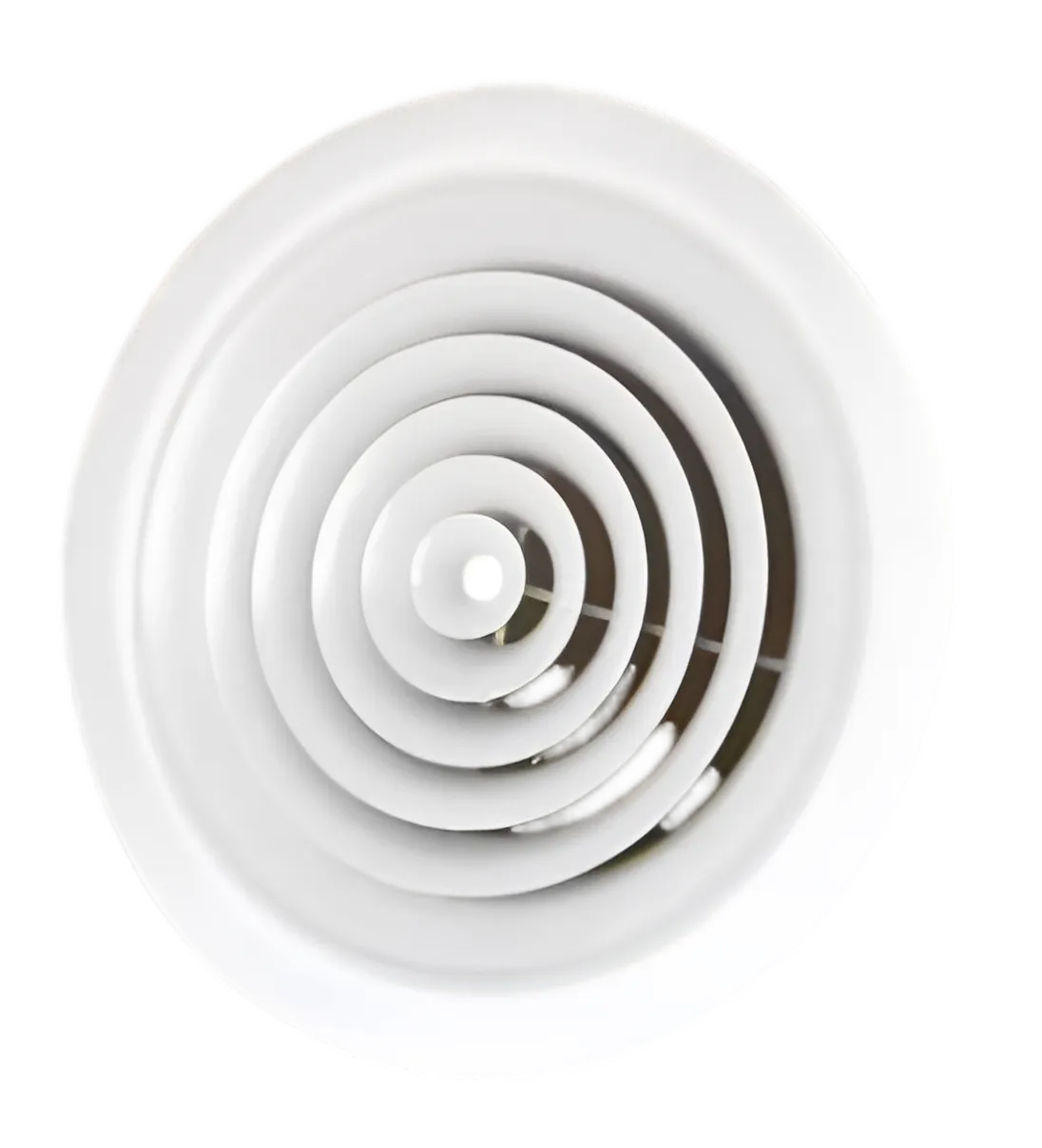

RCD circular diffusers are designed for ceiling applications.
It has a fixed and curved wing structure.
The wing characteristic is suitable for horizontal shots.
Recommended for environments with heights up to 4 m.
It can be applied in standard rock wool and clip type suspended ceilings.
It is shaped by the plastering method from specially rolled aluminum plate.
The standard coating process is done by electrostatic powder coating method with standard colors coded RAL9010 and 9016.
Other colors and anodized coating are also available upon request.

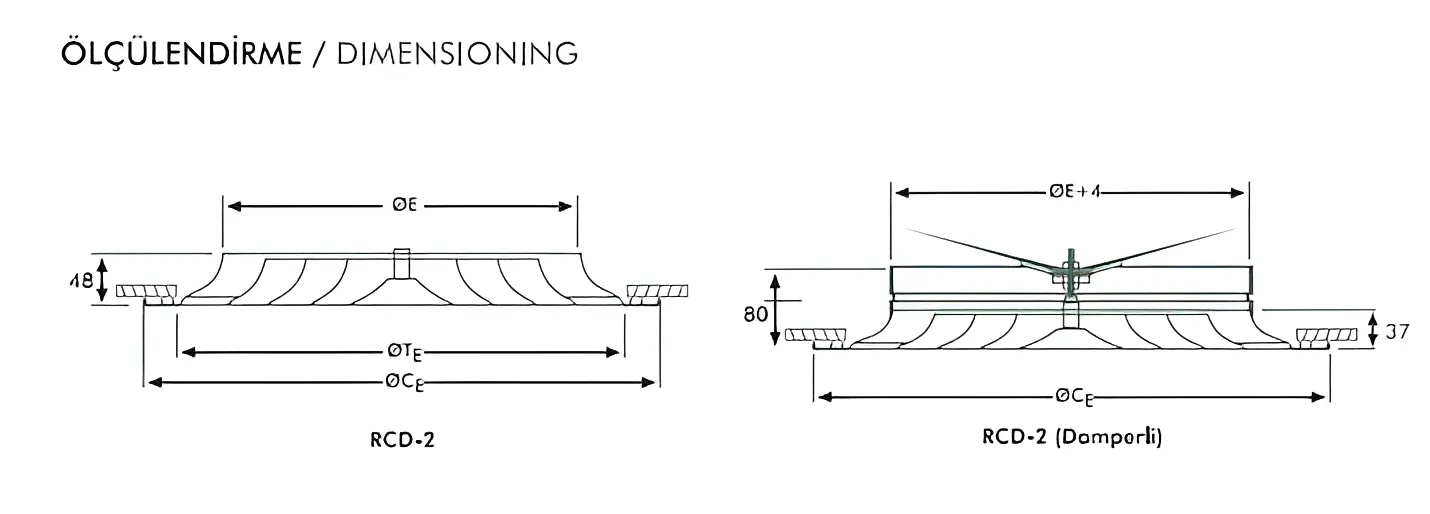

In RCD round diffusers, a butterfly damper is used behind the product to adjust the air flow.

Product name

Short description

Full description

RCD circular diffusers are designed for ceiling applications.
It has a fixed and curved wing structure.
The wing characteristic is suitable for horizontal shots.
Recommended for environments with heights up to 4 m.
It can be applied in standard rock wool and clip type suspended ceilings.
It is shaped by the plastering method from specially rolled aluminum plate.
The standard coating process is done by electrostatic powder coating method with standard colors coded RAL9010 and 9016.
Other colors and anodized coating are also available upon request.
In RCD round diffusers, a butterfly damper is used behind the product to adjust the air flow.

Product name

Short description

Full description

تم تصميم الناشرون الدائريون لتطبيقات السقف.
لها هيكل الجناح الثابت والمنحنى.
خاصية الجناح مناسبة للتسديدات الأفقية.
يوصى به للبيئات التي يصل ارتفاعها إلى 4 أمتار.
يمكن تطبيقه في الأسقف المعلقة من الصوف الصخري القياسي والأسقف المعلقة.
يتم تشكيلها بواسطة طريقة التجصيص من لوحة الألومنيوم المدرفلة خصيصًا.
تتم عملية الطلاء القياسية بطريقة الطلاء بالمسحوق الكهروستاتيكي بألوان قياسية مشفرة RAL9010 و9016.
تتوفر أيضًا ألوان أخرى وطلاء بأكسيد عند الطلب.
في ناشرات الهواء الدائرية ، يتم استخدام مخمد الفراشة خلف المنتج لضبط تدفق الهواء.

Product name

Short description

Full description

RCD dairesel difüzörler tavan uygulamaları için tasarlanmıştır.
Sabit ve eğri kanatlı yapıdadır.
Kanat karakteristiği yatay atışlara uygundur.
Yüksekliği 4 m’ ye kadar olan ortamlar için önerilir.
Standart taş yünü ve klipin tipi asma tavanlarda uygulanabilir.
Özel olarak haddelenmiş alüminyum plakadan sıvama yöntemi ile şekillendirilir.
Standart kaplama işlemi , RAL9010 ve 9016 kodlu olan standart renklerle, elektrostatik toz boyama yöntemi ile yapılmaktadır.
İsteğe bağlı olarak diğer renkler ve eloksal kaplama da yapılabilmektedir.
RCD yuvarlak difüzörlerde hava debisini ayarlamak için ürün arkasında kelebek damper kullanılır.
