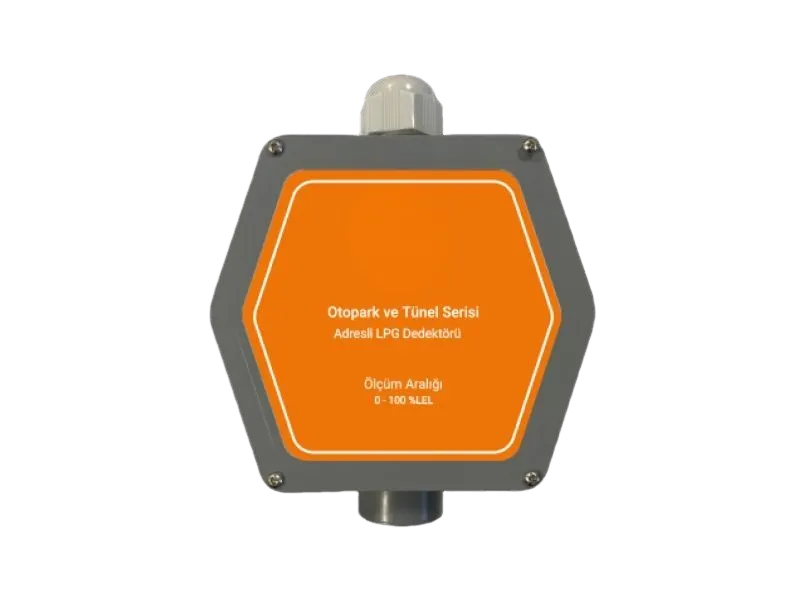

Edit product details - Addressable LPG Detector

Copy product

Created on

3/28/2024 1:23:31 PM

Updated on

3/30/2024 11:55:25 AM

URL of the product page

https://alderishop.com/addressable-lpg-detector-2/

Product type

Published

Visibility

Product name

Short description

Full description

<ul><li>Microprocessor controlled</li><li>replaceable sensor</li><li>There is a short circuit isolator</li><li>Connection with 4-20mA input module</li><li>0-100% LEL measurement range</li><li>EN 60335-1: 2010 Article 21 Mechanical Strength Certificate</li><li>Possibility of calibration in the field</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="100"><col width="123"><col width="100"><col width="175"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;electrical&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">electrical</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Communication&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Communication</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Power line communication&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Power line communication</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;voltage range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">voltage range</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19 – 28V DC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">19 – 28V DC</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Rated Current</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40mA&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40mA</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;alarm current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">alarm current</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40mA&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40mA</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;short circuit isolator&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">short circuit isolator</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;There is&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">There is</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LED indicator&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);"><span><div style="max-height: 42px;">LED indicator</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yellow&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Yellow</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mistake&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Mistake</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Green&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Green</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Study&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Study</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensor</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensor type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensor type</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;pellistor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">pellistor</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Detected gas&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Detected gas</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LPG (Butane, Propane)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">LPG (Butane, Propane)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Detection range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Detection range</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-100% LEL&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0-100% LEL</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Measurement unit&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Measurement unit</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LEL&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">LEL</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Response time(t90)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Response time(t90)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<10s&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;10s</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Warm-up time&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Warm-up time</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<30min adjustable&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;30min adjustable</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensor life&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensor life</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5 years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">5 years</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;measurement accuracy&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">measurement accuracy</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:0.02}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">2%</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Calibration&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Calibration</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Factory calibration&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Factory calibration</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Recommended calibration time&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Recommended calibration time</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1 year&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">1 year</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;General&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">General</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Body&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Body</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;P.L.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">P.L.</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;body type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">body type</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Standard</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Colour&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Colour</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Grey&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Grey</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Protection class&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Protection class</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP55&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">IP55</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated power consumption&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Rated power consumption</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<1W&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;1W</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating humidity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Operating humidity</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15/90%RH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">15/90%RH</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Operating temperature</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30° to +70°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">-30° to +70°C</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;storage temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">storage temperature</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0° - +20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0° - +20°C</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Storage life&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Storage life</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6 months&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">6 months</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Dimensions(HxWxD)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Dimensions(HxWxD)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;109x100x41mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">109x100x41mm</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Weight&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Weight</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;118g&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">118g</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Certificate&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Certificate</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;mechanical strength&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">mechanical strength</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60335-1:2010&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">IEC 60335-1:2010</td></tr></tbody></table>

Microprocessor controlled
replaceable sensor
There is a short circuit isolator
Connection with 4-20mA input module
0-100% LEL measurement range
EN 60335-1: 2010 Article 21 Mechanical Strength Certificate
Possibility of calibration in the field

electrical
Communication		Power line communication
voltage range		19 – 28V DC
Rated Current		40mA
alarm current		40mA
short circuit isolator		There is
LED indicator	Yellow	Mistake
	Green	Study
Sensor
Sensor type		pellistor
Detected gas		LPG (Butane, Propane)
Detection range		0-100% LEL
Measurement unit		LEL
Response time(t90)		<10s
Warm-up time		<30min adjustable
Sensor life		5 years
measurement accuracy		2%
Calibration		Factory calibration
Recommended calibration time		1 year
General
Body		P.L.
body type		Standard
Colour		Grey
Protection class		IP55
Rated power consumption		<1W
Operating humidity		15/90%RH
Operating temperature		-30° to +70°C
storage temperature		0° - +20°C
Storage life		6 months
Dimensions(HxWxD)		109x100x41mm
Weight		118g
Certificate
mechanical strength		IEC 60335-1:2010

Product name

Short description

Full description

Microprocessor controlled
replaceable sensor
There is a short circuit isolator
Connection with 4-20mA input module
0-100% LEL measurement range
EN 60335-1: 2010 Article 21 Mechanical Strength Certificate
Possibility of calibration in the field

electrical
Communication		Power line communication
voltage range		19 – 28V DC
Rated Current		40mA
alarm current		40mA
short circuit isolator		There is
LED indicator	Yellow	Mistake
	Green	Study
Sensor
Sensor type		pellistor
Detected gas		LPG (Butane, Propane)
Detection range		0-100% LEL
Measurement unit		LEL
Response time(t90)		<10s
Warm-up time		<30min adjustable
Sensor life		5 years
measurement accuracy		2%
Calibration		Factory calibration
Recommended calibration time		1 year
General
Body		P.L.
body type		Standard
Colour		Grey
Protection class		IP55
Rated power consumption		<1W
Operating humidity		15/90%RH
Operating temperature		-30° to +70°C
storage temperature		0° - +20°C
Storage life		6 months
Dimensions(HxWxD)		109x100x41mm
Weight		118g
Certificate
mechanical strength		IEC 60335-1:2010

Product name

Short description

Full description

<ul><li>المعالجات الدقيقة التي تسيطر عليها</li><li>مستشعر قابل للاستبدال</li><li>يوجد عازل للدائرة القصيرة</li><li>اتصال مع وحدة الإدخال 4-20mA</li><li>نطاق قياس الحد الأدنى للمستوى 0-100%</li><li>EN 60335-1: 2010 المادة 21 شهادة القوة الميكانيكية</li><li>إمكانية المعايرة في الميدان</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="100"><col width="117"><col width="100"><col width="130"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الكهرباء&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">الكهرباء</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تواصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">تواصل</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اتصالات خط الطاقة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">اتصالات خط الطاقة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مجال الجهد الكهربائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">مجال الجهد الكهربائي</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19 – 28 فولت تيار مستمر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">19 – 28 فولت تيار مستمر</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التصنيف الحالي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">التصنيف الحالي</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40 مللي أمبير&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40 مللي أمبير</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تيار التنبيه&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">تيار التنبيه</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40 مللي أمبير&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40 مللي أمبير</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازل الدائرة القصيرة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">عازل الدائرة القصيرة</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موجود&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">موجود</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مؤشر LED&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);"><span><div style="max-height: 42px;">مؤشر LED</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أصفر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">أصفر</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خطأ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">خطأ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أخضر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">أخضر</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;يذاكر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">يذاكر</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المستشعر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">المستشعر</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نوع الاستشعار&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">نوع الاستشعار</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;pellistor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">pellistor</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الغاز المكتشف&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">الغاز المكتشف</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غاز البترول المسال (البوتان والبروبان)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">غاز البترول المسال (البوتان والبروبان)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نطاق الكشف&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">نطاق الكشف</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-100% الحد الأدنى&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0-100% الحد الأدنى</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وحدة قياس&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">وحدة قياس</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ليل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">ليل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وقت الاستجابة (t90)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">وقت الاستجابة (t90)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<10 ثانية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;10 ثانية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وقت الاحماء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">وقت الاحماء</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<30 دقيقة قابل للتعديل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;30 دقيقة قابل للتعديل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عمر الاستشعار&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">عمر الاستشعار</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5 سنين&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">5 سنين</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقة القياس&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">دقة القياس</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:0.02}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">2%</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معايرة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">معايرة</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معايرة المصنع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">معايرة المصنع</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وقت المعايرة الموصى به&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">وقت المعايرة الموصى به</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;سنة 1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">سنة 1</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عام&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">عام</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جسم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">جسم</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ب.ل.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">ب.ل.</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نوع الجسم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">نوع الجسم</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معيار&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">معيار</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;لون&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">لون</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">رمادي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;فئة الحماية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">فئة الحماية</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP55&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">IP55</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;استهلاك الطاقة المقدر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">استهلاك الطاقة المقدر</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<1 واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;1 واط</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رطوبة العملية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">رطوبة العملية</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15/90% رطوبة نسبية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">15/90% رطوبة نسبية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">درجة حرارة التشغيل</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30 درجة إلى +70 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">-30 درجة إلى +70 درجة مئوية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التخزين&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">درجة حرارة التخزين</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0 درجة - +20 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0 درجة - +20 درجة مئوية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;حياة المخزن&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">حياة المخزن</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6 أشهر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">6 أشهر</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأبعاد (الارتفاع × العرض × العمق)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">الأبعاد (الارتفاع × العرض × العمق)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;109x100x41 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">109x100x41 ملم</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثقل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">ثقل</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;118 جرام&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">118 جرام</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شهادة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">شهادة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القوة الميكانيكية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">القوة الميكانيكية</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;إيك 60335-1:2010&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">إيك 60335-1:2010</td></tr></tbody></table>

المعالجات الدقيقة التي تسيطر عليها
مستشعر قابل للاستبدال
يوجد عازل للدائرة القصيرة
اتصال مع وحدة الإدخال 4-20mA
نطاق قياس الحد الأدنى للمستوى 0-100%
EN 60335-1: 2010 المادة 21 شهادة القوة الميكانيكية
إمكانية المعايرة في الميدان

الكهرباء
تواصل		اتصالات خط الطاقة
مجال الجهد الكهربائي		19 – 28 فولت تيار مستمر
التصنيف الحالي		40 مللي أمبير
تيار التنبيه		40 مللي أمبير
عازل الدائرة القصيرة		موجود
مؤشر LED	أصفر	خطأ
	أخضر	يذاكر
المستشعر
نوع الاستشعار		pellistor
الغاز المكتشف		غاز البترول المسال (البوتان والبروبان)
نطاق الكشف		0-100% الحد الأدنى
وحدة قياس		ليل
وقت الاستجابة (t90)		<10 ثانية
وقت الاحماء		<30 دقيقة قابل للتعديل
عمر الاستشعار		5 سنين
دقة القياس		2%
معايرة		معايرة المصنع
وقت المعايرة الموصى به		سنة 1
عام
جسم		ب.ل.
نوع الجسم		معيار
لون		رمادي
فئة الحماية		IP55
استهلاك الطاقة المقدر		<1 واط
رطوبة العملية		15/90% رطوبة نسبية
درجة حرارة التشغيل		-30 درجة إلى +70 درجة مئوية
درجة حرارة التخزين		0 درجة - +20 درجة مئوية
حياة المخزن		6 أشهر
الأبعاد (الارتفاع × العرض × العمق)		109x100x41 ملم
ثقل		118 جرام
شهادة
القوة الميكانيكية		إيك 60335-1:2010

Product name

Short description

Full description

<ul><li>Mikroişlemci kontrollü</li><li>Değiştirilebilir sensör</li><li>Kısa devre izolatörü var</li><li>4-20mA giriş modülü ile bağlantı</li><li>0-100% LEL ölçüm aralığı</li><li>EN 60335-1: 2010 Madde 21 Mekanik Mukavemet Belgesi</li><li>Sahada kalibrasyon imkanı</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="100"><col width="100"><col width="100"><col width="246"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Elektriksel&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Elektriksel</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Haberleşme&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Haberleşme</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Güç hattı haberleşmesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Güç hattı haberleşmesi</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Voltaj aralığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Voltaj aralığı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19 – 28V DC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">19 – 28V DC</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Akım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Nominal Akım</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40 mA&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40 mA</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Alarm akımı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Alarm akımı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40mA&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">40mA</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kısa devre izolatörü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Kısa devre izolatörü</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Var&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Var</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LED gösterge&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);"><span><div style="max-height: 42px;">LED gösterge</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sarı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sarı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hata&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Hata</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yeşil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Yeşil</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Çalışma</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensör&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensör</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensör tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensör tipi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Pellistör&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Pellistör</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Algılanan gaz&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Algılanan gaz</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LPG (Bütan, Propan)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">LPG (Bütan, Propan)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Algılama aralığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Algılama aralığı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-100% LEL&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0-100% LEL</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ölçü birimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Ölçü birimi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LEL&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">LEL</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tepki süresi(t90)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Tepki süresi(t90)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<10s&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;10s</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Isınma süresi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Isınma süresi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<30dk ayarlanabilir&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;30dk ayarlanabilir</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sensör ömrü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sensör ömrü</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5 yıl&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">5 yıl</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ölçüm doğruluğu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Ölçüm doğruluğu</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:0.02}" data-sheets-numberformat="{&quot;1&quot;:3,&quot;2&quot;:&quot;0%&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">2%</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kalibrasyon&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Kalibrasyon</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Fabrika kalibrasyonu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Fabrika kalibrasyonu</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Önerilen kalibrasyon süresi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Önerilen kalibrasyon süresi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1 yıl&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">1 yıl</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Genel&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Genel</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gövde&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Gövde</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PL&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">PL</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gövde tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Gövde tipi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Standart</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Renk&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Renk</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Gri</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Koruma sınıfı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Koruma sınıfı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP55&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">IP55</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal güç tüketimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Nominal güç tüketimi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;<1W&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">&lt;1W</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma nemi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Çalışma nemi</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15/90%RH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">15/90%RH</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Çalışma sıcaklığı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30° - +70°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">-30° - +70°C</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Depolama sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Depolama sıcaklığı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0° - +20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">0° - +20°C</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Depolama ömrü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Depolama ömrü</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6 ay&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">6 ay</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Boyutlar(HxWxD)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Boyutlar(HxWxD)</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;109x100x41mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">109x100x41mm</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ağırlık&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Ağırlık</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;118g&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">118g</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sertifika&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Sertifika</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mekanık dayanım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(240, 240, 240); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">Mekanık dayanım</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60335-1:2010&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(246, 246, 246); font-family: Roboto; font-size: 11pt; font-weight: normal; color: rgb(60, 60, 59);">IEC 60335-1:2010</td></tr></tbody></table>

Mikroişlemci kontrollü
Değiştirilebilir sensör
Kısa devre izolatörü var
4-20mA giriş modülü ile bağlantı
0-100% LEL ölçüm aralığı
EN 60335-1: 2010 Madde 21 Mekanik Mukavemet Belgesi
Sahada kalibrasyon imkanı

Elektriksel
Haberleşme		Güç hattı haberleşmesi
Voltaj aralığı		19 – 28V DC
Nominal Akım		40 mA
Alarm akımı		40mA
Kısa devre izolatörü		Var
LED gösterge	Sarı	Hata
	Yeşil	Çalışma
Sensör
Sensör tipi		Pellistör
Algılanan gaz		LPG (Bütan, Propan)
Algılama aralığı		0-100% LEL
Ölçü birimi		LEL
Tepki süresi(t90)		<10s
Isınma süresi		<30dk ayarlanabilir
Sensör ömrü		5 yıl
Ölçüm doğruluğu		2%
Kalibrasyon		Fabrika kalibrasyonu
Önerilen kalibrasyon süresi		1 yıl
Genel
Gövde		PL
Gövde tipi		Standart
Renk		Gri
Koruma sınıfı		IP55
Nominal güç tüketimi		<1W
Çalışma nemi		15/90%RH
Çalışma sıcaklığı		-30° - +70°C
Depolama sıcaklığı		0° - +20°C
Depolama ömrü		6 ay
Boyutlar(HxWxD)		109x100x41mm
Ağırlık		118g
Sertifika
Mekanık dayanım		IEC 60335-1:2010
