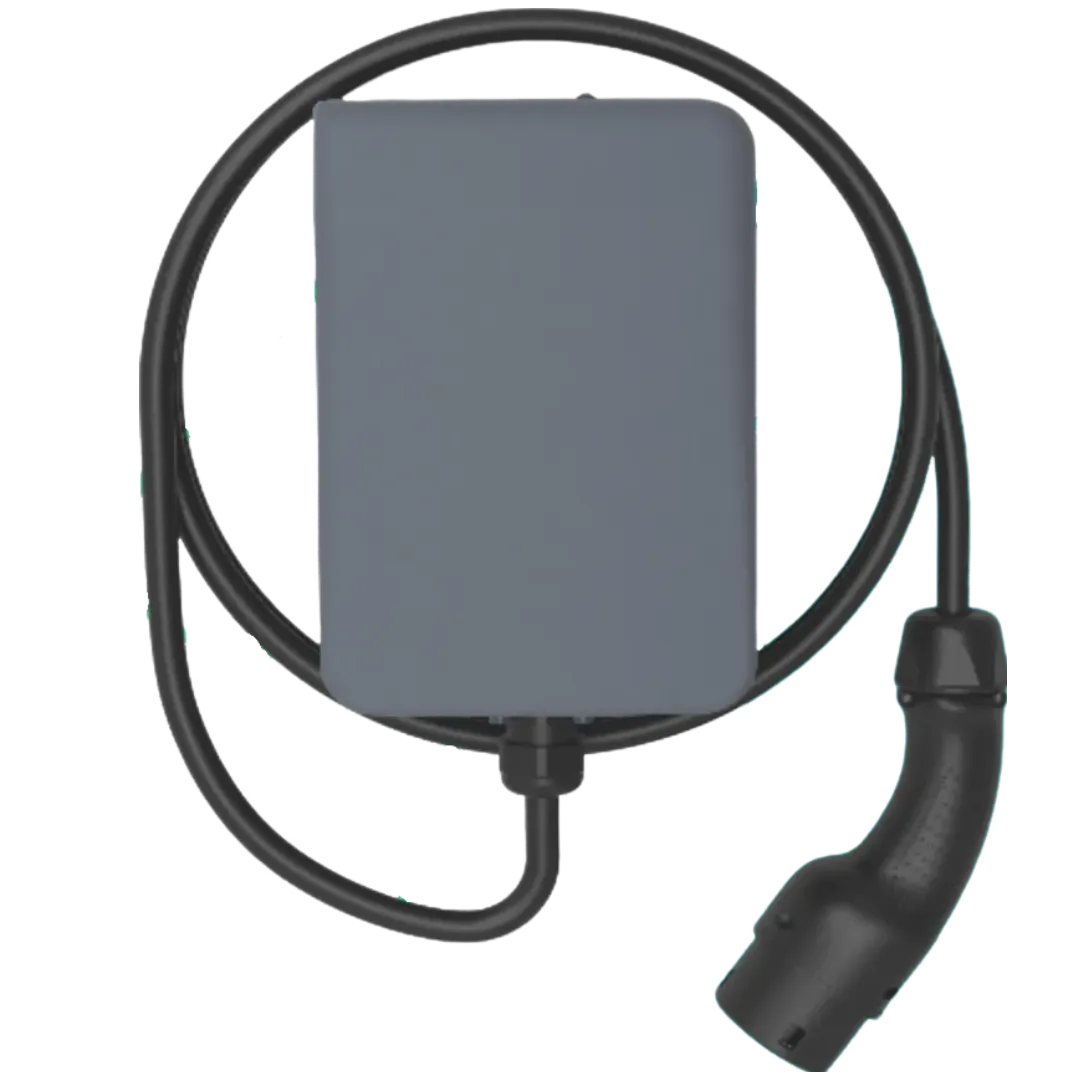

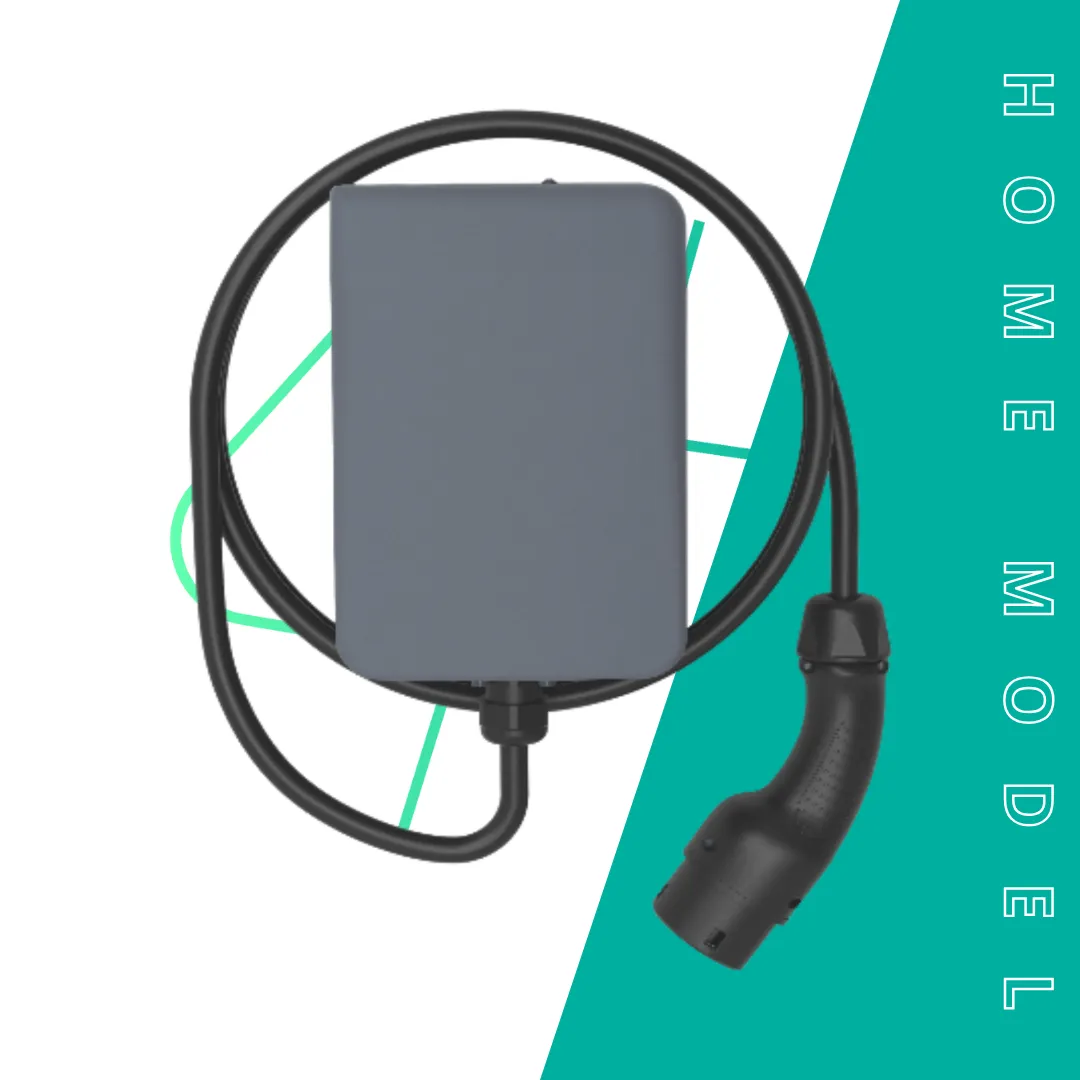

تعديل تفاصيل منتج - AC Charging Station Home Model

نسخ المنتج

الرقم التعريفى

تم الإنشاء فى

8‏‏/4‏‏/2024 11:40:31 ص

تم التحديث فى

8‏‏/4‏‏/2024 2:15:56 م

الرابط الخاص بصفحة المنتج

https://alderishop.com/ac-charging-station-home-model/

نوع المنتج

تم النشر

الرؤية

إسم المنتج

وصف قصير

وصف كامل

<ul><li>Charging stations provide safe and smart charging solutions at work or home.</li><li>It is an affordable solution that is compatible with all electric vehicles, provides industrial-grade electrical protection, and is suitable for residential and commercial use.</li><li>This series is easy to use thanks to the Wi-Fi interface and easy wall or floor mounting options.</li><li>Load control: Compatibility with smart building energy systems</li><li>Design: Single phase up to 3.4 kW / 32 A, Three phase up to 22 kW / 32 A</li><li>Connectivity: Configuration via mobile app</li><li>Connectors: IEC 62196 Type1/Type2 Plug with Cable Optional: GB/T</li><li>Technical information:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="207"><col width="155"><col width="304"><col width="128"><col width="139"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FEATURE CATEGORY&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">FEATURE CATEGORY</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PRODUCT FEATURE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">PRODUCT FEATURE</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 7,4 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 7,4 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 11 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 11 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 22 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 22 KW</td></tr><tr style="height: 21px;"><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Electrical Properties&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">Electrical Properties</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maximum Power&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Maximum Power</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,4 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">7,4 kW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11 kW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">22 kW</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Voltage Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Voltage Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;230VAC±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">230VAC±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400VAC ±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400VAC ±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400VAC±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400VAC±15%</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maximum Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Maximum Current</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">16A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32A * 3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">32A * 3FAZ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Connection Compatibility&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Connection Compatibility</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ac Type2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Optional)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Ac Type2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Optional)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Power Entry Rating&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Power Entry Rating</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 Vac ±15% 50/60 Hz, 370A * 3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400 Vac ±15% 50/60 Hz, 370A * 3FAZ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Connection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Connection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3P - N - PE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">3P - N - PE</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Power Factor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Power Factor</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;>0.98&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt;0.98</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Productivity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Productivity</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;>%95&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt;%95</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Protection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Internal Protection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Residual Current Protection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Residual Current Protection</td></tr><tr style="height: 21px;"><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Board Features&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">Board Features</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable Length&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Cable Length</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;wired&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">wired</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Measurement&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Measurement</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Materiel&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Materiel</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Plastic Board&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Plastic Board</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Degree of Protection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Degree of Protection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP44&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IP44</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Impact Protection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Impact Protection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IK8&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IK8</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cooler&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Cooler</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Air Cooled&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Air Cooled</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Body Dimension&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Body Dimension</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;235x160x126,5 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">235x160x126,5 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Foot Size&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Foot Size</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1406 x200x 120 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">1406 x200x 120 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Weight (Net)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Weight (Net)</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net Weight (With Cable): 4.5 kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Net Weight (With Cable): 4.5 kg</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Interface &amp; Connection Features&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 105px;">Interface &amp; Connection Features</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Screen</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RFID Reader&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">RFID Reader</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LAN Connection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">LAN Connection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WLAN Connection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">WLAN Connection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;802,11ac&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">802,11ac</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mobile Connection&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Mobile Connection</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Environmental Features&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 63px;">Environmental Features</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Heat&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Heat</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-35°C to +55°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-35°C to +55°C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Moisture&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Moisture</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5% - 95% Relative Humidity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">5% - 95% Relative Humidity</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Altitude&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Altitude</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-4000 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">0-4000 m</td></tr></tbody></table></google-sheets-html-origin></li></ul>

Charging stations provide safe and smart charging solutions at work or home.
It is an affordable solution that is compatible with all electric vehicles, provides industrial-grade electrical protection, and is suitable for residential and commercial use.
This series is easy to use thanks to the Wi-Fi interface and easy wall or floor mounting options.
Load control: Compatibility with smart building energy systems
Design: Single phase up to 3.4 kW / 32 A, Three phase up to 22 kW / 32 A
Connectivity: Configuration via mobile app
Connectors: IEC 62196 Type1/Type2 Plug with Cable Optional: GB/T

Technical information:

FEATURE CATEGORY	PRODUCT FEATURE	BASIC 7,4 KW	BASIC 11 KW	BASIC 22 KW
Electrical Properties	Maximum Power	7,4 kW	11 kW	22 kW
	Voltage Range	230VAC±15%	400VAC ±15%	400VAC±15%
	Maximum Current	11A*3FAZ	16A*3FAZ	32A * 3FAZ
	Connection Compatibility	Ac Type2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Optional)
	Power Entry Rating	400 Vac ±15% 50/60 Hz, 370A * 3FAZ
	Connection	3P - N - PE
	Power Factor	>0.98
	Productivity	>%95
	Internal Protection	Residual Current Protection
Board Features	Cable Length	wired
	Measurement	-
	Materiel	Plastic Board
	Degree of Protection	IP44
	Impact Protection	IK8
	Cooler	Air Cooled

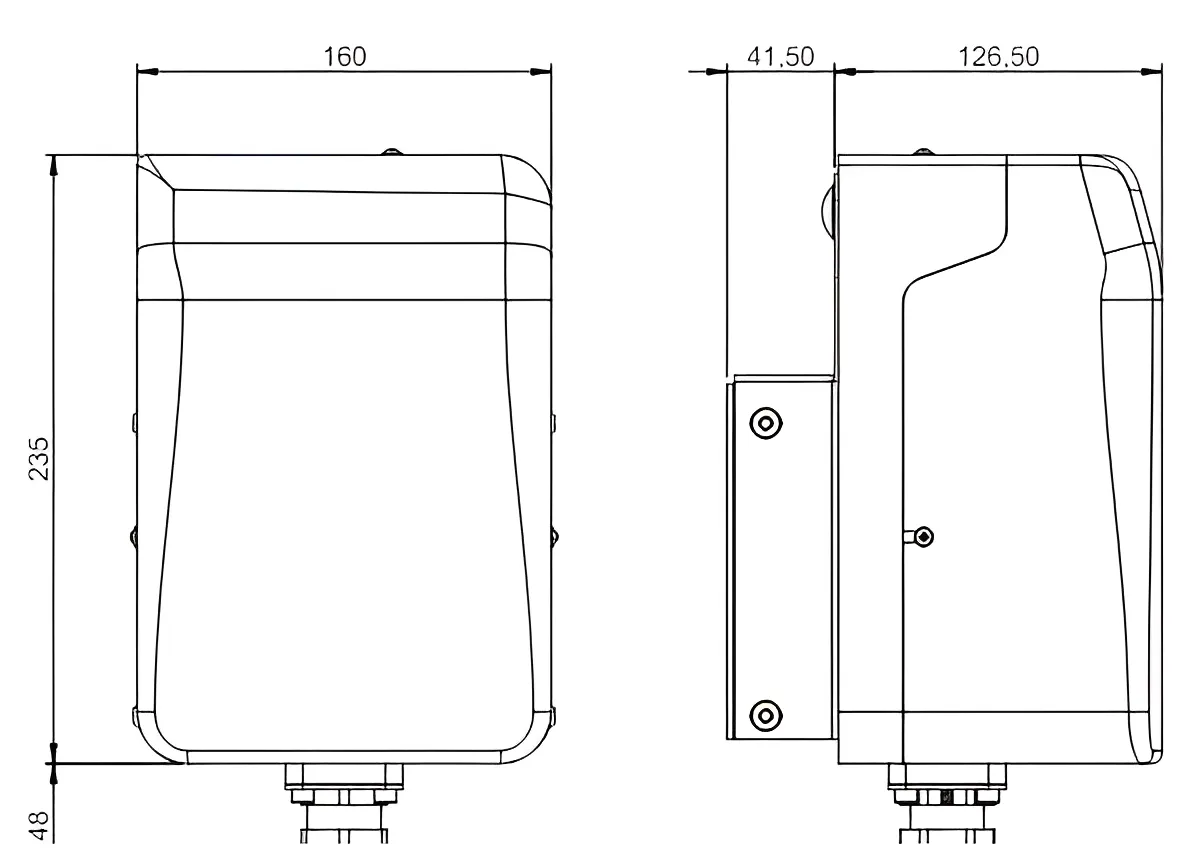

	Body Dimension	235x160x126,5 mm
	Foot Size	1406 x200x 120 mm
	Weight (Net)	Net Weight (With Cable): 4.5 kg
Interface & Connection Features	Screen	-
	RFID Reader	-
	LAN Connection	-
	WLAN Connection	802,11ac
	Mobile Connection	-
Environmental Features	Heat	-35°C to +55°C
	Moisture	5% - 95% Relative Humidity
	Altitude	0-4000 m

إسم المنتج

وصف قصير

وصف كامل

Charging stations provide safe and smart charging solutions at work or home.
It is an affordable solution that is compatible with all electric vehicles, provides industrial-grade electrical protection, and is suitable for residential and commercial use.
This series is easy to use thanks to the Wi-Fi interface and easy wall or floor mounting options.
Load control: Compatibility with smart building energy systems
Design: Single phase up to 3.4 kW / 32 A, Three phase up to 22 kW / 32 A
Connectivity: Configuration via mobile app
Connectors: IEC 62196 Type1/Type2 Plug with Cable Optional: GB/T

Technical information:

FEATURE CATEGORY	PRODUCT FEATURE	BASIC 7,4 KW	BASIC 11 KW	BASIC 22 KW
Electrical Properties	Maximum Power	7,4 kW	11 kW	22 kW
	Voltage Range	230VAC±15%	400VAC ±15%	400VAC±15%
	Maximum Current	11A*3FAZ	16A*3FAZ	32A * 3FAZ
	Connection Compatibility	Ac Type2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Optional)
	Power Entry Rating	400 Vac ±15% 50/60 Hz, 370A * 3FAZ
	Connection	3P - N - PE
	Power Factor	>0.98
	Productivity	>%95
	Internal Protection	Residual Current Protection
Board Features	Cable Length	wired
	Measurement	-
	Materiel	Plastic Board
	Degree of Protection	IP44
	Impact Protection	IK8
	Cooler	Air Cooled
	Body Dimension	235x160x126,5 mm
	Foot Size	1406 x200x 120 mm
	Weight (Net)	Net Weight (With Cable): 4.5 kg
Interface & Connection Features	Screen	-
	RFID Reader	-
	LAN Connection	-
	WLAN Connection	802,11ac
	Mobile Connection	-
Environmental Features	Heat	-35°C to +55°C
	Moisture	5% - 95% Relative Humidity
	Altitude	0-4000 m

إسم المنتج

وصف قصير

وصف كامل

<ul><li>توفر محطات الشحن حلول شحن آمنة وذكية في العمل أو المنزل.</li><li>يعد حلاً ميسور التكلفة ومتوافقًا مع جميع المركبات الكهربائية، ويوفر حماية كهربائية على المستوى الصناعي، ومناسب للاستخدام السكني والتجاري.</li><li>تتميز هذه السلسلة بسهولة الاستخدام بفضل واجهة واي فاي وخيارات التثبيت السهلة على الحائط أو الأرضية.</li><li>التحكم في الأحمال: التوافق مع أنظمة الطاقة الذكية في المباني</li><li>التصميم: مرحلة واحدة حتى 3.4 كيلووات / 32 أمبير، ثلاث مراحل حتى 22 كيلووات / 32 أمبير</li><li>الاتصال: التكوين عبر تطبيق الهاتف المحمول</li><li>المعلومات التقنية:<br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="304"><col width="173"><col width="160"><col width="155"><col width="173"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأساسية 7,4 كيلو واط&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">الأساسية 7,4 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأساسية 11 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">الأساسية 11 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأساسية 22 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">الأساسية 22 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ميزة المنتج&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">ميزة المنتج</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الميزات&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">الميزات</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,4 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">7,4 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22 كيلو واط&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">22 كيلو واط</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الطاقة القصوى&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">الطاقة القصوى</td><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الخصائص الكهربائية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">الخصائص الكهربائية</div></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;230 فولت تيار متردد ±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">230 فولت تيار متردد ±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 فولت تيار متردد ±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400 فولت تيار متردد ±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 فولت تيار متردد ±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400 فولت تيار متردد ±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مجال الجهد الكهربائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">مجال الجهد الكهربائي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">16A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32A * 3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">32A * 3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحد الأقصى الحالي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">الحد الأقصى الحالي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مكيف هواء من النوع 2 سوكل، IEC 62196-1/2، IEC 61851 -1 - GB/T (اختياري)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">مكيف هواء من النوع 2 سوكل، IEC 62196-1/2، IEC 61851 -1 - GB/T (اختياري)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;توافق الاتصال&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">توافق الاتصال</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 فولت تيار متردد ±15%، 50/60 هرتز، 370 أمبير * 3 مراحل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400 فولت تيار متردد ±15%، 50/60 هرتز، 370 أمبير * 3 مراحل</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تصنيف دخول الطاقة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">تصنيف دخول الطاقة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3P-N-PE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">3P-N-PE</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اتصال&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">اتصال</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;>0.98&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt;0.98</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عامل القوى&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">عامل القوى</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;> 95%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt; 95%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;إنتاجية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">إنتاجية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحماية الحالية المتبقية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">الحماية الحالية المتبقية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحماية الداخلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">الحماية الداخلية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;سلكي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">سلكي</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طول السلك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">طول السلك</td><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مميزات اللوحة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">مميزات اللوحة</div></td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قياس&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">قياس</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;لوح بلاستيك&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">لوح بلاستيك</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;العتاد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">العتاد</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP44&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IP44</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة الحماية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">درجة الحماية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IK8&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IK8</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الحماية من الصدمات&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">الحماية من الصدمات</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تبريد الهواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">تبريد الهواء</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أكثر برودة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">أكثر برودة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;235x160x126.5 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">235x160x126.5 ملم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;البعد الجسم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">البعد الجسم</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1406 × 200 × 120 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">1406 × 200 × 120 ملم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;حجم القدم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">حجم القدم</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الوزن الصافي (مع الكابل): 4.5 كجم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">الوزن الصافي (مع الكابل): 4.5 كجم</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الوزن (الصافي)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">الوزن (الصافي)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">شاشة</td><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ميزات الواجهة والاتصال&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 105px;">ميزات الواجهة والاتصال</div></td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قارئ رفيد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">قارئ رفيد</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اتصال الشبكة المحلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">اتصال الشبكة المحلية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;802,11ac&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">802,11ac</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اتصال الشبكة المحلية اللاسلكية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">اتصال الشبكة المحلية اللاسلكية</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اتصال المحمول&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">اتصال المحمول</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-35 درجة مئوية إلى +55 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-35 درجة مئوية إلى +55 درجة مئوية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;حرارة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">حرارة</td><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الميزات البيئية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 63px;">الميزات البيئية</div></td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5% - 95% رطوبة نسبية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">5% - 95% رطوبة نسبية</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رُطُوبَة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">رُطُوبَة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-4000 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">0-4000 م</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ارتفاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">ارتفاع</td></tr></tbody></table></google-sheets-html-origin></google-sheets-html-origin></li></ul>

توفر محطات الشحن حلول شحن آمنة وذكية في العمل أو المنزل.
يعد حلاً ميسور التكلفة ومتوافقًا مع جميع المركبات الكهربائية، ويوفر حماية كهربائية على المستوى الصناعي، ومناسب للاستخدام السكني والتجاري.
تتميز هذه السلسلة بسهولة الاستخدام بفضل واجهة واي فاي وخيارات التثبيت السهلة على الحائط أو الأرضية.
التحكم في الأحمال: التوافق مع أنظمة الطاقة الذكية في المباني
التصميم: مرحلة واحدة حتى 3.4 كيلووات / 32 أمبير، ثلاث مراحل حتى 22 كيلووات / 32 أمبير
الاتصال: التكوين عبر تطبيق الهاتف المحمول

المعلومات التقنية:

الأساسية 7,4 كيلو واط	الأساسية 11 كيلو واط	الأساسية 22 كيلو واط	ميزة المنتج	الميزات
7,4 كيلو واط	11 كيلو واط	22 كيلو واط	الطاقة القصوى	الخصائص الكهربائية
230 فولت تيار متردد ±15%	400 فولت تيار متردد ±15%	400 فولت تيار متردد ±15%	مجال الجهد الكهربائي
11A*3FAZ	16A*3FAZ	32A * 3FAZ	الحد الأقصى الحالي
مكيف هواء من النوع 2 سوكل، IEC 62196-1/2، IEC 61851 -1 - GB/T (اختياري)			توافق الاتصال
400 فولت تيار متردد ±15%، 50/60 هرتز، 370 أمبير * 3 مراحل			تصنيف دخول الطاقة
3P-N-PE			اتصال
>0.98			عامل القوى
> 95%			إنتاجية
الحماية الحالية المتبقية			الحماية الداخلية
سلكي			طول السلك	مميزات اللوحة
-			قياس
لوح بلاستيك			العتاد
IP44			درجة الحماية
IK8			الحماية من الصدمات
تبريد الهواء			أكثر برودة
235x160x126.5 ملم			البعد الجسم
1406 × 200 × 120 ملم			حجم القدم
الوزن الصافي (مع الكابل): 4.5 كجم			الوزن (الصافي)
-			شاشة	ميزات الواجهة والاتصال
-			قارئ رفيد
-			اتصال الشبكة المحلية
802,11ac			اتصال الشبكة المحلية اللاسلكية
-			اتصال المحمول
-35 درجة مئوية إلى +55 درجة مئوية			حرارة	الميزات البيئية
5% - 95% رطوبة نسبية			رُطُوبَة
0-4000 م			ارتفاع

إسم المنتج

وصف قصير

وصف كامل

<ul><li>Home Model AC şarj istasyonları, işletmenizde veya evinizde size özel güvenli ve akıllı şarj çözümleri sunuyor.</li><li>Home Model, hem konut hem de ticari kullanım için uygun, endüstriyel düzeyde elektrik koruması sunan, tüm elektrikli araçlarla uyumlu ve uygun fiyatlı bir çözümdür.</li><li>Bu seri, Wi-Fi arayüzü ve duvara veya zemine kolay montaj seçenekleri ile kullanıcı dostudur.</li><li>Yük denetimi: Akıllı bina enerji sistemlerine uyumluluk</li><li>Tasarım: Tek faz 3.4 kW / 32 A’e kadar, Üç faz 22 kW / 32 A’e kadar</li><li>Bağlanabilirlik: Mobil uygulama üzerinden konfigürasyon</li><li>Konnektörler: IEC 62196 Tip1/Tip2 Kablolu Fiş Opsiyonel: GB/T</li><li>Teknik Bilgiler:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="207"><col width="155"><col width="304"><col width="128"><col width="139"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ÖZELLİK KATEGORİSİ&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">ÖZELLİK KATEGORİSİ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ÜRÜN ÖZELLİĞİ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold;">ÜRÜN ÖZELLİĞİ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 7,4 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 7,4 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 11 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 11 KW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;BASIC 22 KW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-weight: bold; text-align: center;">BASIC 22 KW</td></tr><tr style="height: 21px;"><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Elektriksel Özellikler&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">Elektriksel Özellikler</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maksimum Guç&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Maksimum Guç</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,4 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">7,4 kW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11 kW</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22 kW&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">22 kW</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Voltaj Aralığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Voltaj Aralığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;230VAC±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">230VAC±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400VAC ±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400VAC ±15%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400VAC±15%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400VAC±15%</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maksimum Akım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Maksimum Akım</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">11A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16A*3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">16A*3FAZ</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32A * 3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">32A * 3FAZ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Bağlantı Uyumluluğu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Bağlantı Uyumluluğu</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ac Tip2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Opsiyonel)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Ac Tip2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Opsiyonel)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Guç Giriş Derecesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Guç Giriş Derecesi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 Vac ±15% 50/60 Hz, 370A * 3FAZ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">400 Vac ±15% 50/60 Hz, 370A * 3FAZ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Bağlantı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Bağlantı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3P - N - PE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">3P - N - PE</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Guç Faktörü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Guç Faktörü</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;>0.98&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt;0.98</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Verimlilik&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Verimlilik</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;>%95&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">&gt;%95</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İç Koruma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">İç Koruma</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kaçak Akım Koruması&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Kaçak Akım Koruması</td></tr><tr style="height: 21px;"><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Pano Özellikleri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 189px;">Pano Özellikleri</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo Uzunluğu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Kablo Uzunluğu</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablolu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Kablolu</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ölçüm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Ölçüm</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Materyal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Materyal</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Plastik Pano&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Plastik Pano</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Koruma Derecesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Koruma Derecesi</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IP44&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IP44</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Darbe Koruması&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Darbe Koruması</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IK8&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">IK8</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Soğutucu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Soğutucu</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hava Soğutmalı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Hava Soğutmalı</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gövde Ölçüsü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Gövde Ölçüsü</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;235x160x126,5 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">235x160x126,5 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ayak Ölçüsü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Ayak Ölçüsü</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1406 x200x 120 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">1406 x200x 120 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ağırlık (Net)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Ağırlık (Net)</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net Ağırlık (Kablolu): 4,5 kg&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">Net Ağırlık (Kablolu): 4,5 kg</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Arayüz &amp; Bağlantı Özellikleri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 105px;">Arayüz &amp; Bağlantı Özellikleri</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ekran&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Ekran</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RFID Okuyucu&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">RFID Okuyucu</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;LAN Bağlantısı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">LAN Bağlantısı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;WLAN Bağlantısı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">WLAN Bağlantısı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;802,11ac&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">802,11ac</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mobil Bağlantı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Mobil Bağlantı</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-</td></tr><tr style="height: 21px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çevresel Özellikler&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;"><div style="max-height: 63px;">Çevresel Özellikler</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sıcaklık&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Sıcaklık</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-35°C to +55°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">-35°C to +55°C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nem&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Nem</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;%5 - %95 Bağıl Nem&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">%5 - %95 Bağıl Nem</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rakım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle;">Rakım</td><td rowspan="1" colspan="3" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0-4000 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; text-align: center;">0-4000 m</td></tr></tbody></table></google-sheets-html-origin></li></ul>

Home Model AC şarj istasyonları, işletmenizde veya evinizde size özel güvenli ve akıllı şarj çözümleri sunuyor.
Home Model, hem konut hem de ticari kullanım için uygun, endüstriyel düzeyde elektrik koruması sunan, tüm elektrikli araçlarla uyumlu ve uygun fiyatlı bir çözümdür.
Bu seri, Wi-Fi arayüzü ve duvara veya zemine kolay montaj seçenekleri ile kullanıcı dostudur.
Yük denetimi: Akıllı bina enerji sistemlerine uyumluluk
Tasarım: Tek faz 3.4 kW / 32 A’e kadar, Üç faz 22 kW / 32 A’e kadar
Bağlanabilirlik: Mobil uygulama üzerinden konfigürasyon
Konnektörler: IEC 62196 Tip1/Tip2 Kablolu Fiş Opsiyonel: GB/T

Teknik Bilgiler:

ÖZELLİK KATEGORİSİ	ÜRÜN ÖZELLİĞİ	BASIC 7,4 KW	BASIC 11 KW	BASIC 22 KW
Elektriksel Özellikler	Maksimum Guç	7,4 kW	11 kW	22 kW
	Voltaj Aralığı	230VAC±15%	400VAC ±15%	400VAC±15%
	Maksimum Akım	11A*3FAZ	16A*3FAZ	32A * 3FAZ
	Bağlantı Uyumluluğu	Ac Tip2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Opsiyonel)
	Guç Giriş Derecesi	400 Vac ±15% 50/60 Hz, 370A * 3FAZ
	Bağlantı	3P - N - PE
	Guç Faktörü	>0.98
	Verimlilik	>%95
	İç Koruma	Kaçak Akım Koruması
Pano Özellikleri	Kablo Uzunluğu	Kablolu
	Ölçüm	-
	Materyal	Plastik Pano
	Koruma Derecesi	IP44
	Darbe Koruması	IK8
	Soğutucu	Hava Soğutmalı
	Gövde Ölçüsü	235x160x126,5 mm
	Ayak Ölçüsü	1406 x200x 120 mm
	Ağırlık (Net)	Net Ağırlık (Kablolu): 4,5 kg
Arayüz & Bağlantı Özellikleri	Ekran	-
	RFID Okuyucu	-
	LAN Bağlantısı	-
	WLAN Bağlantısı	802,11ac
	Mobil Bağlantı	-
Çevresel Özellikler	Sıcaklık	-35°C to +55°C
	Nem	%5 - %95 Bağıl Nem
	Rakım	0-4000 m
