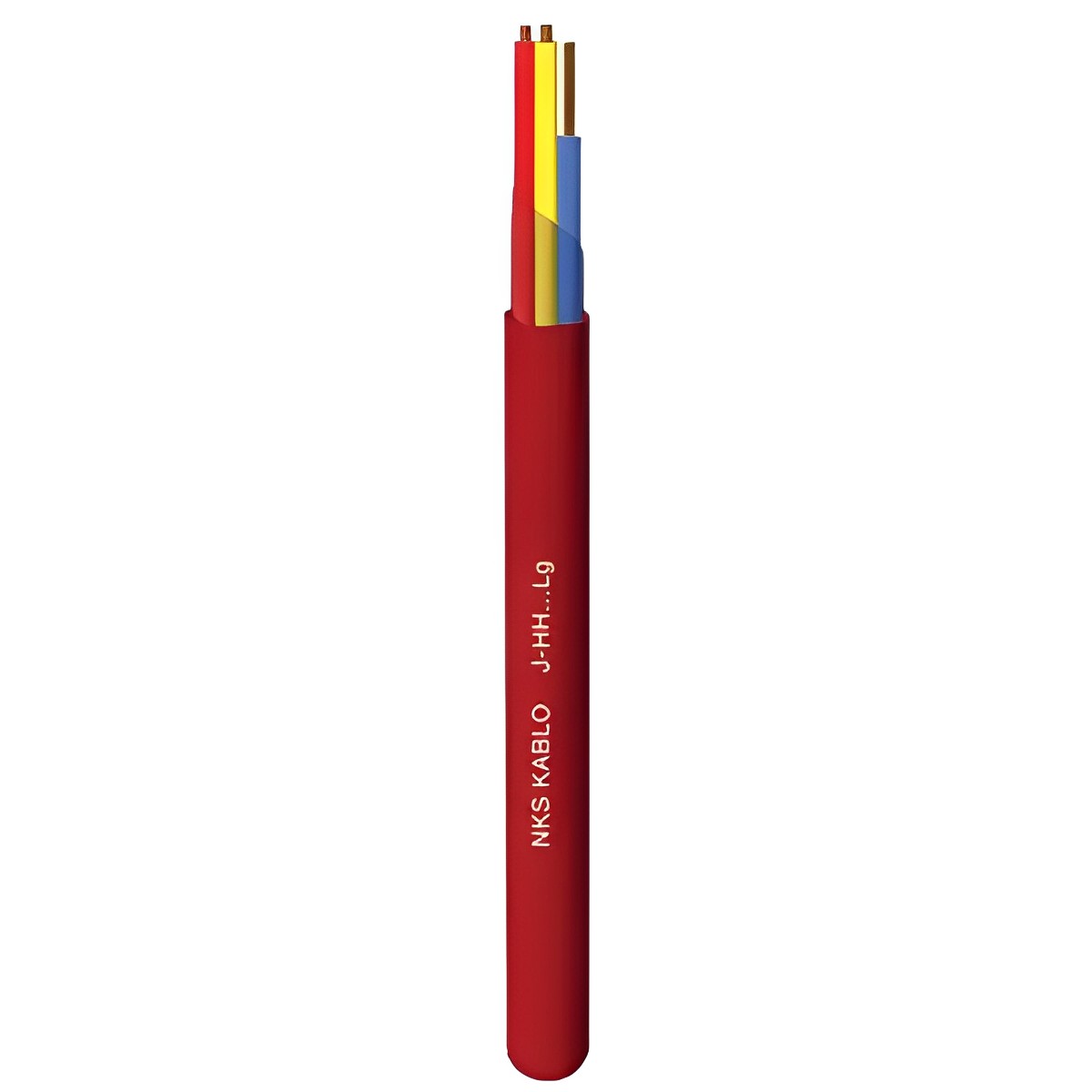

Edit product details - J-HH Lg Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:35:56 AM

URL of the product page

https://alderishop.com/j-hh-lg-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

<p><span style="font-size: 0.875rem;">Thes cables are used as indoor signal and data cornrnunkatIon installations as well as operator and subscriber distribuitionJhey can	easily be used in curifined spaces due to their low lending racrius. These halogen-free cables are flame retardant.</span><br></p><div align="center"></div><div align="center"><br>	<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">		<tbody></tbody>	</table></div><div align="center">	<div align="center"> </div>	<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">		<tbody></tbody>	</table>	<google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;">		<table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;">			<colgroup>				<col width="107">				<col width="238">			</colgroup>			<tbody>				<tr style="height: 21px;">					<td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">						Cable structure</td>				</tr>				<tr style="height: 36px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Conductor</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Mono bakır Heiken&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Mono bakır Heiken</td>				</tr>				<tr style="height: 27px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Insulation</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR, H12, VDE 0207 -23&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						HFFR, H12, VDE 0207 -23</td>				</tr>				<tr style="height: 48px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Colors&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Insulation Colors</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;VDE 0815&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						VDE 0815</td>				</tr>				<tr style="height: 84px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Stranding&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Stranding</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Two cores are twisted as a pair. The pairs are twisted in layers at regular intervals&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Two cores are twisted as a pair. The pairs are twisted in layers at regular intervals</td>				</tr>				<tr style="height: 39px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Seperator Tape&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Seperator Tape</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PES BANT&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						PES BANT</td>				</tr>				<tr style="height: 27px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Sheath</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR. HM2, VDE 0207 - 24&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						HFFR. HM2, VDE 0207 - 24</td>				</tr>				<tr style="height: 39px;">					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&nbsp;Color&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						Sheath&nbsp;Color</td>					<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RAL 3000 RED or RAL 7001 GREY&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">						RAL 3000 RED or RAL 7001 GREY</td>				</tr>			</tbody>		</table><br>	</google-sheets-html-origin></div><div align="center">	<google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;">		<google-sheets-html-origin>			<table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;">				<colgroup>					<col width="188">					<col width="274">				</colgroup>				<tbody>					<tr style="height: 63px;">						<td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">							Technicial Specifications</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Standard</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;VDE 0815&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							VDE 0815</td>					</tr>					<tr style="height: 21px;">						<td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							<div style="max-height: 114px;">Conductor Resistance</div>						</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.60mm 64.6 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							0.60mm 64.6 Ω / Km</td>					</tr>					<tr style="height: 30px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.80mm 36.6 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							0.80mm 36.6 Ω / Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00mm 43.8 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							1.00mm 43.8 Ω / Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50mm 23 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							1.50mm 23 Ω / Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50mm 13.8 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							2.50mm 13.8 Ω / Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Insulation Resistance</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;100 MΩ / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							min.&nbsp;100 MΩ / Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Effective Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Effective Capacity</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.120 nF/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Max.120 nF/Km</td>					</tr>					<tr style="height: 21px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity Imbalance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Capacity Imbalance</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300 pF / 100 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							300 pF / 100 m</td>					</tr>					<tr style="height: 36px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Operating voltage</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.&nbsp;300V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Max.&nbsp;300V</td>					</tr>					<tr style="height: 27px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Test Voltage</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							1000V</td>					</tr>					<tr style="height: 48px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Operating temperature</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30°C ~ +70°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							-30°C ~ +70°C</td>					</tr>					<tr style="height: 84px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;Bending Radius&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							min.&nbsp;Bending Radius</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7.50 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							7.50 x D</td>					</tr>					<tr style="height: 39px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Test&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Flame Test</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60332+2 &amp; TS/DIM EN 502666-2-4&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							IEC 60332+2 &amp; TS/DIM EN 502666-2-4</td>					</tr>					<tr style="height: 27px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Smoke Density&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Smoke Density</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 61034-2 &amp; TS/DIN EN 50268-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							IEC 61034-2 &amp; TS/DIN EN 50268-2</td>					</tr>					<tr style="height: 39px;">						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Corrosive Gas Test&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							Corrosive Gas Test</td>						<td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 61034-2 &amp; TS/DIN EN 50268-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">							IEC 61034-2 &amp; TS/DIN EN 50268-2</td>					</tr>				</tbody>			</table>		</google-sheets-html-origin>	</google-sheets-html-origin></div>

Thes cables are used as indoor signal and data cornrnunkatIon installations as well as operator and subscriber distribuitionJhey can easily be used in curifined spaces due to their low lending racrius. These halogen-free cables are flame retardant.

Cable structure
Conductor	Mono bakır Heiken
Insulation	HFFR, H12, VDE 0207 -23
Insulation Colors	VDE 0815
Stranding	Two cores are twisted as a pair. The pairs are twisted in layers at regular intervals
Seperator Tape	PES BANT
Sheath	HFFR. HM2, VDE 0207 - 24
Sheath Color	RAL 3000 RED or RAL 7001 GREY

Technicial Specifications
Standard	VDE 0815
Conductor Resistance	0.60mm 64.6 Ω / Km
	0.80mm 36.6 Ω / Km
	1.00mm 43.8 Ω / Km
	1.50mm 23 Ω / Km
	2.50mm 13.8 Ω / Km
Insulation Resistance	min. 100 MΩ / Km
Effective Capacity	Max.120 nF/Km
Capacity Imbalance	300 pF / 100 m
Operating voltage	Max. 300V
Test Voltage	1000V
Operating temperature	-30°C ~ +70°C
min. Bending Radius	7.50 x D
Flame Test	IEC 60332+2 & TS/DIM EN 502666-2-4
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test	IEC 61034-2 & TS/DIN EN 50268-2
