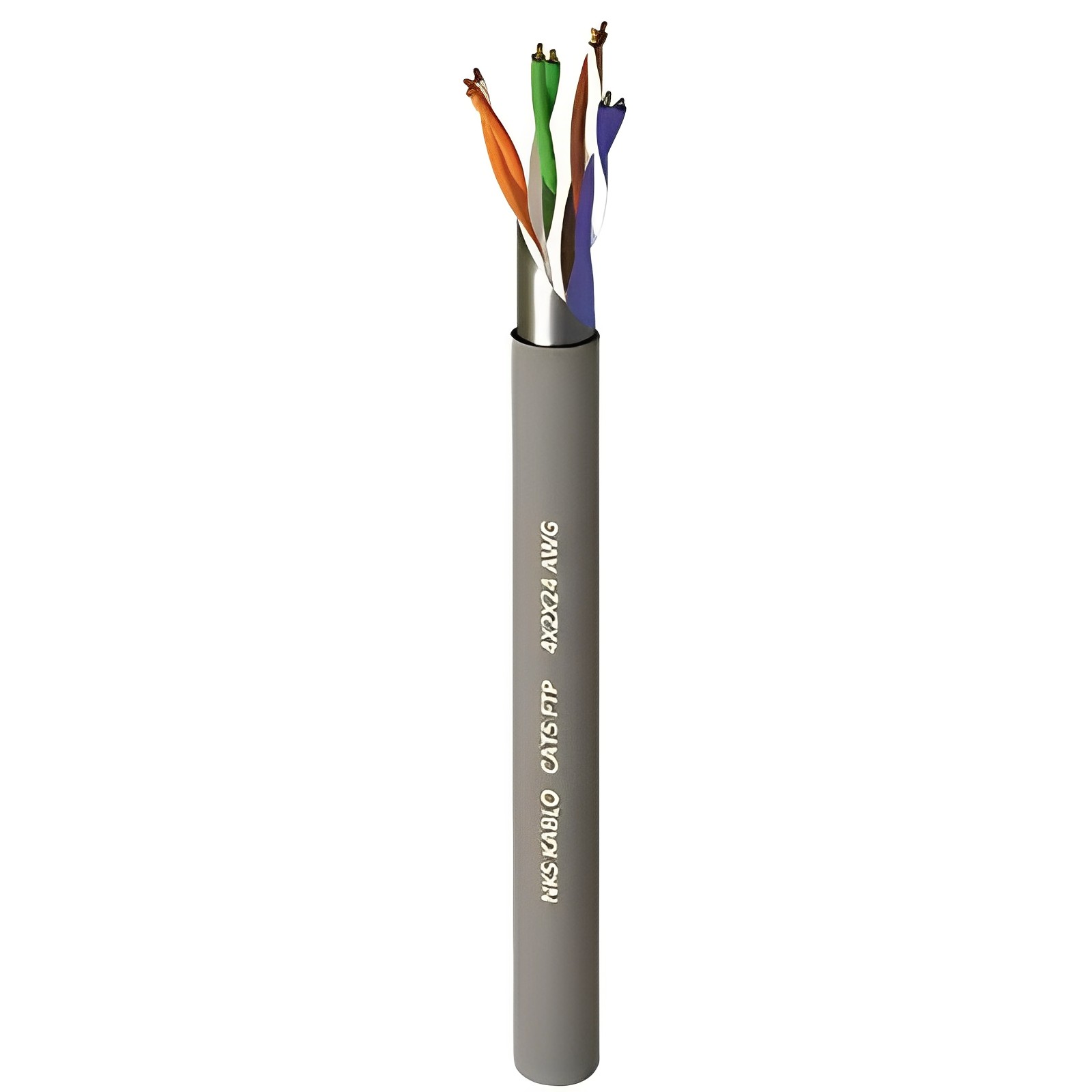

Edit product details - CAT 5 FTP 4x2x24 AWG Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:32:06 AM

URL of the product page

https://alderishop.com/cat-5-ftp-4x2x24-awg-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

<p>Use for indoor data transfer systems.Used to transfer analog and digital signals at speeds up 155 Mbit/sec.The foiled screen provides protection against external noise, interference and signals.</p><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"></table></div><div align="center"></div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Solid Copper Ø 0,57 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Solid Copper Ø 0,57 mm</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Poliolefin&nbsp;Ø 1,00 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Poliolefin&nbsp;Ø 1,00 mm</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC RAL 7032 Gray&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC RAL 7032 Gray</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;AL-PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">AL-PES TAPE</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable Diameter&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Cable Diameter&nbsp;</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 6,20 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 6,20 mm</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable&nbsp;Weight&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Cable&nbsp;Weight</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;41 Kg / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">41 Kg / Km</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Length&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standard Length</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;305 / 500 /1000 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">305 / 500 /1000 m</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Code No&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Code No</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;104 12014 2307&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">104 12014 2307</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.&nbsp;94Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max.&nbsp;94Ω/Km</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulator Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulator Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;5GΩ/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;5GΩ/Km</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Impedance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Impedance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100+ / -15Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100+ / -15Ω</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Effective Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Effective Capacity</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.&nbsp;56 nF / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max.&nbsp;56 nF / Km</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;250V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">250V</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1200V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1200V</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating temperature</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30°C ~ +70°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30°C ~ +70°C</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;Bending Radius&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;Bending Radius</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">8 x D</td></tr></tbody></table></google-sheets-html-origin></div>

Use for indoor data transfer systems.Used to transfer analog and digital signals at speeds up 155 Mbit/sec.The foiled screen provides protection against external noise, interference and signals.

Cable structure
Conductor	Solid Copper Ø 0,57 mm
Insulation	Poliolefin Ø 1,00 mm
Sheath	PVC RAL 7032 Gray
Screen	AL-PES TAPE
Cable Diameter	Ø 6,20 mm
Cable Weight	41 Kg / Km
Standard Length	305 / 500 /1000 m
Code No	104 12014 2307

Technicial Specifications
Conductor Resistance	Max. 94Ω/Km
Insulator Resistance	min. 5GΩ/Km
Impedance	100+ / -15Ω
Effective Capacity	Max. 56 nF / Km
Operating voltage	250V
Test Voltage	1200V
Operating temperature	-30°C ~ +70°C
min. Bending Radius	8 x D

Product name

Short description

Full description

<p>Use for indoor data transfer systems.Used to transfer analog and digital signals at speeds up 155 Mbit/sec.The foiled screen provides protection against external noise, interference and signals.</p><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"></table></div><div align="center"></div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Solid Copper Ø 0,57 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Solid Copper Ø 0,57 mm</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Poliolefin&nbsp;Ø 1,00 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Poliolefin&nbsp;Ø 1,00 mm</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC RAL 7032 Gray&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC RAL 7032 Gray</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;AL-PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">AL-PES TAPE</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable Diameter&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Cable Diameter&nbsp;</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 6,20 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 6,20 mm</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable&nbsp;Weight&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Cable&nbsp;Weight</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;41 Kg / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">41 Kg / Km</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Length&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standard Length</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;305 / 500 /1000 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">305 / 500 /1000 m</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Code No&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Code No</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;104 12014 2307&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">104 12014 2307</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.&nbsp;94Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max.&nbsp;94Ω/Km</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulator Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulator Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;5GΩ/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;5GΩ/Km</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Impedance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Impedance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100+ / -15Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100+ / -15Ω</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Effective Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Effective Capacity</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max.&nbsp;56 nF / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max.&nbsp;56 nF / Km</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;250V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">250V</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1200V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1200V</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating temperature</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30°C ~ +70°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30°C ~ +70°C</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;Bending Radius&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;Bending Radius</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">8 x D</td></tr></tbody></table></google-sheets-html-origin></div>

Use for indoor data transfer systems.Used to transfer analog and digital signals at speeds up 155 Mbit/sec.The foiled screen provides protection against external noise, interference and signals.

Cable structure
Conductor	Solid Copper Ø 0,57 mm
Insulation	Poliolefin Ø 1,00 mm
Sheath	PVC RAL 7032 Gray
Screen	AL-PES TAPE
Cable Diameter	Ø 6,20 mm
Cable Weight	41 Kg / Km
Standard Length	305 / 500 /1000 m
Code No	104 12014 2307

Technicial Specifications
Conductor Resistance	Max. 94Ω/Km
Insulator Resistance	min. 5GΩ/Km
Impedance	100+ / -15Ω
Effective Capacity	Max. 56 nF / Km
Operating voltage	250V
Test Voltage	1200V
Operating temperature	-30°C ~ +70°C
min. Bending Radius	8 x D

Product name

Short description

Full description

<p>تستخدم لأنظمة نقل البيانات الداخلية. تُستخدم لنقل الإشارات التناظرية والرقمية بسرعات تصل إلى 155 ميجابت / ثانية. توفر الشاشة المبطنة الحماية ضد الضوضاء الخارجية والتداخل والإشارات.</p><div align="center">

</div><div align="center"></div><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نحاس صلب بقطر 0.51 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">نحاس صلب بقطر 0.51 مم</td></tr><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;بولي أوليفين قطر 1.00 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">بولي أوليفين قطر 1.00 مم</td></tr><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC RAL 7032 رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC RAL 7032 رمادي</td></tr><tr style="height: 63px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;AL-PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">AL-PES TAPE</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قطر الكابل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">قطر الكابل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 5.60 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 5.60 ملم</td></tr><tr style="height: 63px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وزن الكابل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وزن الكابل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37.8 كجم / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">37.8 كجم / كم</td></tr><tr style="height: 87px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طول قياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">طول قياسي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;305/500/1000 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">305/500/1000 م</td></tr><tr style="height: 80px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رقم الكود.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">رقم الكود.</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;104 12814 2405&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">104 12814 2405</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 42px;"><td dir="rtl" rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المواصفات الفنية&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">المواصفات الفنية</td></tr><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة الموصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأعلى.&nbsp;94Ω / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأعلى.&nbsp;94Ω / كم</td></tr><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;5GΩ / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">دقيقة.&nbsp;5GΩ / كم</td></tr><tr style="height: 84px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معاوقة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">معاوقة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100+ / -15 درجة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100+ / -15 درجة</td></tr><tr style="height: 63px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القدرة الفعالة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">القدرة الفعالة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأعلى.&nbsp;56 nF / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأعلى.&nbsp;56 nF / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;250 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">250 فولت</td></tr><tr style="height: 63px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الجهد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الجهد</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1200 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1200 فولت</td></tr><tr style="height: 87px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">درجة حرارة التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30 درجة مئوية ~ +70 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30 درجة مئوية ~ +70 درجة مئوية</td></tr><tr style="height: 80px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">دقيقة.&nbsp;الانحناء الشعاع</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">8 × د</td></tr></tbody></table></google-sheets-html-origin>

تستخدم لأنظمة نقل البيانات الداخلية. تُستخدم لنقل الإشارات التناظرية والرقمية بسرعات تصل إلى 155 ميجابت / ثانية. توفر الشاشة المبطنة الحماية ضد الضوضاء الخارجية والتداخل والإشارات.

موصل	نحاس صلب بقطر 0.51 مم
عازل	بولي أوليفين قطر 1.00 مم
غطاء	PVC RAL 7032 رمادي
شاشة	AL-PES TAPE
قطر الكابل	Ø 5.60 ملم
وزن الكابل	37.8 كجم / كم
طول قياسي	305/500/1000 م
رقم الكود.	104 12814 2405

المواصفات الفنية
مقاومة الموصل	الأعلى. 94Ω / كم
مقاومة العازل	دقيقة. 5GΩ / كم
معاوقة	100+ / -15 درجة
القدرة الفعالة	الأعلى. 56 nF / كم
جهد التشغيل	250 فولت
اختبار الجهد	1200 فولت
درجة حرارة التشغيل	-30 درجة مئوية ~ +70 درجة مئوية
دقيقة. الانحناء الشعاع	8 × د

Product name

Short description

Full description

<p>Bina içerisinde bilgi iletim sistemlerinde, 155 Mbit/sn hıza kadar analog ve dijital sinyal iletiminde kullanılır. Ekranlama kabloyu elektromanyetik enterferanstan korur.</p><div align="center">

</div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="106"><col width="222"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo yapısı&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Kablo yapısı</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İletken&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İletken</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Tavlı bakır&nbsp;Ø 0,51 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Tavlı bakır&nbsp;Ø 0,51 mm</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yalıtkan&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yalıtkan</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Poliolefin&nbsp;Ø 1,00 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Poliolefin&nbsp;Ø 1,00 mm</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kılıf&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kılıf</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC RAL 7032 Gri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC RAL 7032 Gri</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ekran&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ekran</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;AL-PES BANT&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">AL-PES BANT</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo Çapı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kablo Çapı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 5,60 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 5,60 mm</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo Ağırlığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kablo Ağırlığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37,8 Kg / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">37,8 Kg / Km</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart Uzunluk&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standart Uzunluk</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;305 / 500 /1000 m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">305 / 500 /1000 m</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kod No&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kod No</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;104 12814 2405&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">104 12814 2405</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="125"><col width="283"></colgroup><tbody><tr style="height: 42px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Teknik Özellikler&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Teknik Özellikler</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İletken Direnci&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İletken Direnci</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max. 94 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max. 94 Ω/Km</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yalıtkan Direnci&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yalıtkan Direnci</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Min. 5GΩ/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Min. 5GΩ/Km</td></tr><tr style="height: 34px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Empedans&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Empedans</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100+ /&nbsp; -15Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100+ /&nbsp; -15Ω</td></tr><tr style="height: 27px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Efektif Kapasite&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Efektif Kapasite</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max. 56 nF / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Max. 56 nF / Km</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalısma Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Çalısma Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;250 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">250 V</td></tr><tr style="height: 28px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1200 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1200 V</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Çalışma Sıcaklığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30 ° C ~ + 70 ° C</td></tr><tr style="height: 38px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Min. Bükülme Yarıçapı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Min. Bükülme Yarıçapı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">8 x D</td></tr></tbody></table></google-sheets-html-origin></div>

<p>
</p>

Bina içerisinde bilgi iletim sistemlerinde, 155 Mbit/sn hıza kadar analog ve dijital sinyal iletiminde kullanılır. Ekranlama kabloyu elektromanyetik enterferanstan korur.

Kablo yapısı
İletken	Tavlı bakır Ø 0,51 mm
Yalıtkan	Poliolefin Ø 1,00 mm
Kılıf	PVC RAL 7032 Gri
Ekran	AL-PES BANT
Kablo Çapı	Ø 5,60 mm
Kablo Ağırlığı	37,8 Kg / Km
Standart Uzunluk	305 / 500 /1000 m
Kod No	104 12814 2405

Teknik Özellikler
İletken Direnci	Max. 94 Ω/Km
Yalıtkan Direnci	Min. 5GΩ/Km
Empedans	100+ / -15Ω
Efektif Kapasite	Max. 56 nF / Km
Çalısma Gerilimi	250 V
Test Gerilimi	1200 V
Çalışma Sıcaklığı	-30 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı	8 x D
