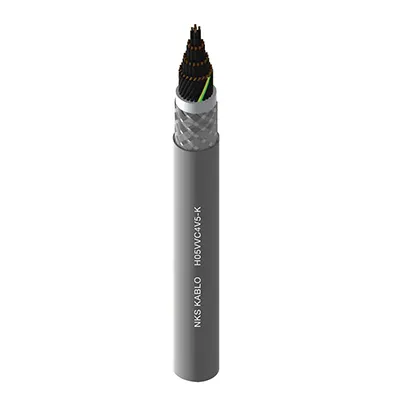

Edit product details - H05VVC4V5-K Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:34:51 AM

URL of the product page

https://alderishop.com/h05vvc4v5-k-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

<p>For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. The external sheath provides resistance to oils and makes this cable ideal for use in industrial environments.This cables are not for outdoor or external use.</p><div align="center">

</div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;YI2 PVC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">YI2 PVC</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Colors&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Colors</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Stranding&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Stranding</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Veins are twisted in layers at regular intervals.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Veins are twisted in layers at regular intervals.</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Internal Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC, TM2, RAL 7001 GREY&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC, TM2, RAL 7001 GREY</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Thin, tin plated copper wires&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Thin, tin plated copper wires</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RAL 7001 Grey, Oil Resistant PVC TM5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">RAL 7001 Grey, Oil Resistant PVC TM5</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standard</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS HD 21.13 S1, DIN VDE 0281-13&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS HD 21.13 S1, DIN VDE 0281-13</td></tr><tr style="height: 30px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 241px;">Conductor Resistance</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 mm² = 39 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 mm² = 39 Ω/Km</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 mm² = 26 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 mm² = 26 Ω/Km</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 mm² = 19.5 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 mm² = 19.5 Ω/Km</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 mm² = 13.3 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 mm² = 13.3 Ω/Km</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 mm² = 7.98 Ω/ km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 mm² = 7.98 Ω/ km</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;20 MΩ.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;20 MΩ.Km</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2500V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2500V</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">Operating temperature</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Fixed Fixed Laying -40 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Fixed Fixed Laying -40 ° C ~ + 70 ° C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Movable Flexible -5 ° C ~ + 50 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Movable Flexible -5 ° C ~ + 50 ° C</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;Bending Radius&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">min.&nbsp;Bending Radius</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Fixed Fixed Laying 6 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Fixed Fixed Laying 6 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Movable Flexible 12,5 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Movable Flexible 12,5 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Oil Resistance Test&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Oil Resistance Test</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60811-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60811-2-1</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300 / 500 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">300 / 500 V</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; color: rgb(0, 0, 0); font-size: 14.6667px; overflow: hidden; padding: 0px 3px; vertical-align: middle;"></td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><br></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table><br>

</div>

<p>
</p>

For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. The external sheath provides resistance to oils and makes this cable ideal for use in industrial environments.This cables are not for outdoor or external use.

Cable structure
Conductor	Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5
Insulation	YI2 PVC
Insulation Colors	According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.
Stranding	Veins are twisted in layers at regular intervals.
Internal Sheath	PVC, TM2, RAL 7001 GREY
Screen	Thin, tin plated copper wires
Sheath	RAL 7001 Grey, Oil Resistant PVC TM5

Technicial Specifications
Standard	TS HD 21.13 S1, DIN VDE 0281-13
Conductor Resistance	0.50 mm² = 39 Ω/Km
	0.75 mm² = 26 Ω/Km
	1.00 mm² = 19.5 Ω/Km
	1.50 mm² = 13.3 Ω/Km
	2.50 mm² = 7.98 Ω/ km
Insulation Resistance	min. 20 MΩ.Km
Test Voltage	2500V
Operating temperature	Fixed Fixed Laying -40 ° C ~ + 70 ° C
Operating temperature	Movable Flexible -5 ° C ~ + 50 ° C
min. Bending Radius	Fixed Fixed Laying 6 x D
min. Bending Radius	Movable Flexible 12,5 x D
Oil Resistance Test	IEC 60811-2-1
Operating voltage	300 / 500 V

Product name

Short description

Full description

<p>For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. The external sheath provides resistance to oils and makes this cable ideal for use in industrial environments.This cables are not for outdoor or external use.</p><div align="center"></div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;YI2 PVC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">YI2 PVC</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Colors&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Colors</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Stranding&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Stranding</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Veins are twisted in layers at regular intervals.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Veins are twisted in layers at regular intervals.</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Internal Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC, TM2, RAL 7001 GREY&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC, TM2, RAL 7001 GREY</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Thin, tin plated copper wires&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Thin, tin plated copper wires</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sheath</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RAL 7001 Grey, Oil Resistant PVC TM5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">RAL 7001 Grey, Oil Resistant PVC TM5</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standard</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS HD 21.13 S1, DIN VDE 0281-13&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS HD 21.13 S1, DIN VDE 0281-13</td></tr><tr style="height: 30px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 241px;">Conductor Resistance</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 mm² = 39 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 mm² = 39 Ω/Km</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 mm² = 26 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 mm² = 26 Ω/Km</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 mm² = 19.5 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 mm² = 19.5 Ω/Km</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 mm² = 13.3 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 mm² = 13.3 Ω/Km</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 mm² = 7.98 Ω/ km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 mm² = 7.98 Ω/ km</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;20 MΩ.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">min.&nbsp;20 MΩ.Km</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2500V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2500V</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">Operating temperature</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Fixed Fixed Laying -40 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Fixed Fixed Laying -40 ° C ~ + 70 ° C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Movable Flexible -5 ° C ~ + 50 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Movable Flexible -5 ° C ~ + 50 ° C</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;min.&nbsp;Bending Radius&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">min.&nbsp;Bending Radius</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Fixed Fixed Laying 6 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Fixed Fixed Laying 6 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Movable Flexible 12,5 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Movable Flexible 12,5 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Oil Resistance Test&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Oil Resistance Test</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60811-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60811-2-1</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300 / 500 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">300 / 500 V</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; color: rgb(0, 0, 0); font-size: 14.6667px; overflow: hidden; padding: 0px 3px; vertical-align: middle;"></td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><br></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table><br></div>

Cable structure
Conductor	Copper wire, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5
Insulation	YI2 PVC
Insulation Colors	According to TS/DIN EN 50334,white numerical code on black core,along with yellow/green core.
Stranding	Veins are twisted in layers at regular intervals.
Internal Sheath	PVC, TM2, RAL 7001 GREY
Screen	Thin, tin plated copper wires
Sheath	RAL 7001 Grey, Oil Resistant PVC TM5

Technicial Specifications
Standard	TS HD 21.13 S1, DIN VDE 0281-13
Conductor Resistance	0.50 mm² = 39 Ω/Km
	0.75 mm² = 26 Ω/Km
	1.00 mm² = 19.5 Ω/Km
	1.50 mm² = 13.3 Ω/Km
	2.50 mm² = 7.98 Ω/ km
Insulation Resistance	min. 20 MΩ.Km
Test Voltage	2500V
Operating temperature	Fixed Fixed Laying -40 ° C ~ + 70 ° C
Operating temperature	Movable Flexible -5 ° C ~ + 50 ° C
min. Bending Radius	Fixed Fixed Laying 6 x D
min. Bending Radius	Movable Flexible 12,5 x D
Oil Resistance Test	IEC 60811-2-1
Operating voltage	300 / 500 V

Product name

Short description

Full description

<p><div align="center" style="box-sizing: border-box; color: rgb(57, 63, 70); font-family: -apple-system, BlinkMacSystemFont, &quot;Segoe UI&quot;, Roboto, &quot;Helvetica Neue&quot;, Arial, sans-serif, &quot;Apple Color Emoji&quot;, &quot;Segoe UI Emoji&quot;, &quot;Segoe UI Symbol&quot;, &quot;Noto Color Emoji&quot;; font-size: 14px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255); text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;"></div></p><p style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem; color: rgb(57, 63, 70); font-family: -apple-system, BlinkMacSystemFont, &quot;Segoe UI&quot;, Roboto, &quot;Helvetica Neue&quot;, Arial, sans-serif, &quot;Apple Color Emoji&quot;, &quot;Segoe UI Emoji&quot;, &quot;Segoe UI Symbol&quot;, &quot;Noto Color Emoji&quot;; font-size: 14px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: right; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255); text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;">يستخدم هذا النوع من الكابلات في توصيل معدات التحكم في الماكينة وخطوط التجميع والنقل وأنظمة النقل وخطوط الإنتاج. تم تصميم الشاشة المنسوجة من أسلاك نحاسية رقيقة ، لنقل إشارات التحكم دون أي تدخل ، وهي مناسبة للاستخدام في الظروف البيئية الصناعية نظرًا لمقاومة الغلاف الخارجي للزيت. لا يتم استخدام هذه الأنواع من الكابلات في الهواء الطلق أو في الاماكن الخارجية.<br><br></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 71px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5</td></tr><tr style="height: 53px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;YI2 PVC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">YI2 PVC</td></tr><tr style="height: 133px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ألوان العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ألوان العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وفقًا لـ TS / DIN EN 50334 ، مع قلب أصفر / أخضر ، رقم أبيض مشفر على قلب أسود ، بدون قلب أصفر / أخضر لـ OZ.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وفقًا لـ TS / DIN EN 50334 ، مع قلب أصفر / أخضر ، رقم أبيض مشفر على قلب أسود ، بدون قلب أصفر / أخضر لـ OZ.</td></tr><tr style="height: 58px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">التواء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأوردة ملتوية في ثنايا بخطوات ثابتة.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأوردة ملتوية في ثنايا بخطوات ثابتة.</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غمد داخلي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غمد داخلي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC ، TM2 ، RAL 7001 رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC ، TM2 ، RAL 7001 رمادي</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جديلة من الأسلاك النحاسية الرقيقة المعلبة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جديلة من الأسلاك النحاسية الرقيقة المعلبة</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RAL 7001 رمادي ، مقاوم للزيت PVC TM5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">RAL 7001 رمادي ، مقاوم للزيت PVC TM5</td></tr></tbody></table><p style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem; color: rgb(57, 63, 70); font-family: -apple-system, BlinkMacSystemFont, &quot;Segoe UI&quot;, Roboto, &quot;Helvetica Neue&quot;, Arial, sans-serif, &quot;Apple Color Emoji&quot;, &quot;Segoe UI Emoji&quot;, &quot;Segoe UI Symbol&quot;, &quot;Noto Color Emoji&quot;; font-size: 14px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: right; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255); text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial;"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 71px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معيار&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">معيار</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS HD 21.13 S1 ، DIN VDE 0281-13&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS HD 21.13 S1 ، DIN VDE 0281-13</td></tr><tr style="height: 53px;"><td dir="rtl" rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><span><div style="max-height: 338px;">مقاومة الموصل</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 39 / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 39 / Km</td></tr><tr style="height: 133px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 مم² = 26 / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 مم² = 26 / Km</td></tr><tr style="height: 58px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 19.5 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 19.5 Ω / Km</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 13.3 Ω / Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 13.3 Ω / Km</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 7.98 Ω / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 7.98 Ω / كم</td></tr><tr style="height: 47px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العزل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العزل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;20 ميغا كيلومتر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">دقيقة.&nbsp;20 ميغا كيلومتر</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الجهد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الجهد</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2500 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2500 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><span><div style="max-height: 42px;">درجة حرارة التشغيل</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وضع ثابت ثابت -40 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وضع ثابت ثابت -40 ° C ~ + 70 ° C</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مرن متحرك -5 ° C ~ + 50 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مرن متحرك -5 ° C ~ + 50 ° C</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><span><div style="max-height: 42px;">دقيقة.&nbsp;الانحناء الشعاع</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثابت ثابت وضع 6 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ثابت ثابت وضع 6 × د</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المنقولة مرنة 12.5 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المنقولة مرنة 12.5 × د</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار مقاومة الزيت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار مقاومة الزيت</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60811-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60811-2-1</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300/500 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">300/500 فولت</td></tr></tbody></table>

يستخدم هذا النوع من الكابلات في توصيل معدات التحكم في الماكينة وخطوط التجميع والنقل وأنظمة النقل وخطوط الإنتاج. تم تصميم الشاشة المنسوجة من أسلاك نحاسية رقيقة ، لنقل إشارات التحكم دون أي تدخل ، وهي مناسبة للاستخدام في الظروف البيئية الصناعية نظرًا لمقاومة الغلاف الخارجي للزيت. لا يتم استخدام هذه الأنواع من الكابلات في الهواء الطلق أو في الاماكن الخارجية.

موصل	أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5
عازل	YI2 PVC
ألوان العازل	وفقًا لـ TS / DIN EN 50334 ، مع قلب أصفر / أخضر ، رقم أبيض مشفر على قلب أسود ، بدون قلب أصفر / أخضر لـ OZ.
التواء	الأوردة ملتوية في ثنايا بخطوات ثابتة.
غمد داخلي	PVC ، TM2 ، RAL 7001 رمادي
شاشة	جديلة من الأسلاك النحاسية الرقيقة المعلبة
غطاء	RAL 7001 رمادي ، مقاوم للزيت PVC TM5

معيار	TS HD 21.13 S1 ، DIN VDE 0281-13
مقاومة الموصل	0.50 مم² = 39 / Km
	0.75 مم² = 26 / Km
	1.00 مم² = 19.5 Ω / Km
	1.50 مم² = 13.3 Ω / Km
	2.50 مم² = 7.98 Ω / كم
مقاومة العزل	دقيقة. 20 ميغا كيلومتر
اختبار الجهد	2500 فولت
درجة حرارة التشغيل	وضع ثابت ثابت -40 ° C ~ + 70 ° C
درجة حرارة التشغيل	مرن متحرك -5 ° C ~ + 50 ° C
دقيقة. الانحناء الشعاع	ثابت ثابت وضع 6 × د
دقيقة. الانحناء الشعاع	المنقولة مرنة 12.5 × د
اختبار مقاومة الزيت	IEC 60811-2-1
جهد التشغيل	300/500 فولت

Product name

Short description

Full description

<p>Bu tip kablolar makine üzerindeki kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır.İnce kalaylı bakır tellerden örülmüş ekran, kontrol sinyallerini hiç bir parazit olmadan iletebilmek için dizayn edilmiştir.Dış kılıfın yağa dayanıklı olması sebebi ile endüstriyel çevre şartlarında kullanıma uygundur.Bu tip kablolar, açık havada ve dış ortamlarda kullanılmazlar.</p><div align="center">

</div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="106"><col width="222"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo yapısı&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Kablo yapısı</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İletken&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İletken</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5</td></tr><tr style="height: 30px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yalıtkan&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yalıtkan</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;YI2 PVC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">YI2 PVC</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yalıtkan Renkleri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yalıtkan Renkleri</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS/DIN EN 50334 e göre Sarı/yeşil damarla beraber siyah damar üzerine beyaz numara kodlu, OZ için Sarı/yeşil damar olmaksızın.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS/DIN EN 50334 e göre Sarı/yeşil damarla beraber siyah damar üzerine beyaz numara kodlu, OZ için Sarı/yeşil damar olmaksızın.</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Büküm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Büküm</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Damarlar sabit adımlarla katlar halinde bükülür.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Damarlar sabit adımlarla katlar halinde bükülür.</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İç Kılıf&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İç Kılıf</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC, TM2, RAL 7001 GRİ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC, TM2, RAL 7001 GRİ</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ekran&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ekran</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İnce kalaylı bakır tellerden örgü&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İnce kalaylı bakır tellerden örgü</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kılıf&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kılıf</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;RAL 7001 Gri, Yağa dayanıklı PVC TM5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">RAL 7001 Gri, Yağa dayanıklı PVC TM5</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="125"><col width="283"></colgroup><tbody><tr style="height: 43px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Teknik Özellikler&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Teknik Özellikler</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Standart</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS HD 21.13 S1, DIN VDE 0281-13&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS HD 21.13 S1, DIN VDE 0281-13</td></tr><tr style="height: 30px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İletken Direnci&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 241px;">İletken Direnci</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0,50 mm² = 39 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0,50 mm² = 39 Ω/Km</td></tr><tr style="height: 88px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0,75 mm² = 26 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0,75 mm² = 26 Ω/Km</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,00 mm² = 19,5 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1,00 mm² = 19,5 Ω/Km</td></tr><tr style="height: 37px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,50 mm² = 13,3 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1,50 mm² = 13,3 Ω/Km</td></tr><tr style="height: 40px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,50 mm² = 7,98 Ω/Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2,50 mm² = 7,98 Ω/Km</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yalıtım Direnci&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yalıtım Direnci</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Min. 20 MΩ.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Min. 20 MΩ.Km</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2500 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2500 V</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Sıcaklığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">Çalışma Sıcaklığı</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sabit Fixed Laying -40 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sabit Fixed Laying -40 ° C ~ + 70 ° C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hareketli Flexible -5 ° C ~ + 50 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Hareketli Flexible -5 ° C ~ + 50 ° C</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Min. Bükülme Yarıçapı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">Min. Bükülme Yarıçapı</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sabit Fixed Laying 6 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Sabit Fixed Laying 6 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Hareketli Flexible 12,5 x D&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Hareketli Flexible 12,5 x D</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yağa Dayanıklılık Testi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Yağa Dayanıklılık Testi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60811-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60811-2-1</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Çalışma Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300 / 500 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">300 / 500 V</td></tr></tbody></table></google-sheets-html-origin><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center">

</div><div align="center"></div><br><p>
</p>

Bu tip kablolar makine üzerindeki kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır.İnce kalaylı bakır tellerden örülmüş ekran, kontrol sinyallerini hiç bir parazit olmadan iletebilmek için dizayn edilmiştir.Dış kılıfın yağa dayanıklı olması sebebi ile endüstriyel çevre şartlarında kullanıma uygundur.Bu tip kablolar, açık havada ve dış ortamlarda kullanılmazlar.

Kablo yapısı
İletken	Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5
Yalıtkan	YI2 PVC
Yalıtkan Renkleri	TS/DIN EN 50334 e göre Sarı/yeşil damarla beraber siyah damar üzerine beyaz numara kodlu, OZ için Sarı/yeşil damar olmaksızın.
Büküm	Damarlar sabit adımlarla katlar halinde bükülür.
İç Kılıf	PVC, TM2, RAL 7001 GRİ
Ekran	İnce kalaylı bakır tellerden örgü
Kılıf	RAL 7001 Gri, Yağa dayanıklı PVC TM5

Teknik Özellikler
Standart	TS HD 21.13 S1, DIN VDE 0281-13
İletken Direnci	0,50 mm² = 39 Ω/Km
	0,75 mm² = 26 Ω/Km
	1,00 mm² = 19,5 Ω/Km
	1,50 mm² = 13,3 Ω/Km
	2,50 mm² = 7,98 Ω/Km
Yalıtım Direnci	Min. 20 MΩ.Km
Test Gerilimi	2500 V
Çalışma Sıcaklığı	Sabit Fixed Laying -40 ° C ~ + 70 ° C
Çalışma Sıcaklığı	Hareketli Flexible -5 ° C ~ + 50 ° C
Min. Bükülme Yarıçapı	Sabit Fixed Laying 6 x D
Min. Bükülme Yarıçapı	Hareketli Flexible 12,5 x D
Yağa Dayanıklılık Testi	IEC 60811-2-1
Çalışma Gerilimi	300 / 500 V
