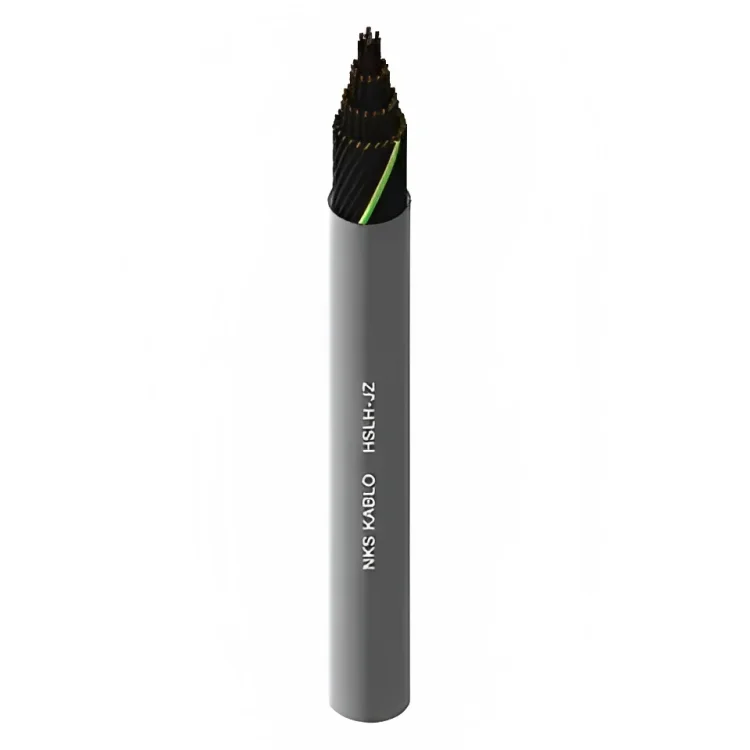

For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.This cable is flame resistant and does not emit toxic emissions.
Cable structure
Conductor
Twisted copper wires; IEC 60228 CLASS 5, TS DIN 60228 CLASS 5
Insulation
HFFR, HI2, VDE 0207-23
Color Code
According to TS / DIN EN 50334 white numerical code on black vein along with yellow and green vein no yellow or green vein for OZ
Stranding
Veins are twisted in layers at regular intervals.
Sheath
HFFR, HM2, VDE 0207-24
Sheath Color
RAL 7001 Gray
Technicial Specifications
Conductor Resistance
0.50 mm² = 39 Ω/Km
0.75 mm² = 26 Ω/Km
1.00 mm² = 19.5 Ω/Km
1.50 mm² = 13.3 Ω/Km
2.50 mm² = 7.98 Ω/ Km
4.00 mm² = 4.95 Ω/Km
6.00 mm² = 3.30 Ω/Km
10.00 mm² = 1.91 Ω/Km
16.00 mm² = 1.21 Ω/Km
Insulation Resistance
min. 20 MΩ.Km
Operating temperature
Fixed Fixed Laying -30 ° C ~ + 70 ° C
Movable Flexible -5 ° C ~ + 50 ° C
min. Bending Radius
Fixed Fixed Laying 8 x D
Movable Flexible 15 x D
Operating voltage
300 / 500 V
Test Voltage
2000V
Flame Retardant Test
IEC 60332-1-2 & TS/DIN EN 50266-2-4
Smoke Density
IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test
IEC 60754-1/2 & TS/DIN EN 50267-2-3
Bu tip kablolar makine üzerindeki kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır ve yangın esnasında alevi iletmezler.
Kablo yapısı
İletken
Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5
İzolasyon
İzolasyon Renkleri
TS / DIN EN 50334 e göre Sarı / Yeşil damarla beraber siyah damar üzerine beyaz numara kodlu, OZ için Sarı/Yeşil olmaksızın.
Büküm
Damarlar sabit katlar halinde bükülür.
İç Kılıf
HFFR, HM2, RAL 7001 Gri
Ekran
İnce kalaylı bakır tellerden örgü
Kılıf
Teknik Özellikler
İletken Direnci
0,50 mm² = 39 Ω/Km
0,75 mm² = 26 Ω/Km
1,00 mm² = 19,5 Ω/Km
1,50 mm² = 13,3 Ω/Km
2,50 mm² = 7,98 Ω/Km
4,00 mm² = 4,95 Ω/Km
6,00 mm² = 3,30 Ω/Km
10,00 mm² = 1,91 Ω/Km
16,00 mm² = 1,21 Ω/Km
Yalıtım Direnci
Min. 20 MΩ.Km
Çalışma Sıcaklığı
Sabit Fixed Laying -30 ° C ~ + 70 ° C
Hareketli Flexible -5 ° C ~ + 50 ° C
Min. Bükülme Yarıçapı
Sabit Fixed Laying 8 x D
Hareketli Flexible 15 x D
Çalışma Gerilimi
Test Gerilimi
2000 V
Alev Geciktirici Test
Duman Yoğunluğu
Korozif Gaz Testi
Kod No
Damar Sayısı ve Kesit
Kablo Dış Çapı
Bakır Ağırlığı
Yaklaşık Ağırlık
Standart Uzunluk
(mm2)
(kg/ km)
(kg / km)
(m)
109 16045 5002
2 x 0,50
6
9,6
48
100/500/1000
109 16045 5003
3 x 0,50
6,4
14,5
56
109 16045 5004
4 x 0,50
7
19
68
109 16045 5005
5 x 0,50
7,5
24
80
109 16045 5007
7 x 0,50
8,7
33,5
117
109 16045 5010
10 x 0,50
10,9
166
109 16045 5012
12 x 0,50
11,5
58
174
109 16045 5016
16 x 0,50
12,8
67
223
109 16045 5018
18 x 0,50
13,6
86,5
248
109 16045 5020
20 x 0,50
14
96
270
109 16045 5024
24 x 0,50
15,4
115
332
100/500
109 16045 5025
25 x 0,50
15,7
120
348
109 16045 5030
30 x 0,50
17,7
144
418
109 16045 7502
2 x 0,75
6,5
14,4
109 16045 7503
3 x 0,75
6,7
21,8
61
109 16045 7504
4 x 0,75
7,4
28,6
75
109 16045 7505
5 x 0,75
8,4
36
100
109 16045 7507
7 x 0,75
9,8
50
141
109 16045 7510
10 x 0,75
11,8
72
190
109 16045 7512
12 x 0,75
12,2
86
214
109 16045 7516
16 x 0,75
101
276
109 16045 7518
18 x 0,75
14,3
130
306
109 16045 7520
20 x 0,75
15,6
354
109 16045 7524
24 x 0,75
17,3
173
412
109 16045 7525
25 x 0,75
17,6
180
427
109 16045 7530
30 x 0,75
18,8
216
503
109 16045 7536
36 x 0,75
20,9
260
610
109 16045 1002
2 x 1,00
6,8
19,2
109 16045 1003
3 x 1,00
7,2
28,9
109 16045 1004
4 x 1,00
7,9
38
94
109 16045 1005
5 x 1,00
9
122
109 16045 1007
7 x 1,00
9,9
150
109 16045 1010
10 x 1,00
12,4
239
109 16045 1012
12 x 1,00
13,2
116
251
109 16045 1016
16 x 1,00
14,7
134
330
109 16045 1018
18 x 1,00
15,5
385
109 16045 1020
20 x 1,00
17
192
428
109 16045 1024
24 x 1,00
18,4
230
517
109 16045 1025
25 x 1,00
240
534
109 16045 1030
30 x 1,00
20,4
288
618
109 16045 1036
36 x 1,00
22,1
346
730
109 16045 1503
3 x 1,50
7,8
43,4
92
109 16045 1504
4 x 1,50
125
109 16045 1505
5 x 1,50
175
155
109 16045 1507
7 x 1,50
11,1
200
109 16045 1510
10 x 1,50
300
109 16045 1512
12 x 1,50
109 16045 1516
16 x 1,50
16,2
201
430
109 16045 1518
18 x 1,50
506
109 16045 1520
20 x 1,50
18
554
109 16045 1524
24 x 1,50
345
657
109 16045 1525
25 x 1,50
20,8
360
700
109 16045 1530
30 x 1,50
21,6
432
790
109 16045 1536
36 x 1,50
23,4
519
936
109 16045 2503
3 x 2,50
146
109 16045 2504
4 x 2,50
196
109 16045 2505
5 x 2,50
12,1
235
109 16045 2507
7 x 2,50
13,1
168
109 16045 2510
10 x 2,50
16,8
460
109 16045 2512
12 x 2,50
17,8
525
109 16045 2516
16 x 2,50
20,5
384
718
109 16045 2518
18 x 2,50
770
109 16045 2520
20 x 2,50
22,4
480
894
109 16045 2524
24 x 2,50
25
576
970
109 16045 2525
25 x 2,50
25,6
600
1100
109 16045 2530
30 x 2,50
26,9
720
1270
109 16045 2536
36 x 2,50
28,7
864
1510
109 16045 4002
2 x 4,00
78
195
109 16045 4003
3 x 4,00
11,9
245
109 16045 4004
4 x 4,00
13
154
305
109 16045 4005
5 x 4,00
380
109 16045 4007
7 x 4,00
15,9
269
490
109 16045 0002
2 x 10,00
16
435
109 16045 0003
3 x 10,00
285
550
109 16045 0004
4 x 10,00
109 16045 0005
5 x 10,00
21,1
455
870
109 16045 0007
7 x 10,00
23,5
672
1140
109 16045 0602
2 x 16,00
19,5
310
660
109 16045 0603
3 x 16,00
21
850
109 16045 0604
4 x 16,00
614
109 16045 0605
5 x 16,00
26,1
768
1400
109 16045 0607
7 x 16,00
29
1075
1800
