For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.This cable ideal for use in industrial environments. These cables have a thinner structure compared to other control cables.Not for external or outdoor use.

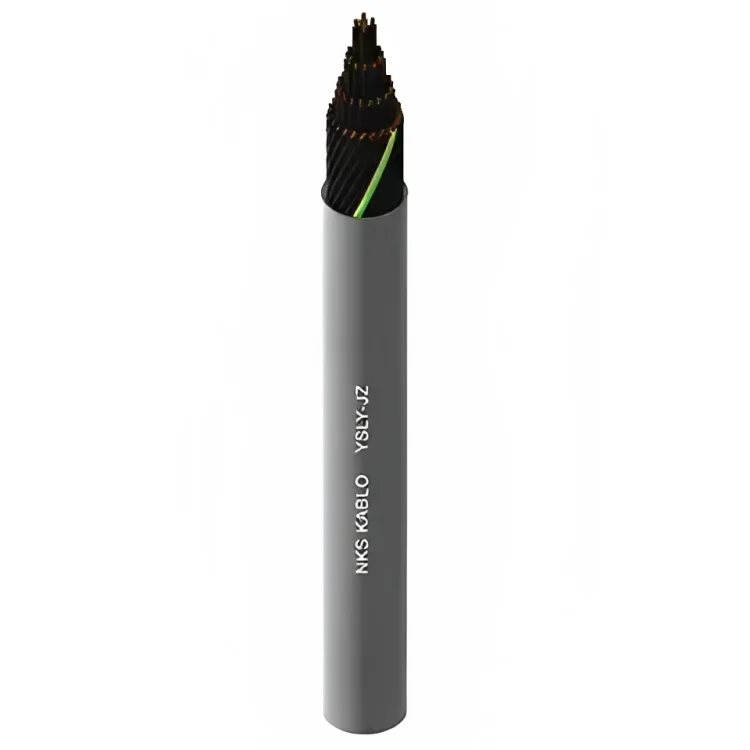

Cable structure
Conductive
Twisted copper wires, IEC 60228 CLASS 5, TS DIN 60228 CLASS 5
Insulation
YI2 PVC
Insulator Colors
TS / DIN EN 50334
Twisting
The veins are twisted in folds with constant steps.
Inner Sheath
PVC, TM2, RAL 7001 GRAY
Screen
Braid of thin tinned copper wires
Cover
RAL 7001
Technicial Specifications
Conductor Resistance
0.50 mm² = 39 Ω.Km
0.75 mm² = 26 Ω.Km
1.00 mm² = 19.5 Ω.Km
1.50 mm² = 13.3 Ω.Km
2.50 mm² = 7.98 Ω. Km
4.00 mm² = 4.95 Ω.Km
6.00 mm² = 3.30 Ω.Km
10.00 mm² = 1.91 Ω.Km
16.00 mm² = 1.21 Ω.Km
Insulation Resistance
min. 20 MΩ.Km
Operating temperature
Fixed Fixed Laying -40 ° C ~ + 70 ° C
Movable Flexible -5 ° C ~ + 70 ° C
min. Bending Radius
Fixed Fixed Laying 6 x D
Movable Flexible 12,5 x D
Operating voltage
300 / 500 V
Test Voltage
2000V
يستخدم هذا النوع من الكابلات في توصيل معدات التحكم على الماكينة ، وخطوط التجميع والنقل ، وأنظمة النقل ، وخطوط الإنتاج. وهي مناسبة للاستخدام في الظروف البيئية الصناعية. هذه الكابلات التي لها هيكل أرق مقارنة بكابلات التحكم الأخرى ، لا يتم استخدام هذه الأنواع من الكابلات في الهواء الطلق أو في الاماكن الخارجية.
Bu tip kablolar, makine üzerinde kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır.Endüstriyel çevre şartlarında kullanıma uygundur.Diğer kumanda kablolarına göre daha ince yapıya sahip olan bu kablolar açık havada ve dış ortamlarda kullanılmazlar.
Kablo yapısı
İletken
Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5
İzolasyon
Yalıtkan Renkleri
Büküm
Damarlar sabit adımlarla katlar halinde bükülür.
İç Kılıf
PVC, TM2, RAL 7001 GRİ
Ekran
İnce kalaylı bakır tellerden örgü
Kılıf
Teknik Özellikler
İletken Direnci
0,50 mm² = 39 Ω.Km
0,75 mm² = 26 Ω.Km
1,00 mm² = 19,5 Ω.Km
1,50 mm² = 13,3 Ω.Km
2,50 mm² = 7,98 Ω.Km
4,00 mm² = 4,95 Ω.Km
6,00 mm² = 3,30 Ω.Km
10,00 mm² = 1,91 Ω.Km
16,00 mm² = 1,21 Ω.Km
Yalıtım Direnci
Min. 20 MΩ.Km
Çalışma Sıcaklığı
Sabit Fixed Laying -40 ° C ~ + 70 ° C
Hareketli Flexible -5 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı
Sabit Fixed Laying 6 x D
Hareketli Flexible 12,5 x D
Çalışma Gerilimi
Test Gerilimi
2000 V
