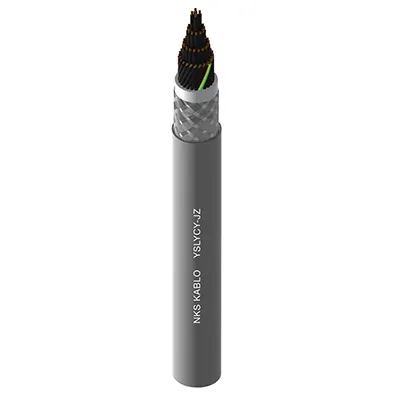

Edit product details - YSLYCY-JZ Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:43:28 AM

URL of the product page

https://alderishop.com/yslycy-jz-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. This cable ideal for use in industrial environments and are not for outdoor or external use. <div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Single Copper Wire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:48.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 Special halogen free
 material resistant to fire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:63.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 Stranding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 Two cores are twisted
 as a pair.The pairs are twisted in layers at regular intervals.<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:46.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Insulation Colors<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 VDE 0815<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:39.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Separating Wrapping<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:50.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Protective Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Glass fiber sheath<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Screen<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 AL-PEs TAPE with
 grounding wire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:28.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 HFFR, HM4, VDE 0207-24<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:50.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Sheath Color<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 RAL 3000 RED and RAL
 2003 ORANGE<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Standard<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 VDE 0815<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:48.0pt">
 <td width="189" rowspan="2" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 Conductor Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 0.60 mm² = 64.6 Ω/Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:63.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 0.80 mm² = 36.6 Ω/Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:46.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Insulation Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 min.&nbsp;100 MΩ.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:39.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Effective Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Max.&nbsp;100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:50.25pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Capacity Imbalance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 300 pF / 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Max.&nbsp;300V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:28.5pt">
 <td width="189" rowspan="2" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Test Voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Core/Core 0.60 mm to
 0.80 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:50.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 800 V / 1 mm &gt; 1000
 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:35.25pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 -30°C ~ +70°C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:42.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">
 10 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:46.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Flame Retardant Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 IEC 60332-1-2 &amp;
 TS/DIN EN 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:35.25pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 Smoke Density<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 IEC 61034-2 &amp; TS/DIN
 EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:38.25pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">
 Corrosive Gas Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:40.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">
 Insulation Continuity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">
 IEC 60331, VDE
 0472-814<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:60.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">
 Mechanical Impact Fire
 Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">
 DIN EN
 50200;&nbsp;PH30-PH60-PH90<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;mso-yfti-lastrow:yes;height:39.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">
 Current Discontinuity
 to the System<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">
 DIN 4102-12
 ;&nbsp;PH90-PH120<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table>

</div>

For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. This cable ideal for use in industrial environments and are not for outdoor or external use.

Cable structure
Conductor	Single Copper Wire
Insulation	Special halogen free material resistant to fire
Stranding	Two cores are twisted as a pair.The pairs are twisted in layers at regular intervals.
Insulation Colors	VDE 0815
Separating Wrapping	PES TAPE
Protective Sheath	Glass fiber sheath
Screen	AL-PEs TAPE with grounding wire
Sheath	HFFR, HM4, VDE 0207-24
Sheath Color	RAL 3000 RED and RAL 2003 ORANGE

Technicial Specifications
Standard	VDE 0815
Conductor Resistance	0.60 mm² = 64.6 Ω/Km
Conductor Resistance	0.80 mm² = 36.6 Ω/Km
Insulation Resistance	min. 100 MΩ.Km
Effective Capacity	Max. 100 nF/km
Capacity Imbalance	300 pF / 100 m
Operating voltage	Max. 300V
Test Voltage	Core/Core 0.60 mm to 0.80 mm
Test Voltage	800 V / 1 mm > 1000 V
Operating temperature	-30°C ~ +70°C
min. Bending Radius	10 x D
Flame Retardant Test	IEC 60332-1-2 & TS/DIN EN 50266-2-4
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
Insulation Continuity	IEC 60331, VDE 0472-814
Mechanical Impact Fire Resistance	DIN EN 50200; PH30-PH60-PH90
Current Discontinuity to the System	DIN 4102-12 ; PH90-PH120

Product name

Short description

Full description

For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise. This cable ideal for use in industrial environments and are not for outdoor or external use. <div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody><tr style="height: 31.5pt;"><td width="347" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 260pt; padding: 0cm 5.4pt; height: 31.5pt;">Cable structure<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Conductor<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Single Copper Wire<o:p></o:p></td></tr><tr style="height: 48pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">Insulation<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">Special halogen free material resistant to fire<o:p></o:p></td></tr><tr style="height: 63pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">Stranding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">Two cores are twisted as a pair.The pairs are twisted in layers at regular intervals.<o:p></o:p></td></tr><tr style="height: 46.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">Insulation Colors<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">VDE 0815<o:p></o:p></td></tr><tr style="height: 39.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">Separating Wrapping<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">PES TAPE<o:p></o:p></td></tr><tr style="height: 50.25pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">Protective Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">Glass fiber sheath<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Screen<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">AL-PEs TAPE with grounding wire<o:p></o:p></td></tr><tr style="height: 28.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">HFFR, HM4, VDE 0207-24<o:p></o:p></td></tr><tr style="height: 50.25pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">Sheath Color<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">RAL 3000 RED and RAL 2003 ORANGE<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody><tr style="height: 30pt;"><td width="464" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 348pt; padding: 0cm 5.4pt; height: 30pt;">Technicial Specifications<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Standard<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">VDE 0815<o:p></o:p></td></tr><tr style="height: 48pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">Conductor Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">0.60 mm² = 64.6 Ω/Km<o:p></o:p></td></tr><tr style="height: 63pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">0.80 mm² = 36.6 Ω/Km<o:p></o:p></td></tr><tr style="height: 46.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">Insulation Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">min.&nbsp;100 MΩ.Km<o:p></o:p></td></tr><tr style="height: 39.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">Effective Capacity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">Max.&nbsp;100 nF/km<o:p></o:p></td></tr><tr style="height: 50.25pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">Capacity Imbalance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">300 pF / 100 m<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Operating voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Max.&nbsp;300V<o:p></o:p></td></tr><tr style="height: 28.5pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">Test Voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">Core/Core 0.60 mm to 0.80 mm<o:p></o:p></td></tr><tr style="height: 50.25pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">800 V / 1 mm &gt; 1000 V<o:p></o:p></td></tr><tr style="height: 35.25pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">Operating temperature<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">-30°C ~ +70°C<o:p></o:p></td></tr><tr style="height: 42pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">min.&nbsp;Bending Radius<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">10 x D<o:p></o:p></td></tr><tr style="height: 46.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">Flame Retardant Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">IEC 60332-1-2 &amp; TS/DIN EN 50266-2-4<o:p></o:p></td></tr><tr style="height: 35.25pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">Smoke Density<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">IEC 61034-2 &amp; TS/DIN EN 50268-2<o:p></o:p></td></tr><tr style="height: 38.25pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">Corrosive Gas Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">IEC 60754-1/2 &amp; TS/DIN EN 50267-2-3<o:p></o:p></td></tr><tr style="height: 40.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">Insulation Continuity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">IEC 60331, VDE 0472-814<o:p></o:p></td></tr><tr style="height: 60pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">Mechanical Impact Fire Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">DIN EN 50200;&nbsp;PH30-PH60-PH90<o:p></o:p></td></tr><tr style="height: 39pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">Current Discontinuity to the System<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">DIN 4102-12 ;&nbsp;PH90-PH120<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody></tbody></table> </div>

Cable structure
Conductor	Single Copper Wire
Insulation	Special halogen free material resistant to fire
Stranding	Two cores are twisted as a pair.The pairs are twisted in layers at regular intervals.
Insulation Colors	VDE 0815
Separating Wrapping	PES TAPE
Protective Sheath	Glass fiber sheath
Screen	AL-PEs TAPE with grounding wire
Sheath	HFFR, HM4, VDE 0207-24
Sheath Color	RAL 3000 RED and RAL 2003 ORANGE

Technicial Specifications
Standard	VDE 0815
Conductor Resistance	0.60 mm² = 64.6 Ω/Km
Conductor Resistance	0.80 mm² = 36.6 Ω/Km
Insulation Resistance	min. 100 MΩ.Km
Effective Capacity	Max. 100 nF/km
Capacity Imbalance	300 pF / 100 m
Operating voltage	Max. 300V
Test Voltage	Core/Core 0.60 mm to 0.80 mm
Test Voltage	800 V / 1 mm > 1000 V
Operating temperature	-30°C ~ +70°C
min. Bending Radius	10 x D
Flame Retardant Test	IEC 60332-1-2 & TS/DIN EN 50266-2-4
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
Insulation Continuity	IEC 60331, VDE 0472-814
Mechanical Impact Fire Resistance	DIN EN 50200; PH30-PH60-PH90
Current Discontinuity to the System	DIN 4102-12 ; PH90-PH120

Product name

Short description

Full description

يستخدم هذا النوع من الكابلات في توصيل معدات التحكم في الماكينة ، وخطوط التجميع والنقل ، وأنظمة النقل ، وخطوط الإنتاج.تم تصميم الشاشة المنسوجة من الأسلاك النحاسية الرقيقة المعلبة لنقل إشارات التحكم دون أي تدخل. وهي مناسبة للاستخدام في الظروف البيئية الصناعية ، ولا تستخدم في الهواء وفي الهواء الطلق. <table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5</td></tr><tr style="height: 44px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;YI2 PVC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">YI2 PVC</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ألوان العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ألوان العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TS / DIN EN 50334&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">TS / DIN EN 50334</td></tr><tr style="height: 60px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">التواء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأوردة ملتوية في ثنايا بخطوات ثابتة.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأوردة ملتوية في ثنايا بخطوات ثابتة.</td></tr><tr style="height: 49px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غمد داخلي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غمد داخلي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC ، TM2 ، RAL 7001 رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC ، TM2 ، RAL 7001 رمادي</td></tr><tr style="height: 69px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جديلة من الأسلاك النحاسية الرقيقة المعلبة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جديلة من الأسلاك النحاسية الرقيقة المعلبة</td></tr><tr style="height: 45px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;راؤول 7001&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">راؤول 7001</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 392px;">مقاومة الموصل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 39 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 39 Ω.Km</td></tr><tr style="height: 44px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 مم² = 26 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 مم² = 26 .Km</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 19.5 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 19.5 Ω.Km</td></tr><tr style="height: 60px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 13.3 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 13.3 Ω.Km</td></tr><tr style="height: 49px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 7.98 كيلومترًا مربعًا&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 7.98 كيلومترًا مربعًا</td></tr><tr style="height: 69px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;= 4.00 مم² = 4.95 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">= 4.00 مم² = 4.95 .Km</td></tr><tr style="height: 45px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6.00 مم² = 3.30 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">6.00 مم² = 3.30 .Km</td></tr><tr style="height: 31px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10.00 مم² = 1.91 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">10.00 مم² = 1.91 Ω.Km</td></tr><tr style="height: 31px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16.00 مم² = 1.21 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">16.00 مم² = 1.21 Ω.Km</td></tr><tr style="height: 29px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العزل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العزل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;20 ميغا كيلومتر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">دقيقة.&nbsp;20 ميغا كيلومتر</td></tr><tr style="height: 44px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 97px;">درجة حرارة التشغيل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وضع ثابت ثابت -40 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وضع ثابت ثابت -40 ° C ~ + 70 ° C</td></tr><tr style="height: 53px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مرن متحرك -5 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مرن متحرك -5 ° C ~ + 70 ° C</td></tr><tr style="height: 35px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 77px;">دقيقة.&nbsp;الانحناء الشعاع</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثابت ثابت وضع 6 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ثابت ثابت وضع 6 × د</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المنقولة مرنة 12.5 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المنقولة مرنة 12.5 × د</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;300/500 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">300/500 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الجهد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الجهد</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2000 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2000 فولت</td></tr></tbody></table><div align="center"></div>

يستخدم هذا النوع من الكابلات في توصيل معدات التحكم في الماكينة ، وخطوط التجميع والنقل ، وأنظمة النقل ، وخطوط الإنتاج.تم تصميم الشاشة المنسوجة من الأسلاك النحاسية الرقيقة المعلبة لنقل إشارات التحكم دون أي تدخل. وهي مناسبة للاستخدام في الظروف البيئية الصناعية ، ولا تستخدم في الهواء وفي الهواء الطلق.

موصل	أسلاك نحاسية ملتوية ، IEC 60228 CLASS 5 ، TS DIN 60228 CLASS 5
عازلة	YI2 PVC
ألوان العازل	TS / DIN EN 50334
التواء	الأوردة ملتوية في ثنايا بخطوات ثابتة.
غمد داخلي	PVC ، TM2 ، RAL 7001 رمادي
شاشة	جديلة من الأسلاك النحاسية الرقيقة المعلبة
غطاء	راؤول 7001

مقاومة الموصل	0.50 مم² = 39 Ω.Km
	0.75 مم² = 26 .Km
	1.00 مم² = 19.5 Ω.Km
	1.50 مم² = 13.3 Ω.Km
	2.50 مم² = 7.98 كيلومترًا مربعًا
	= 4.00 مم² = 4.95 .Km
	6.00 مم² = 3.30 .Km
	10.00 مم² = 1.91 Ω.Km
	16.00 مم² = 1.21 Ω.Km
مقاومة العزل	دقيقة. 20 ميغا كيلومتر
درجة حرارة التشغيل	وضع ثابت ثابت -40 ° C ~ + 70 ° C
درجة حرارة التشغيل	مرن متحرك -5 ° C ~ + 70 ° C
دقيقة. الانحناء الشعاع	ثابت ثابت وضع 6 × د
دقيقة. الانحناء الشعاع	المنقولة مرنة 12.5 × د
جهد التشغيل	300/500 فولت
اختبار الجهد	2000 فولت

Product name

Short description

Full description

Bu tip kablolar makine üzerindeki kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır.İnce kalaylı bakır tellerden örülmüş ekran, kontrol sinyallerini hiç bir parazit olmadan iletebilmek için dizayn edilmiştir.Endüstriyel çevre şartlarında kullanıma uygundur.Bu tip kablolar, açık havada ve dış ortamlarda kullanılmazlar.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="329" nowrap="" colspan="2" style="width: 247pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo yapısı<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Mono Bakır Iletken<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:48.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 Yalıtkan<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 Yangına dayanıklı
 halojensiz özel malzeme<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:63.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 Büküm<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 Iki damar bir çift
 olacak sekilde bükülür.Çiftlersabit adımlarla katlar halinde bükülür.<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:46.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Yalıtkan Renkler<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 VDE 0815<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:39.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Ayırıcı Bant<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 PES BANT<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:50.25pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Koruyucu Bant<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Cam elyaf bant<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ekran<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Toprak teliyle
 birlikte AL-PES Bant<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:28.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 HFFR, HM4, VDE 0207-24<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:50.25pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Kılıf Rengi<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 RAL 3000 KIRMIZI veya
 RAL 2003 TURUNCU<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center"><div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="406" style="width: 304.55pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="406" nowrap="" colspan="2" style="width: 304.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-left: 1pt solid windowtext; border-bottom: none; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Teknik Özellikler<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="127" style="width: 95pt; border-width: 1pt; border-style: solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Standart<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 VDE 0815<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:48.0pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 İletken Direnci<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 48pt;">
 0,60 mm² = 64,6 Ω/Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:63.0pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 63pt;">
 0,80 mm² = 36,6 Ω/Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:46.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Yalıtım Direnci<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Min. 100 MΩ.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:39.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Efektif Kapasite<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39.75pt;">
 Max. 100 nF / km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:50.25pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 Kapasite Dengesizliği<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 300 pF / 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Çalısma Gerilimi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Max. 300 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:28.5pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Test Gerilimi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Damar/Damar 0,60 mm
 ile 0,80 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:50.25pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 50.25pt;">
 800 V / 1 mm &gt; 1000
 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:35.25pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 Çalışma Sıcaklığı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 -30 ° C ~ + 70 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:42.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">
 Min. Bükülme Yarıçapı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 42pt;">
 10 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:46.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 Alev Geciktirici Test<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 46.5pt;">
 IEC 60332-1-2 &amp;
 TS/DIN EN 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:35.25pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 Duman Yoğunluğu<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 35.25pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:38.25pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">
 Korozif Gaz Testi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 38.25pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:40.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">
 İzolasyon Devamlılığı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 40.5pt;">
 IEC 60331 , VDE
 0472-814<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:60.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">
 Mekanik Darbeli
 Yangına Dayanım<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 60pt;">
 DIN EN 50200;
 PH30-PH60-PH90<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;mso-yfti-lastrow:yes;height:39.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">
 Sisteme Akım
 Devamsızlığı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 39pt;">
 DIN 4102-12 ;
 PH90-PH120<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="406" style="width: 304.55pt;"><tbody></tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="406" style="width: 304.55pt;"><tbody></tbody></table>

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table>

</div>

Bu tip kablolar makine üzerindeki kontrol ekipmanları bağlantısında, montaj ve konveyör hatlarında, taşıma sistemlerinde, üretim hatlarında kullanılır.İnce kalaylı bakır tellerden örülmüş ekran, kontrol sinyallerini hiç bir parazit olmadan iletebilmek için dizayn edilmiştir.Endüstriyel çevre şartlarında kullanıma uygundur.Bu tip kablolar, açık havada ve dış ortamlarda kullanılmazlar.

Kablo yapısı
İletken	Mono Bakır Iletken
Yalıtkan	Yangına dayanıklı halojensiz özel malzeme
Büküm	Iki damar bir çift olacak sekilde bükülür.Çiftlersabit adımlarla katlar halinde bükülür.
Yalıtkan Renkler	VDE 0815
Ayırıcı Bant	PES BANT
Koruyucu Bant	Cam elyaf bant
Ekran	Toprak teliyle birlikte AL-PES Bant
Kılıf	HFFR, HM4, VDE 0207-24
Kılıf Rengi	RAL 3000 KIRMIZI veya RAL 2003 TURUNCU

Teknik Özellikler
Standart	VDE 0815
İletken Direnci	0,60 mm² = 64,6 Ω/Km
İletken Direnci	0,80 mm² = 36,6 Ω/Km
Yalıtım Direnci	Min. 100 MΩ.Km
Efektif Kapasite	Max. 100 nF / km
Kapasite Dengesizliği	300 pF / 100 m
Çalısma Gerilimi	Max. 300 V
Test Gerilimi	Damar/Damar 0,60 mm ile 0,80 mm
Test Gerilimi	800 V / 1 mm > 1000 V
Çalışma Sıcaklığı	-30 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı	10 x D
Alev Geciktirici Test	IEC 60332-1-2 & TS/DIN EN 50266-2-4
Duman Yoğunluğu	IEC 61034-2 & TS/DIN EN 50268-2
Korozif Gaz Testi	IEC 60754-1/2 & TS/DIN EN 50267-2-3
İzolasyon Devamlılığı	IEC 60331 , VDE 0472-814
Mekanik Darbeli Yangına Dayanım	DIN EN 50200; PH30-PH60-PH90
Sisteme Akım Devamsızlığı	DIN 4102-12 ; PH90-PH120

Product name

Short description

Full description

Click to edit HTML...

Product name

Short description

Full description

Click to edit HTML...

SKU

Manufacturer part number

GTIN (global trade item number)

Customs Tariff Number

Product condition

Country of Origin

Admin comment

Product tags

Available start date

Available end date

Allow customer reviews

Show on home page

Display order

Limited to stores

Limited to customer roles

Require other products are added to the cart

Required product IDs

Automatically add these products to the cart

Is gift card

Gift card type

Recurring product

Cycle length

Cycle period

Total cycles

Shipping enabled

Delivery time

Free shipping

Additional shipping charge

USD

Quantity unit

Product Unit Id

Weight

milliliter

Length

centimeter

Width

centimeter

Height

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Tax exempt

Tax category

Is Electronic Service

Add Video

Options

Exclude first image from gallery

Add a new picture

To upload files drop them here or click.

Main media file


Title tag

Meta description

Meta keywords

URL alias

Show all (4)

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Download

Downloadable product

Download file

To upload files drop them here or click.

Version

Options

Unlimited downloads

Max. downloads

Number of days

Days

Download activation type

Has user agreement

User agreement text

Click to edit HTML...

Has sample download file

Sample download file

To upload files drop them here or click.
