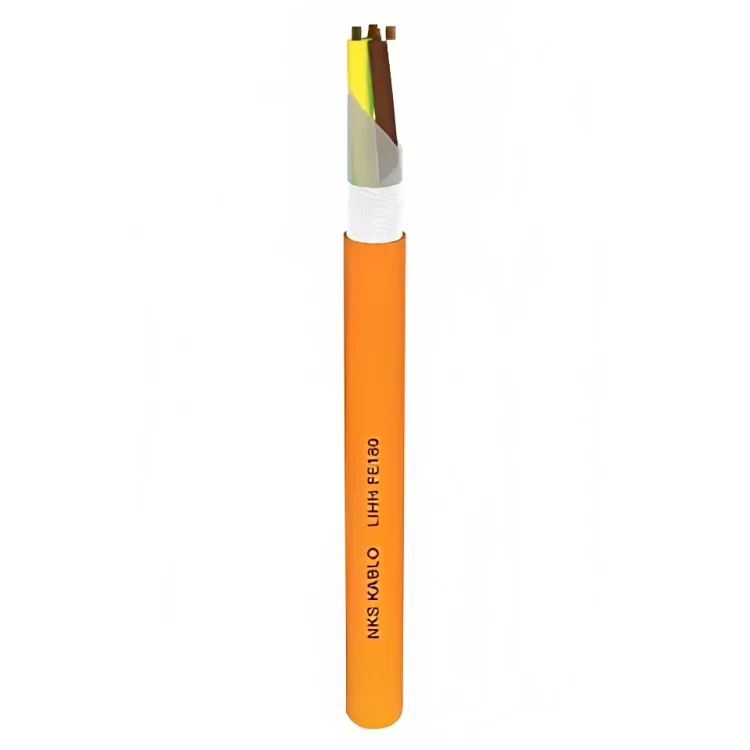

hese cables are halogen free flame resistant cables which can transfer energy for 180 minutes under fire conditions ( when stationary ). Additionally, they provide continuous current in the DIN 4102-12 test ofE30 and E90 for cables and systems.This cables are used in computer systemsand as control and signal cables in electronic control equipment.Notfor external or subterranean use.Tinned copper screen protects the cable from external electrical effects as well as wrapping the cores for protection.Ideal for use when toxic gas emissions must be avoided.This cables do not conduct flames.
Cable structure
Conductor
IEC 60228 / Class 5 TS/DIN EN 60228 CLASS 5 electrolytic twisted copper
Insulation
Special halogen free material resistant to fire
Stranding
Cores are twisted in layers at regular intervals.
Insulation Colors
DIN 47100
Separating Wrapping
PES TAPE
Protective Sheath
Glass fiber sheath
Sheath
HFFR, HM4, VDE 0207-24, RAL 2003 Orange
Sheath Color
RAL 2003 Orange
Technicial Specifications
Conductor Resistance
0.14 mm² = 148 Ω.Km
0.22 mm² = 96 Ω.Km
0.25 mm² = 79.9 Ω.Km
0.34 mm² = 56 Ω.Km
0.50 mm² = 39 Ω.Km
0.75 mm² = 26 Ω.Km
1.00 mm² = 19.5 Ω.Km
1.50 mm² = 13.3 Ω.Km
2.50 mm² = 7.98 Ω.Km
Insulation Resistance
> 200 MΩ.Km
Operating voltage
0.14 mm² = 350 V
≥ 0.22 mm² = 500 V
Operating temperature
-30°C ~ +70°C
min. Bending Radius
Fixed Fixed Laying 6,5 x D
Movable Flexible 15 x D
Flame Test
IEC 60332-1-2 & TS/DIN EN 50266-2-4
Smoke Density
IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test
IEC 60754-1/2 & TS/DIN EN 50267-2
Insulation Continuity
IEC 60331, VDE 0472-814
Mechanical Impact Fire Resistance
DIN EN 50200; PH30-PH60-PH90
Current Discontinuity to the System
DIN 4102-12 ; PH90-PH120
These cables are halogen free flame resistant cables which can transfer energy for 180 minutes under fire conditions ( when stationary ). Additionally, they provide continuous current in the DIN 4102-12 test ofE30 and E90 for cables and systems.This cables are used in computer systemsand as control and signal cables in electronic control equipment.Notfor external or subterranean use.Tinned copper screen protects the cable from external electrical effects as well as wrapping the cores for protection.Ideal for use when toxic gas emissions must be avoided.This cables do not conduct flames.
Yaygın şartları altında 180 dakikaya kadar ( sabit olmak kaydıyla ) enerji iletebilen, aleve dayanıklı halojensiz kablolardır.Ayrıca kablo ve ekipmanlarıyla birlikte sistem testi olan DIN 4102-12’nin E30 ve E90 sistemde akım devamlılığınıda sağlamaktadır.Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında kontrol ve sinyal kablosu olarak kullanılırlar. Üzerindeki ekran dış gürültülere ve sinyallere karşı koruma sağlamaktadır. Zehirli gaz çıkarmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler. Harici ortamlarda ve toprak altında kullanılmazlar.
Kablo yapısı
İletken
IEC 60228 / Sınıf 5 TS/DIN EN 60228 SINIF 5 elektrolitik bükülü bakır
Yalıtkan
Yangına dayanıklı halojensiz özel malzeme
Büküm
Damarlar sabit adımlarla katlar halinde bükülür.
Yalıtkan Renkler
Ayırıcı Bant
PES BANT
Koruyucu Bant
Cam elyaf bant
Kılıf
HFFR, HM4, VDE 0207-24
Kılıf Rengi
RAL 2003 TURUNCU
Teknik Özellikler
İletken Direnci
0,14 mm² = 148 Ω.Km
0,22 mm² = 96 Ω.Km
0,25 mm² = 79,9 Ω.Km
0,34 mm² = 56 Ω.Km
0,50 mm² = 39 Ω.Km
0,75 mm² = 26 Ω.Km
1,00 mm² = 19,5 Ω.Km
1,50 mm² = 13,3 Ω.Km
2,50 mm² = 7,98 Ω.Km
Yalıtım Direnci
> 200 M Ω.Km
Çalışma Gerilimi
0,14 mm² = 350 V
≥ 0,22 mm² = 500 V
Çalışma Sıcaklığı
-30 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı
Sabit Fixed Laying 6,5 x D
Hareketli Flexible 15 x D
Alev Testi
Duman Yoğunluğu
Korozif Gaz Testi
İzolasyon Devamlılığı
IEC 60331 , VDE 0472-814
Mekanik Darbeli Yangına Dayanım
Sisteme Akım Devamsızlığı
