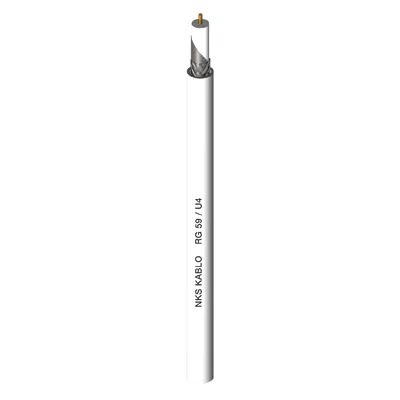

Edit product details - RG 59 U-4 Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:41:38 AM

URL of the product page

https://alderishop.com/rg-59-u-4-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

For use as an indoor connection cable in TV and satellite systems. Preferable for their low attenuation and thin structure.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Cu&nbsp; -Ø 0,80 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 FPE Ø 3,70 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 External Conductor<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Al PES<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Screen<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Tin plated Copper Wire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 PVC - White<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable Diameter&nbsp;<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ø 6,00 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable&nbsp;Weight42,5<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 37 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Standard Length<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 100 / 500 /1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Code No<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 101 14412 1014<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> </div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 55 ± 3 pF/m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Insulator Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 500 M.Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Characteristic
 Impedance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 ± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Propagation Velocity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 84% v/c<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1.1 kV<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 -40°C ~ +70°C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 10 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Flame Retardant Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60332-1 &amp; EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:15.75pt">
 <td width="189" rowspan="5" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Weakening<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 100 MHz = 8.7 dB / 100
 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 200 MHz = 12.5 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 400 MHz = 15.5 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 800 MHz = 24 dB / 100
 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1000 MHz = 29.5 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

For use as an indoor connection cable in TV and satellite systems. Preferable for their low attenuation and thin structure.

Cable structure
Conductor	Cu -Ø 0,80 mm
Insulation	FPE Ø 3,70 mm
External Conductor	Al PES
Screen	Tin plated Copper Wire
Sheath	PVC - White
Cable Diameter	Ø 6,00 mm
Cable Weight42,5	37 Kg / Km
Standard Length	100 / 500 /1000 m
Code No	101 14412 1014

Technicial Specifications
Capacity	55 ± 3 pF/m
Insulator Resistance	500 M.Ω.Km
Characteristic Impedance	75 ± 3Ω
Propagation Velocity	84% v/c
Operating voltage	1.1 kV
Operating temperature	-40°C ~ +70°C
min. Bending Radius	10 x D
Flame Retardant Test	IEC 60332-1 & EN 50265-2-1
Weakening	100 MHz = 8.7 dB / 100 m
	200 MHz = 12.5 dB / 100 m
	400 MHz = 15.5 dB / 100 m
	800 MHz = 24 dB / 100 m
	1000 MHz = 29.5 dB / 100 m
