For use as an indoor connection cable in TV and satellite systems. Preferable for their low attenuation and thin structure.

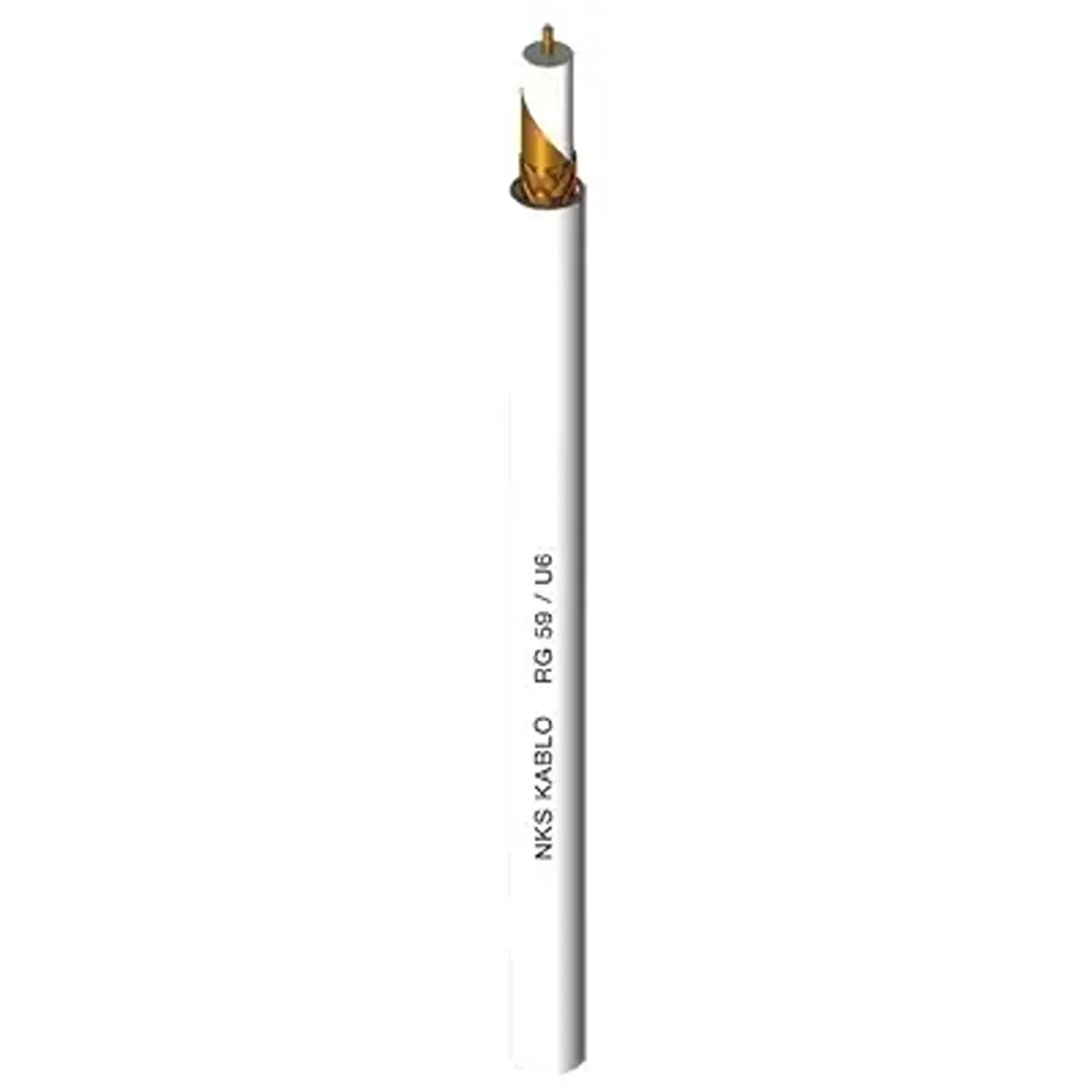

Cable structure
Conductor
Cu - Ø 0,80 mm
Insulation
FPE Ø 3,705 mm
External Conductor
Cu - PES
Screen
Copper Wire
Sheath
PVC White
Cable Diameter
Ø 6,00 mm
Cable Weight42,5
40 Kg / Km
Standard Length
100 / 500 /1000 m
Code No
101 14212 1016
Technicial Specifications
Capacity
55 ± 3 pF/m
Insulator Resistance
500 M.Ω.Km
Characteristic Impedance
75 ± 3Ω
Propagation Velocity
84% v/c
Operating voltage
1.1 kV
Operating temperature
-40°C ~ +70°C
min. Bending Radius
10 x D
Flame Retardant Test
IEC 60332-1 & EN 50265-2-1
Weakening
100 MHz = 8.7 dB / 100 m
200 MHz = 12.5 dB / 100 m
400 MHz = 15.5 dB / 100 m
800 MHz = 24 dB / 100 m
1000 MHz = 29.5 dB / 100 m
للاستخدام الداخلي ككابل توصيل لأنظمة التلفزيون الهوائي والأقمار الصناعية. يفضل إستخدامه للإشارات المنخفضة والبنيه الرقيقة.
Bina içi tv ve uydu anten sistemlerinde baglantı kablosu olarak kullanılır.Düsük zayıflama degeri ve ince yapısıyla tercih edilir.
Kablo yapısı
İletken
İzolasyon
FPE Ø 3,70 mm
Dış İletken
Cu-PES
Ekran
Bakır Tel
Kılıf
PVC Beyaz
Kablo Dış Çapı
Kablo Ağırlığı
Standart Uzunluk
Kod No
Teknik Özellikler
Kapasite
Yalıtkan Direnci
Karakteristik Empedans
Yayılma Hızı
% 84 v/c
Çalısma Gerilimi
1,1 kV
Çalışma Sıcaklığı
-40 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı
Alev Geciktirici Test
Zayıflama
100 MHz = 8,7 dB / 100 m
200 MHz = 12,5 dB / 100 m
400 MHz = 15,5 dB / 100 m
1000 MHz = 29,5 dB / 100 m
