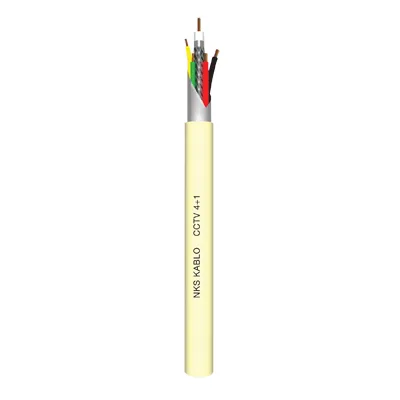

Edit product details - CCTV 4+1 (1 COAX+ 2X0,22+2X0.50) Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:33:52 AM

URL of the product page

https://alderishop.com/cctv-4-1-1-coax-2x0-22-2x0-50-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.CCTV cables are manufactured for various different uses.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,34 mm²<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 SOLID PE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Screen<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Thin Plated Copper
 Wire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cores for Signal<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 SOLID PE 0.22 mm² / Ø
 1,20 mm²<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Signal Core Colors<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Yellow , Green<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cores of Control<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 PVC ( 0,50 mm² / Ø
 1,80 mm )<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:47.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Control Core Colors<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Red , Black<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 General Screen<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 AL-PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 PVC RAL 7032 GRAY<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 External Diameter<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ø 6,10 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable Weight<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 48 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Standard Length<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 100 / 500 / 1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Code No<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 102 12112 1061<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> </div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.22 mm² = 79 Ω / km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.50 mm² = 39 Ω / km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Effective Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 58 pF/m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Impedance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 ± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 250V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:31.5pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Fixed Fixed Laying -5
 ° C ~ + 70 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:47.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Movable Flexible -30 °
 C ~ + 80 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Fixed Fixed Laying 7,5
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Movable Flexible 10 x
 D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Flame Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60332-1 , EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.CCTV cables are manufactured for various different uses.

Cable structure
Conductor	0,34 mm²
Insulation	SOLID PE
Screen	Thin Plated Copper Wire
Cores for Signal	SOLID PE 0.22 mm² / Ø 1,20 mm²
Signal Core Colors	Yellow , Green
Cores of Control	PVC ( 0,50 mm² / Ø 1,80 mm )
Control Core Colors	Red , Black
General Screen	AL-PES TAPE
Sheath	PVC RAL 7032 GRAY
External Diameter	Ø 6,10 mm
Cable Weight	48 Kg / Km
Standard Length	100 / 500 / 1000 m
Code No	102 12112 1061

Technicial Specifications
Conductor Resistance	0.22 mm² = 79 Ω / km
Conductor Resistance	0.50 mm² = 39 Ω / km
Effective Capacity	58 pF/m
Impedance	75 ± 3Ω
Operating voltage	250V
Operating temperature	Fixed Fixed Laying -5 ° C ~ + 70 ° C
Operating temperature	Movable Flexible -30 ° C ~ + 80 ° C
min. Bending Radius	Fixed Fixed Laying 7,5 x D
min. Bending Radius	Movable Flexible 10 x D
Flame Test	IEC 60332-1 , EN 50265-2-1
