These cables are used in tools and machines which are subjected to high temperatures, in place with very high or low temperatures in the aerospace industry, nautical industry, cement, glass and ceramic factories, in the steel and iron industry and home appliance field.

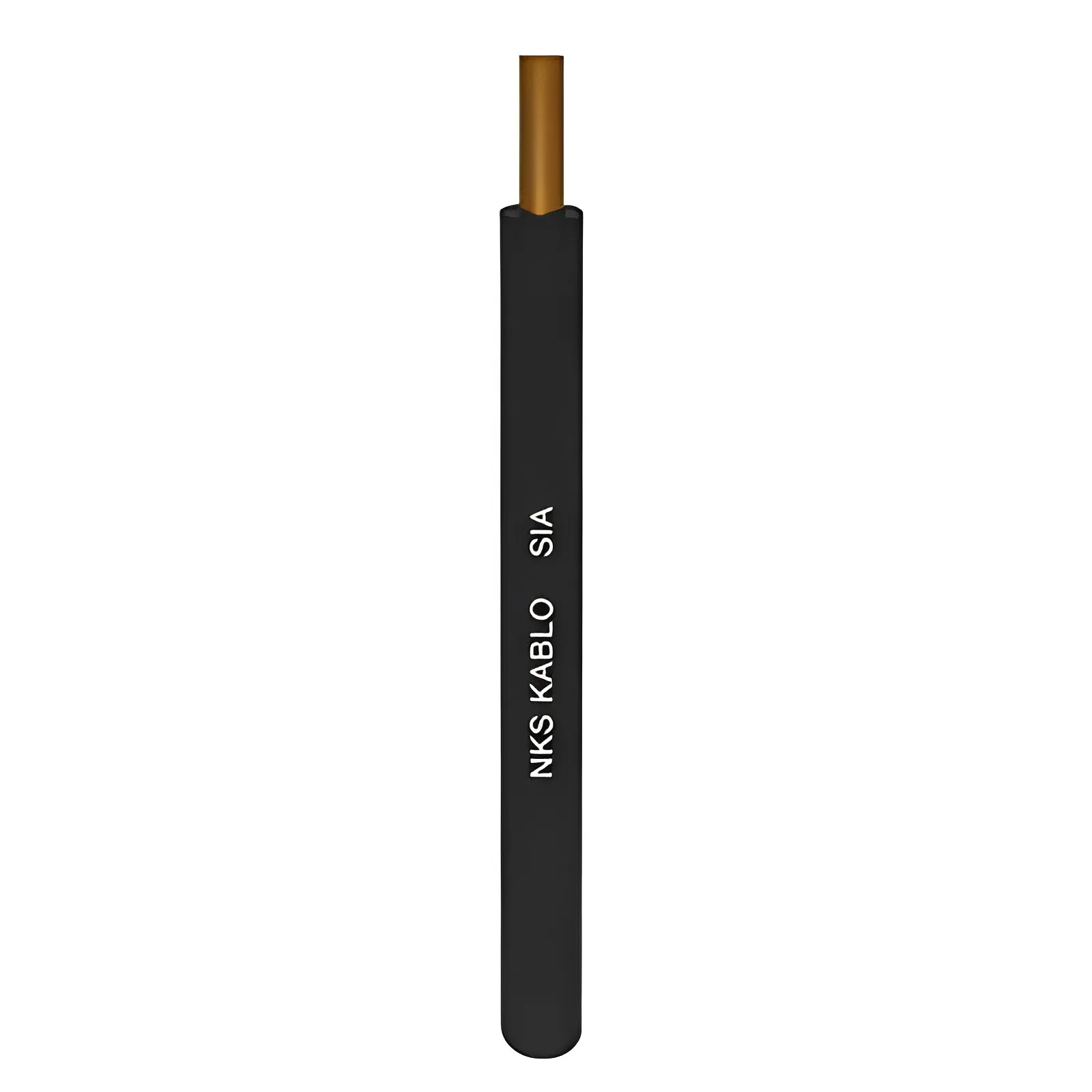

Cable structure
Conductor
IEC 60228 Class 1 Electrolytic bare copper
Insulation
Silicon, TS HD 22.1S4 E12 VDE 0282-1
Insulation Color Coding
VDE 0293, TS HD 308 S2
Technicial Specifications
Conductor Resistance
0.75 mm² = 24.5 Ω.Km
1.00 mm² = 18.1 Ω.Km
1.50 mm² = 12.1 Ω.Km
2.50 mm² = 7.41 Ω.Km
4.00 mm² = 4 .61 Ω.Km
6.00 mm² = 3.08 Ω.Km
10.00 mm² = 1.83 Ω.Km
16.00 mm² = 1.15 Ω.Km
25.00 mm² = 0.727 Ω.Km
35.00 mm² = 0.524 Ω.Km
50.00 mm² = 0.387 Ω.Km
70.00 mm² = 0.268 Ω.Km
95.00 mm² = 0.193 Ω.Km
120.00 mm² = 0.153 Ω.Km
150.00 mm² = 0.124 Ω. Km
185.00 mm² = 0.101 Ω.Km
240.00 mm² = 0.0775 Ω.Km
Insulation Resistance
> 20 MΩ / Km
Operating voltage
0.50 mm² to 1.00 mm² (inclusive) = 300/500 V
1.50 mm² to 240 mm² (inclusive) = 450/750 V
Operating temperature
-60 °C ~ +180 °C
min. Bending Radius
Fixed Fixed Laying 7,5 x D
Movable Flexible 10 x D
Flame Test
IEC 60332-1-2 & TS/DIN EN 50265-2-1
تُستخدم هذه الكابلات في الأدوات والآلات المعرضة لدرجات حرارة عالية ، في الأماكن ذات درجات الحرارة المرتفعة والمنخفضة جدًا ، في صناعة الطيران ، وصناعة السفن ، ومصانع الأسمنت والزجاج والسيراميك ، وصناعة الحديد والصلب ، وصناعة الأدوات المنزلية الثقيلة .
Bu kablolar yüksek ısıya maruz kalan alet ve makinelerde, çok yüksek ve çok düşük sıcak ortamların bulunduğu yerlerde, havacılık endüstrisinde, gemi sanayi, çimento cam ve seramik fabrikalarında, demir çelik endüstrisinde beyaz eşya sektöründe kullanılırlar.
Kablo yapısı
İletken
IEC 60228 Sınıf 1 Elektrolitik tavlı bakır
Yalıtkan
Silikon, TS HD 22.1S4 E12 VDE 0282-1
Yalıtkan Renkleri
Teknik Özellikler
İletken Direnci
0,75 mm² = 24,5 Ω.Km
1,00 mm² = 18,1 Ω.Km
1,50 mm² = 12,1 Ω.Km
2,50 mm² = 7,41 Ω.Km
4,00 mm² = 4,61 Ω.Km
6,00 mm² = 3,08 Ω.Km
10,00 mm² = 1,83 Ω.Km
16,00 mm² = 1,15 Ω.Km
25,00 mm² = 0,727 Ω.Km
35,00 mm² = 0,524 Ω.Km
50,00 mm² = 0,387 Ω.Km
70,00 mm² = 0,268 Ω.Km
95,00 mm² = 0,193 Ω.Km
120,00 mm² = 0,153 Ω.Km
150,00 mm² = 0,124 Ω.Km
185,00 mm² = 0,101 Ω.Km
240,00 mm² = 0,0775 Ω.Km
Yalıtım Direnci
Çalışma Gerilimi
0,50 mm²’ den 1,00 mm² ye kadar (dahil) = 300/500 V
1,50 mm² den 240 mm² ye kadar (dahil ) = 450/750 V
Çalışma Sıcaklığı
-60 ° C ~ + 180 ° C
Min. Bükülme Yarıçapı
Sabit Fixed Laying 7,5 x D
Hareketli Flexible 10 x D
Alev Testi
