STANDART PARTS

• Thermoregulation System for Extruder Feeding Zone

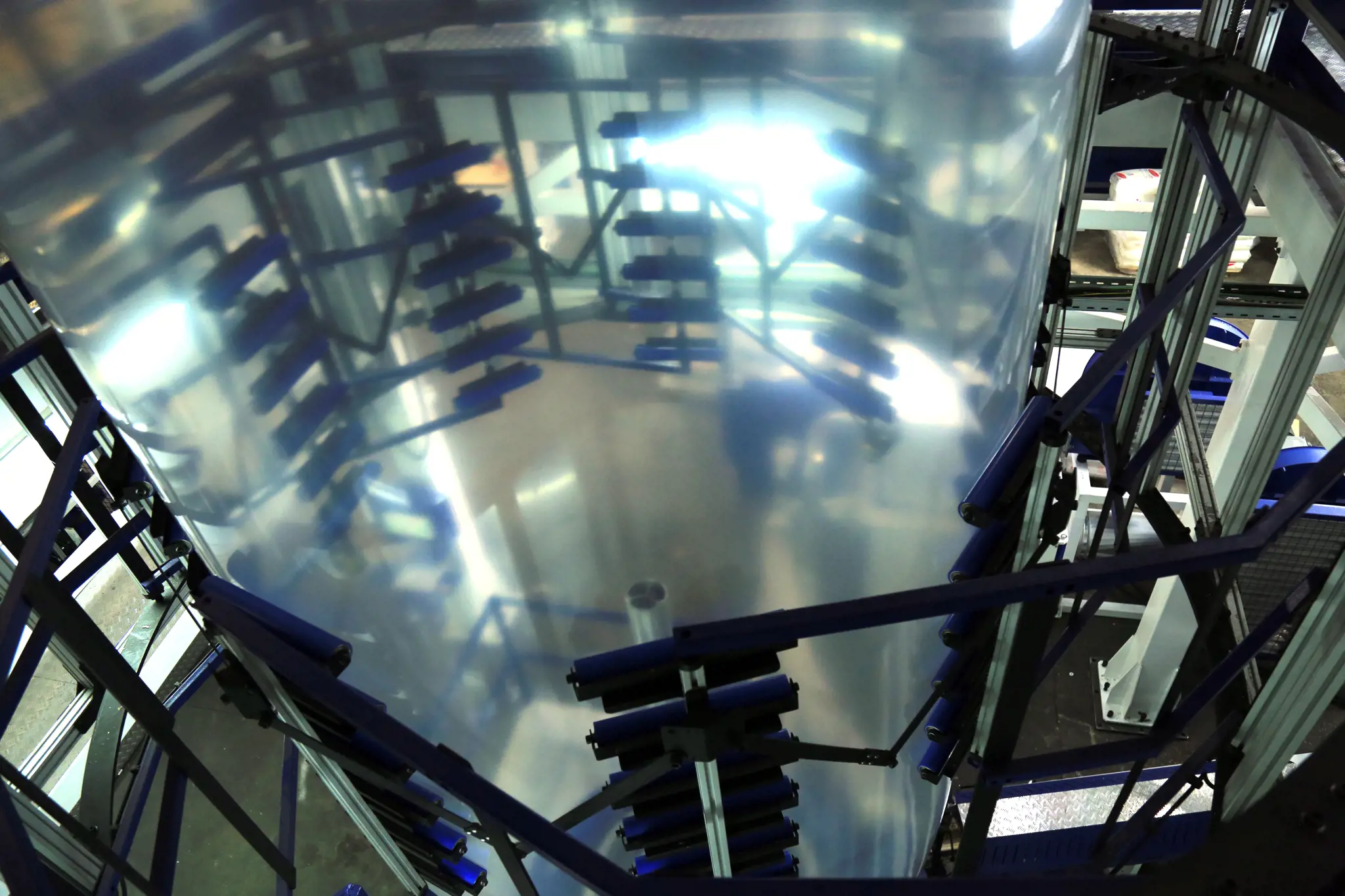

• Internal Bubble Cooling System (IBC)

• Heat Exchanger

• Bubble Guide

• Secondary Nip

• Edge Guide

• Technical Service Support with Remote Connection

OPTIONAL PARTS

• Corona Teater

• 4 Companent Dosing Unit

• 6 Companent Dosing Unit

• Air Ring With Tickness Control

• Hot Slitting Unit

Useable Raw Materials	LDPE, LLDPE, mLLDPE, MDPE, %100 recycled materia
Film Width	minimum : 1000 mm / maximum : 1800 mm
Film Thickness	20 - 200 micron
Maximum Capacity	250 kg / h
Die Type and Diameter	Monolayer Split Die Ø250 with IBC System
Maximum Line Speed	150 mt / min
Main Engine	90 kW
Screw - Barrel	Ø75 Bimetal plated L / D ratio 32:1
Filter	Ø95 Hydraulic Screen Changer (Manual Control)
Tower Type	Rotary Tower
Tower Height	9,5 mt
Winder	Single Station Non-Stop
