تعديل تفاصيل منتج -
Fixed Concrete Batching Plant
معاينة
حفظ
حفظ ومتابعة التعديل
نسخ المنتج
حذف
الرقم التعريفى
تم الإنشاء فى
19/11/2024 12:43:36 م
تم التحديث فى
11/12/2024 11:38:41 ص
الرابط الخاص بصفحة المنتج
https://alderishop.com/fixed-concrete-batching-plant/
نوع المنتج
Simple product
Grouped product
Bundled product
تم النشر
الرؤية
Fully visible
In search results
On product detail pages
Not visible
قالب المنتج
Default Product Template
اساسي
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
إسم المنتج
وصف قصير
وصف كامل
<ul><li>The plant automation is fully automatic and controlled with PC.</li><li>The operator can do any parameter adjustment and calibration on the PC.</li><li>Raw materials stock entered can be updated as production moves and remaining materials can be tracked.</li><li>The system enables preparing as many prescriptions as desired and entering customer information and retrieving production data at least one year to the past.</li><li>Digital indicators enable the operator to follow voltage and current values on the panel</li><li>The operator can control the whole system manually by buttons on the panel in case of a computer failure.</li><li>The production can be resumed through operator panel after a pause or keeping the mixture or power outage. </li><li>Servicing requirement is minimum thanks to the advantage of remote connection and intervention online.</li><li>Authorized users can be defined via passwords to prevent unauthorized access and to set authorization level.<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Fixed Concrete Batching Plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">fixed Concrete batching plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80 m3/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">model</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MES-80</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Total Power</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">110 kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Operating Voltage</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">380 volts</td></tr></tbody></table></google-sheets-html-origin><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><br><google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80 m3/h Fixed Concrete Batching Plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80m3 Aggregate bunker</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 x 20 = 80 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Aggregate Feeding Conveyor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800mm L = 24.000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Concrete Mixer (1.5 m3)</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Single - Sheft</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement Silos</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Equipment Of Cement Silo</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Complete</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement Screw Conveyor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x 8000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Concrete Plant Automation</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MAKRO Automation</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Control Cabinet</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2.200mm x 3000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Compressor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Hydrophone and Equipment</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 m3/h</td></tr></tbody></table><google-sheets-html-origin><br><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80 M3 Aggregate Bunker</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 x 20 m3 = 80 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Discharge flap</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Units (for each compartment)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pneumatic pistons</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Vibrator</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Load cell</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Air preparation unit</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Grid over the bunker</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="135"><col width="318"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Aggregate Weighing Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4-fold 10 mm linen rubber belt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimension</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800 mm L = 12.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Vibrator</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Electric motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 KW 1500 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Reducer</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dual step</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drums<br></td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Ringfeder - Drive drum covered 10mm rubber</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="124"><col width="331"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Aggregate Feeding Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4- fold 10mm linen rubber belt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimension</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800mm L = 24.000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Electric motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">18.5 kw 1500 rpm (GAMAK)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Reducer</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">P4 Reducer (Back slide lock)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drums</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drive drum covered with 10mm rubber</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Housings</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">SNH Single-side walking platform</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Belt top closure</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Galvanized sheet<br></td></tr></tbody></table><br><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="215"><col width="238"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); text-align: center;"><font face="Roboto Serif"><span style="font-size: 16px;">Concrete Mixer</span></font></td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixer capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1.5 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixer type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Single - Shaft</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Drive type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Driven from one side</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Motors</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 x 22.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Rotating speed</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">12 -14 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Main body wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 double xhrome coated MANGANESE</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixing arm wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 double xhrome coated MANGANESE</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Side wall wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Hardox 400</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Automatic central lubrication system</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Discharging type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Pneumatic discharge door</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Emergency stop switch</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Safety sensor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Cement weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">800 kg - Pneumatic Vibrator - Load Cell : 3 x 500 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Water weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">500 Lt -- Load Cell : 1 x 1000 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Additive weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">30 kg -- Load Cell : 1 x 100 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Aggregate weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 m3 -- Butterfly Valve - Pneumatic + Vibrator</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="124"><col width="331"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Cement Silos</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Sheet thickness</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 - 6 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Filling pipe</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 ''</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Construction type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Bolted</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Bottom flap and lever</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">300 SN valve and CM4 lever (Wam - Ozbekoglu)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Silo equipment</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Sailor Ladder - Maintenance Cover - Platform and Railing</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Cement Screw Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimensions</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x 8000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">90 ton/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement input</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Universal type</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Concrete Plant Automation</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Fully automatic by computer</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Supplier</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MAKRO Automation</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Control Cabinet</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Dimensions</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">2.200 mm x 3.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Outer wall</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">0.5 mm galvanized material, painted</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Inner wall</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">12 mm laminated chipboard</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Side walls</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">50 mm polystyrene hard foam</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Ceiling</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">80 mm glass wool</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Windows</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">PVC and heat insulated double glass</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Other features</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">The electrical system is built-in and there are luminaire, socket and switch.</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Compressor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Volume</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Flow</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1480 lt/minute</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pistons</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pressure</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">8 bar</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); text-align: center;"><font face="Roboto Serif"><span style="font-size: 16px;">Hydrophore & Equipment</span></font></td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 m3/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pressure tank</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">300 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Working pressure interval</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 - 6 bar</td></tr></tbody></table></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></li></ul>
The plant automation is fully automatic and controlled with PC.
The operator can do any parameter adjustment and calibration on the PC.
Raw materials stock entered can be updated as production moves and remaining materials can be tracked.
The system enables preparing as many prescriptions as desired and entering customer information and retrieving production data at least one year to the past.
Digital indicators enable the operator to follow voltage and current values on the panel
The operator can control the whole system manually by buttons on the panel in case of a computer failure.
The production can be resumed through operator panel after a pause or keeping the mixture or power outage.
Servicing requirement is minimum thanks to the advantage of remote connection and intervention online.
Authorized users can be defined via passwords to prevent unauthorized access and to set authorization level.

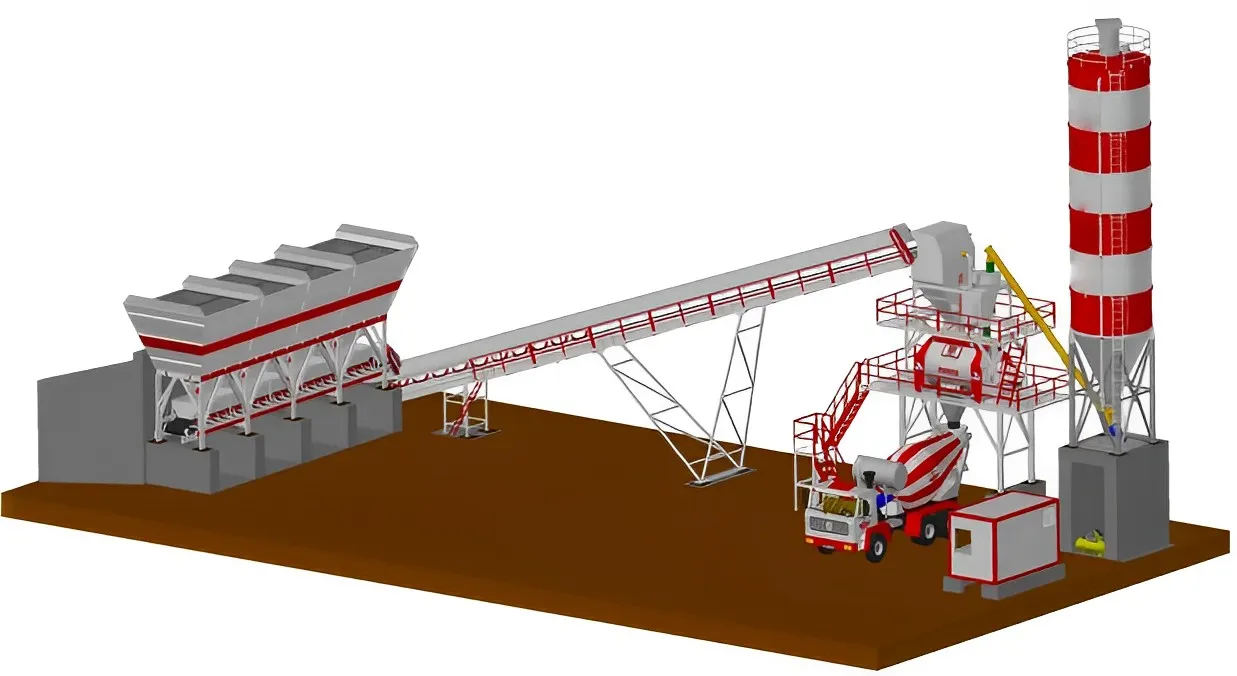

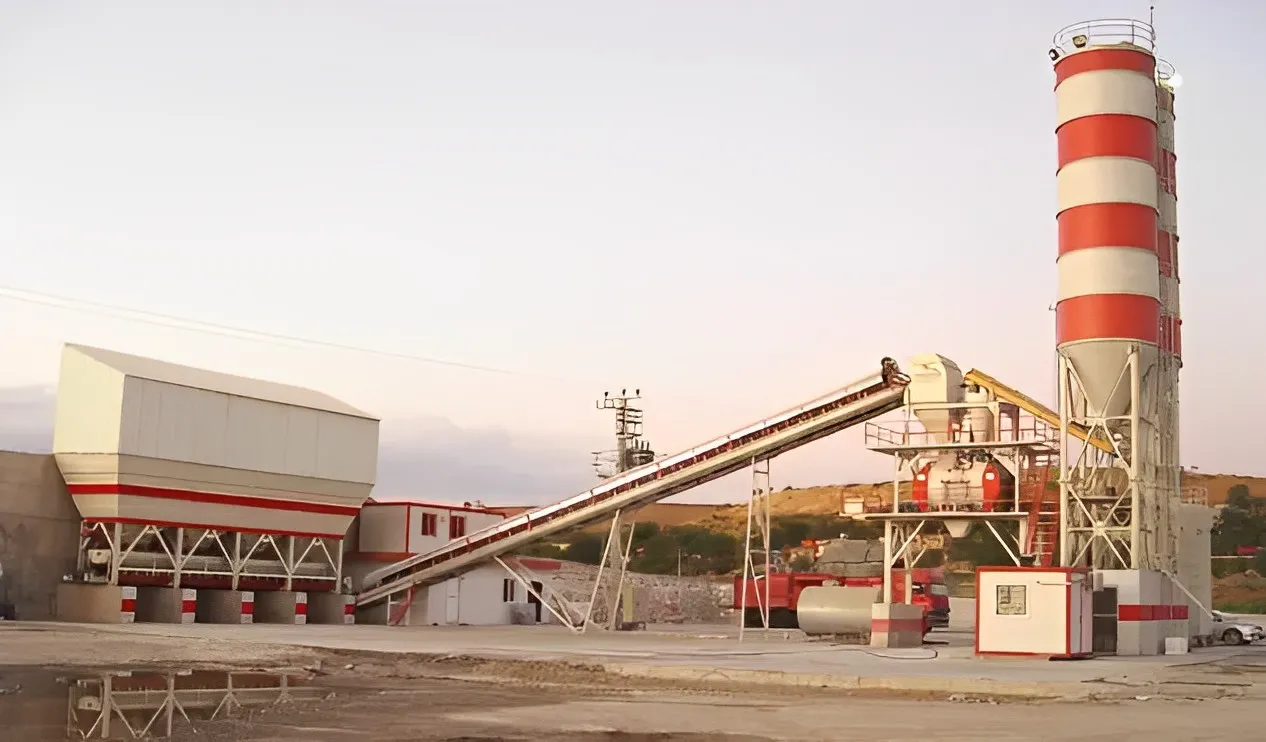

Fixed Concrete Batching Plant
Type
fixed Concrete batching plant
Capacity
80 m3/h
model
MES-80
Total Power
110 kw
Operating Voltage
380 volts
80 m3/h Fixed Concrete Batching Plant
80m3 Aggregate bunker
4 x 20 = 80 m3
Aggregate Feeding Conveyor
W = 800mm L = 24.000mm
Concrete Mixer (1.5 m3)
Single - Sheft
Cement Silos
100 Ton
Equipment Of Cement Silo
Complete
Cement Screw Conveyor
273 x 8000mm
Concrete Plant Automation
MAKRO Automation
Control Cabinet
2.200mm x 3000mm

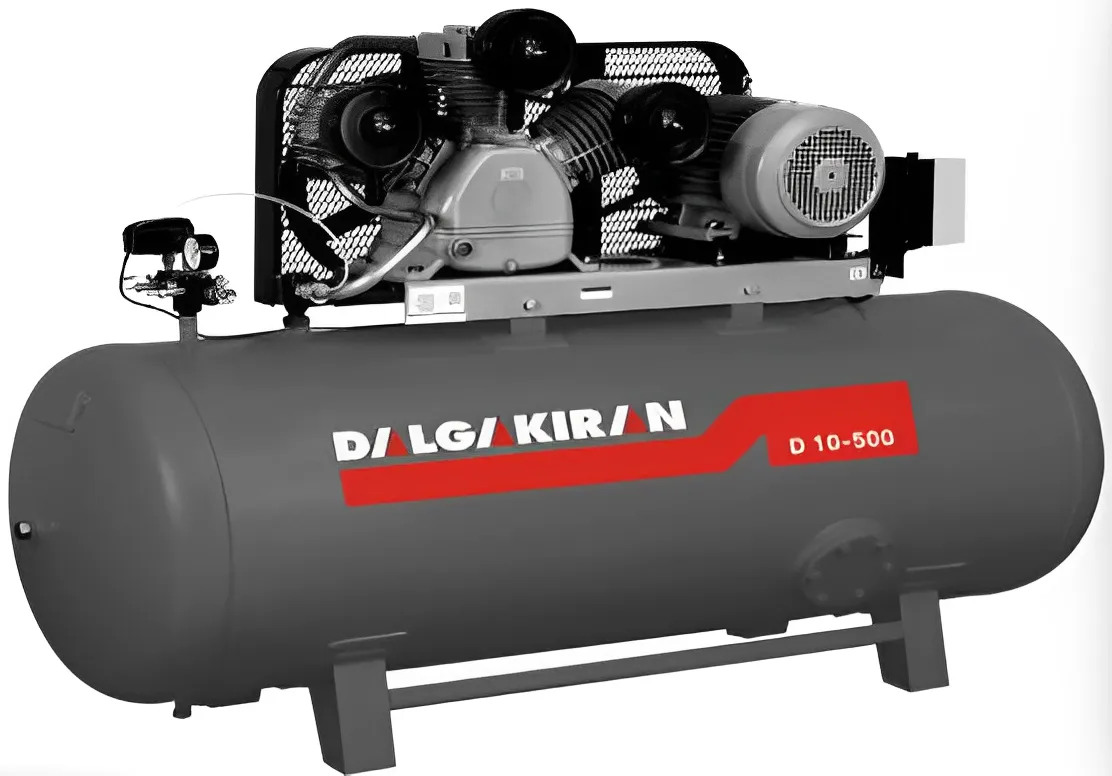

Compressor
500 lt
Hydrophone and Equipment
25 m3/h
80 M3 Aggregate Bunker
Capacity
4 x 20 m3 = 80 m3
Discharge flap
1 Units (for each compartment)
Pneumatic pistons
4 Units
Vibrator
2 Units
Load cell
4 Units
Air preparation unit
1 Units
Grid over the bunker
4 Units
Aggregate Weighing Conveyor
Type
4-fold 10 mm linen rubber belt
Dimension
W = 800 mm L = 12.000 mm
Vibrator
1 Unit
Electric motor
11 KW 1500 rpm
Reducer
Dual step
Drums
Ringfeder - Drive drum covered 10mm rubber
Aggregate Feeding Conveyor
Type
4- fold 10mm linen rubber belt
Dimension
W = 800mm L = 24.000mm
Electric motor
18.5 kw 1500 rpm (GAMAK)
Reducer
P4 Reducer (Back slide lock)
Drums
Drive drum covered with 10mm rubber
Housings
SNH Single-side walking platform
Belt top closure
Galvanized sheet

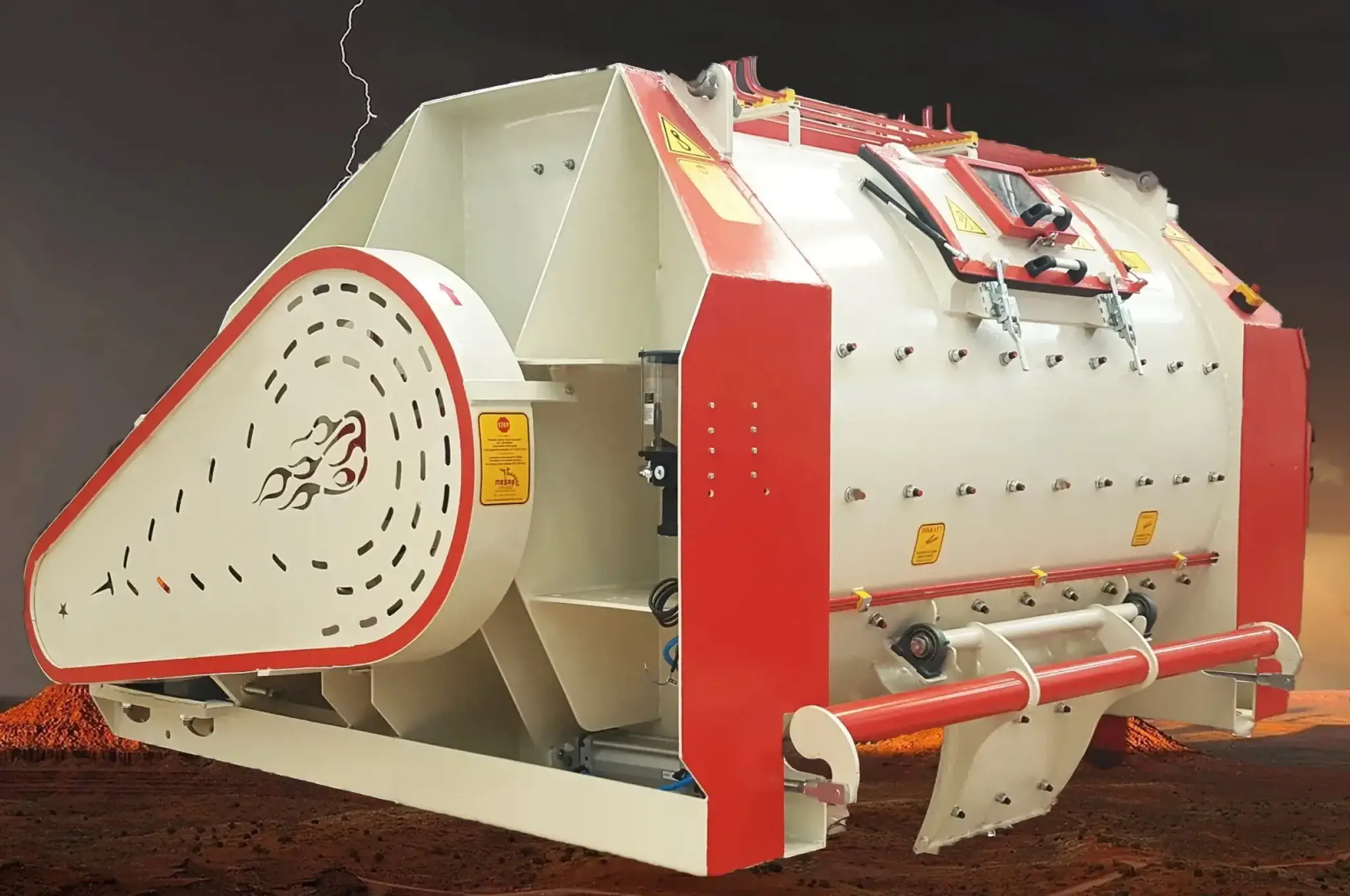

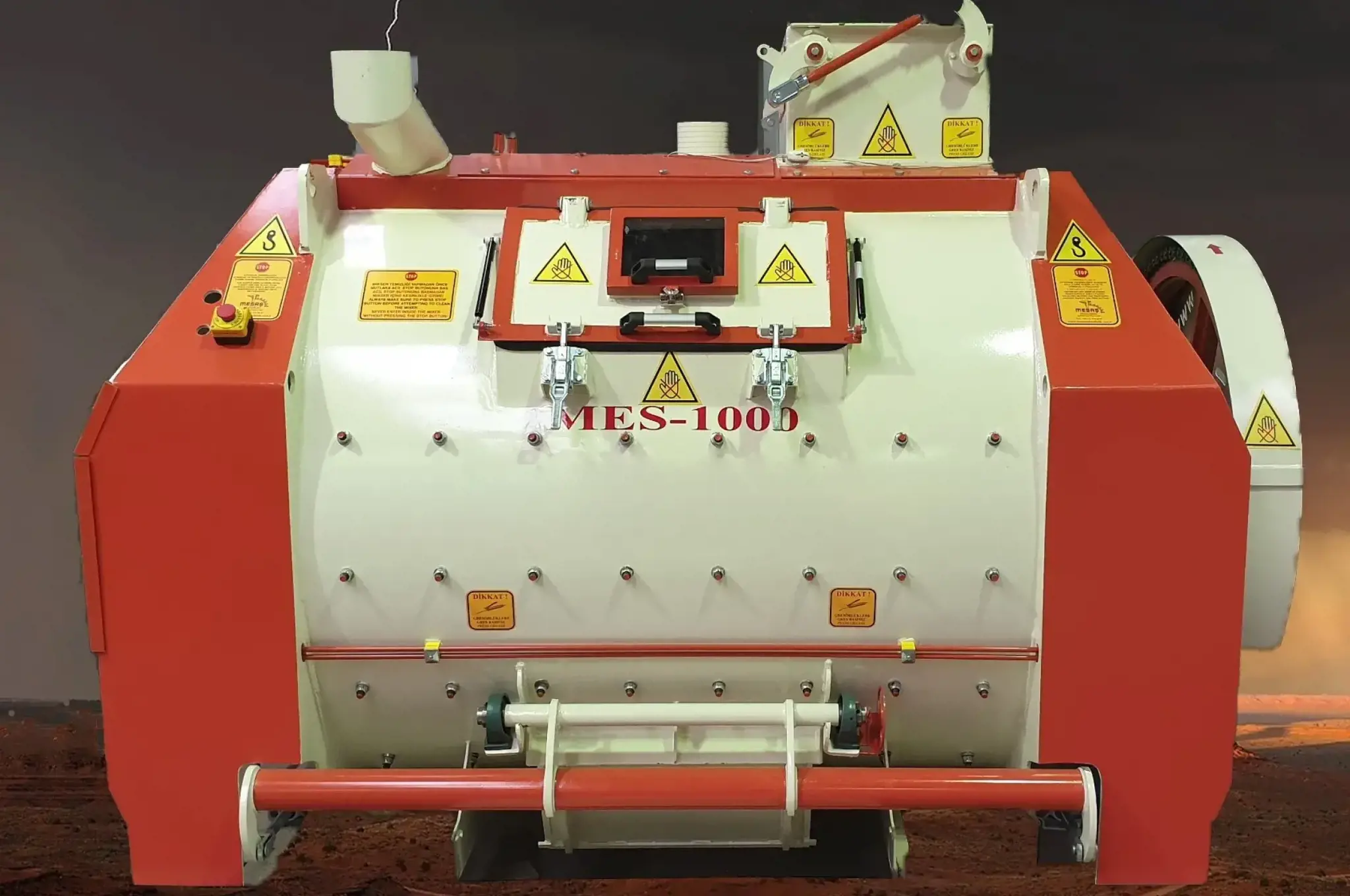

Concrete Mixer
Mixer capacity
1.5 m3
Mixer type
Single - Shaft
Drive type
Driven from one side
Motors
2 x 22.5 Kw
Rotating speed
12 -14 rpm
Main body wear plates
16-18 double xhrome coated MANGANESE
Mixing arm wear plates
16-18 double xhrome coated MANGANESE
Side wall wear plates
Hardox 400
Automatic central lubrication system
1 Unit
Discharging type
Pneumatic discharge door
Emergency stop switch
2 Units
Safety sensor
1 Unit
Cement weighing capacity
800 kg - Pneumatic Vibrator - Load Cell : 3 x 500 kg
Water weighing capacity
500 Lt -- Load Cell : 1 x 1000 kg
Additive weighing capacity
30 kg -- Load Cell : 1 x 100 kg
Aggregate weighing capacity
2 m3 -- Butterfly Valve - Pneumatic + Vibrator

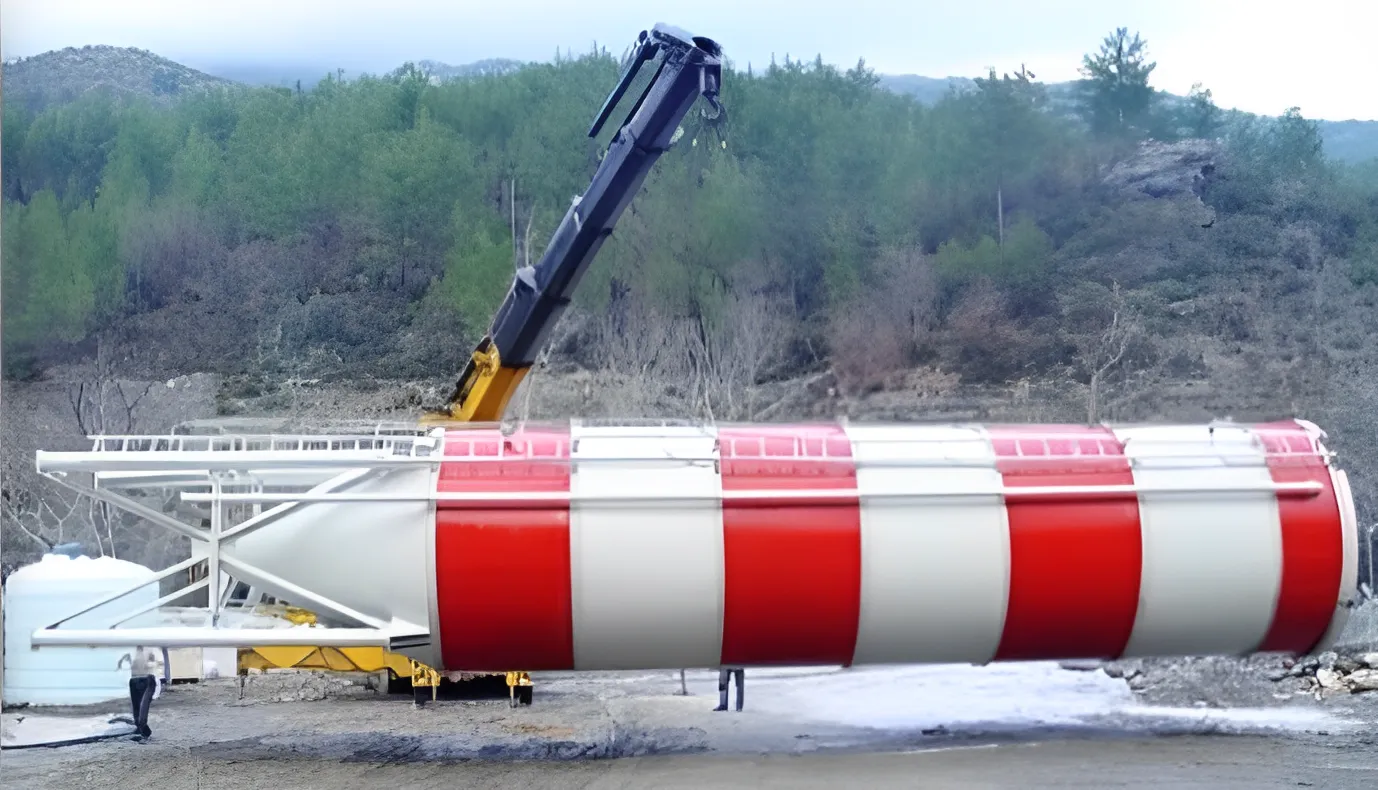

Cement Silos
Capacity
100 Ton
Sheet thickness
4 - 6 mm
Filling pipe
4 ''
Construction type
Bolted
Bottom flap and lever
300 SN valve and CM4 lever (Wam - Ozbekoglu)
Silo equipment
Sailor Ladder - Maintenance Cover - Platform and Railing
Cement Screw Conveyor
Dimensions
273 x 8000 mm
Motor
11 Kw
Capacity
90 ton/h
Cement input
Universal type
Concrete Plant Automation
Type
Fully automatic by computer
Supplier
MAKRO Automation
Control Cabinet
Dimensions
2.200 mm x 3.000 mm
Outer wall
0.5 mm galvanized material, painted
Inner wall
12 mm laminated chipboard
Side walls
50 mm polystyrene hard foam
Ceiling
80 mm glass wool
Windows
PVC and heat insulated double glass
Other features
The electrical system is built-in and there are luminaire, socket and switch.
Compressor
Volume
500 lt
Motor
5.5 Kw
Flow
1480 lt/minute
Pistons
2 units
Pressure
8 bar

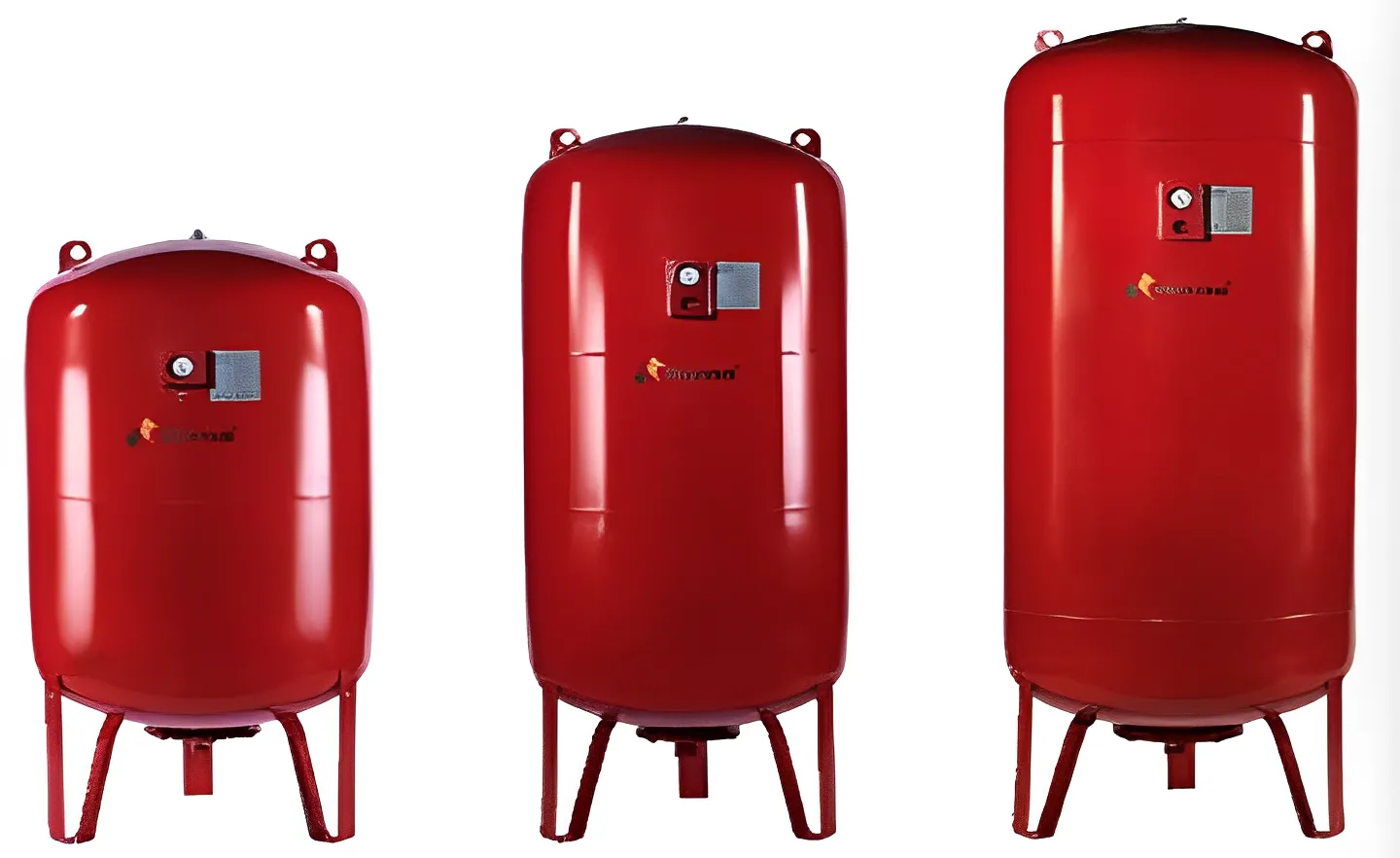

Hydrophore & Equipment
Capacity
25 m3/h
Motor
5.5 Kw
Pressure tank
300 lt
Working pressure interval
4 - 6 bar
إسم المنتج
وصف قصير
وصف كامل
<ul><li>The plant automation is fully automatic and controlled with PC.</li><li>The operator can do any parameter adjustment and calibration on the PC.</li><li>Raw materials stock entered can be updated as production moves and remaining materials can be tracked.</li><li>The system enables preparing as many prescriptions as desired and entering customer information and retrieving production data at least one year to the past.</li><li>Digital indicators enable the operator to follow voltage and current values on the panel</li><li>The operator can control the whole system manually by buttons on the panel in case of a computer failure.</li><li>The production can be resumed through operator panel after a pause or keeping the mixture or power outage.</li><li>Servicing requirement is minimum thanks to the advantage of remote connection and intervention online.</li><li>Authorized users can be defined via passwords to prevent unauthorized access and to set authorization level.<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Fixed Concrete Batching Plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">fixed Concrete batching plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80 m3/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">model</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MES-80</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Total Power</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">110 kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Operating Voltage</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">380 volts</td></tr></tbody></table></google-sheets-html-origin><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><br><google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80 m3/h Fixed Concrete Batching Plant</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80m3 Aggregate bunker</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 x 20 = 80 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Aggregate Feeding Conveyor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800mm L = 24.000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Concrete Mixer (1.5 m3)</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Single - Sheft</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement Silos</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Equipment Of Cement Silo</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Complete</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement Screw Conveyor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x 8000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Concrete Plant Automation</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MAKRO Automation</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Control Cabinet</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2.200mm x 3000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Compressor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Hydrophone and Equipment</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 m3/h</td></tr></tbody></table><google-sheets-html-origin><br><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80 M3 Aggregate Bunker</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 x 20 m3 = 80 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Discharge flap</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Units (for each compartment)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pneumatic pistons</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Vibrator</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Load cell</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Air preparation unit</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Grid over the bunker</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 Units<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="135"><col width="318"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Aggregate Weighing Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4-fold 10 mm linen rubber belt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimension</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800 mm L = 12.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Vibrator</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Electric motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 KW 1500 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Reducer</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dual step</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drums<br></td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Ringfeder - Drive drum covered 10mm rubber</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="124"><col width="331"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Aggregate Feeding Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4- fold 10mm linen rubber belt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimension</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">W = 800mm L = 24.000mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Electric motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">18.5 kw 1500 rpm (GAMAK)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Reducer</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">P4 Reducer (Back slide lock)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drums</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Drive drum covered with 10mm rubber</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Housings</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">SNH Single-side walking platform</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Belt top closure</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Galvanized sheet<br></td></tr></tbody></table><br><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="215"><col width="238"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); text-align: center;"><font face="Roboto Serif"><span style="font-size: 16px;">Concrete Mixer</span></font></td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixer capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1.5 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixer type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Single - Shaft</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Drive type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Driven from one side</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Motors</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 x 22.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Rotating speed</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">12 -14 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Main body wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 double xhrome coated MANGANESE</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Mixing arm wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 double xhrome coated MANGANESE</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Side wall wear plates</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Hardox 400</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Automatic central lubrication system</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Discharging type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Pneumatic discharge door</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Emergency stop switch</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 Units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Safety sensor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 Unit</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Cement weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">800 kg - Pneumatic Vibrator - Load Cell : 3 x 500 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Water weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">500 Lt -- Load Cell : 1 x 1000 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Additive weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">30 kg -- Load Cell : 1 x 100 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Aggregate weighing capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 m3 -- Butterfly Valve - Pneumatic + Vibrator</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin></google-sheets-html-origin><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="124"><col width="331"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Cement Silos</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Sheet thickness</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 - 6 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Filling pipe</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 ''</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Construction type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Bolted</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Bottom flap and lever</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">300 SN valve and CM4 lever (Wam - Ozbekoglu)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Silo equipment</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Sailor Ladder - Maintenance Cover - Platform and Railing</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Cement Screw Conveyor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dimensions</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x 8000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">90 ton/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Cement input</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Universal type</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Concrete Plant Automation</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Type</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Fully automatic by computer</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Supplier</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MAKRO Automation</td></tr></tbody></table></google-sheets-html-origin><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Control Cabinet</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Dimensions</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">2.200 mm x 3.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Outer wall</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">0.5 mm galvanized material, painted</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Inner wall</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">12 mm laminated chipboard</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Side walls</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">50 mm polystyrene hard foam</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Ceiling</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">80 mm glass wool</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Windows</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">PVC and heat insulated double glass</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">Other features</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">The electrical system is built-in and there are luminaire, socket and switch.</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Compressor</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Volume</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Flow</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1480 lt/minute</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pistons</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 units</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pressure</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">8 bar</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="227"><col width="228"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); text-align: center;"><font face="Roboto Serif"><span style="font-size: 16px;">Hydrophore & Equipment</span></font></td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Capacity</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 m3/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pressure tank</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">300 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Working pressure interval</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 - 6 bar</td></tr></tbody></table></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></li></ul>
The plant automation is fully automatic and controlled with PC.
The operator can do any parameter adjustment and calibration on the PC.
Raw materials stock entered can be updated as production moves and remaining materials can be tracked.
The system enables preparing as many prescriptions as desired and entering customer information and retrieving production data at least one year to the past.
Digital indicators enable the operator to follow voltage and current values on the panel
The operator can control the whole system manually by buttons on the panel in case of a computer failure.
The production can be resumed through operator panel after a pause or keeping the mixture or power outage.
Servicing requirement is minimum thanks to the advantage of remote connection and intervention online.
Authorized users can be defined via passwords to prevent unauthorized access and to set authorization level.
Fixed Concrete Batching Plant
Type
fixed Concrete batching plant
Capacity
80 m3/h
model
MES-80
Total Power
110 kw
Operating Voltage
380 volts
80 m3/h Fixed Concrete Batching Plant
80m3 Aggregate bunker
4 x 20 = 80 m3
Aggregate Feeding Conveyor
W = 800mm L = 24.000mm
Concrete Mixer (1.5 m3)
Single - Sheft
Cement Silos
100 Ton
Equipment Of Cement Silo
Complete
Cement Screw Conveyor
273 x 8000mm
Concrete Plant Automation
MAKRO Automation
Control Cabinet
2.200mm x 3000mm
Compressor
500 lt
Hydrophone and Equipment
25 m3/h
80 M3 Aggregate Bunker
Capacity
4 x 20 m3 = 80 m3
Discharge flap
1 Units (for each compartment)
Pneumatic pistons
4 Units
Vibrator
2 Units
Load cell
4 Units
Air preparation unit
1 Units
Grid over the bunker
4 Units
Aggregate Weighing Conveyor
Type
4-fold 10 mm linen rubber belt
Dimension
W = 800 mm L = 12.000 mm
Vibrator
1 Unit
Electric motor
11 KW 1500 rpm
Reducer
Dual step
Drums
Ringfeder - Drive drum covered 10mm rubber
Aggregate Feeding Conveyor
Type
4- fold 10mm linen rubber belt
Dimension
W = 800mm L = 24.000mm
Electric motor
18.5 kw 1500 rpm (GAMAK)
Reducer
P4 Reducer (Back slide lock)
Drums
Drive drum covered with 10mm rubber
Housings
SNH Single-side walking platform
Belt top closure
Galvanized sheet
Concrete Mixer
Mixer capacity
1.5 m3
Mixer type
Single - Shaft
Drive type
Driven from one side
Motors
2 x 22.5 Kw
Rotating speed
12 -14 rpm
Main body wear plates
16-18 double xhrome coated MANGANESE
Mixing arm wear plates
16-18 double xhrome coated MANGANESE
Side wall wear plates
Hardox 400
Automatic central lubrication system
1 Unit
Discharging type
Pneumatic discharge door
Emergency stop switch
2 Units
Safety sensor
1 Unit
Cement weighing capacity
800 kg - Pneumatic Vibrator - Load Cell : 3 x 500 kg
Water weighing capacity
500 Lt -- Load Cell : 1 x 1000 kg
Additive weighing capacity
30 kg -- Load Cell : 1 x 100 kg
Aggregate weighing capacity
2 m3 -- Butterfly Valve - Pneumatic + Vibrator
Cement Silos
Capacity
100 Ton
Sheet thickness
4 - 6 mm
Filling pipe
4 ''
Construction type
Bolted
Bottom flap and lever
300 SN valve and CM4 lever (Wam - Ozbekoglu)
Silo equipment
Sailor Ladder - Maintenance Cover - Platform and Railing
Cement Screw Conveyor
Dimensions
273 x 8000 mm
Motor
11 Kw
Capacity
90 ton/h
Cement input
Universal type
Concrete Plant Automation
Type
Fully automatic by computer
Supplier
MAKRO Automation
Control Cabinet
Dimensions
2.200 mm x 3.000 mm
Outer wall
0.5 mm galvanized material, painted
Inner wall
12 mm laminated chipboard
Side walls
50 mm polystyrene hard foam
Ceiling
80 mm glass wool
Windows
PVC and heat insulated double glass
Other features
The electrical system is built-in and there are luminaire, socket and switch.
Compressor
Volume
500 lt
Motor
5.5 Kw
Flow
1480 lt/minute
Pistons
2 units
Pressure
8 bar
Hydrophore & Equipment
Capacity
25 m3/h
Motor
5.5 Kw
Pressure tank
300 lt
Working pressure interval
4 - 6 bar
إسم المنتج
وصف قصير
وصف كامل
<ul><li>النظام يعمل تلقائيًا بالكامل ويتم التحكم به عبر الكمبيوتر</li><li>يمكن التحكم للمشغل وتعديل أي إجراء من خلال الكمبيوتر</li><li>يتم تحديث مخزون المواد الخام المدخلة مع تقدم الإنتاج، ويمكن تتبع المواد المتبقية</li><li>يتيح النظام إعداد عدد غير محدود من الوصفات وإدخال معلومات العملاء واسترجاع بيانات الإنتاج لمدة لا تقل عن سنة واحدة إلى الوراء</li><li>تمكن المؤشرات الرقمية المشغل من متابعة قيم الفولتية والتيار على لوحة التحكم</li><li>يمكن للمشغل التحكم في النظام بأكمله يدويًا باستخدام الأزرار الموجودة على لوحة التحكم في حالة حدوث عطل في الكمبيوتر</li><li>يمكن استئناف الإنتاج من خلال لوحة المشغل بعد التوقف المؤقت، أو للحفاظ على الخليط في حالة انقطاع التيار الكهربائي</li><li>وقت الصيانة قياسي بفضل ميزة الاتصال عن بُعد وإمكانية التدخل عبر الإنترنت</li><li>يمكن تعريف المستخدمين المصرح لهم من خلال كلمات المرور لمنع الوصول غير المصرح به.<br><font color="#000000" face="Arial"><span style="font-size: 13.3333px;"><br><google-sheets-html-origin style="font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">محطات خلط الخرسانة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">النوع</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">محطة خلط خرسانة ثابتة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">القدرة الإنتاجية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80 م³/ساعة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الموديل</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MES-80</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الطاقة الإجمالية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">110 كيلوواط</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">جهد التشغيل</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">380 فولت</td></tr></tbody></table></google-sheets-html-origin><google-sheets-html-origin style="font-size: medium;"><br><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">الخرسانة الثابتة بقدرة 80 م³/ساعة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة خزان الركام</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">م³ (4 وحدات × 20 م³)</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ناقل تغذية الركام</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">العرض = 800 مم، الطول = 24000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">خلاط الخرسانة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة 1.5 م³، نوع ذو محور واحد</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">صوامع الإسمنت</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة 100 طن</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">معدات صومعة الإسمنت</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">كاملة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ناقل لولبي للإسمنت</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قطر 273 مم × طول 8000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">خزانة التحكم</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2200 مم × 3000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ضاغط هواء</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة 500 لتر</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مضخة الماء</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة 25 م³/ساعة<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">خزان الركام بسعة 80 م³</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">السعة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 وحدات × 20 م³ = 80 م³</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">بوابة التفريغ</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة واحدة لكل قسم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">المكابس الهوائية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 وحدات</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">هزاز</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدتان</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">خلايا الوزن</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 وحدات</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة تحضير الهواء</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة واحدة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">شبكة تغطية فوق الخزان</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 وحدات</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">ناقل وزن الركام</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">النوع</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">شريط مطاطي 10 مم، 4 طبقات</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الأبعاد</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">العرض = 800 مم، الطول = 12000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">هزاز</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة واحدة (OLI)</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">محرك كهربائي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1500 دورة/دقيقة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مخفض</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ثنائي المراحل</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الأسطوانات</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قيادة مطاطية 10 مم<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">ناقل تغذية الركام</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">النوع</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">شريط مطاطي 10 مم، 4 طبقات</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الأبعاد</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">العرض = 800 مم، الطول = 24000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">محرك كهربائي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">18.5 كيلوواط، 1500 دورة/دقيقة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مخفض</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قفل مانع للانزلاق</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الأسطوانات</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قيادة مطاطية 10 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الهيكل</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">منصة سير أحادية الجانب</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">غطاء علوي للحزام</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">صفائح مجلفنة</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">خلاط الخرسانة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة الخلاط</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1.5 م³</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع الخلاط</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ذو محور واحد</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع القيادة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">من جهة واحدة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">المحركات</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 × 22.5 كيلوواط</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع أذرع الخلط</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">حلزونية</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سرعة الدوران</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">12-14 دورة/دقيقة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">لوحات ارتداء الجسم الرئيسية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">16-18 منغنيز مطلي بالكروم المزدوج</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">خلط لوحات ارتداء الذراع</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">16-18 منغنيز مطلي بالكروم المزدوج</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">لوحات ارتداء الجدار الجانبي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">هاردوكس 400</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نظام التشحيم المركزي التلقائي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة واحدة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع التفريغ</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">باب التفريغ الهوائي</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مفتاح التوقف في حالات الطوارئ</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدتين</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ألواح مقاومة التآكل</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مطلية بالكروم المزدوج</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع تفريغ الخرسانة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">بوابة تفريغ هوائية</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مستشعر الأمان</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">وحدة واحدة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة وزن الإسمنت</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">800 كجم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة وزن الماء</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 لتر - خلية التحميل 1 × 1000 كجم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قدرة الوزن المضافة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">30 كجم - خلية التحميل 1 × 100 كجم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">قدرة الوزن الإجمالية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 م³ هوائي + هزاز</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">صوامع الإسمنت</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">السعة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">100 طن</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سمك الصفائح</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 - 6 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">أنبوب التعبئة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 إنش</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع البناء</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مثبت بالمسامير</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">معدات الصومعة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سلم البحار - غطاء الصيانة - المنصة والدرابزين</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">معدات صوامع الإسمنت</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;"><div style="max-height: 63px;">معدات</div></td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">صمام الأمان</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مؤشر مستوى الحد الأدنى والحد الأقصى</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الملدنات الإسمنتية</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">ناقل لولبي للإسمنت</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الابعاد</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x الطول 8000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">محرك</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 كيلو واط </td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">سعة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">90 طن / ساعة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مدخل الاسمنت</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع عالمي<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">أتمتة محطة الخرسانة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">نوع</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">أوتوماتيكي بالكامل بواسطة الكمبيوتر</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">خزانة التحكم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">الأبعاد</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2.200 مم × 3.000 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">الجدار الخارجي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">مادة مجلفنة 0.5 مم، مطلية</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">الجدار الداخلي</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">12 ملم من اللوح الرقائقي</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">الجدران الجانبية</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">رغوة البوليسترين الصلبة بسمك 50 مم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">سقف</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">صوف زجاجي 80 ملم</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">نوافذ</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">الزجاج المزدوج العازل للحرارة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">ميزات أخرى</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">النظام الكهربائي مدمج ويوجد وحدة إنارة ومقبس ومفتاح</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">ضاغط هواء</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">مقدار</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 لتر</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">محرك</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 كيلو واط</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">تدفق</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1480 لتر/دقيقة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">ضغط</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">8 بار</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; width: 0px; border: none;"><colgroup><col width="231"><col width="220"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">مضخة الماء والمعدات</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">السعة</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 م3 / ساعة</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">المحرك</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5.5 كيلو واط</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">خزان الضغط</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">300 لتر</td></tr><tr style="height: 21px;"><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; text-align: center;">الفاصل الزمني لضغط العمل</td><td dir="rtl" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 - 6 بار<br></td></tr></tbody></table></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></span></font></li></ul><p><font color="#000000" face="Arial"><span style="font-size: 13.3333px;"><google-sheets-html-origin style="font-size: medium;"><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin><google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></span></font></p><p></p>
النظام يعمل تلقائيًا بالكامل ويتم التحكم به عبر الكمبيوتر
يمكن التحكم للمشغل وتعديل أي إجراء من خلال الكمبيوتر
يتم تحديث مخزون المواد الخام المدخلة مع تقدم الإنتاج، ويمكن تتبع المواد المتبقية
يتيح النظام إعداد عدد غير محدود من الوصفات وإدخال معلومات العملاء واسترجاع بيانات الإنتاج لمدة لا تقل عن سنة واحدة إلى الوراء
تمكن المؤشرات الرقمية المشغل من متابعة قيم الفولتية والتيار على لوحة التحكم
يمكن للمشغل التحكم في النظام بأكمله يدويًا باستخدام الأزرار الموجودة على لوحة التحكم في حالة حدوث عطل في الكمبيوتر
يمكن استئناف الإنتاج من خلال لوحة المشغل بعد التوقف المؤقت، أو للحفاظ على الخليط في حالة انقطاع التيار الكهربائي
وقت الصيانة قياسي بفضل ميزة الاتصال عن بُعد وإمكانية التدخل عبر الإنترنت
يمكن تعريف المستخدمين المصرح لهم من خلال كلمات المرور لمنع الوصول غير المصرح به.
محطات خلط الخرسانة
النوع
محطة خلط خرسانة ثابتة
القدرة الإنتاجية
80 م³/ساعة
الموديل
MES-80
الطاقة الإجمالية
110 كيلوواط
جهد التشغيل
380 فولت
الخرسانة الثابتة بقدرة 80 م³/ساعة
سعة خزان الركام
م³ (4 وحدات × 20 م³)
ناقل تغذية الركام
العرض = 800 مم، الطول = 24000 مم
خلاط الخرسانة
سعة 1.5 م³، نوع ذو محور واحد
صوامع الإسمنت
سعة 100 طن
معدات صومعة الإسمنت
كاملة
ناقل لولبي للإسمنت
قطر 273 مم × طول 8000 مم
خزانة التحكم
2200 مم × 3000 مم
ضاغط هواء
سعة 500 لتر
مضخة الماء
سعة 25 م³/ساعة
خزان الركام بسعة 80 م³
السعة
4 وحدات × 20 م³ = 80 م³
بوابة التفريغ
وحدة واحدة لكل قسم
المكابس الهوائية
4 وحدات
هزاز
وحدتان
خلايا الوزن
4 وحدات
وحدة تحضير الهواء
وحدة واحدة
شبكة تغطية فوق الخزان
4 وحدات
ناقل وزن الركام
النوع
شريط مطاطي 10 مم، 4 طبقات
الأبعاد
العرض = 800 مم، الطول = 12000 مم
هزاز
وحدة واحدة (OLI)
محرك كهربائي
1500 دورة/دقيقة
مخفض
ثنائي المراحل
الأسطوانات
قيادة مطاطية 10 مم
ناقل تغذية الركام
النوع
شريط مطاطي 10 مم، 4 طبقات
الأبعاد
العرض = 800 مم، الطول = 24000 مم
محرك كهربائي
18.5 كيلوواط، 1500 دورة/دقيقة
مخفض
قفل مانع للانزلاق
الأسطوانات
قيادة مطاطية 10 مم
الهيكل
منصة سير أحادية الجانب
غطاء علوي للحزام
صفائح مجلفنة
خلاط الخرسانة
سعة الخلاط
1.5 م³
نوع الخلاط
ذو محور واحد
نوع القيادة
من جهة واحدة
المحركات
2 × 22.5 كيلوواط
نوع أذرع الخلط
حلزونية
سرعة الدوران
12-14 دورة/دقيقة
لوحات ارتداء الجسم الرئيسية
16-18 منغنيز مطلي بالكروم المزدوج
خلط لوحات ارتداء الذراع
16-18 منغنيز مطلي بالكروم المزدوج
لوحات ارتداء الجدار الجانبي
هاردوكس 400
نظام التشحيم المركزي التلقائي
وحدة واحدة
نوع التفريغ
باب التفريغ الهوائي
مفتاح التوقف في حالات الطوارئ
وحدتين
ألواح مقاومة التآكل
مطلية بالكروم المزدوج
نوع تفريغ الخرسانة
بوابة تفريغ هوائية
مستشعر الأمان
وحدة واحدة
سعة وزن الإسمنت
800 كجم
سعة وزن الماء
500 لتر - خلية التحميل 1 × 1000 كجم
قدرة الوزن المضافة
30 كجم - خلية التحميل 1 × 100 كجم
قدرة الوزن الإجمالية
2 م³ هوائي + هزاز
صوامع الإسمنت
السعة
100 طن
سمك الصفائح
4 - 6 مم
أنبوب التعبئة
4 إنش
نوع البناء
مثبت بالمسامير
معدات الصومعة
سلم البحار - غطاء الصيانة - المنصة والدرابزين
معدات صوامع الإسمنت
معدات
صمام الأمان
مؤشر مستوى الحد الأدنى والحد الأقصى
الملدنات الإسمنتية
ناقل لولبي للإسمنت
الابعاد
273 x الطول 8000 مم
محرك
11 كيلو واط
سعة
90 طن / ساعة
مدخل الاسمنت
نوع عالمي
أتمتة محطة الخرسانة
نوع
أوتوماتيكي بالكامل بواسطة الكمبيوتر
خزانة التحكم
الأبعاد
2.200 مم × 3.000 مم
الجدار الخارجي
مادة مجلفنة 0.5 مم، مطلية
الجدار الداخلي
12 ملم من اللوح الرقائقي
الجدران الجانبية
رغوة البوليسترين الصلبة بسمك 50 مم
سقف
صوف زجاجي 80 ملم
نوافذ
الزجاج المزدوج العازل للحرارة
ميزات أخرى
النظام الكهربائي مدمج ويوجد وحدة إنارة ومقبس ومفتاح
ضاغط هواء
مقدار
500 لتر
محرك
5.5 كيلو واط
تدفق
1480 لتر/دقيقة
ضغط
8 بار

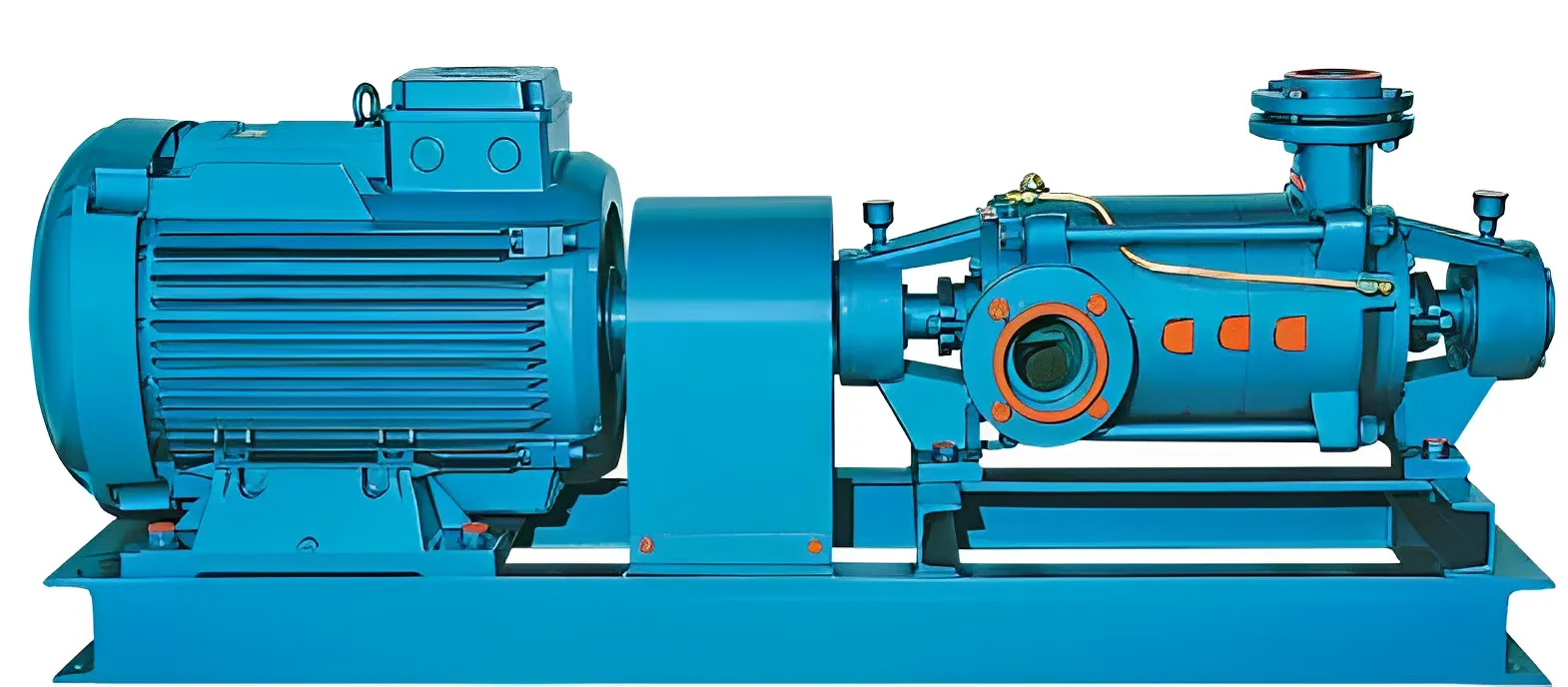

مضخة الماء والمعدات
السعة
25 م3 / ساعة
المحرك
5.5 كيلو واط
خزان الضغط
300 لتر
الفاصل الزمني لضغط العمل
4 - 6 بار
إسم المنتج
وصف قصير
وصف كامل
<ul><li>Tesis otomasyonu tam otomatik olup PC ile kontrol edilmektedir.</li><li>Operatör her türlü parametre ayarlamasını ve kalibrasyonunu PC üzerinden yapabilir.</li><li>Girilen hammadde stokları üretim ilerledikçe güncellenebilir ve kalan malzemeler takip edilebilir.</li><li>Sistem istenilen sayıda reçete hazırlama ve müşteri bilgilerini girerek en az bir yıl geriye dönük üretim verilerine ulaşma imkânı sağlar.</li><li>Dijital göstergeler operatörün panel üzerinden voltaj ve akım değerlerini takip etmesini sağlar.</li><li>Operatör bilgisayar arızası durumunda panel üzerindeki butonlar ile tüm sistemi manuel olarak kontrol edebilir.</li><li>Üretime ara verilmesi veya karışımın tutulması veya elektrik kesintisi durumunda operatör paneli üzerinden üretime devam edilebilir.</li><li>Uzaktan bağlantı ve online müdahale avantajı sayesinde servis ihtiyacı minimuma indirilir.</li><li>Yetkisiz erişimleri engellemek ve yetki seviyesini belirlemek için şifreler ile yetkili kullanıcılar tanımlanabilir.<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Tek Milli Beton Mikseri</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Tip</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Tek Milli Beton Mikseri</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kapasite</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80m3/h</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Model</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MES-80</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Toplam Güç</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">110kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Çalışma Voltajı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">380 volts</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80m3/h Tek Milli Beton Mikseri</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80m3 Agrega bunkeri</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 X 20 = 80m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Agrega Besleme Konveyörü</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">G = 800 mm U = 24.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Beton Mikseri (1,5 m3)</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Tek - Raf</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Çimento Siloları</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Çimento Silosu Ekipmanları</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Tam</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Çimento Vidalı Konveyörü</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 X 8000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Beton Santrali Otomasyonu</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">MAKRO Otomasyon</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kontrol Kabini</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2.200 mm x 3000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kompresör</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">500 lt</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Hidrofon ve Ekipman</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25m3/h</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">80 m3 Aggrega Bunkeri̇</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kapasite</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 X 20 m3 = 80 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Boşaltma kapağı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 ünite (her bölme için)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pnömatik pistonlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Vibratör</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Yük hücresi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Hava hazırlama ünitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">1 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Bunker üzerindeki ızgara</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">4 ünite</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; overflow-wrap: break-word; text-align: center;">Agrega Tartım Konveyörü</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tip</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 katlı 10 mm keten kauçuk kayış</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Boyut</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">G=800 mm U=12.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Vibratör</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Elektrik motoru</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">11 KW 1500 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Redüktör</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Çift adım</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tamburlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Ringfeder - Tahrik tamburu kaplı 10 mm kauçuk</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; overflow-wrap: break-word; text-align: center;">Beton Mikseri</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Karıştırıcı kapasitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1,5 m3</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Karıştırıcı tipi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tek - Şaft</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tahrik tipi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tek taraftan tahrikli</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Motorlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 x 22,5 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Dönme hızı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">12-14 rpm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Ana gövde aşınma plakaları</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 çift krom kaplamalı manganez</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Karıştırma kolu aşınma plakaları</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">16-18 çift krom kaplamalı manganez</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Yan duvar aşınma plakaları</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Hardox 400</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Otomatik merkezi yağlama sistemi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Boşaltma tipi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Pnömatik tahliye kapağı</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Acil durdurma anahtarı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Emniyet sensörü</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">1 ünite</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Çimento tartım kapasitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">800 kg -- Pnömatik Vibratör - Yük Hücresi 3 x 500 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Su tartım kapasitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">500 Lt -- Yük Hücresi 1 x 1000 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Katkı maddesi tartım kapasitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">30 kg -- Yük Hücresi 1 x 100 kg</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Agrega tartım kapasitesi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">2 m3 -- Kelebek Vana - Pnömatik + Vibratör</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; overflow-wrap: break-word; text-align: center;">Cement Silos</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Kapasite</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">100 Ton</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Sac kalınlığı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 - 6 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Doldurma borusu</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 ''</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Yapı türü</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Cıvatalı</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Alt kapak ve kol</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">300 SN valf ve CM4 kolu</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Silo ekipmanı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Denizci Merdiveni - Bakım Kapağı - Platform ve Korkuluk</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; overflow-wrap: break-word; text-align: center;">Çimento Silosu Ekipmanları</td></tr><tr style="height: 21px;"><td rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;"><div style="max-height: 63px;">Ekipman</div></td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Emniyet valfi</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Min-maks seviye göstergesi</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Çimento plastikleştirici<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Vidalı Konveyör</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Boyutlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">273 x 8000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">11 Kw</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kapasite</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">90 ton/saat</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Çimento girişi</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Evrensel tip<br></td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Beton Santrali Otomasyonu</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Tür</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Bilgisayarla tamamen otomatik</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Kontrol Kabini</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Boyutlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">2.200 mm x 3.000 mm</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Dış duvar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">0,5 mm galvaniz malzeme, boyalı</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">İç duvar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">12 mm lamine sunta</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Yan duvarlar</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">50 mm polistiren sert köpük</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Tavan</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">80 mm cam yünü</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Pencereler</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">PVC ve ısı yalıtımlı çift cam</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Diğer özellikler</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Elektrik sistemi gömme olup armatür, priz ve anahtar bulunmaktadır.</td></tr></tbody></table><br><google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" data-sheets-baot="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="211"><col width="241"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: middle; background-color: rgb(217, 217, 217); font-family: "Roboto Serif"; font-size: 12pt; text-align: center;">Hidrofor & Ekipmanları</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Kapasite</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">25 m3/saat</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Motor</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">5,5 kW</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">Basınç tankı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(204, 204, 204) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: "Roboto Serif"; text-align: center;">300 litre</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">Çalışma basınç aralığı</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: middle; font-family: "Roboto Serif"; overflow-wrap: break-word; text-align: center;">4 - 6 bar</td></tr></tbody></table></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></google-sheets-html-origin></li></ul>
Tesis otomasyonu tam otomatik olup PC ile kontrol edilmektedir.
Operatör her türlü parametre ayarlamasını ve kalibrasyonunu PC üzerinden yapabilir.
Girilen hammadde stokları üretim ilerledikçe güncellenebilir ve kalan malzemeler takip edilebilir.
Sistem istenilen sayıda reçete hazırlama ve müşteri bilgilerini girerek en az bir yıl geriye dönük üretim verilerine ulaşma imkânı sağlar.
Dijital göstergeler operatörün panel üzerinden voltaj ve akım değerlerini takip etmesini sağlar.
Operatör bilgisayar arızası durumunda panel üzerindeki butonlar ile tüm sistemi manuel olarak kontrol edebilir.
Üretime ara verilmesi veya karışımın tutulması veya elektrik kesintisi durumunda operatör paneli üzerinden üretime devam edilebilir.
Uzaktan bağlantı ve online müdahale avantajı sayesinde servis ihtiyacı minimuma indirilir.
Yetkisiz erişimleri engellemek ve yetki seviyesini belirlemek için şifreler ile yetkili kullanıcılar tanımlanabilir.
Tek Milli Beton Mikseri
Tip
Tek Milli Beton Mikseri
Kapasite
80m3/h
Model
MES-80
Toplam Güç
110kw
Çalışma Voltajı
380 volts
80m3/h Tek Milli Beton Mikseri
80m3 Agrega bunkeri
4 X 20 = 80m3
Agrega Besleme Konveyörü
G = 800 mm U = 24.000 mm
Beton Mikseri (1,5 m3)
Tek - Raf
Çimento Siloları
100 Ton
Çimento Silosu Ekipmanları
Tam
Çimento Vidalı Konveyörü
273 X 8000 mm
Beton Santrali Otomasyonu
MAKRO Otomasyon
Kontrol Kabini
2.200 mm x 3000 mm
Kompresör
500 lt
Hidrofon ve Ekipman
25m3/h
80 m3 Aggrega Bunkeri̇
Kapasite
4 X 20 m3 = 80 m3
Boşaltma kapağı
1 ünite (her bölme için)
Pnömatik pistonlar
4 ünite
Vibratör
2 ünite
Yük hücresi
ünite
Hava hazırlama ünitesi
1 ünite
Bunker üzerindeki ızgara
4 ünite
Agrega Tartım Konveyörü
Tip
4 katlı 10 mm keten kauçuk kayış
Boyut
G=800 mm U=12.000 mm
Vibratör
1 ünite
Elektrik motoru
11 KW 1500 rpm
Redüktör
Çift adım
Tamburlar
Ringfeder - Tahrik tamburu kaplı 10 mm kauçuk
Beton Mikseri
Karıştırıcı kapasitesi
1,5 m3
Karıştırıcı tipi
Tek - Şaft
Tahrik tipi
Tek taraftan tahrikli
Motorlar
2 x 22,5 Kw
Dönme hızı
12-14 rpm
Ana gövde aşınma plakaları
16-18 çift krom kaplamalı manganez
Karıştırma kolu aşınma plakaları
16-18 çift krom kaplamalı manganez
Yan duvar aşınma plakaları
Hardox 400
Otomatik merkezi yağlama sistemi
1 ünite
Boşaltma tipi
Pnömatik tahliye kapağı
Acil durdurma anahtarı
2 ünite
Emniyet sensörü
1 ünite
Çimento tartım kapasitesi
800 kg -- Pnömatik Vibratör - Yük Hücresi 3 x 500 kg
Su tartım kapasitesi
500 Lt -- Yük Hücresi 1 x 1000 kg
Katkı maddesi tartım kapasitesi
30 kg -- Yük Hücresi 1 x 100 kg
Agrega tartım kapasitesi
2 m3 -- Kelebek Vana - Pnömatik + Vibratör
Cement Silos
Kapasite
100 Ton
Sac kalınlığı
4 - 6 mm
Doldurma borusu
4 ''
Yapı türü
Cıvatalı
Alt kapak ve kol
300 SN valf ve CM4 kolu
Silo ekipmanı
Denizci Merdiveni - Bakım Kapağı - Platform ve Korkuluk
Çimento Silosu Ekipmanları
Ekipman
Emniyet valfi
Min-maks seviye göstergesi
Çimento plastikleştirici
Vidalı Konveyör
Boyutlar
273 x 8000 mm
Motor
11 Kw
Kapasite
90 ton/saat
Çimento girişi
Evrensel tip
Beton Santrali Otomasyonu
Tür
Bilgisayarla tamamen otomatik
Kontrol Kabini
Boyutlar
2.200 mm x 3.000 mm
Dış duvar
0,5 mm galvaniz malzeme, boyalı
İç duvar
12 mm lamine sunta
Yan duvarlar
50 mm polistiren sert köpük
Tavan
80 mm cam yünü
Pencereler
PVC ve ısı yalıtımlı çift cam
Diğer özellikler
Elektrik sistemi gömme olup armatür, priz ve anahtar bulunmaktadır.
Hidrofor & Ekipmanları
Kapasite
25 m3/saat
Motor
5,5 kW
Basınç tankı
300 litre
Çalışma basınç aralığı
4 - 6 bar
إسم المنتج
وصف قصير
وصف كامل
انقر لتعديل HTML ...
إسم المنتج
وصف قصير
وصف كامل
انقر لتعديل HTML ...
وحدة حفظ مخزون المنتجات
Genarate
رقم الجزء الخاص بالصانع
GTIN (رقم بند التجارة العالمية)
رقم التعريفة الجمركية
حالة المنتج
New
Refurbished
Used
Damaged
بلد المنشأ
غير محدد
Germany
Austria
Switzerland
United States
Canada
Afghanistan
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antarctica
Antigua and Barbuda
Argentina
Armenia
Aruba
Australia
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bosnia and Herzegowina
Botswana
Bouvet Island
Brazil
British Indian Ocean Territory
Brunei Darussalam
Bulgaria
Burkina Faso
Burundi
Cambodia
Cameroon
Cape Verde
Cayman Islands
Central African Republic
Chad
Chile
China
Christmas Island
Cocos (Keeling) Islands
Colombia
Comoros
Congo
Cook Islands
Costa Rica
Cote D'Ivoire
Croatia
Cuba
Cyprus
Czech Republic
Denmark
Djibouti
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Ethiopia
Falkland Islands (Malvinas)
Faroe Islands
Fiji
Finland
France
French Guiana
French Polynesia
French Southern Territories
Gabon
Gambia
Georgia
Ghana
Gibraltar
Greece
Greenland
Grenada
Guadeloupe
Guam
Guatemala
Guinea
Guinea-bissau
Guyana
Haiti
Heard and Mc Donald Islands
Honduras
Hong Kong
Hungary
Iceland
India
Indonesia
Iran (Islamic Republic of)
Iraq
Ireland
Israel
Italy
Jamaica
Japan
Jordan
Kazakhstan
Kenya
Kiribati
Korea
Korea, Democratic People's Republic of
Kuwait
Kyrgyzstan
Lao People's Democratic Republic
Latvia
Lebanon
Lesotho
Liberia
Libyan Arab Jamahiriya
Liechtenstein
Lithuania
Luxembourg
Macau
Macedonia
Madagascar
Malawi
Malaysia
Maldives
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Mayotte
Mexico
Micronesia
Moldova
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
Netherlands
Netherlands Antilles
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn
Poland
Portugal
Puerto Rico
Qatar
Reunion
Romania
Russia
Rwanda
Saint Kitts and Nevis
Saint Lucia
Saint Vincent and the Grenadines
Samoa
San Marino
Sao Tome and Principe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Singapore
Slovakia (Slovak Republic)
Slovenia
Solomon Islands
Somalia
South Africa
South Georgia & South Sandwich Islands
Spain
Sri Lanka
St. Helena
St. Pierre and Miquelon
Sudan
Suriname
Svalbard and Jan Mayen Islands
Swaziland
Sweden
Syrian Arab Republic
Taiwan
Tajikistan
Tanzania
Thailand
Togo
Tokelau
Tonga
Trinidad and Tobago
Tunisia
Turkey
Turkmenistan
Turks and Caicos Islands
Tuvalu
Uganda
Ukraine
United Arab Emirates
United Kingdom
United States minor outlying islands
Uruguay
Uzbekistan
Vanuatu
Vatican City State (Holy See)
Venezuela
Viet Nam
Virgin Islands (British)
Virgin Islands (U.S.)
Wallis and Futuna Islands
Western Sahara
Yemen
Zambia
Zimbabwe
تعليق المشرف
علامات المنتج
تاريخ البدء المتاح
تاريخ الانتهاء المتاح
السماح بملاحظات العملاء
عرض على الصفحة الرئيسية
ترتيب العرض
يقتصر على المتاجر
كل المتاجر
Alderi Shop
يقتصر على أدوار العملاء
المنتجات الأخرى المطلوبه تضاف إلى العربة
الأرقام التعريفيه المطلوبه للمنتج
إضافة هذه المنتجات تلقائيًا إلى سلة التسوق
هو بطاقة هدية
نوع بطاقة الهدايا
Virtual
Physical
منتج متكرر
طول دورة
فترة الدوره
Days
Weeks
Months
Years
إجمالى الدورات
تمكين الشحن
موعد التسليم
شحن مجانى
رسوم شحن إضافية
USD
وحدة الكمية
غير محدد
Piece
Seri
Weight
Weight
Price
Box
Parcel
Palette
Unit
Sack
Bag
Can
Packet
Bar
Bottle
Glass
Bunch
Roll
Cup
Bundle
Barrel
Set
Bucket
meter
Container
Product Unit Id
غير محدد
KG
G
Lt
TON
ml
الوزن
milliliter
الطول
centimeter
العرض
centimeter
الإرتفاع
centimeter
Box Weight
Item Count In Box
Box Price
USD
Boxes Count In Container
Container Price
USD
معفاة من الضرائب
فئة الضريبة
Tax free
Books
Electronics & Software
Downloadable Products
Jewelry
Apparel & Shoes
هي خدمة إلكترونية
Add Video
Video
خيارات
إستبعاد أول صورة من المعرض
أضف صوره جديده
تحميل ملف
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
ملف الوسائط الرئيسي
إزاله
اساسي
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
أظهر الكل (3)
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
علامة العنوان
ميتا الوصف
كلمات دلالية
عنوان URL المستعار
تنزيل
منتج قابل للتنزيل
تحميل الملف
رفع ملف
أدخل عنوان URL
تحميل ملف
×
حفظ
نسخة
خيارات
التنزيلات غير محدودة
أقصى تحميلات
عدد الأيام
أيام
تنزيل نوع التنشيط
When order is paid
Manually
لديه اتفاق المستخدم
نص اتفاقية المستخدم
انقر لتعديل HTML ...
يحتوي على نموذج ملف التنزيل
عينة ملف التحميل
رفع ملف
أدخل عنوان URL
تحميل ملف
×
حفظ
هل أنت متأكد أنك تريد حذف هذا البند؟
تعديل سجل التغيير
×
انقر لتعديل HTML ...
نسخ خيارات المجموعه
×
هل ترغب في نسخ جميع الخيارات من مجموعة "{0}"؟
ما الذي ينبغي عمله بالخيارات الموجودة بالفعل؟
دمج جميع الخيارات
حذف الخيارات الموجودة
نسخ المنتج
×
عدد النسخ
إسم منتج جديد
تم النشر
Email Details ...
Close
