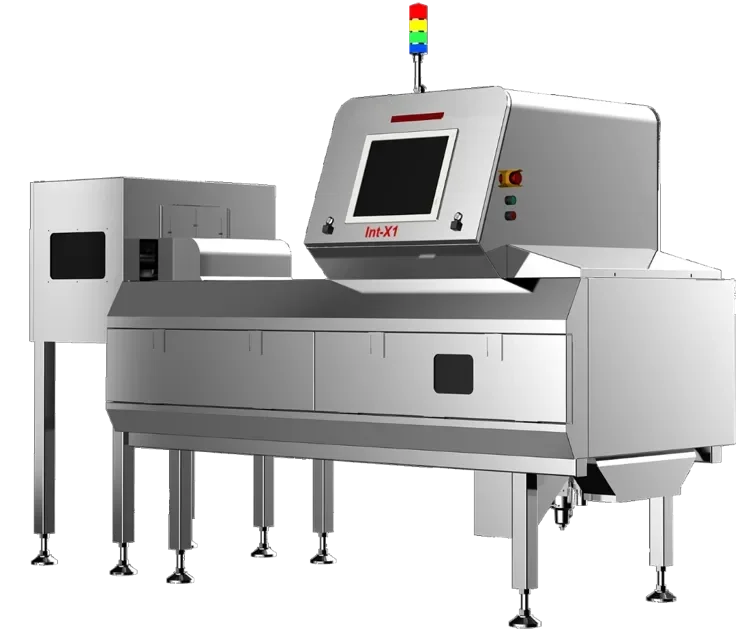

Int-X1 (X-ray) Foreign matter in small and dry grains (wheat sorting, kernel sorting, pulse sorting, etc.) and coarse and fine grain products (walnut sorting, cherry sorting, corn sorting, almond sorting, hazelnut sorting, etc.) are stones and minerals And stones and metals. Glass, plastic bones, etc.
Used for sorting. It is also used for sorting hollow-shell products.
Technical Specifications Model = Int-X1
Capacity (ton/s) = 2
Success rate = >99.8
Conveyor width = 480 mm
Camera/Thrower = 64
Weight (kg) = 800
Electricity is 220 volts
AC 50 Hz (kW) = 2
Air pressure (MPa) = 0.2 –0.6
Air consumption (l/min) = 2800
Radiation dose = 0.5 uSV/h

Product name

Short description

Full description

Int-X1 (X-ray) Foreign matter in small and dry grains (wheat sorting, kernel sorting, pulse sorting, etc.) and coarse and fine grain products (walnut sorting, cherry sorting, corn sorting, almond sorting, hazelnut sorting, etc.) are stones and minerals And stones and metals. Glass, plastic bones, etc.
Used for sorting. It is also used for sorting hollow-shell products.
Technical Specifications Model = Int-X1
Capacity (ton/s) = 2
Success rate = >99.8
Conveyor width = 480 mm
Camera/Thrower = 64
Weight (kg) = 800
Electricity is 220 volts
AC 50 Hz (kW) = 2
Air pressure (MPa) = 0.2 –0.6
Air consumption (l/min) = 2800
Radiation dose = 0.5 uSV/h

Product name

Short description

Full description

Int-X1 (الأشعة السينية) المواد الغريبة في الحبوب الصغيرة والجافة (فرز القمح، فرز نواة، فرز النبض، الخ) ومنتجات الحبوب الخشنة والدقيقة (فرز الجوز، فرز الكرز، فرز الذرة، فرز اللوز، فرز البندق، الخ) هي الحجارة والمعادن والأحجار والمعادن. الزجاج والعظام البلاستيكية وما إلى ذلك.
تستخدم للفرز. كما أنها تستخدم لفرز المنتجات ذات القشرة المجوفة.
المواصفات الفنية الموديل = Int-X1
السعة (طن/ثانية) = 2
معدل النجاح = >99.8
عرض الناقل = 480 مم
الكاميرا/القاذف = 64
الوزن (كجم) = 800
الكهرباء 220 فولت
تيار متردد 50 هرتز (كيلوواط) = 2
ضغط الهواء (ميجا باسكال) = 0.2 –0.6
استهلاك الهواء (لتر/دقيقة) = 2800
جرعة الإشعاع = 0.5 uSV/ساعة

Product name

Short description

Full description

Int-X1 (X-ray) Küçük ve kuru taneli ürünlerde (buğday ayıklama, çekirdek ayıklama, bakliyat ayıklama vb.) ve kaba ve ince taneli ürünlerde (ceviz ayıklama, kiraz ayıklama, mısır ayıklama, badem ayıklama, fındık ayıklama, fındık ayıklama, vb.) yabancı madde vb.) taşlar ve mineraller ve taşlar ve metallerdir. Cam, plastik kemikler vb.
Sıralama için kullanılır. Ayrıca içi boş kabuklu ürünlerin ayrılmasında da kullanılır.
Teknik Özellikler Model = Int-X1
Kapasite (ton/s) = 2
Başarı oranı = >99,8
Konveyör genişliği = 480 mm
Kamera/Atıcı = 64
Ağırlık (kg) = 800
Elektrik 220 volt
AC 50 Hz (kW) = 2
Hava basıncı (MPa) = 0,2 –0,6
Hava tüketimi (l/dak) = 2800
Radyasyon dozu = 0,5 uSV/saat
