Product name

Short description

Full description

<ul><li>Compressors are designed for industrial enterprises with low noise and high performance, with power ranging from 10 hp to 430 hp.</li></ul><p><b>Screw set:</b></p><ul><li>High quality bearings with high load capacity are used.</li></ul><p><b>Air intake system:</b></p><ul><li>Thanks to the professionally designed suction valve, a safe and economical air suction system is provided.</li><li>Thanks to the specially designed air filter, dust, etc. that could damage the bolt assembly are removed. By preventing harmful substances,</li><li>the quality of compressed air is improved.</li><li>Thanks to the plate filter in the machine, pre-filtering is provided before the air suction filter.</li></ul><p><b>Air and oil filtration system:</b></p><ul><li>Thanks to the specially designed Spin On Separator, the coil is easy to remove and replace and reduces service time. Thanks to the specially</li><li>designed separator, the amount of oil in the compressed air is reduced to 1-2 ppm.</li><li>Thanks to the effective separation of air oil, the quality of compressed air is reduced and malfunctions in the devices used are reduced.</li></ul><p><b>Cooling system :</b></p><ul><li>Block block radiators are used that are long lasting and operate smoothly in all conditions.</li><li>Thanks to specially designed radiators with large cooling areas, efficient cooling is achieved even at high ambient temperatures.</li></ul><p><b>Thermostatic valve:</b></p><ul><li>Thanks to the specially designed thermal valve, the machine operates at the best operating temperature, preventing water condensation caused</li><li>by low operating temperature, ensuring a long life of bearings, oil, rotors and other equipment.</li><li>Oil filtration system</li><li>Easily removable and removable oil filters ensure effective oil filtration, ensuring long life for rotors, bearings and other moving parts.</li></ul><p><b>Control system:</b></p><ul><li>Puma screw compressors use easy-to-use, multi-functional electronic control panels.</li><li>In electronic panels such as air pressure, oil temperature, total working hours, load and service hours.</li><li>In addition, complete safety is guaranteed thanks to the specially designed control system.</li></ul><p><b>Cabin system:</b></p><ul><li>Compact design provides minimal work space and easy portability</li><li>Electrostatic powder coating against shock and rust</li><li>Special sound insulation reduces sound level to a minimum and is non-flammable</li><li>Fully open side covers and compact design for easy maintenance</li><li>Belt tensioning device allowing easy intervention</li></ul><p><b>Safety system:</b></p><ul><li>Main motor over-current protection system</li><li>Fan motor over-current protection system</li><li>Oil temperature high protection system</li><li>High pressure protection system</li><li>High pressure safety valves</li><li>Emergency stop button</li><li>Malfunction warning and service maintenance system</li></ul><p><img src="/media/55921/file/invertorlu-vidali-kompresorler(1).webp" style="width: 1000px;"><br></p><p><br></p>

Compressors are designed for industrial enterprises with low noise and high performance, with power ranging from 10 hp to 430 hp.

Screw set:

High quality bearings with high load capacity are used.

Air intake system:

Thanks to the professionally designed suction valve, a safe and economical air suction system is provided.
Thanks to the specially designed air filter, dust, etc. that could damage the bolt assembly are removed. By preventing harmful substances,
the quality of compressed air is improved.
Thanks to the plate filter in the machine, pre-filtering is provided before the air suction filter.

Air and oil filtration system:

Thanks to the specially designed Spin On Separator, the coil is easy to remove and replace and reduces service time. Thanks to the specially
designed separator, the amount of oil in the compressed air is reduced to 1-2 ppm.
Thanks to the effective separation of air oil, the quality of compressed air is reduced and malfunctions in the devices used are reduced.

Cooling system :

Block block radiators are used that are long lasting and operate smoothly in all conditions.
Thanks to specially designed radiators with large cooling areas, efficient cooling is achieved even at high ambient temperatures.

Thermostatic valve:

Thanks to the specially designed thermal valve, the machine operates at the best operating temperature, preventing water condensation caused
by low operating temperature, ensuring a long life of bearings, oil, rotors and other equipment.
Oil filtration system
Easily removable and removable oil filters ensure effective oil filtration, ensuring long life for rotors, bearings and other moving parts.

Control system:

Puma screw compressors use easy-to-use, multi-functional electronic control panels.
In electronic panels such as air pressure, oil temperature, total working hours, load and service hours.
In addition, complete safety is guaranteed thanks to the specially designed control system.

Cabin system:

Compact design provides minimal work space and easy portability
Electrostatic powder coating against shock and rust
Special sound insulation reduces sound level to a minimum and is non-flammable
Fully open side covers and compact design for easy maintenance
Belt tensioning device allowing easy intervention

Safety system:

Main motor over-current protection system
Fan motor over-current protection system
Oil temperature high protection system
High pressure protection system
High pressure safety valves
Emergency stop button
Malfunction warning and service maintenance system

Product name

Short description

Full description

<div><ul><li>Compressors are designed for industrial enterprises with low noise and high performance, with power ranging from 10 hp to 430 hp.</li></ul><p><span style="font-weight: bolder;">Screw set:</span></p><ul><li>High quality bearings with high load capacity are used.</li></ul><p><span style="font-weight: bolder;">Air intake system:</span></p><ul><li>Thanks to the professionally designed suction valve, a safe and economical air suction system is provided.</li><li>Thanks to the specially designed air filter, dust, etc. that could damage the bolt assembly are removed. By preventing harmful substances,</li><li>the quality of compressed air is improved.</li><li>Thanks to the plate filter in the machine, pre-filtering is provided before the air suction filter.</li></ul><p><span style="font-weight: bolder;">Air and oil filtration system:</span></p><ul><li>Thanks to the specially designed Spin On Separator, the coil is easy to remove and replace and reduces service time. Thanks to the specially</li><li>designed separator, the amount of oil in the compressed air is reduced to 1-2 ppm.</li><li>Thanks to the effective separation of air oil, the quality of compressed air is reduced and malfunctions in the devices used are reduced.</li></ul><p><span style="font-weight: bolder;">Cooling system :</span></p><ul><li>Block block radiators are used that are long lasting and operate smoothly in all conditions.</li><li>Thanks to specially designed radiators with large cooling areas, efficient cooling is achieved even at high ambient temperatures.</li></ul><p><span style="font-weight: bolder;">Thermostatic valve:</span></p><ul><li>Thanks to the specially designed thermal valve, the machine operates at the best operating temperature, preventing water condensation caused</li><li>by low operating temperature, ensuring a long life of bearings, oil, rotors and other equipment.</li><li>Oil filtration system</li><li>Easily removable and removable oil filters ensure effective oil filtration, ensuring long life for rotors, bearings and other moving parts.</li></ul><p><span style="font-weight: bolder;">Control system:</span></p><ul><li>Puma screw compressors use easy-to-use, multi-functional electronic control panels.</li><li>In electronic panels such as air pressure, oil temperature, total working hours, load and service hours.</li><li>In addition, complete safety is guaranteed thanks to the specially designed control system.</li></ul><p><span style="font-weight: bolder;">Cabin system:</span></p><ul><li>Compact design provides minimal work space and easy portability</li><li>Electrostatic powder coating against shock and rust</li><li>Special sound insulation reduces sound level to a minimum and is non-flammable</li><li>Fully open side covers and compact design for easy maintenance</li><li>Belt tensioning device allowing easy intervention</li></ul><p><span style="font-weight: bolder;">Safety system:</span></p><ul><li>Main motor over-current protection system</li><li>Fan motor over-current protection system</li><li>Oil temperature high protection system</li><li>High pressure protection system</li><li>High pressure safety valves</li><li>Emergency stop button</li><li>Malfunction warning and service maintenance system</li></ul><p><img src="/media/55923/file/invertorlu-vidali-kompresorler(1).webp" style="width: 1000px;"><br></p></div>

Compressors are designed for industrial enterprises with low noise and high performance, with power ranging from 10 hp to 430 hp.

Screw set:

High quality bearings with high load capacity are used.

Air intake system:

Thanks to the professionally designed suction valve, a safe and economical air suction system is provided.
Thanks to the specially designed air filter, dust, etc. that could damage the bolt assembly are removed. By preventing harmful substances,
the quality of compressed air is improved.
Thanks to the plate filter in the machine, pre-filtering is provided before the air suction filter.

Air and oil filtration system:

Thanks to the specially designed Spin On Separator, the coil is easy to remove and replace and reduces service time. Thanks to the specially
designed separator, the amount of oil in the compressed air is reduced to 1-2 ppm.
Thanks to the effective separation of air oil, the quality of compressed air is reduced and malfunctions in the devices used are reduced.

Cooling system :

Block block radiators are used that are long lasting and operate smoothly in all conditions.
Thanks to specially designed radiators with large cooling areas, efficient cooling is achieved even at high ambient temperatures.

Thermostatic valve:

Thanks to the specially designed thermal valve, the machine operates at the best operating temperature, preventing water condensation caused
by low operating temperature, ensuring a long life of bearings, oil, rotors and other equipment.
Oil filtration system
Easily removable and removable oil filters ensure effective oil filtration, ensuring long life for rotors, bearings and other moving parts.

Control system:

Puma screw compressors use easy-to-use, multi-functional electronic control panels.
In electronic panels such as air pressure, oil temperature, total working hours, load and service hours.
In addition, complete safety is guaranteed thanks to the specially designed control system.

Cabin system:

Compact design provides minimal work space and easy portability
Electrostatic powder coating against shock and rust
Special sound insulation reduces sound level to a minimum and is non-flammable
Fully open side covers and compact design for easy maintenance
Belt tensioning device allowing easy intervention

Safety system:

Main motor over-current protection system
Fan motor over-current protection system
Oil temperature high protection system
High pressure protection system
High pressure safety valves
Emergency stop button
Malfunction warning and service maintenance system

Product name

Short description

Full description

<ul><li>تم تصميم الضواغط لمؤسسات الصناعة بمستوى ضجيج منخفض وأداء عالي، بقوة تتراوح من 10 حصان إلى 430 حصا</li></ul><p><b>مجموعة المسمار:</b></p><ul><li>يتم استخدام محامل عالية الجودة ذات قدرة حمل عالية.</li></ul><p><b>نظام سحب الهواء:</b></p><ul><li>بفضل صمام الشفط المصمم بشكل احترافي، يتم توفير نظام شفط هواء آمن واقتصادي.</li><li>بفضل فلتر الهواء المصمم خصيصًا، تتم إزالة الغبار وما إلى ذلك الذي قد يؤدي إلى تلف مجموعة البراغي. ومن خلال منع المواد الضارة، يتم تحسين جودة</li><li>الهواء المضغوط.</li><li>بفضل مرشح اللوحة الموجود في الماكينة، يتم توفير التصفية المسبقة قبل مرشح شفط الهواء.</li></ul><p><b>نظام تنقية الهواء والزيت:</b></p><ul><li>بفضل Spin On Separator المصمم خصيصًا، من السهل إزالته واستبداله بطريقة اللولب وتقليل وقت الخدمة. بفضل الفاصل المصمم خصيصًا، يتم تقليل كمية</li><li>الزيت في الهواء المضغوط إلى 1-2 جزء في المليون.</li><li>بفضل الفصل الفعال لزيت الهواء، يتم تقليل جودة الهواء المضغوط وتقليل الأعطال في الأجهزة المستخدمة.</li></ul><p><b>نظام التبريد :</b></p><ul><li>يتم استخدام مشعات الكتلة المجمعة التي تدوم طويلاً وتعمل بسلاسة في جميع الظروف.</li><li>بفضل المشعاعات المصممة خصيصًا ذات مساحات التبريد الكبيرة، يتم تحقيق التبريد الفعال حتى في درجات الحرارة المحيطة المرتفعة.</li></ul><p><b>صمام ترموستاتي:</b></p><ul><li>بفضل الصمام الحراري المصمم خصيصًا، تعمل الماكينة بأفضل درجة حرارة تشغيل، مما يمنع تكثيف الماء الناتج عن انخفاض درجة حرارة التشغيل، مما يضمن</li><li>عمرًا طويلًا للمحامل والزيت والدوارات وغيرها من المعدات.</li></ul><p><b>نظام ترشيح الزيت:</b></p><ul><li>تضمن فلاتر الزيت القابلة للإزالة والإزالة بسهولة ترشيح الزيت بشكل فعال، مما يضمن عمرًا طويلًا للدوارات والمحامل والأجزاء المتحركة الأخرى.</li></ul><p><b>نظام التحكم:</b></p><ul><li>تستخدم ضواغط Puma اللولبية لوحات تحكم إلكترونية سهلة الاستخدام ومتعددة الوظائف.</li><li>في اللوحات الإلكترونية مثل ضغط الهواء ودرجة حرارة الزيت وساعات العمل الإجمالية والحمولة وساعات الخدمة.</li><li>بالإضافة إلى ذلك، يتم ضمان السلامة الكاملة بفضل نظام التحكم المصمم خصيصًا.</li></ul><p><b>نظام المقصورة:</b></p><ul><li>تصميم مدمج يوفر الحد الأدنى من مساحة العمل وسهولة النقل</li><li>طلاء مسحوق إلكتروستاتيك ضد الصدمات والصدأ</li><li>عزل صوتي خاص يخفض مستوى الصوت إلى الحد الأدنى وغير قابل للاشتعال</li><li>أغطية جانبية مفتوحة بالكامل وتصميم مدمج لسهولة الصيانة</li><li>جهاز شد الحزام مما يسمح بالتدخل السهل</li></ul><p><b>نظام السلامة:</b></p><ul><li>نظام حماية التيار الزائد للمحرك الرئيسي</li><li>نظام حماية التيار الزائد لمحرك المروحة</li><li>نظام حماية من ارتفاع درجة حرارة الزيت</li><li>نظام حماية الضغط العالي</li><li>صمامات أمان الضغط العالي</li><li>زر التوقف فى حالة الطوارئ</li><li>نظام التحذير من الأعطال وصيانة الخدمة</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="100"><col width="81"><col width="111"><col width="126"><col width="100"><col width="100"><col width="100"><col width="100"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;كود المنتج\r\n&quot;}" style="text-align: center; border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-weight: bold;"><span style="font-size: 12px;">كود المنتج</span><br></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قوة الضغط\t\n Bar&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-weight: bold; text-align: center;"><span style="font-size: 12px;">قوة الضغط</span><br>Bar</td><td dir="rtl" rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;كفائة الهواء        \nMin.Fad m3/min         |Max.Fad m3/min&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-weight: bold; text-align: center;"><span style="font-size: 12px;">كفائة الهواء</span><br>Min.Fad m3/min |Max.Fad m3/min</td><td dir="rtl" rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;قوة الموتور        \n KW | HP&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-weight: bold; text-align: center;"><span style="font-size: 12px;">قوة الموتور</span><br>KW | HP</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأبعاد\n(mm)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-weight: bold; text-align: center;"><span style="font-size: 12px;">الأبعاد</span><br>(mm)</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الوزن\r\n (Kg)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-weight: bold;"><div style="text-align: center;"><span style="font-size: 12px;">الوزن</span></div><div style="text-align: center;"><span style="font-size: 12px;">(Kg)</span></div></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 25&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 25</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,50</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,00</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:25}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">25</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;18,5&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">18,5</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;850*1000*1700&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">850*1000*1700</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:437}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">437</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44956}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,30</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,60</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44936}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44977}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,20</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 30&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 30</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,50</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:30}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">30</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:22}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">22</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;850*1000*1700&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">850*1000*1700</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:460}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">460</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,55&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,55</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44995}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,10</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,35&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,35</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,70&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,70</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 40&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 40</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44962}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;mm,dd&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">02,05</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45026}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">4,10</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:40}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">40</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:30}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">30</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;850*1000*1700&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">850*1000*1700</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:550}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">550</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,80&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,80</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,60</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1,58&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">1,58</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45000}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,15</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 50</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:44995}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45097}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">6,20</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:50}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">50</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:37}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">37</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1100*1340*1800&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1100*1340*1800</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:700}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">700</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,65&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,65</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45076}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">5,30</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,30&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,30</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">4,60</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 60</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;3,85&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,85</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,70&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">7,70</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:60}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">60</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">45</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1100*1340*1800&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1100*1340*1800</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:800}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">800</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45015}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,30</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">6,60</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2,70&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">2,70</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,40&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">5,40</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 75</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4,65&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">4,65</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45199}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">9,30</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:75}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">75</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:55}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">55</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1100*1340*1800&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1100*1340*1800</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:1000}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1000</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">4,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">8,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45015}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">3,30</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">6,60</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 100&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 100</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45092}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">6,15</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45290}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">12,30</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:100}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">100</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:75}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">75</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1400*1950*1910&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1400*1950*1910</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:1600}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1600</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">5,50</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">11,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;4,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">4,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;9,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">9,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 125&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 125</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">7,50</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">15,00</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:125}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">125</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:90}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">90</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1400*1950*1910&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1400*1950*1910</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:2240}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2240</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;6,60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">6,60</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;13,20&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">13,20</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;5,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">5,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">11,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 150&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 150</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;9,40&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">9,40</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;18,80&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">18,80</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">150</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:110}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">110</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1400*1950*1910&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1400*1950*1910</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:2500}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2500</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45163}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">8,25</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">16,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;7,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">7,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;14,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">14,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 180&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 180</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11,40&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">11,40</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22,80&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">22,80</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:180}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">180</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:132}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">132</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1750*2500*2000&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1750*2500*2000</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:2873}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2873</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;9,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">9,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">19,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;8,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">8,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;16,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">16,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 220&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 220</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;13,70&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">13,70</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;27,40&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">27,40</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:220}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">220</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:160}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">160</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1750*2500*2000&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">1750*2500*2000</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:3030}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">3030</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;11,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">11,50</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;23,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">23,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;9,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">9,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">19,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 270&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 270</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;18,05&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">18,05</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;36,10&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">36,10</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:270}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">270</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:200}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">200</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2250*3000*2400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2250*3000*2400</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:4950}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">4950</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">15,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;30,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">30,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">12,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;24,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">24,00</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 340&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 340</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">22,00</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;44,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">44,00</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:340}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">340</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:250}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">250</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2250*3250*2400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2250*3250*2400</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:5540}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">5540</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;18,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">18,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">37,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;15,65&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">15,65</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31,30&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">31,30</span></td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVi 430&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; font-weight: bold;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">PVi 430</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:45112}" data-sheets-numberformat="{&quot;1&quot;:5,&quot;2&quot;:&quot;m,d&quot;,&quot;3&quot;:1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">7,5</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26,25&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">26,25</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;52,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">52,50</span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:430}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">430</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:315}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;"><div style="max-height: 63px;">315</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2250*3250*2400&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">2250*3250*2400</div></span></td><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:6025}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal;"><span style="font-size: 12px;"><div style="text-align: center; max-height: 63px;">6025</div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:10}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">10</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22,75&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">22,75</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;45,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">45,50</span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:3,&quot;3&quot;:13}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 9pt; font-weight: normal; text-align: center;"><span style="font-size: 12px;">13</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19,50&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">19,50</span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;39,00&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-size: 9pt; text-align: center;"><span style="font-size: 12px;">39,0</span><span style="font-size: 12px;">0</span></td></tr></tbody></table>

تم تصميم الضواغط لمؤسسات الصناعة بمستوى ضجيج منخفض وأداء عالي، بقوة تتراوح من 10 حصان إلى 430 حصا

مجموعة المسمار:

يتم استخدام محامل عالية الجودة ذات قدرة حمل عالية.

نظام سحب الهواء:

بفضل صمام الشفط المصمم بشكل احترافي، يتم توفير نظام شفط هواء آمن واقتصادي.
بفضل فلتر الهواء المصمم خصيصًا، تتم إزالة الغبار وما إلى ذلك الذي قد يؤدي إلى تلف مجموعة البراغي. ومن خلال منع المواد الضارة، يتم تحسين جودة
الهواء المضغوط.
بفضل مرشح اللوحة الموجود في الماكينة، يتم توفير التصفية المسبقة قبل مرشح شفط الهواء.

نظام تنقية الهواء والزيت:

بفضل Spin On Separator المصمم خصيصًا، من السهل إزالته واستبداله بطريقة اللولب وتقليل وقت الخدمة. بفضل الفاصل المصمم خصيصًا، يتم تقليل كمية
الزيت في الهواء المضغوط إلى 1-2 جزء في المليون.
بفضل الفصل الفعال لزيت الهواء، يتم تقليل جودة الهواء المضغوط وتقليل الأعطال في الأجهزة المستخدمة.

نظام التبريد :

يتم استخدام مشعات الكتلة المجمعة التي تدوم طويلاً وتعمل بسلاسة في جميع الظروف.
بفضل المشعاعات المصممة خصيصًا ذات مساحات التبريد الكبيرة، يتم تحقيق التبريد الفعال حتى في درجات الحرارة المحيطة المرتفعة.

صمام ترموستاتي:

بفضل الصمام الحراري المصمم خصيصًا، تعمل الماكينة بأفضل درجة حرارة تشغيل، مما يمنع تكثيف الماء الناتج عن انخفاض درجة حرارة التشغيل، مما يضمن
عمرًا طويلًا للمحامل والزيت والدوارات وغيرها من المعدات.

نظام ترشيح الزيت:

تضمن فلاتر الزيت القابلة للإزالة والإزالة بسهولة ترشيح الزيت بشكل فعال، مما يضمن عمرًا طويلًا للدوارات والمحامل والأجزاء المتحركة الأخرى.

نظام التحكم:

تستخدم ضواغط Puma اللولبية لوحات تحكم إلكترونية سهلة الاستخدام ومتعددة الوظائف.
في اللوحات الإلكترونية مثل ضغط الهواء ودرجة حرارة الزيت وساعات العمل الإجمالية والحمولة وساعات الخدمة.
بالإضافة إلى ذلك، يتم ضمان السلامة الكاملة بفضل نظام التحكم المصمم خصيصًا.

نظام المقصورة:

تصميم مدمج يوفر الحد الأدنى من مساحة العمل وسهولة النقل
طلاء مسحوق إلكتروستاتيك ضد الصدمات والصدأ
عزل صوتي خاص يخفض مستوى الصوت إلى الحد الأدنى وغير قابل للاشتعال
أغطية جانبية مفتوحة بالكامل وتصميم مدمج لسهولة الصيانة
جهاز شد الحزام مما يسمح بالتدخل السهل

نظام السلامة:

نظام حماية التيار الزائد للمحرك الرئيسي
نظام حماية التيار الزائد لمحرك المروحة
نظام حماية من ارتفاع درجة حرارة الزيت
نظام حماية الضغط العالي
صمامات أمان الضغط العالي
زر التوقف فى حالة الطوارئ
نظام التحذير من الأعطال وصيانة الخدمة

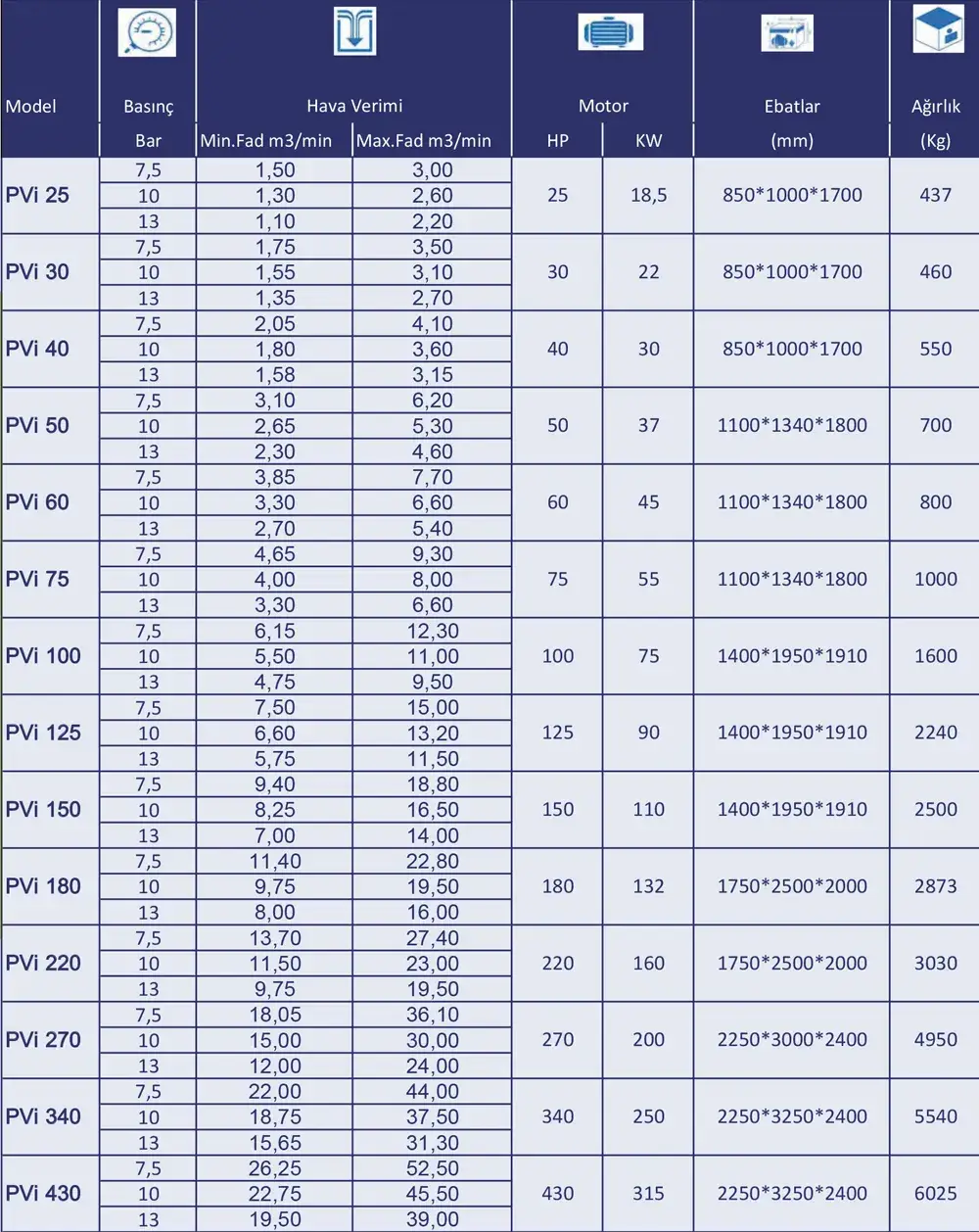

كود المنتج	قوة الضغط Bar	كفائة الهواء Min.Fad m3/min \|Max.Fad m3/min		قوة الموتور KW \| HP		الأبعاد (mm)	الوزن (Kg)
PVi 25	7,5	1,50	3,00	25	18,5	85010001700	437
	10	1,30	2,60
	13	1,10	2,20
PVi 30	7,5	1,75	3,50	30	22	85010001700	460
	10	1,55	3,10
	13	1,35	2,70
PVi 40	7,5	02,05	4,10	40	30	85010001700	550
	10	1,80	3,60
	13	1,58	3,15
PVi 50	7,5	3,10	6,20	50	37	110013401800	700
	10	2,65	5,30
	13	2,30	4,60
PVi 60	7,5	3,85	7,70	60	45	110013401800	800
	10	3,30	6,60
	13	2,70	5,40
PVi 75	7,5	4,65	9,30	75	55	110013401800	1000
	10	4,00	8,00
	13	3,30	6,60
PVi 100	7,5	6,15	12,30	100	75	140019501910	1600
	10	5,50	11,00
	13	4,75	9,50
PVi 125	7,5	7,50	15,00	125	90	140019501910	2240
	10	6,60	13,20
	13	5,75	11,50
PVi 150	7,5	9,40	18,80	150	110	140019501910	2500
	10	8,25	16,50
	13	7,00	14,00
PVi 180	7,5	11,40	22,80	180	132	175025002000	2873
	10	9,75	19,50
	13	8,00	16,00
PVi 220	7,5	13,70	27,40	220	160	175025002000	3030
	10	11,50	23,00
	13	9,75	19,50
PVi 270	7,5	18,05	36,10	270	200	225030002400	4950
	10	15,00	30,00
	13	12,00	24,00
PVi 340	7,5	22,00	44,00	340	250	225032502400	5540
	10	18,75	37,50
	13	15,65	31,30
PVi 430	7,5	26,25	52,50	430	315	225032502400	6025
	10	22,75	45,50
	13	19,50	39,00

Product name

Short description

Full description

<p><b>Puma İnventörlü Vidalı Kompresörler:</b></p><ul><li>Puma Vidalı Kompresörler, 10 hp den 430 hp ye kadar güçlerde, düşük ses seviyesi ve yüksek preformansı ile endüstriyel işletmeler için</li><li>tasarlanmıştır.</li></ul><p><b>Vida Grubu:</b></p><ul><li>Puma Vidalı Kompresörlerinin Vida grupları dünyaca tanınmış profesyonel Vida Grubu üreticisi tarafından üretilmektedir. Vida Grupları, tam</li><li>kalite kontrol altında üretilen, yüksek verimli ve bakım maliyetleri en düşük olan vida gruplarıdır.</li><li>Puma Vidalı Kompresörlerinde kullanılan Vida grupları, çok hassas bir şekilde, en gelişmiş tezgahlarda üretilmiştir.</li><li>Vida gruplarında, büyük sıkıştırma alanına sahip, düşük işletme giderleri sağlayan yüksek verimli rotorlar kullanılmıştır.</li><li>Yüksek Kalite de fazla yük taşıma kapasitesine sahip rulmanlar kullanılmıştır.</li></ul><p><b>Hava Emiş Sistemi:</b></p><ul><li>Profesyonel olarak dizayn edilmiş olan emiş valfi sayesinde, güvenli ve ekonomik hava emiş sistemi sağlanmıştır.</li><li>Özel olarak dizayn edilmiş olan, hava filtresi sayesinde vida grubuna zarar verebilecek toz v.b. Zararlı maddeler engellenerek, basınçlı</li><li>hava kalitesi arttırılmıştır.</li><li>Makine de bulunan panel filtresi sayesinde, hava emiş filtresinden önce ön filtreleme sağlanmıştır.</li></ul><p><b>Hava &amp;amp; Yağ Filtrasyon Sistemi:</b></p><ul><li>Özel dizayn Spin On Seperatör sayesinde vidalama yöntemi ile sökülüp değişimi kolaydır ve servis süresini minimize eder. Özel olarak dizayn</li><li>edilmiş olan seperatör sayesinde, basınçlı hava içerisindeki yağ miktarı 1-2 ppm e kadar indirgenmiştir.</li><li>Etkin hava yağ seperasyonu sayesinde, basınçlı hava kalitesi artar ve kullanılan cihazlardaki arızalar minimize olur.</li></ul><p><b>Soğutma Sistemi :</b></p><ul><li>Uzun ömürlü ve her şartlarda sorunsuz olarak çalışan kombi blok radyatörler kullanılmıştır.</li><li>Özel olarak dizayn edilmiş geniş soğutma alanına sahip radyatörler sayasinde, yüksek çevre sıcaklığında bile etkin soğutma sağlanmıştır.</li></ul><p><b>Termostatik Valf:</b></p><ul><li>Özel olarak tasarlanmış, termostatik valf sayesinde, makinenin en iyi çalışma sıcaklığında çalışması ile, düşük çalışma sıcaklığından</li><li>kaynaklanansu yoğunlaşması engellenerek, rulmanların, yağın, rotorların ve diğer ekipmanların uzun ömürlü olması sağlanır.</li></ul><p><b>Yağ Filtrasyon Sistemi</b></p><ul><li>Kolayca sökülüp takılabilen yağ filtreleri ile, yağın etkin filtrasyonu sağlanarak, rotorların , rulmanların ve diğer hareketli parçaların</li><li>uzun ömür olması sağlanır.</li></ul><p><b>Kontrol Sistemi:</b></p><ul><li>Puma Vidalı Kompresörlerde, kullanımı kolay ve çok fonksiyonlu elektronik kontrol panelleri kullanılmıştır.</li><li>Elektronik panellerde, Hava basıncı, Yağ sıcaklığı, toplam ve yükte çalışma saati ve servis saatleri gibi.</li><li>Ayrıca özel dizayn edilmiş kontrol sistemi sayesinde tam emniyet sağlanmıştır.</li></ul><p><b>Kabin Sistemi:</b></p><ul><li>Minimum çalışma alanı ve taşıma kolaylığı sağlayan kompakt dizayn</li><li>Darbelere ve paslanmaya karşı uygulanmış elektrostatik toz boya</li><li>Ses düzeyini minimumlara indirgeyen ve alev almayan özel ses izolasyonu</li><li>Bakım kolaylığı sağlayan tam açılır yan kapaklar ve kompakt dizayn</li><li>Kolay müdahale imkanı veren kayış germe tertibatı</li></ul><p><b>Emniyet Sistemi:</b></p><ul><li>Ana motor aşırı akım koruma sistemi</li><li>Fan motoru aşırı akım koruma sistemi</li><li>Yüksek yağ sıcaklığı koruma sistemi</li><li>Yüksek basınç koruma sistemi</li><li>Yüksek basınç emniyet valfleri</li><li>Acil stop butonu</li><li>Arıza ve servis bakım uyarı sistemi</li></ul><p><img src="/media/55926/file/invertorlu-vidali-kompresorler(3).webp" style="width: 1000px;"><br></p>

Puma İnventörlü Vidalı Kompresörler:

Puma Vidalı Kompresörler, 10 hp den 430 hp ye kadar güçlerde, düşük ses seviyesi ve yüksek preformansı ile endüstriyel işletmeler için
tasarlanmıştır.

Vida Grubu:

Puma Vidalı Kompresörlerinin Vida grupları dünyaca tanınmış profesyonel Vida Grubu üreticisi tarafından üretilmektedir. Vida Grupları, tam
kalite kontrol altında üretilen, yüksek verimli ve bakım maliyetleri en düşük olan vida gruplarıdır.
Puma Vidalı Kompresörlerinde kullanılan Vida grupları, çok hassas bir şekilde, en gelişmiş tezgahlarda üretilmiştir.
Vida gruplarında, büyük sıkıştırma alanına sahip, düşük işletme giderleri sağlayan yüksek verimli rotorlar kullanılmıştır.
Yüksek Kalite de fazla yük taşıma kapasitesine sahip rulmanlar kullanılmıştır.

Hava Emiş Sistemi:

Profesyonel olarak dizayn edilmiş olan emiş valfi sayesinde, güvenli ve ekonomik hava emiş sistemi sağlanmıştır.
Özel olarak dizayn edilmiş olan, hava filtresi sayesinde vida grubuna zarar verebilecek toz v.b. Zararlı maddeler engellenerek, basınçlı
hava kalitesi arttırılmıştır.
Makine de bulunan panel filtresi sayesinde, hava emiş filtresinden önce ön filtreleme sağlanmıştır.

Hava & Yağ Filtrasyon Sistemi:

Özel dizayn Spin On Seperatör sayesinde vidalama yöntemi ile sökülüp değişimi kolaydır ve servis süresini minimize eder. Özel olarak dizayn
edilmiş olan seperatör sayesinde, basınçlı hava içerisindeki yağ miktarı 1-2 ppm e kadar indirgenmiştir.
Etkin hava yağ seperasyonu sayesinde, basınçlı hava kalitesi artar ve kullanılan cihazlardaki arızalar minimize olur.

Soğutma Sistemi :

Uzun ömürlü ve her şartlarda sorunsuz olarak çalışan kombi blok radyatörler kullanılmıştır.
Özel olarak dizayn edilmiş geniş soğutma alanına sahip radyatörler sayasinde, yüksek çevre sıcaklığında bile etkin soğutma sağlanmıştır.

Termostatik Valf:

Özel olarak tasarlanmış, termostatik valf sayesinde, makinenin en iyi çalışma sıcaklığında çalışması ile, düşük çalışma sıcaklığından
kaynaklanansu yoğunlaşması engellenerek, rulmanların, yağın, rotorların ve diğer ekipmanların uzun ömürlü olması sağlanır.

Yağ Filtrasyon Sistemi

Kolayca sökülüp takılabilen yağ filtreleri ile, yağın etkin filtrasyonu sağlanarak, rotorların , rulmanların ve diğer hareketli parçaların
uzun ömür olması sağlanır.

Kontrol Sistemi:

Puma Vidalı Kompresörlerde, kullanımı kolay ve çok fonksiyonlu elektronik kontrol panelleri kullanılmıştır.
Elektronik panellerde, Hava basıncı, Yağ sıcaklığı, toplam ve yükte çalışma saati ve servis saatleri gibi.
Ayrıca özel dizayn edilmiş kontrol sistemi sayesinde tam emniyet sağlanmıştır.

Kabin Sistemi:

Minimum çalışma alanı ve taşıma kolaylığı sağlayan kompakt dizayn
Darbelere ve paslanmaya karşı uygulanmış elektrostatik toz boya
Ses düzeyini minimumlara indirgeyen ve alev almayan özel ses izolasyonu
Bakım kolaylığı sağlayan tam açılır yan kapaklar ve kompakt dizayn
Kolay müdahale imkanı veren kayış germe tertibatı

Emniyet Sistemi:

Ana motor aşırı akım koruma sistemi
Fan motoru aşırı akım koruma sistemi
Yüksek yağ sıcaklığı koruma sistemi
Yüksek basınç koruma sistemi
Yüksek basınç emniyet valfleri
Acil stop butonu
Arıza ve servis bakım uyarı sistemi
