Product name

Short description

Full description

<ul><li>Comfortable to use thanks to the working model with which you can open and close two different wings.</li><li>Thanks to its working form, you can easily use it on windows and doors.</li><li>High quality aluminum is used</li><li>The tulle will not be torn, removed or punctured during use.</li><li>Flies and other pests cannot pass through mosquito nets or tulle.</li><li>It has a very elegant design.</li><li>Mounting piece: 27mm depth, 39mm front surface width provides a rugged look. The pleated grille is the main profile, and the set of corner</li><li>wedges form the skeleton of the pleated grille.</li><li>Fixing piece: It is the piece that allows the folded tulle to move thanks to the wheel attachments attached to the head parts that are compatible with the net. Thanks to its special design, it locks the tulle inside and ensures the longevity of the tulle.</li><li>17 and 19 mm folded mesh</li><li>Fabric structure: pleated</li><li>Colour: grey-black</li><li>Warp yarn diameter: 0.3+||-0.02mm</li><li>Finishing density (ends||inch) warp: 18</li><li>Area weight (g||m2): 70 g||m2: +||-5 g||m2</li><li>Polyester composition</li><li>Breaking strength (N||25mm) Stap: &amp;gt;180 : &amp;gt;160</li><li>Standard(m): from 2m||2.2m||2.4m||2.7m||3m</li><li>Standard piece length (m): from 26m: +||- 1m</li><li>Heat resistance: -10° ||+50°</li><li>Piece length: available upon request</li><li>19mm PVC tape</li><li>The PVC folded tape is glued to the mesh tulle and provides the connection between the tulle and the aluminum. The most important feature of this product is that it is made of heat-resistant PVC. The double-sided tape on it does not lose its properties in outdoor weather conditions</li><li>Corner wedge</li><li>It is produced using the original Mobelin raw material used to join the horizontal and vertical case profile sections.</li><li>Corner covers</li><li>It is used to cover screw holes for corner attachments at the end of the assembly and provides an aesthetic appearance.</li><li>wheel bearing</li><li>It is used in the head parts of the wing shape used horizontally and vertically in the system. It is a plastic injection product that allows easy opening and closing thanks to the compact raw material and iron pin system it contains. section</li><li>It is a plastic injection product that can be easily disassembled and installed, and is used in window frames and window sashes.</li><li>Pin combination</li><li>The lock pin, which provides pressure to the folded screen wire rope passing through the central point of the corner wedge used in a combination of vertical and horizontal profiles, thanks to the vertical protrusions used around it, is a plastic injection product made using special printing technology and original raw materials.</li><li>Network fixing rope</li><li>The mesh ropes, which are one of the most important components of flying screen systems, undergo numerous finishing processes to ensure the mechanism operates smoothly.</li><li>In order to prevent deformation of the tulle system during use, it is subjected to heat treatment, which reduces its elongation and increases its resistance to friction.</li><li>Bristle wick</li><li>It is used to close the special gap used for the magnetic part of the mounting clips used in the standard grille of doors and windows. They provide a beautiful appearance and prevent dust and contamination that may occur on the grille</li><li>Magnet fuse</li><li>Flat and triangle magnets; It provides ease of use, and double-sided wings are used. Magnets are used to combine the two wings, and are</li><li>connected to the special channel for installation and ensure the operation of the system. One of the features of the triple magnet is</li><li>important in eliminating errors that may occur during production and do not prevent the system from working.</li><li>Fixation capsule</li><li>Specially coated metal capsule that you can use in grilles and curtain products.The product is made of sheet metal and has an aluminum coating.</li></ul>

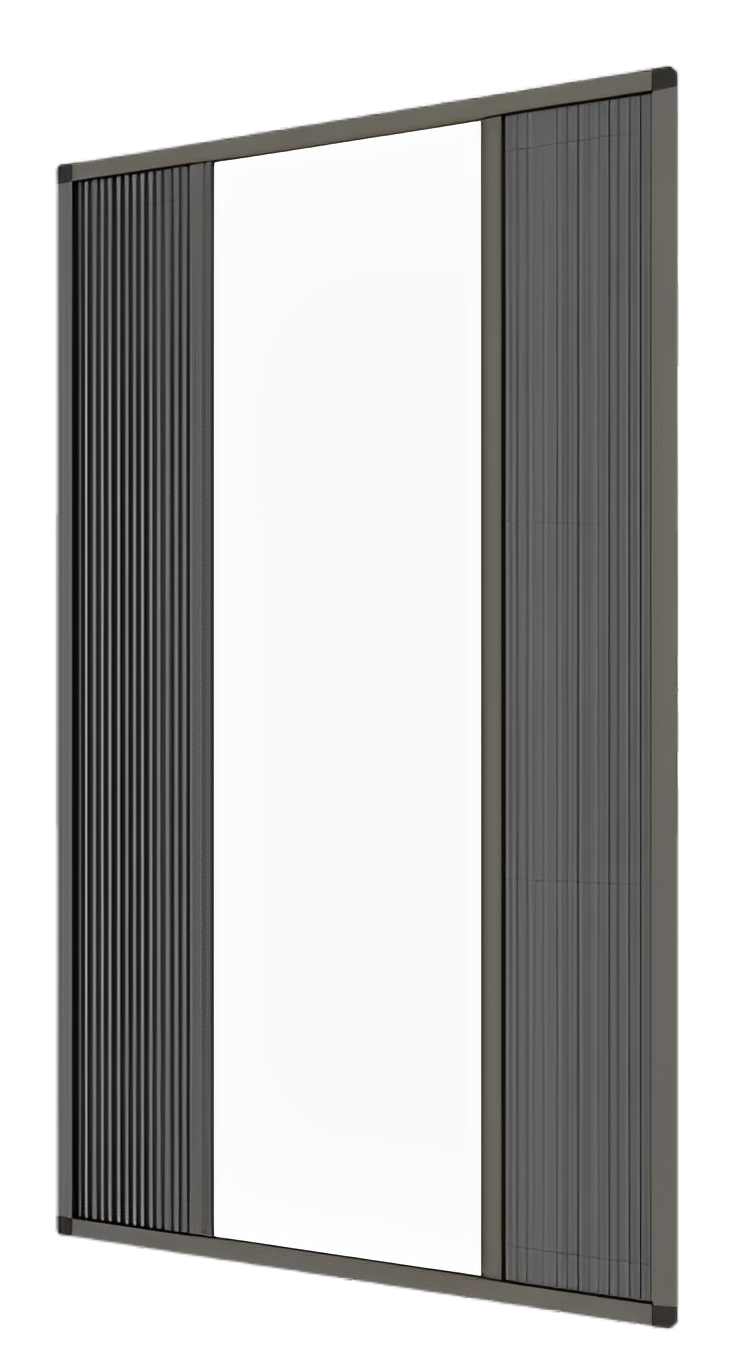

Comfortable to use thanks to the working model with which you can open and close two different wings.
Thanks to its working form, you can easily use it on windows and doors.
High quality aluminum is used
The tulle will not be torn, removed or punctured during use.
Flies and other pests cannot pass through mosquito nets or tulle.
It has a very elegant design.

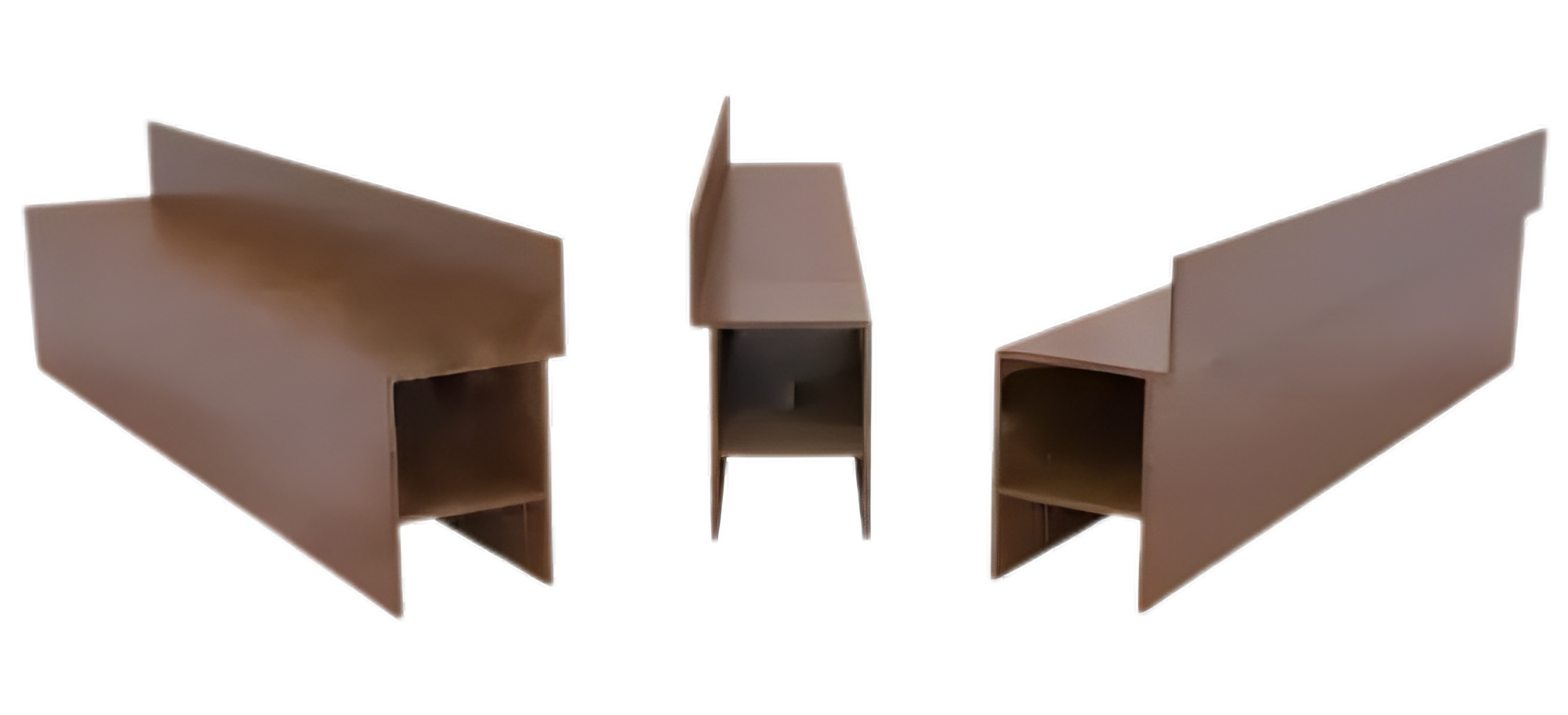

Mounting piece: 27mm depth, 39mm front surface width provides a rugged look. The pleated grille is the main profile, and the set of corner
wedges form the skeleton of the pleated grille.

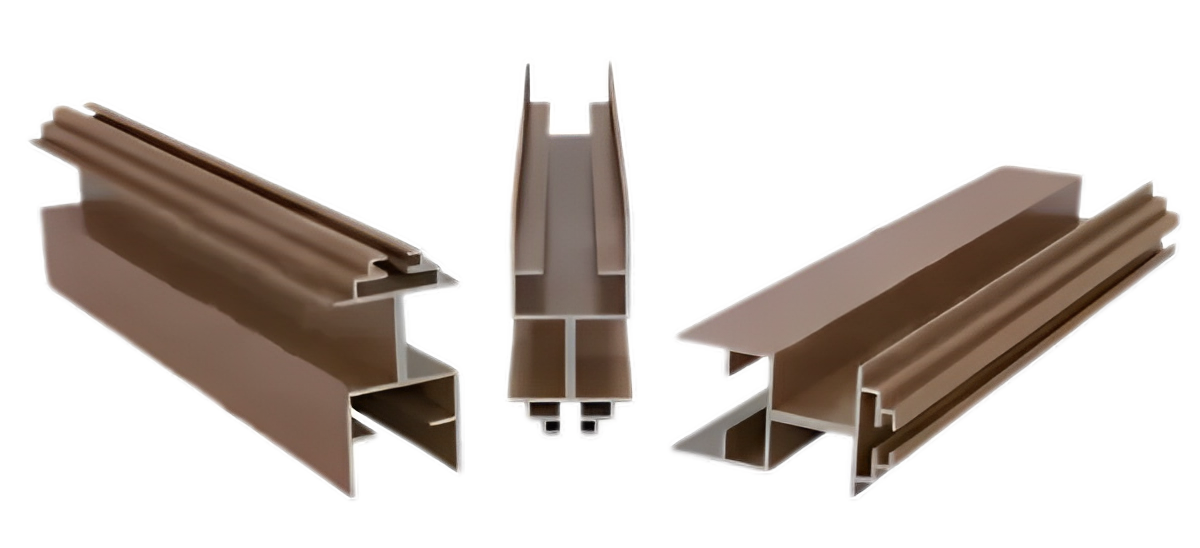

Fixing piece: It is the piece that allows the folded tulle to move thanks to the wheel attachments attached to the head parts that are compatible with the net. Thanks to its special design, it locks the tulle inside and ensures the longevity of the tulle.

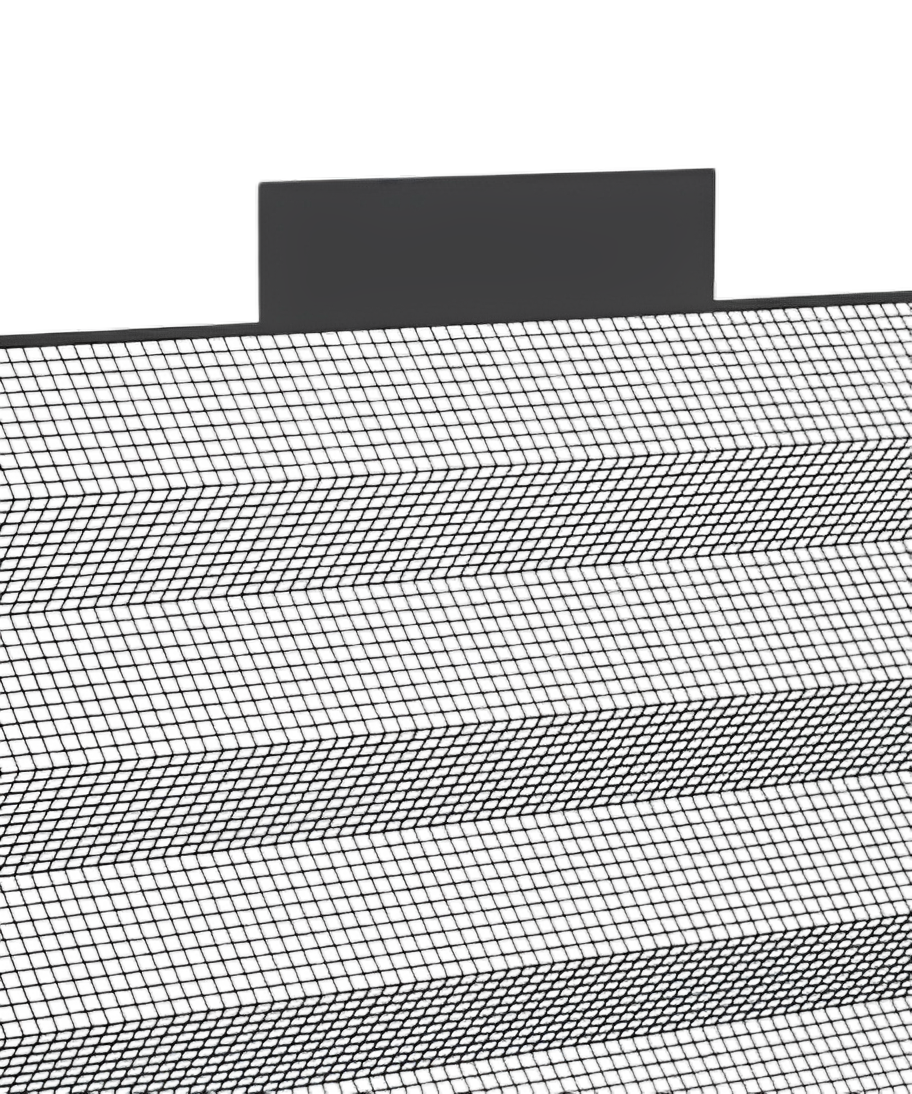

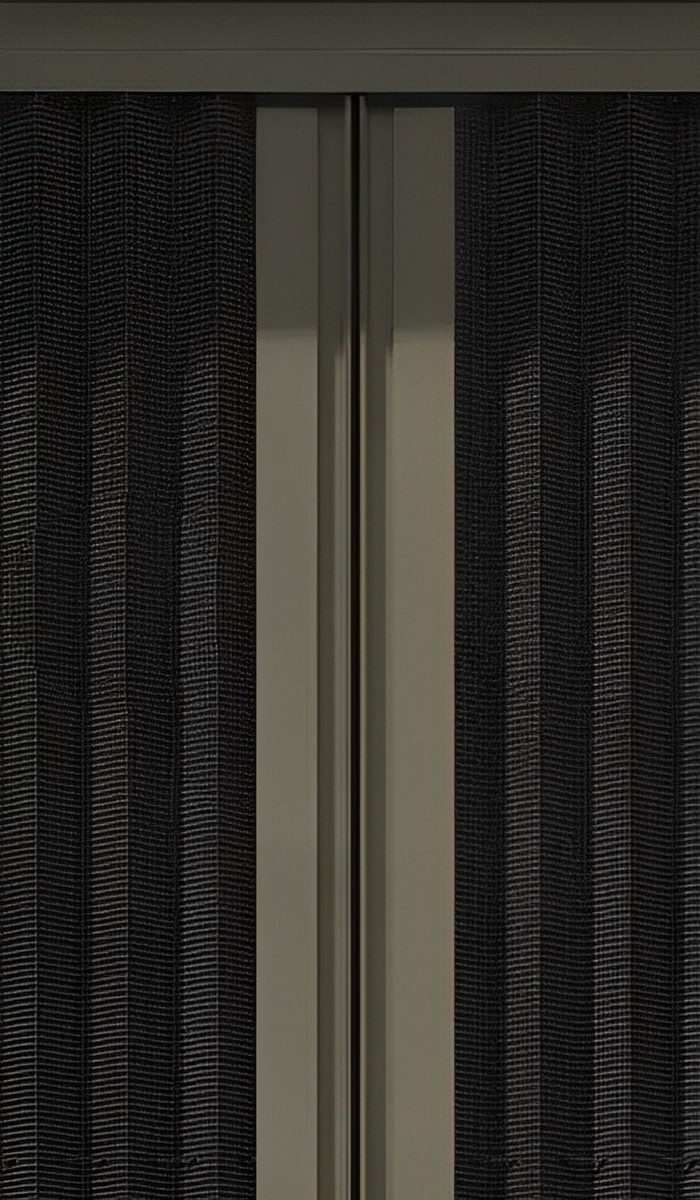

17 and 19 mm folded mesh
Fabric structure: pleated
Colour: grey-black
Warp yarn diameter: 0.3+||-0.02mm
Finishing density (ends||inch) warp: 18
Area weight (g||m2): 70 g||m2: +||-5 g||m2
Polyester composition
Breaking strength (N||25mm) Stap: >180 : >160
Standard(m): from 2m||2.2m||2.4m||2.7m||3m
Standard piece length (m): from 26m: +||- 1m
Heat resistance: -10° ||+50°
Piece length: available upon request
19mm PVC tape
The PVC folded tape is glued to the mesh tulle and provides the connection between the tulle and the aluminum. The most important feature of this product is that it is made of heat-resistant PVC. The double-sided tape on it does not lose its properties in outdoor weather conditions

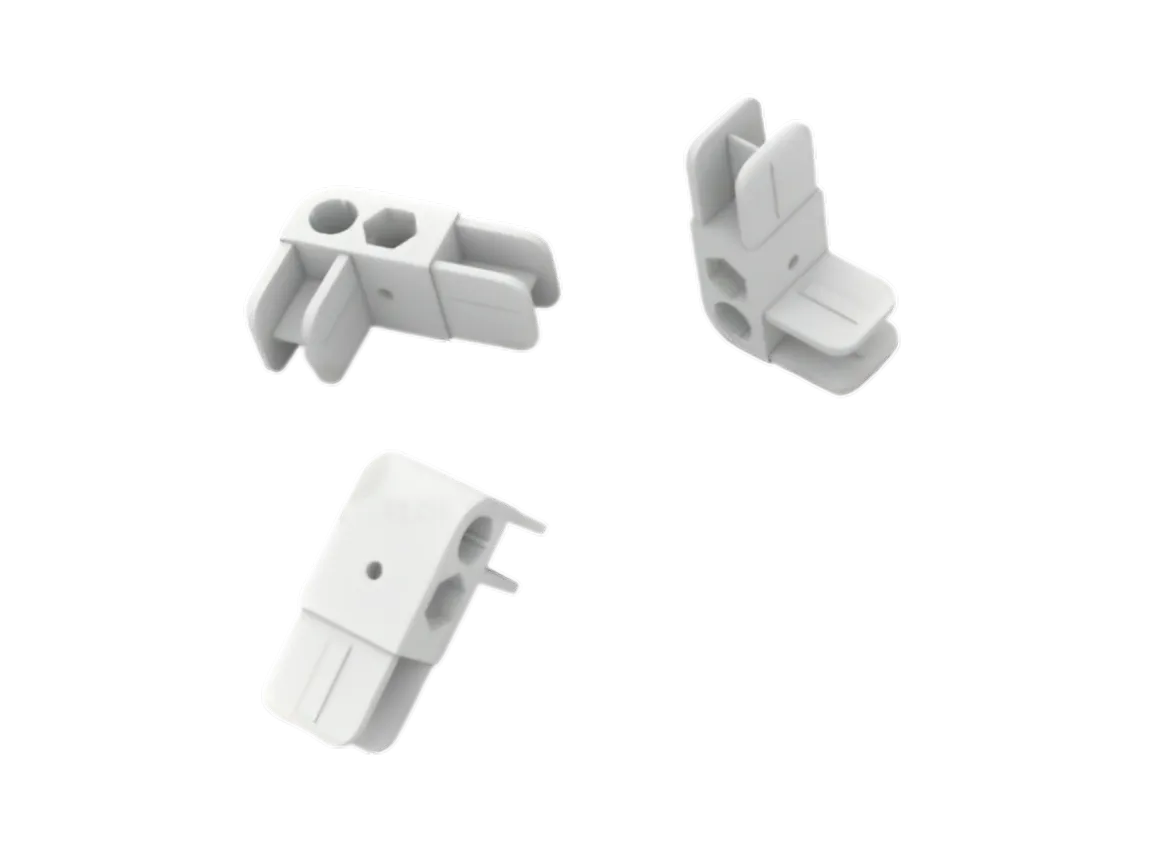

Corner wedge
It is produced using the original Mobelin raw material used to join the horizontal and vertical case profile sections.

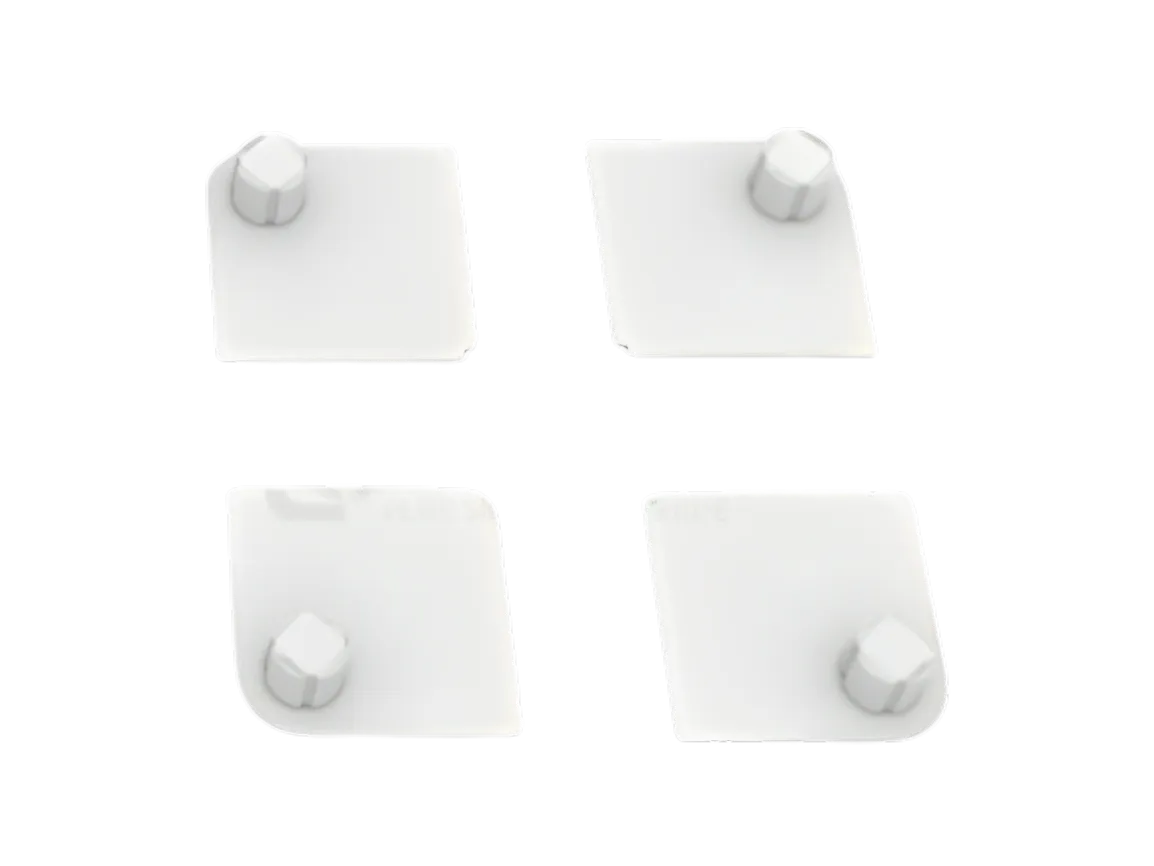

Corner covers
It is used to cover screw holes for corner attachments at the end of the assembly and provides an aesthetic appearance.

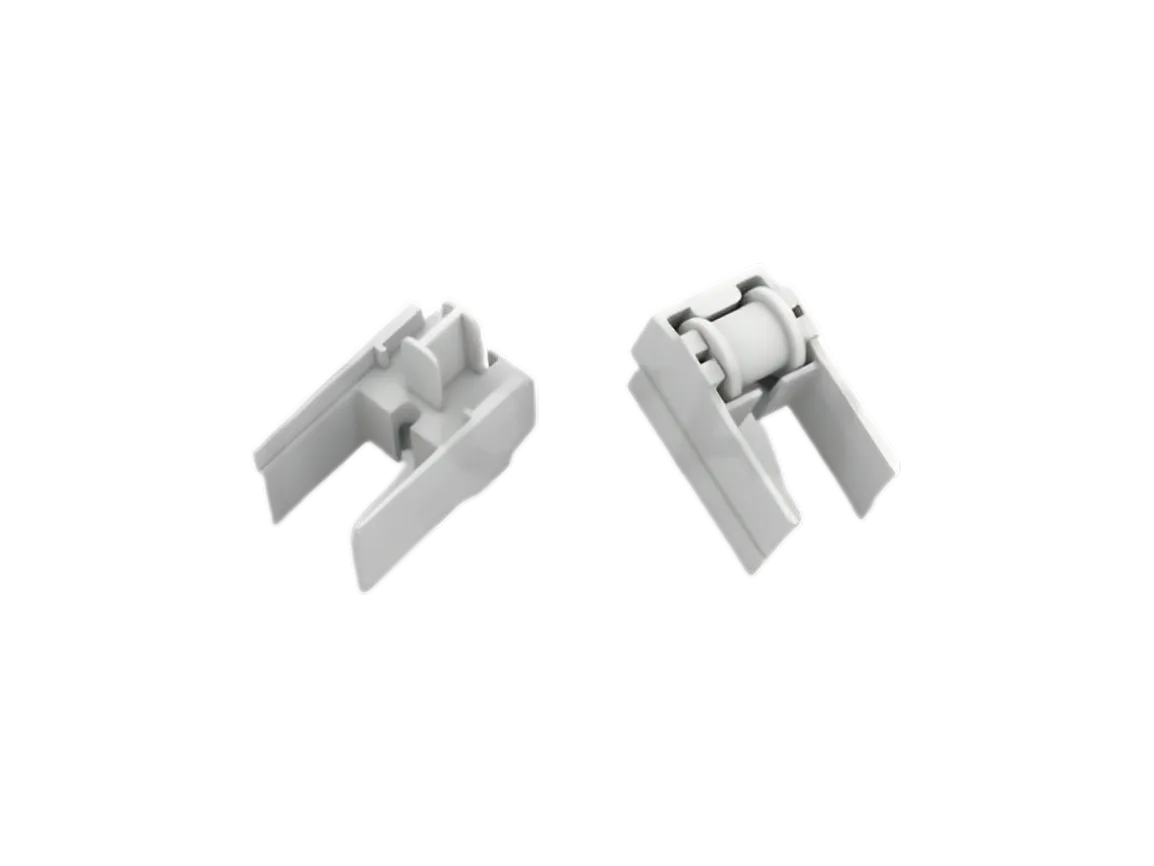

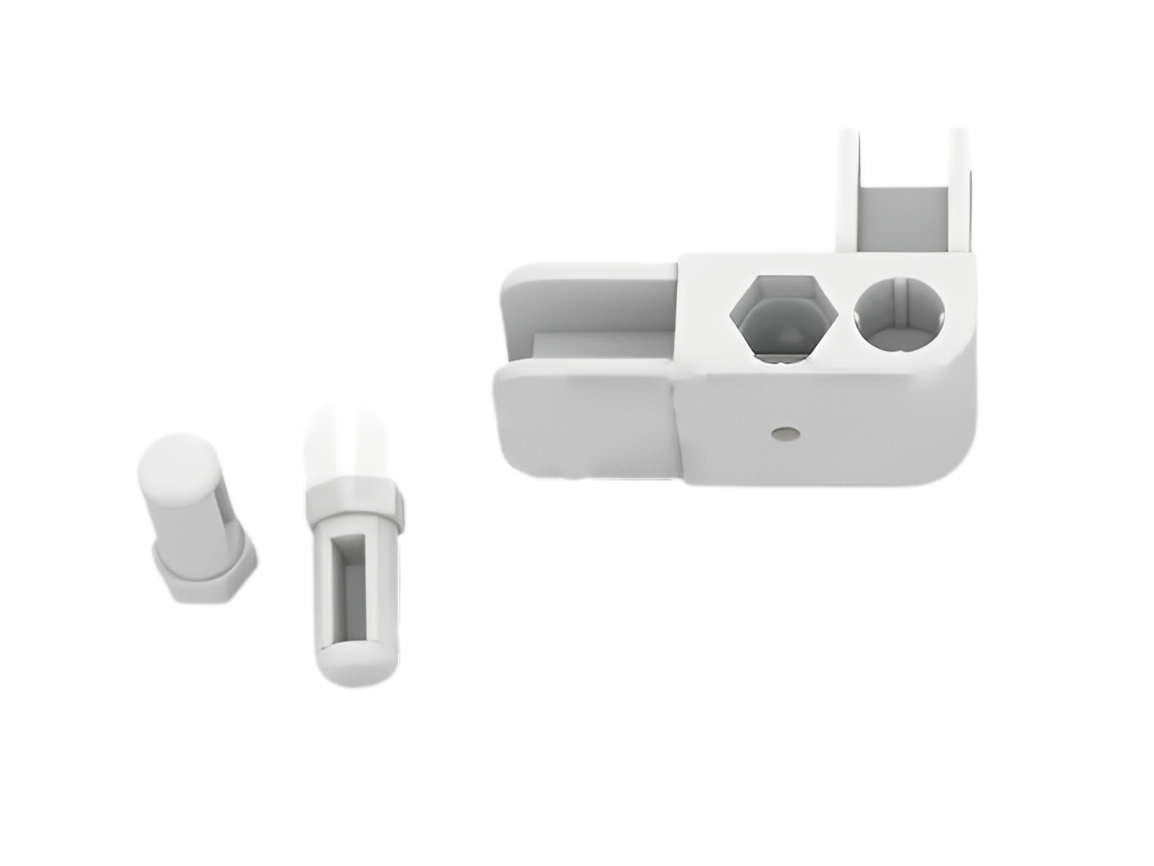

wheel bearing
It is used in the head parts of the wing shape used horizontally and vertically in the system. It is a plastic injection product that allows easy opening and closing thanks to the compact raw material and iron pin system it contains. section
It is a plastic injection product that can be easily disassembled and installed, and is used in window frames and window sashes.
Pin combination
The lock pin, which provides pressure to the folded screen wire rope passing through the central point of the corner wedge used in a combination of vertical and horizontal profiles, thanks to the vertical protrusions used around it, is a plastic injection product made using special printing technology and original raw materials.

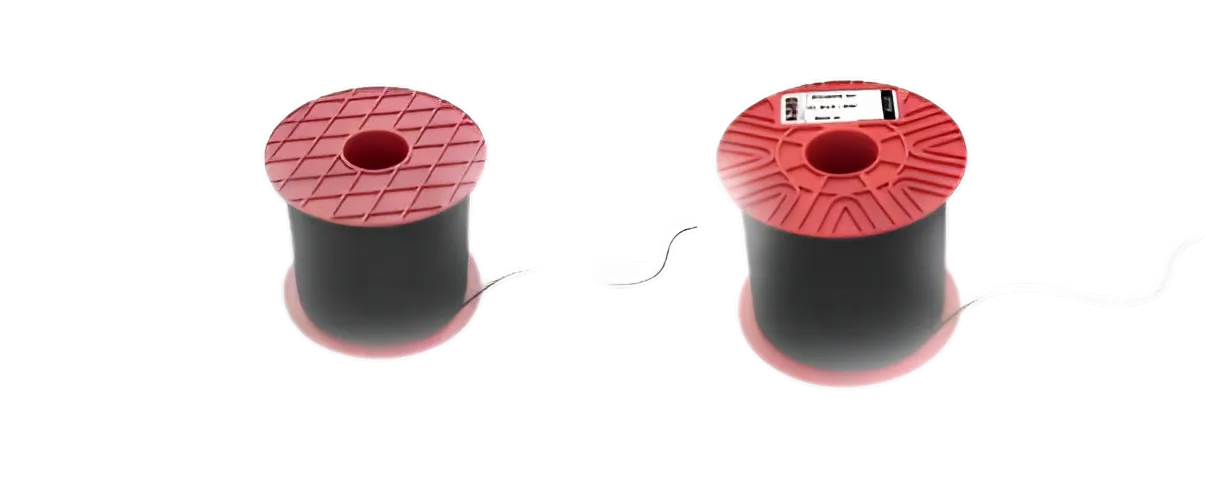

Network fixing rope
The mesh ropes, which are one of the most important components of flying screen systems, undergo numerous finishing processes to ensure the mechanism operates smoothly.
In order to prevent deformation of the tulle system during use, it is subjected to heat treatment, which reduces its elongation and increases its resistance to friction.

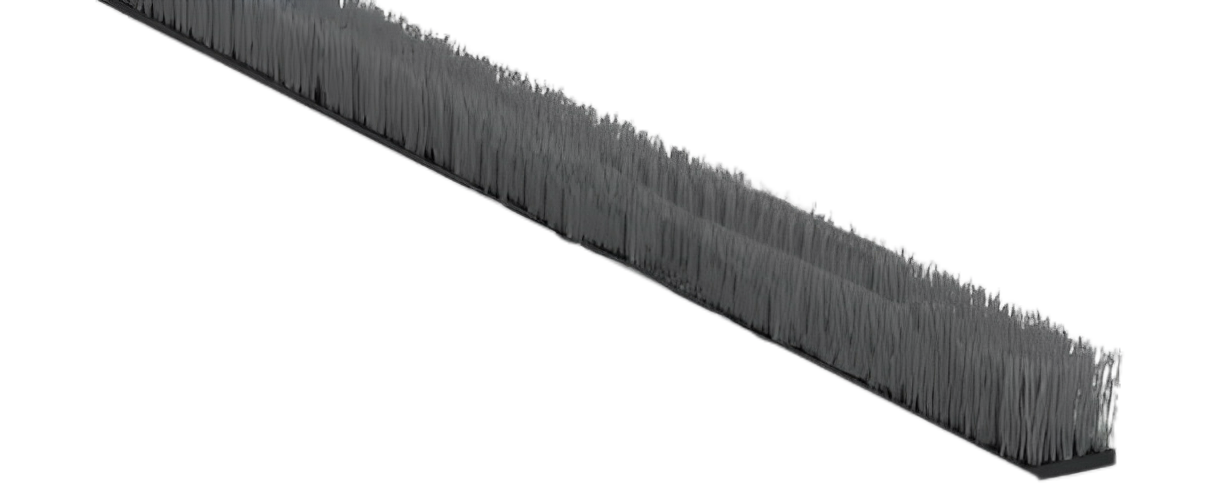

Bristle wick
It is used to close the special gap used for the magnetic part of the mounting clips used in the standard grille of doors and windows. They provide a beautiful appearance and prevent dust and contamination that may occur on the grille

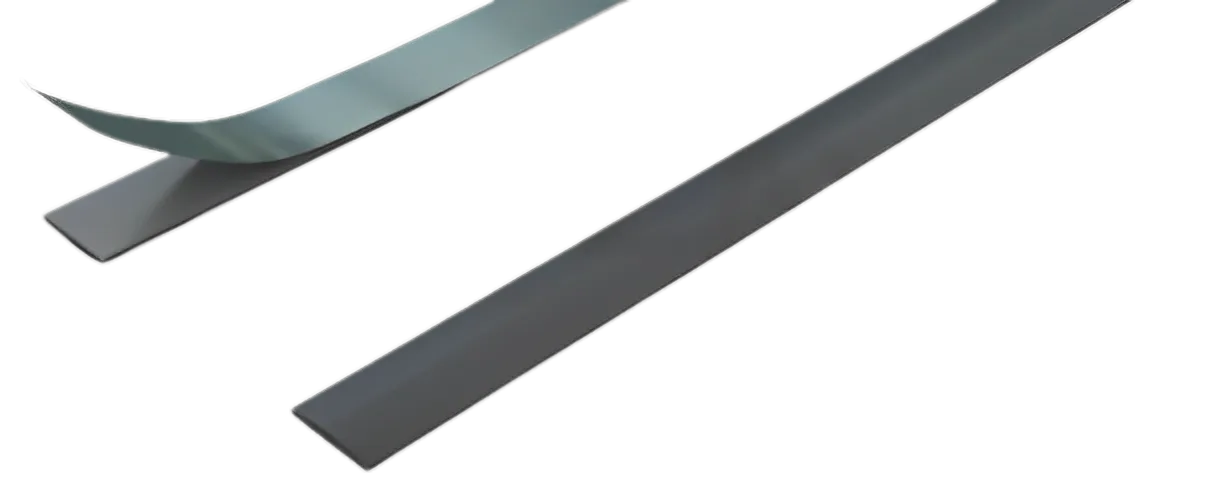

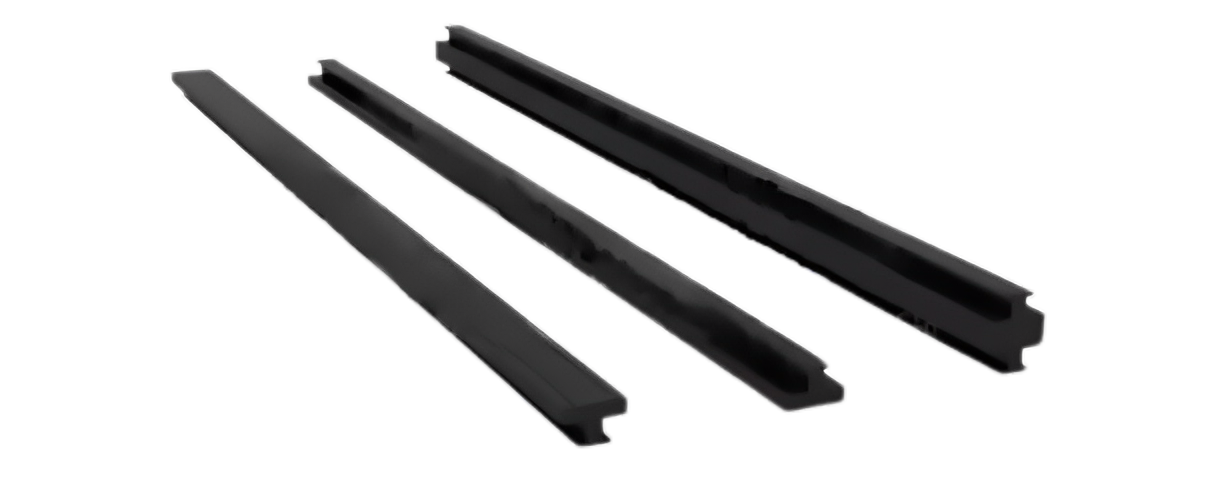

Magnet fuse
Flat and triangle magnets; It provides ease of use, and double-sided wings are used. Magnets are used to combine the two wings, and are
connected to the special channel for installation and ensure the operation of the system. One of the features of the triple magnet is
important in eliminating errors that may occur during production and do not prevent the system from working.

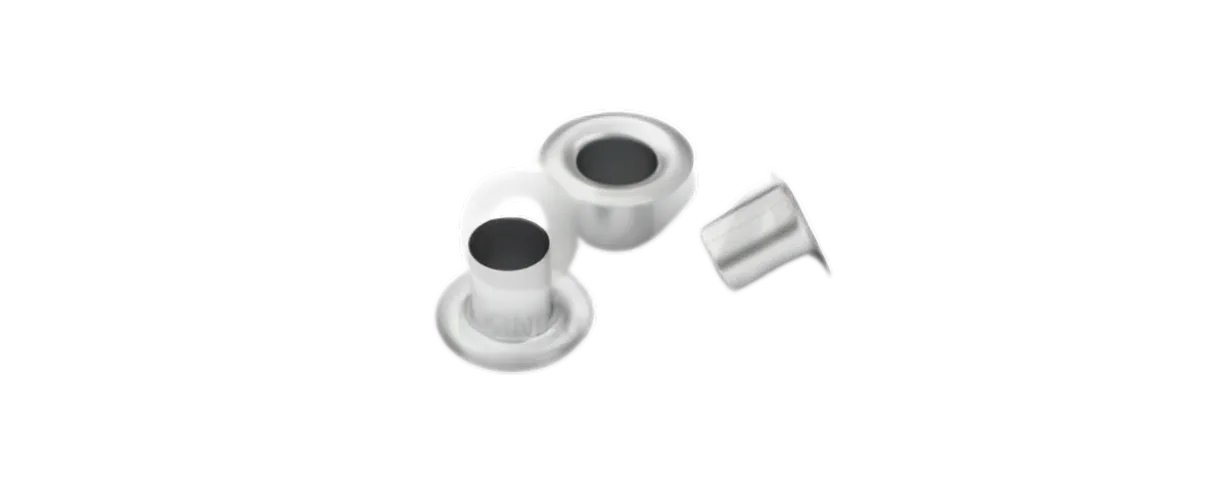

Fixation capsule
Specially coated metal capsule that you can use in grilles and curtain products.The product is made of sheet metal and has an aluminum coating.

Product name

Short description

Full description

<ul><li>Comfortable to use thanks to the working model with which you can open and close two different wings.</li><li>Thanks to its working form, you can easily use it on windows and doors.</li><li>High quality aluminum is used</li><li>The tulle will not be torn, removed or punctured during use.</li><li>Flies and other pests cannot pass through mosquito nets or tulle.</li><li>It has a very elegant design.</li><li>Mounting piece: 27mm depth, 39mm front surface width provides a rugged look. The pleated grille is the main profile, and the set of corner</li><li>wedges form the skeleton of the pleated grille.</li><li>Fixing piece:&nbsp;It is the piece that allows the folded tulle to move thanks to the wheel attachments attached to the head parts that are compatible with the net. Thanks to its special design, it locks the tulle inside and ensures the longevity of the tulle.</li><li>17 and 19 mm folded mesh</li><li>Fabric structure: pleated</li><li>Colour: grey-black</li><li>Warp yarn diameter: 0.3+||-0.02mm</li><li>Finishing density (ends||inch) warp: 18</li><li>Area weight (g||m2): 70 g||m2: +||-5 g||m2</li><li>Polyester composition</li><li>Breaking strength (N||25mm) Stap: &amp;gt;180 : &amp;gt;160</li><li>Standard(m): from 2m||2.2m||2.4m||2.7m||3m</li><li>Standard piece length (m): from 26m: +||- 1m</li><li>Heat resistance: -10° ||+50°</li><li>Piece length: available upon request</li><li>19mm PVC tape</li><li>The PVC folded tape is glued to the mesh tulle and provides the connection between the tulle and the aluminum. The most important feature of this product is that it is made of heat-resistant PVC. The double-sided tape on it does not lose its properties in outdoor weather conditions</li><li>Corner wedge</li><li>It is produced using the original Mobelin raw material used to join the horizontal and vertical case profile sections.</li><li>Corner covers</li><li>It is used to cover screw holes for corner attachments at the end of the assembly and provides an aesthetic appearance.</li><li>wheel bearing</li><li>It is used in the head parts of the wing shape used horizontally and vertically in the system. It is a plastic injection product that allows easy opening and closing thanks to the compact raw material and iron pin system it contains. section</li><li>It is a plastic injection product that can be easily disassembled and installed, and is used in window frames and window sashes.</li><li>Pin combination</li><li>The lock pin, which provides pressure to the folded screen wire rope passing through the central point of the corner wedge used in a combination of vertical and horizontal profiles, thanks to the vertical protrusions used around it, is a plastic injection product made using special printing technology and original raw materials.</li><li>Network fixing rope</li><li>The mesh ropes, which are one of the most important components of flying screen systems, undergo numerous finishing processes to ensure the mechanism operates smoothly.</li><li>In order to prevent deformation of the tulle system during use, it is subjected to heat treatment, which reduces its elongation and increases its resistance to friction.</li><li>Bristle wick</li><li>It is used to close the special gap used for the magnetic part of the mounting clips used in the standard grille of doors and windows. They provide a beautiful appearance and prevent dust and contamination that may occur on the grille</li><li>Magnet fuse</li><li>Flat and triangle magnets; It provides ease of use, and double-sided wings are used. Magnets are used to combine the two wings, and are</li><li>connected to the special channel for installation and ensure the operation of the system. One of the features of the triple magnet is</li><li>important in eliminating errors that may occur during production and do not prevent the system from working.</li><li>Fixation capsule</li><li>Specially coated metal capsule that you can use in grilles and curtain products.The product is made of sheet metal and has an aluminum coating.</li></ul>

Comfortable to use thanks to the working model with which you can open and close two different wings.
Thanks to its working form, you can easily use it on windows and doors.
High quality aluminum is used
The tulle will not be torn, removed or punctured during use.
Flies and other pests cannot pass through mosquito nets or tulle.
It has a very elegant design.
Mounting piece: 27mm depth, 39mm front surface width provides a rugged look. The pleated grille is the main profile, and the set of corner
wedges form the skeleton of the pleated grille.
Fixing piece: It is the piece that allows the folded tulle to move thanks to the wheel attachments attached to the head parts that are compatible with the net. Thanks to its special design, it locks the tulle inside and ensures the longevity of the tulle.
17 and 19 mm folded mesh
Fabric structure: pleated
Colour: grey-black
Warp yarn diameter: 0.3+||-0.02mm
Finishing density (ends||inch) warp: 18
Area weight (g||m2): 70 g||m2: +||-5 g||m2
Polyester composition
Breaking strength (N||25mm) Stap: >180 : >160
Standard(m): from 2m||2.2m||2.4m||2.7m||3m
Standard piece length (m): from 26m: +||- 1m
Heat resistance: -10° ||+50°
Piece length: available upon request
19mm PVC tape
The PVC folded tape is glued to the mesh tulle and provides the connection between the tulle and the aluminum. The most important feature of this product is that it is made of heat-resistant PVC. The double-sided tape on it does not lose its properties in outdoor weather conditions
Corner wedge
It is produced using the original Mobelin raw material used to join the horizontal and vertical case profile sections.
Corner covers
It is used to cover screw holes for corner attachments at the end of the assembly and provides an aesthetic appearance.
wheel bearing
It is used in the head parts of the wing shape used horizontally and vertically in the system. It is a plastic injection product that allows easy opening and closing thanks to the compact raw material and iron pin system it contains. section
It is a plastic injection product that can be easily disassembled and installed, and is used in window frames and window sashes.
Pin combination
The lock pin, which provides pressure to the folded screen wire rope passing through the central point of the corner wedge used in a combination of vertical and horizontal profiles, thanks to the vertical protrusions used around it, is a plastic injection product made using special printing technology and original raw materials.
Network fixing rope
The mesh ropes, which are one of the most important components of flying screen systems, undergo numerous finishing processes to ensure the mechanism operates smoothly.
In order to prevent deformation of the tulle system during use, it is subjected to heat treatment, which reduces its elongation and increases its resistance to friction.
Bristle wick
It is used to close the special gap used for the magnetic part of the mounting clips used in the standard grille of doors and windows. They provide a beautiful appearance and prevent dust and contamination that may occur on the grille
Magnet fuse
Flat and triangle magnets; It provides ease of use, and double-sided wings are used. Magnets are used to combine the two wings, and are
connected to the special channel for installation and ensure the operation of the system. One of the features of the triple magnet is
important in eliminating errors that may occur during production and do not prevent the system from working.
Fixation capsule
Specially coated metal capsule that you can use in grilles and curtain products.The product is made of sheet metal and has an aluminum coating.

Product name

Short description

Full description

<ul><li>&nbsp;مريح للاستعمال بفضل نموذج العمل الذي يمكنك من خلاله فتح وإغلاق جناحين مختلفين.</li><li>&nbsp;بفضل نموذج العمل الخاص به، يمكنك استخدامه بسهولة على النوافذ والأبواب.</li><li>&nbsp;يتم استخدام الألومنيوم عالي الجودة</li><li>&nbsp;لن يتم تمزيق التول أو إزالته أو ثقبه أثناء الاستخدام .</li><li>&nbsp;لا يمكن للذباب والآفات الأخرى المرور عبر الناموسيات أو التول.</li><li>&nbsp;تتميز بتصميم أنيق للغاية.</li><li>&nbsp;قطعة تثبيت: عمق 27 ملم، وعرض السطح الأمامي 39 ملم يوفر مظهرًا متينًا.الشبكة المطوية هي المظهر الجانبي الرئيسي، ومجموعة أسافين الزاوية تشكل&nbsp; الهيكل العظمي للشبكة المطوية.</li><li>&nbsp;قطعة تثبيت : هي القطعة التي تسمح للتول المطوي بالتحرك بفضل ملحقات العجلة المرفقة بأجزاء الرأس المتوافقة مع الشبكة. بفضل تصميمه الخاص، فهو&nbsp; يحبس التول بالداخل ويضمن طول عمر التول.</li><li>&nbsp;شبكة مطوية مقاس 17 و 19 مم</li><li>&nbsp;هيكل النسيج: مطوي</li><li>&nbsp;اللون: رمادي - أسود</li><li>&nbsp;قطر الغزل السداة: 0.3 +||- 0.02 مم</li><li>&nbsp;كثافة التشطيب (الأطراف||بوصة) السداة: 18</li><li>&nbsp;وزن المساحة (جم||م2): 70 جم||م2: +||-5 جم||م2</li><li>&nbsp;تكوين البوليستر</li><li>&nbsp;قوة الكسر (N||25 مم) السداة: &amp;gt;180 : &amp;gt;160</li><li>&nbsp;المعيار (م): من 2 م || 2.2 م || 2.4 م || 2.7 م || 3 م</li><li>&nbsp;طول القطعة القياسية (م): من 26 م: +||- 1 م</li><li>&nbsp;مقاومة الحرارة: -10 درجة ||+50 درجة</li><li>&nbsp;طول القطعة : متوفر عند الطلب</li><li>&nbsp;19ملم PVC شريط</li><li>&nbsp;يتم لصق الشريط المطوي PVC على تول الشبكة ويوفر الاتصال بين التول والألومنيوم. أهم ما يميز هذا المنتج هو أنه مصنوع من مادة PVC المقاومة&nbsp; للحرارة. </li><li>الشريط ذو الوجهين الموجود عليه لا يفقد خصائصه في الظروف الجوية الخارجية</li><li>&nbsp;إسفين الزاوية</li><li>&nbsp;يتم إنتاجه باستخدام مادة خام موبلن الأصلية المستخدمة في ربط أقسام ملفات تعريف العلبة الأفقية والرأسية.</li><li>&nbsp;أغطية الزوايا</li><li>&nbsp;يتم استخدامه لتغطية فتحات المسامير لملحقات الزاوية في نهاية التجميع ويوفر مظهرًا جماليًا.</li><li>&nbsp;عجلة تحمل</li><li>&nbsp;يتم استخدامه في أجزاء الرأس من شكل الجناح المستخدم أفقيًا وعموديًا في النظام. إنه منتج حقن بلاستيكي يتيح سهولة الفتح والإغلاق بفضل المادة الخام المدمجة ونظام الدبوس الحديدي الذي يحتوي عليه.&nbsp;</li><li>&nbsp;وهو عبارة عن منتج حقن بلاستيكي يمكن فكه وتركيبه بسهولة، ويستخدم في إطارات النوافذ وأوشحة النوافذ.</li><li>&nbsp;مزيج الدبوس</li><li>&nbsp;دبوس القفل، الذي يوفر ضغطًا لحبل سلك الشاشة المطوي الذي يمر عبر النقطة المركزية لإسفين الزاوية المستخدم في مزيج من الملامح الرأسية&nbsp; والأفقية، بفضل النتوءات الرأسية المستخدمة حوله، هو منتج حقن بلاستيكي مصنوع باستخدام تقنية الطباعة الخاصة والمواد الخام الأصلية.</li><li>&nbsp;حبل تثبيت الشبكة</li><li>&nbsp;تخضع حبال الشبكة، والتي تعد من أهم مكونات أنظمة الشاشة الطائرة، للعديد من عمليات التشطيب لضمان عمل الآلية بسلاسة.</li><li>&nbsp;من أجل منع تشوه نظام التول أثناء الاستخدام، يتم إخضاعه للمعالجة الحرارية، مما يقلل من استطالته ويزيد من مقاومته للاحتكاك.</li><li>&nbsp;الفتيل الخشن</li><li>&nbsp;يتم استخدامه لإغلاق الفجوة الخاصة المستخدمة للجزء المغناطيسي من مقاطع التثبيت المستخدمة في الشبكة القياسية للأبواب والنوافذ. توفر مظهرًا</li><li>&nbsp;جميلاً وتمنع الغبار والتلوث الذي قد يحدث على الشبكة</li><li>&nbsp;فتيل المغناطيس</li><li>&nbsp;مغناطيس مسطح ومثلث؛ يوفر سهولة الاستخدام، ويتم استخدام أجنحة ذات وجهين، المغناطيس يستخدم في الدمج بين الجناحين، ويرتبط بالقناة الخاصة للتثبيت ويضمن تشغيل النظام، ومن مميزات المغناطيس الثلاثي أهمية في القضاء على الأخطاء التي قد تحدث أثناء الإنتاج ولا تمنع النظام من العمل.</li><li>&nbsp;كبسولة تثبيت</li><li>&nbsp;كبسولة معدنية مطلية خصيصًا يمكنك استخدامها في الشبكات ومنتجات الستائر.المنتج مصنوع من الصفائح المعدنية وله طلاء من الألومنيوم.</li></ul>

مريح للاستعمال بفضل نموذج العمل الذي يمكنك من خلاله فتح وإغلاق جناحين مختلفين.
بفضل نموذج العمل الخاص به، يمكنك استخدامه بسهولة على النوافذ والأبواب.
يتم استخدام الألومنيوم عالي الجودة
لن يتم تمزيق التول أو إزالته أو ثقبه أثناء الاستخدام .
لا يمكن للذباب والآفات الأخرى المرور عبر الناموسيات أو التول.
تتميز بتصميم أنيق للغاية.
قطعة تثبيت: عمق 27 ملم، وعرض السطح الأمامي 39 ملم يوفر مظهرًا متينًا.الشبكة المطوية هي المظهر الجانبي الرئيسي، ومجموعة أسافين الزاوية تشكل الهيكل العظمي للشبكة المطوية.
قطعة تثبيت : هي القطعة التي تسمح للتول المطوي بالتحرك بفضل ملحقات العجلة المرفقة بأجزاء الرأس المتوافقة مع الشبكة. بفضل تصميمه الخاص، فهو يحبس التول بالداخل ويضمن طول عمر التول.
شبكة مطوية مقاس 17 و 19 مم
هيكل النسيج: مطوي
اللون: رمادي - أسود
قطر الغزل السداة: 0.3 +||- 0.02 مم
كثافة التشطيب (الأطراف||بوصة) السداة: 18
وزن المساحة (جم||م2): 70 جم||م2: +||-5 جم||م2
تكوين البوليستر
قوة الكسر (N||25 مم) السداة: >180 : >160
المعيار (م): من 2 م || 2.2 م || 2.4 م || 2.7 م || 3 م
طول القطعة القياسية (م): من 26 م: +||- 1 م
مقاومة الحرارة: -10 درجة ||+50 درجة
طول القطعة : متوفر عند الطلب
19ملم PVC شريط
يتم لصق الشريط المطوي PVC على تول الشبكة ويوفر الاتصال بين التول والألومنيوم. أهم ما يميز هذا المنتج هو أنه مصنوع من مادة PVC المقاومة للحرارة.
الشريط ذو الوجهين الموجود عليه لا يفقد خصائصه في الظروف الجوية الخارجية
إسفين الزاوية
يتم إنتاجه باستخدام مادة خام موبلن الأصلية المستخدمة في ربط أقسام ملفات تعريف العلبة الأفقية والرأسية.
أغطية الزوايا
يتم استخدامه لتغطية فتحات المسامير لملحقات الزاوية في نهاية التجميع ويوفر مظهرًا جماليًا.
عجلة تحمل
يتم استخدامه في أجزاء الرأس من شكل الجناح المستخدم أفقيًا وعموديًا في النظام. إنه منتج حقن بلاستيكي يتيح سهولة الفتح والإغلاق بفضل المادة الخام المدمجة ونظام الدبوس الحديدي الذي يحتوي عليه.
وهو عبارة عن منتج حقن بلاستيكي يمكن فكه وتركيبه بسهولة، ويستخدم في إطارات النوافذ وأوشحة النوافذ.
مزيج الدبوس
دبوس القفل، الذي يوفر ضغطًا لحبل سلك الشاشة المطوي الذي يمر عبر النقطة المركزية لإسفين الزاوية المستخدم في مزيج من الملامح الرأسية والأفقية، بفضل النتوءات الرأسية المستخدمة حوله، هو منتج حقن بلاستيكي مصنوع باستخدام تقنية الطباعة الخاصة والمواد الخام الأصلية.
حبل تثبيت الشبكة
تخضع حبال الشبكة، والتي تعد من أهم مكونات أنظمة الشاشة الطائرة، للعديد من عمليات التشطيب لضمان عمل الآلية بسلاسة.
من أجل منع تشوه نظام التول أثناء الاستخدام، يتم إخضاعه للمعالجة الحرارية، مما يقلل من استطالته ويزيد من مقاومته للاحتكاك.
الفتيل الخشن
يتم استخدامه لإغلاق الفجوة الخاصة المستخدمة للجزء المغناطيسي من مقاطع التثبيت المستخدمة في الشبكة القياسية للأبواب والنوافذ. توفر مظهرًا
جميلاً وتمنع الغبار والتلوث الذي قد يحدث على الشبكة
فتيل المغناطيس
مغناطيس مسطح ومثلث؛ يوفر سهولة الاستخدام، ويتم استخدام أجنحة ذات وجهين، المغناطيس يستخدم في الدمج بين الجناحين، ويرتبط بالقناة الخاصة للتثبيت ويضمن تشغيل النظام، ومن مميزات المغناطيس الثلاثي أهمية في القضاء على الأخطاء التي قد تحدث أثناء الإنتاج ولا تمنع النظام من العمل.
كبسولة تثبيت
كبسولة معدنية مطلية خصيصًا يمكنك استخدامها في الشبكات ومنتجات الستائر.المنتج مصنوع من الصفائح المعدنية وله طلاء من الألومنيوم.

Product name

Short description

Full description

<ul><li>İki farklı kanadı açıp kapatabileceğiniz çalışma modeli ile oldukça ergonomiktir</li><li>Çalışma Modeli Sayesinde pencere ve kapılarınızda rahatlıkla kulllanabilirsiniz.</li><li>1. Kalite Alüminyum Kullanılır ve Asla Deformasyon Sorunu Yaşanmaz</li><li>Tülleri Normal Kullanımda Yırtılmaz, Sökülmez ve Delinmez.</li><li>Sinekler ve Diğer Haşereler, Sineklik veya Tülden Geçemez.</li><li>Plise sineklikler oldukça şık bir tasarıma sahiptir. Diğer Sineklikler Gibi Görüntü Bozmaz</li><li>Kasa profili: 27 mm derinlik 39 mm ön yüzey genişliğiyle tok bir görünüm sağlar. Plise Sinekliğin ana profili diyebiliriz.Köşe takozlarının</li><li>birleştirmesiyle Plise sinekliğin iskeletini oluşturur diyebiliriz.</li><li>Kanat profili: Kasa profiliyle uyumlu baş kısımlarına takılan teker aksesuarları sayesinde plise tülün hareket etmesini sağlayan profildir.</li><li>Özel dizaynıyla tülü içine hapsederek tülün uzun ömürlü olmasını sağlar.</li><li>17 ve 19 mm Plise Sineklik Tülü</li><li>DOKUMA YAPISI: Pileli</li><li>RENK: Gri - Siyah</li><li>İPLİK ÇAPI (MM) Çözgü: 0.3+||-0.02mm atkı:0.3+||- 0.02mm</li><li>BİTİŞ YOĞUNLUĞU (ENDS||İNÇ) Çözgü: 18 atkı : 16</li><li>ALAN AĞIRLIĞI (G||M2): 70 g||m2 :+||-5 g||m2</li><li>BİLEŞİM Polyester</li><li>KIRMA KUVVETİ (N||25MM) Çözgü: &amp;gt;180 atkı: &amp;gt;160</li><li>STANDART İLE (M): 2m || 2.2m|| 2.4m ||2.7m|| 3m’den itibaren</li><li>STANDART PARÇA UZUNLUĞU (M): 26m’den itibaren:+||- 1m</li><li>DAYANIKLILIK ISI: -10 derece ||+50 derece</li><li>PARÇA UZUNLUĞU (PC): Talep üzerine temin edilebilir</li><li>PVC Şerit 19 mm</li><li>Plise Sineklik Pvc Bantlı Şerit sinekliğin tülüne yapıştırılarak tül ile alüminyum bağlantısını sağlamaktadır. </li><li>Bu ürünün en büyük özelliği sıcağa karşı dayanıklı Pvc malzemeden üretilmesidir. Üzerindeki çift taraflı bant dış hava şartlarında, sıcakta ve soğukta özelliğini yitirmemesidir. Pvc Şeritler üretildikten sonra firmamız tarafından sıcak hava şartlarında dayanıklılığı kontrol edilmekte ve bu ürün için özel üretilen bantlar yapıştırılmaktadır.</li><li> Pvc Şeritlerin 10 yıl garanti süresi vardır</li><li>Sineklik İpi</li><li>Sineklik sistemlerinin en önemli bileşenlerinden biri olan sineklik ipleri mekanizmanın sorunsuz çalışabilmesi için pek çok bitirme işleminden geçirilmektedir.</li><li>Kullanım sırasında tül sisteminin formunun bozulmasını engellemek için ısıl işlemden geçirilmekte uzaması azaltılmakta ve sürtünme dayanımı arttırılmaktadır.</li><li>Köşe Takozu</li><li>Yatay ve Dikey Kasa profil kesitlerinin birleşmesinde kulanılan orijinal moblen hammedde ile üretilmektedir.</li><li>Köşe Kapakları</li><li>Montaj bitiminde köşe aksesuarlarının vida deliklerinin kapatılmasında kullanılır ve estetik bir görünüm sağlar.</li><li>Rulman Teker</li><li>Sistemde Yatay ve Dikey olarak kullanılan kanat profilinin baş kısımlarında kullanılmaktadır. İçerisinde bulundurduğu derlin hammadde ve</li><li>demir pim sistemi sayesinde kolay açılıp kapanmaya yarayan plastik enjeksyon ürünüdür.</li><li>Pim Birleşimi</li><li>Dikey ve yatay profillerin birleşiminde kullanılan köşe takozunun merkez noktasından geçen plise sineklik kord ip’in geçişinde kullanılan çevresinde kullanılan dikey çıkıntılar sayesınde sıkıştırmasını sağlayan kitleme pimi özel baskı tekniği ve orjinal hammadde kullanılarak yapılan plastik enjeksiyon ürünüdür.</li><li>Kıl Fitil</li><li>Standart kapı ve pencere sinekliklerinde kullanılan kanat profillerinin mıknatıs kısmı için kullanılan özel boşluğun kapatılmasında kullanılır.</li><li> Çok önemli özelliği olmamakla birlikte estetik acısından güzel bir görünüm sağlar ve kısmen sineklikte oluşabilecek tozlanmayı ve kirlenmeyi önler.</li><li>Mıknatıs Fitil</li><li>Düz ve üçgen mıknatıs; belli bir standartın üstündeki ölçülerde sistemin sağlıklı çalışabilmesi adına bir takım değişiklikler yapılır.</li><li>Önemli detaylardan birisi büyük ölçülerde kullandığımiı duble sistemdir,daha kolay bir kullanım sağlar, çift taraflı kanat kullanılır.Mıktanıs iki kanadın birleşiminde kullanılır.Kanat Profilinin özel kanalına takılarak sistemin çalışmasını sağlar,düz ve üçgen mıknatıs tercih sebebidir,üçgen mıktanısın bir özelligi üretim sırasında oluşabilecek sistemin çalışmasını engellemiyecek ufak hataların giderilmesinde önemlidir.</li><li>Kuş Gözü</li><li>Plise sinekliğin ip’in geçişinde kullanılan sineklik ve perde ürünlerinde kullanabileceğiniz metal özel kaplamalı kuşgözü kapsül. Bu ürünü tulumba presinde ve otomatik makinalarda delici ve çakma kalıpları kullanarak uygulayabilirsiniz. Ürün sac malzemeden yapılmış, ve alüminyum kaplamadır.</li></ul>

İki farklı kanadı açıp kapatabileceğiniz çalışma modeli ile oldukça ergonomiktir
Çalışma Modeli Sayesinde pencere ve kapılarınızda rahatlıkla kulllanabilirsiniz.
1. Kalite Alüminyum Kullanılır ve Asla Deformasyon Sorunu Yaşanmaz
Tülleri Normal Kullanımda Yırtılmaz, Sökülmez ve Delinmez.
Sinekler ve Diğer Haşereler, Sineklik veya Tülden Geçemez.
Plise sineklikler oldukça şık bir tasarıma sahiptir. Diğer Sineklikler Gibi Görüntü Bozmaz
Kasa profili: 27 mm derinlik 39 mm ön yüzey genişliğiyle tok bir görünüm sağlar. Plise Sinekliğin ana profili diyebiliriz.Köşe takozlarının
birleştirmesiyle Plise sinekliğin iskeletini oluşturur diyebiliriz.
Kanat profili: Kasa profiliyle uyumlu baş kısımlarına takılan teker aksesuarları sayesinde plise tülün hareket etmesini sağlayan profildir.
Özel dizaynıyla tülü içine hapsederek tülün uzun ömürlü olmasını sağlar.
17 ve 19 mm Plise Sineklik Tülü
DOKUMA YAPISI: Pileli
RENK: Gri - Siyah
İPLİK ÇAPI (MM) Çözgü: 0.3+||-0.02mm atkı:0.3+||- 0.02mm
BİTİŞ YOĞUNLUĞU (ENDS||İNÇ) Çözgü: 18 atkı : 16
ALAN AĞIRLIĞI (G||M2): 70 g||m2 :+||-5 g||m2
BİLEŞİM Polyester
KIRMA KUVVETİ (N||25MM) Çözgü: >180 atkı: >160
STANDART İLE (M): 2m || 2.2m|| 2.4m ||2.7m|| 3m’den itibaren
STANDART PARÇA UZUNLUĞU (M): 26m’den itibaren:+||- 1m
DAYANIKLILIK ISI: -10 derece ||+50 derece
PARÇA UZUNLUĞU (PC): Talep üzerine temin edilebilir
PVC Şerit 19 mm
Plise Sineklik Pvc Bantlı Şerit sinekliğin tülüne yapıştırılarak tül ile alüminyum bağlantısını sağlamaktadır.
Bu ürünün en büyük özelliği sıcağa karşı dayanıklı Pvc malzemeden üretilmesidir. Üzerindeki çift taraflı bant dış hava şartlarında, sıcakta ve soğukta özelliğini yitirmemesidir. Pvc Şeritler üretildikten sonra firmamız tarafından sıcak hava şartlarında dayanıklılığı kontrol edilmekte ve bu ürün için özel üretilen bantlar yapıştırılmaktadır.
Pvc Şeritlerin 10 yıl garanti süresi vardır
Sineklik İpi
Sineklik sistemlerinin en önemli bileşenlerinden biri olan sineklik ipleri mekanizmanın sorunsuz çalışabilmesi için pek çok bitirme işleminden geçirilmektedir.
Kullanım sırasında tül sisteminin formunun bozulmasını engellemek için ısıl işlemden geçirilmekte uzaması azaltılmakta ve sürtünme dayanımı arttırılmaktadır.
Köşe Takozu
Yatay ve Dikey Kasa profil kesitlerinin birleşmesinde kulanılan orijinal moblen hammedde ile üretilmektedir.
Köşe Kapakları
Montaj bitiminde köşe aksesuarlarının vida deliklerinin kapatılmasında kullanılır ve estetik bir görünüm sağlar.
Rulman Teker
Sistemde Yatay ve Dikey olarak kullanılan kanat profilinin baş kısımlarında kullanılmaktadır. İçerisinde bulundurduğu derlin hammadde ve
demir pim sistemi sayesinde kolay açılıp kapanmaya yarayan plastik enjeksyon ürünüdür.
Pim Birleşimi
Dikey ve yatay profillerin birleşiminde kullanılan köşe takozunun merkez noktasından geçen plise sineklik kord ip’in geçişinde kullanılan çevresinde kullanılan dikey çıkıntılar sayesınde sıkıştırmasını sağlayan kitleme pimi özel baskı tekniği ve orjinal hammadde kullanılarak yapılan plastik enjeksiyon ürünüdür.
Kıl Fitil
Standart kapı ve pencere sinekliklerinde kullanılan kanat profillerinin mıknatıs kısmı için kullanılan özel boşluğun kapatılmasında kullanılır.
Çok önemli özelliği olmamakla birlikte estetik acısından güzel bir görünüm sağlar ve kısmen sineklikte oluşabilecek tozlanmayı ve kirlenmeyi önler.
Mıknatıs Fitil
Düz ve üçgen mıknatıs; belli bir standartın üstündeki ölçülerde sistemin sağlıklı çalışabilmesi adına bir takım değişiklikler yapılır.
Önemli detaylardan birisi büyük ölçülerde kullandığımiı duble sistemdir,daha kolay bir kullanım sağlar, çift taraflı kanat kullanılır.Mıktanıs iki kanadın birleşiminde kullanılır.Kanat Profilinin özel kanalına takılarak sistemin çalışmasını sağlar,düz ve üçgen mıknatıs tercih sebebidir,üçgen mıktanısın bir özelligi üretim sırasında oluşabilecek sistemin çalışmasını engellemiyecek ufak hataların giderilmesinde önemlidir.
Kuş Gözü
Plise sinekliğin ip’in geçişinde kullanılan sineklik ve perde ürünlerinde kullanabileceğiniz metal özel kaplamalı kuşgözü kapsül. Bu ürünü tulumba presinde ve otomatik makinalarda delici ve çakma kalıpları kullanarak uygulayabilirsiniz. Ürün sac malzemeden yapılmış, ve alüminyum kaplamadır.
