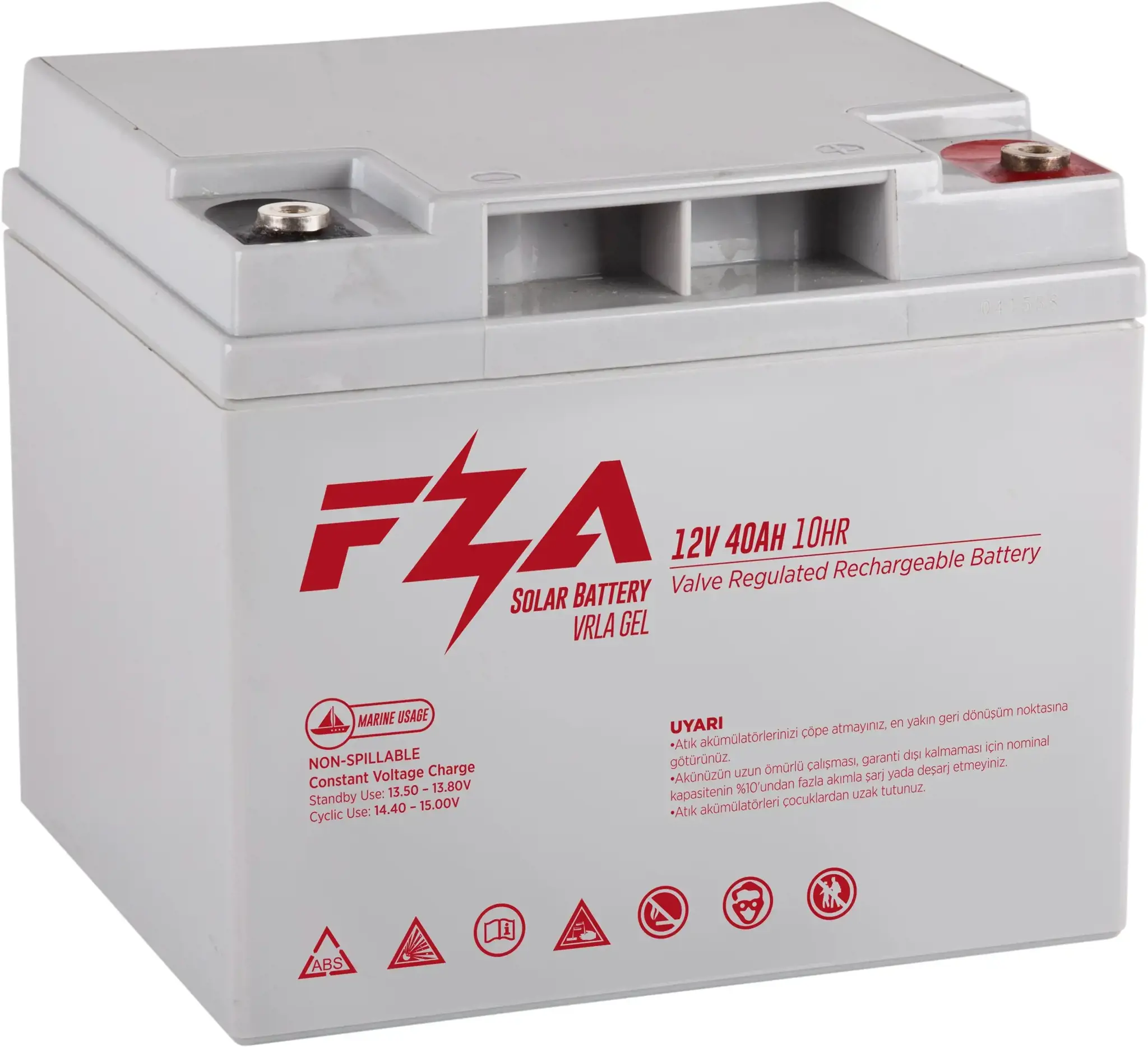

Edit product details - Solar battery 12V 40AH

Copy product

Created on

12/6/2023 4:12:00 PM

Updated on

12/15/2023 11:30:15 AM

URL of the product page

https://alderishop.com/solar-battery-12v-40ah-4/

Product type

Published

Visibility

Product name

Short description

Full description

<p><ul><li>Product features:</li><li>Solar batteries are batteries that contain a jelly-like electrolyte.</li><li>They are maintenance-free batteries that are resistant to harsh environmental conditions, especially temperature and vibration. That's why</li><li>they are especially preferred in the marine industry and solar energy systems. Dry Batteries, known as Maintenance-Free Batteries, and Solar</li><li>Batteries are batteries that fall into this class. It is also called SLA Battery (Sealed Lead Acid).</li><li>VRLA Batteries are used in UPS (Uninterruptible Power Supply) systems, telecommunications, electricity and telephone power plants,</li><li>electricity generation companies, emergency lighting systems and security systems.</li><li>Even if the Solar Battery is not charged immediately, it can be fully recovered from deep discharge. Ideal for daily cyclic use.</li><li>They show excellent performance during long discharges.</li><li>Technological Features:</li><li>Our solar batteries are gel batteries, their most important feature or usage area is that they are used in "deep discharge" applications.</li><li>Gel batteries are called "maintenance-free batteries" because they do not require the addition of pure water during use.</li><li>The most important feature of gel batteries and their difference from dry charged batteries is their deep discharge feature.</li><li>So what is this deep discharge? The deep discharge level of gel batteries is 75% compared to dry or flooded batteries. To put it more</li><li>clearly, when we charge gel batteries after discharge, the charging is completed without any damage to the chemical structure inside them.</li><li>When you do the same thing with dry or flooded batteries, that is, when you charge them after deep discharge, the life of the battery</li><li>shortens with each charge as the chemicals in the battery will be damaged with each charge.</li><li>To summarize; can be said that charging and discharging operations do not affect the battery performance.</li><li>Scope of application :</li><li>Air Traffic Control Center</li><li>Barcode Devices</li><li>Cash Registers</li><li>Electronic Doors</li><li>Computer Aided Automation</li><li>elevator</li><li>Airport Lighting</li><li>Emergency Lighting Systems</li><li>Medical Electronic Devices</li><li>Military Radar System</li><li>Photo Printing Devices</li><li>Electronic Scales</li><li>Communication and Broadcasting Organizations</li><li>Uninterruptible power supply</li><li>Solar Energy Systems</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Part Number:&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Part Number:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 40-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">FZA 40-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Length:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;197 ± 2 mm (7.76 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">197 ± 2 mm (7.76 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Width:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Width:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;165 ± 2 mm (6.49 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">165 ± 2 mm (6.49 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Height:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Container Height:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Total Height (with terminal):&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Total Height (with terminal):</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr></tbody></table></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="171"><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Capacity (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Capacity (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 42px;">Terminal Type</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F7&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">F7</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Optional Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">-</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Material&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 42px;">Container Material</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Option&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Option</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Retardant Option (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Flame Retardant Option (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 105px;">Rated Capacity</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40.0AH/4 08A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40.0AH/4 08A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(20hr.1.80V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37.2AH/4.00A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">37.2AH/4.00A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr,1.80V/cell, 25’C / 77*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(10hr,1.80V/cell, 25’C / 77*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.5AH/6.89A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.5AH/6.89A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr.1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(5hr.1.75V/cell. 25’C/77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.2AH/10.4A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.2AH/10.4A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(3hr.1.75V/cell. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max Discharge Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Max Discharge Current</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;480A (5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">480A (5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Internal Resistance</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 9mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Approx 9mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge Characteristics&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 84px;">Discharge Characteristics</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F)\n Storage: -15 - 40’C (5 - 104‘F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F)<br>Storage: -15 - 40’C (5 - 104‘F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Operating Temp. Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Operating Temp. Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">25 ± 3’C (77 ± 5*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cycle Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Cycle Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V\n at 25’C (77’F) Temp. Coefficient -30mWC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V<br>at 25’C (77’F) Temp. Coefficient -30mWC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standby Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standby Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;No limit on Initial Charging Current Voltage 13.5V - 13.8V at \n25’C (77’F) Temp. Coefficient -20mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">No limit on Initial Charging Current Voltage 13.5V - 13.8V at<br>25’C (77’F) Temp. Coefficient -20mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Design Floating Life at 20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Design Floating Life at 20°C</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity affected by Temperature 10 Years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Capacity affected by Temperature 10 Years</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table>

Product features:
Solar batteries are batteries that contain a jelly-like electrolyte.
They are maintenance-free batteries that are resistant to harsh environmental conditions, especially temperature and vibration. That's why
they are especially preferred in the marine industry and solar energy systems. Dry Batteries, known as Maintenance-Free Batteries, and Solar
Batteries are batteries that fall into this class. It is also called SLA Battery (Sealed Lead Acid).
VRLA Batteries are used in UPS (Uninterruptible Power Supply) systems, telecommunications, electricity and telephone power plants,
electricity generation companies, emergency lighting systems and security systems.
Even if the Solar Battery is not charged immediately, it can be fully recovered from deep discharge. Ideal for daily cyclic use.
They show excellent performance during long discharges.
Technological Features:
Our solar batteries are gel batteries, their most important feature or usage area is that they are used in "deep discharge" applications.
Gel batteries are called "maintenance-free batteries" because they do not require the addition of pure water during use.
The most important feature of gel batteries and their difference from dry charged batteries is their deep discharge feature.
So what is this deep discharge? The deep discharge level of gel batteries is 75% compared to dry or flooded batteries. To put it more
clearly, when we charge gel batteries after discharge, the charging is completed without any damage to the chemical structure inside them.
When you do the same thing with dry or flooded batteries, that is, when you charge them after deep discharge, the life of the battery
shortens with each charge as the chemicals in the battery will be damaged with each charge.
To summarize; can be said that charging and discharging operations do not affect the battery performance.
Scope of application :
Air Traffic Control Center
Barcode Devices
Cash Registers
Electronic Doors
Computer Aided Automation
elevator
Airport Lighting
Emergency Lighting Systems
Medical Electronic Devices
Military Radar System
Photo Printing Devices
Electronic Scales
Communication and Broadcasting Organizations
Uninterruptible power supply
Solar Energy Systems

Part Number:	FZA 40-12
Length:	197 ± 2 mm (7.76 inches)
Width:	165 ± 2 mm (6.49 inches)
Container Height:	170 ± 2 mm (6.69 inches)
Total Height (with terminal):	170 ± 2 mm (6.69 inches)

	Nominal Voltage	12V
	Nominal Capacity (20HR)	40AH
Terminal Type	Standard Terminal	F7
Terminal Type	Optional Terminal	-
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option (FR)	ABS (UL94VO)
Rated Capacity	40.0AH/4 08A	(20hr.1.80V/cell, 25’C / 77’F)
	37.2AH/4.00A	(10hr,1.80V/cell, 25’C / 77*F)
	31.5AH/6.89A	(5hr.1.75V/cell. 25’C/77’F)
	31.2AH/10.4A	(3hr.1.75V/cell. 25’C / 77’F)

Max Discharge Current	480A (5s)
Internal Resistance	Approx 9mO
Discharge Characteristics	Operating Temp Range	Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F) Storage: -15 - 40’C (5 - 104‘F)
	Nominal Operating Temp. Range	25 ± 3’C (77 ± 5*F)
	Cycle Use	Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V at 25’C (77’F) Temp. Coefficient -30mWC
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77’F) Temp. Coefficient -20mVfC
Design Floating Life at 20°C	Capacity affected by Temperature 10 Years	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

Product name

Short description

Full description

<p></p><ul><li>Product features:</li><li>Solar batteries are batteries that contain a jelly-like electrolyte.</li><li>They are maintenance-free batteries that are resistant to harsh environmental conditions, especially temperature and vibration. That's why</li><li>they are especially preferred in the marine industry and solar energy systems. Dry Batteries, known as Maintenance-Free Batteries, and Solar</li><li>Batteries are batteries that fall into this class. It is also called SLA Battery (Sealed Lead Acid).</li><li>VRLA Batteries are used in UPS (Uninterruptible Power Supply) systems, telecommunications, electricity and telephone power plants,</li><li>electricity generation companies, emergency lighting systems and security systems.</li><li>Even if the Solar Battery is not charged immediately, it can be fully recovered from deep discharge. Ideal for daily cyclic use.</li><li>They show excellent performance during long discharges.</li><li>Technological Features:</li><li>Our solar batteries are gel batteries, their most important feature or usage area is that they are used in "deep discharge" applications.</li><li>Gel batteries are called "maintenance-free batteries" because they do not require the addition of pure water during use.</li><li>The most important feature of gel batteries and their difference from dry charged batteries is their deep discharge feature.</li><li>So what is this deep discharge? The deep discharge level of gel batteries is 75% compared to dry or flooded batteries. To put it more</li><li>clearly, when we charge gel batteries after discharge, the charging is completed without any damage to the chemical structure inside them.</li><li>When you do the same thing with dry or flooded batteries, that is, when you charge them after deep discharge, the life of the battery</li><li>shortens with each charge as the chemicals in the battery will be damaged with each charge.</li><li>To summarize; can be said that charging and discharging operations do not affect the battery performance.</li><li>Scope of application :</li><li>Air Traffic Control Center</li><li>Barcode Devices</li><li>Cash Registers</li><li>Electronic Doors</li><li>Computer Aided Automation</li><li>elevator</li><li>Airport Lighting</li><li>Emergency Lighting Systems</li><li>Medical Electronic Devices</li><li>Military Radar System</li><li>Photo Printing Devices</li><li>Electronic Scales</li><li>Communication and Broadcasting Organizations</li><li>Uninterruptible power supply</li><li>Solar Energy Systems</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Part Number:&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Part Number:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 40-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">FZA 40-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Length:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;197 ± 2 mm (7.76 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">197 ± 2 mm (7.76 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Width:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Width:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;165 ± 2 mm (6.49 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">165 ± 2 mm (6.49 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Height:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Container Height:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Total Height (with terminal):&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Total Height (with terminal):</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr></tbody></table><p></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="171"><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><div style="max-height: 42px;"></div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Capacity (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Capacity (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><div style="max-height: 42px;">Terminal Type</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F7&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">F7</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Optional Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">-</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Material&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><div style="max-height: 42px;">Container Material</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Option&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Option</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Retardant Option (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Flame Retardant Option (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><div style="max-height: 105px;">Rated Capacity</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40.0AH/4 08A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40.0AH/4 08A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(20hr.1.80V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37.2AH/4.00A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">37.2AH/4.00A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr,1.80V/cell, 25’C / 77*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(10hr,1.80V/cell, 25’C / 77*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.5AH/6.89A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.5AH/6.89A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr.1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(5hr.1.75V/cell. 25’C/77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.2AH/10.4A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.2AH/10.4A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(3hr.1.75V/cell. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max Discharge Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Max Discharge Current</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;480A (5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">480A (5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Internal Resistance</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 9mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Approx 9mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge Characteristics&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><div style="max-height: 84px;">Discharge Characteristics</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F)\n Storage: -15 - 40’C (5 - 104‘F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F)<br>Storage: -15 - 40’C (5 - 104‘F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Operating Temp. Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Operating Temp. Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">25 ± 3’C (77 ± 5*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cycle Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Cycle Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V\n at 25’C (77’F) Temp. Coefficient -30mWC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V<br>at 25’C (77’F) Temp. Coefficient -30mWC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standby Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standby Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;No limit on Initial Charging Current Voltage 13.5V - 13.8V at \n25’C (77’F) Temp. Coefficient -20mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">No limit on Initial Charging Current Voltage 13.5V - 13.8V at<br>25’C (77’F) Temp. Coefficient -20mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Design Floating Life at 20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Design Floating Life at 20°C</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity affected by Temperature 10 Years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Capacity affected by Temperature 10 Years</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table>

Product features:
Solar batteries are batteries that contain a jelly-like electrolyte.
They are maintenance-free batteries that are resistant to harsh environmental conditions, especially temperature and vibration. That's why
they are especially preferred in the marine industry and solar energy systems. Dry Batteries, known as Maintenance-Free Batteries, and Solar
Batteries are batteries that fall into this class. It is also called SLA Battery (Sealed Lead Acid).
VRLA Batteries are used in UPS (Uninterruptible Power Supply) systems, telecommunications, electricity and telephone power plants,
electricity generation companies, emergency lighting systems and security systems.
Even if the Solar Battery is not charged immediately, it can be fully recovered from deep discharge. Ideal for daily cyclic use.
They show excellent performance during long discharges.
Technological Features:
Our solar batteries are gel batteries, their most important feature or usage area is that they are used in "deep discharge" applications.
Gel batteries are called "maintenance-free batteries" because they do not require the addition of pure water during use.
The most important feature of gel batteries and their difference from dry charged batteries is their deep discharge feature.
So what is this deep discharge? The deep discharge level of gel batteries is 75% compared to dry or flooded batteries. To put it more
clearly, when we charge gel batteries after discharge, the charging is completed without any damage to the chemical structure inside them.
When you do the same thing with dry or flooded batteries, that is, when you charge them after deep discharge, the life of the battery
shortens with each charge as the chemicals in the battery will be damaged with each charge.
To summarize; can be said that charging and discharging operations do not affect the battery performance.
Scope of application :
Air Traffic Control Center
Barcode Devices
Cash Registers
Electronic Doors
Computer Aided Automation
elevator
Airport Lighting
Emergency Lighting Systems
Medical Electronic Devices
Military Radar System
Photo Printing Devices
Electronic Scales
Communication and Broadcasting Organizations
Uninterruptible power supply
Solar Energy Systems

Part Number:	FZA 40-12
Length:	197 ± 2 mm (7.76 inches)
Width:	165 ± 2 mm (6.49 inches)
Container Height:	170 ± 2 mm (6.69 inches)
Total Height (with terminal):	170 ± 2 mm (6.69 inches)

	Nominal Voltage	12V
	Nominal Capacity (20HR)	40AH
Terminal Type	Standard Terminal	F7
Terminal Type	Optional Terminal	-
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option (FR)	ABS (UL94VO)
Rated Capacity	40.0AH/4 08A	(20hr.1.80V/cell, 25’C / 77’F)
	37.2AH/4.00A	(10hr,1.80V/cell, 25’C / 77*F)
	31.5AH/6.89A	(5hr.1.75V/cell. 25’C/77’F)
	31.2AH/10.4A	(3hr.1.75V/cell. 25’C / 77’F)

Max Discharge Current	480A (5s)
Internal Resistance	Approx 9mO
Discharge Characteristics	Operating Temp Range	Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40’C (5 - 104’F) Storage: -15 - 40’C (5 - 104‘F)
	Nominal Operating Temp. Range	25 ± 3’C (77 ± 5*F)
	Cycle Use	Imtal Charging Current less than 12.0A Voltage 14.4V - 15.0V at 25’C (77’F) Temp. Coefficient -30mWC
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77’F) Temp. Coefficient -20mVfC
Design Floating Life at 20°C	Capacity affected by Temperature 10 Years	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

Product name

Short description

Full description

<p><ul><li>مواصفات المنتج:</li><li>البطاريات الشمسية هي بطاريات تحتوي على إلكتروليت يشبه الهلام.</li><li>وهي بطاريات لا تحتاج إلى صيانة ومقاومة للظروف البيئية القاسية، وخاصة درجات الحرارة والاهتزازات. ولهذا السبب يتم تفضيلها بشكل خاص في الصناعة</li><li>البحرية وأنظمة الطاقة الشمسية. البطاريات الجافة، والمعروفة باسم البطاريات التي لا تحتاج إلى صيانة، والبطاريات الشمسية هي البطاريات التي تقع</li><li>ضمن هذه الفئة. وتسمى أيضًا بطارية SLA (حمض الرصاص المختوم).</li><li>تُستخدم بطاريات VRLA في أنظمة UPS (إمدادات الطاقة غير المنقطعة)، والاتصالات، ومحطات توليد الكهرباء والهاتف، وشركات توليد الكهرباء، وأنظمة</li><li>الإضاءة في حالات الطوارئ، وأنظمة الأمان.</li><li>حتى لو لم يتم شحن البطارية الشمسية على الفور، فمن الممكن استعادتها بالكامل من التفريغ العميق. مثالية للاستخدام الدوري اليومي.</li><li>أنها تظهر أداء ممتازا أثناء التصريفات الطويلة.</li><li>الميزات التكنولوجية:</li><li>بطارياتنا الشمسية عبارة عن بطاريات هلامية، وأهم ميزة لها أو مجال استخدامها هو أنها تستخدم في تطبيقات "التفريغ العميق".</li><li>تسمى بطاريات الجل "بطاريات لا تحتاج إلى صيانة" لأنها لا تتطلب إضافة الماء النقي أثناء الاستخدام.</li><li>الميزة الأكثر أهمية للبطاريات الهلامية واختلافها عن البطاريات الجافة المشحونة هي خاصية التفريغ العميق.</li><li>فما هو هذا التفريغ العميق؟ يبلغ مستوى التفريغ العميق للبطاريات الهلامية 75% مقارنة بالبطاريات الجافة أو المغمورة بالمياه. وبعبارة أكثر</li><li>وضوحا، عندما نقوم بشحن بطاريات هلامية بعد التفريغ، يكتمل الشحن دون أي ضرر للبنية الكيميائية داخلها.</li><li>عندما تفعل الشيء نفسه مع البطاريات الجافة أو المغمورة بالمياه، أي عندما تقوم بشحنها بعد التفريغ العميق، فإن عمر البطارية يقصر مع كل شحنة حيث</li><li>ستتضرر المواد الكيميائية الموجودة في البطارية مع كل شحنة.</li><li>يمكننا القول أن عمليات الشحن والتفريغ لاتؤثر على أداء البطارية</li><li>نطاق التطبيق :</li><li>مركز مراقبة الحركة الجوية</li><li>أجهزة الباركود</li><li>الات المحاسبه</li><li>الأبواب الإلكترونية</li><li>الأتمتة بمساعدة الكمبيوتر</li><li>المصعد</li><li>إضاءة المطار</li><li>أنظمة إضاءة الطوارئ</li><li>الأجهزة الإلكترونية الطبية</li><li>نظام الرادار العسكري</li><li>اجهزة طباعة الصور</li><li>الموازين الإلكترونية</li><li>منظمات الاتصال والإذاعة</li><li>إمدادات الطاقة غير المنقطعة</li><li>أنظمة الطاقة الشمسية</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="321"><col width="186"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 40-12&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">FZA 40-12</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رقم المنتج&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">رقم المنتج</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;197 ± 2 mm (7.76 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">197 ± 2 mm (7.76 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الطول&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الطول</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;165 ± 2 mm (6.49 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">165 ± 2 mm (6.49 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;العرض&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">العرض</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">170 ± 2 mm (6.69 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ارتفاع الحاوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">ارتفاع الحاوية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">170 ± 2 mm (6.69 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الإرتفاع الإجمالي\n(مع الطرف الكهربائي)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الإرتفاع الإجمالي<br>(مع الطرف الكهربائي)</td></tr></tbody></table></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="321"><col width="186"><col width="165"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">12V</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الجهد الإبتدائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الجهد الإبتدائي</td><td rowspan="2" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">40AH</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;السعة الإبتدائي (20 ساعة)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">السعة الإبتدائي (20 ساعة)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F7&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">F7</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طرف كهربائي قياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">طرف كهربائي قياسي</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;انواع الطرف الكهربائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 42px;">انواع الطرف الكهربائي</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">-</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الخيار القياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الخيار القياسي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">ABS</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الخيار القياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الخيار القياسي</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مواد الحاوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 42px;">مواد الحاوية</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">ABS (UL94VO)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خيار مثبطات اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">خيار مثبطات اللهب</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">(20hr.1.80V/cell, 25’C / 77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40.0AH/4 08A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">40.0AH/4 08A</td><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;السعة المقدرة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 105px;">السعة المقدرة</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr,1.80V/cell, 25’C / 77*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">(10hr,1.80V/cell, 25’C / 77*F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37.2AH/4.00A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">37.2AH/4.00A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr.1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">(5hr.1.75V/cell. 25’C/77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.5AH/6.89A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">31.5AH/6.89A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">(3hr.1.75V/cell. 25’C / 77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.2AH/10.4A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">31.2AH/10.4A</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;480A (5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">480A (5s)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أقصى تيار المفرغ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">أقصى تيار المفرغ</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تقريبا 9m 0&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تقريبا 9m 0</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المقاومة الداخلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">المقاومة الداخلية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التفريغ -15 - 50 درجة  (5 - 122 فهرنهايت) الشحن: 0 - 40 درجة  (5 - 104 فهرنهايت)\n  التخزين: -15 - 40 درجة  (5 - 104 فهرنهايت)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">التفريغ -15 - 50 درجة (5 - 122 فهرنهايت) الشحن: 0 - 40 درجة (5 - 104 فهرنهايت)<br>التخزين: -15 - 40 درجة (5 - 104 فهرنهايت)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معدل درجة الحرارة التشغيلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">معدل درجة الحرارة التشغيلية</td><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خصائص التفريغ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 84px;">خصائص التفريغ</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; text-align: right;">25 ± 3’C (77 ± 5*F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معدل درجة الحرارة التشغيلية الإبتدائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">معدل درجة الحرارة التشغيلية الإبتدائي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تيار شحن إمتال أقل من 12.0 أمبير الجهد 14.4 فولت - 15.0 فولت\r\n  عند درجة حرارة 25 درجة  (77 درجة ). معامل -30mWC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تيار شحن إمتال أقل من 12.0 أمبير الجهد 14.4 فولت - 15.0 فولت<br>عند درجة حرارة 25 درجة (77 درجة ). معامل -30mWC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دورة الإستخدام&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">دورة الإستخدام</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت - 13.8 فولت عند\r\n25 درجة  (77 درجة ) درجة الحرارة. معامل -20mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت - 13.8 فولت عند<br>25 درجة (77 درجة ) درجة الحرارة. معامل -20mVfC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الاستخدام في وضع الاستعداد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الاستخدام في وضع الاستعداد</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تتأثر القدرة بالحرارة 10سنوات&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تتأثر القدرة بالحرارة 10سنوات</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تصميم صلاحية المنتج عند 20*C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تصميم صلاحية المنتج عند 20*C</td></tr></tbody></table>

مواصفات المنتج:
البطاريات الشمسية هي بطاريات تحتوي على إلكتروليت يشبه الهلام.
وهي بطاريات لا تحتاج إلى صيانة ومقاومة للظروف البيئية القاسية، وخاصة درجات الحرارة والاهتزازات. ولهذا السبب يتم تفضيلها بشكل خاص في الصناعة
البحرية وأنظمة الطاقة الشمسية. البطاريات الجافة، والمعروفة باسم البطاريات التي لا تحتاج إلى صيانة، والبطاريات الشمسية هي البطاريات التي تقع
ضمن هذه الفئة. وتسمى أيضًا بطارية SLA (حمض الرصاص المختوم).
تُستخدم بطاريات VRLA في أنظمة UPS (إمدادات الطاقة غير المنقطعة)، والاتصالات، ومحطات توليد الكهرباء والهاتف، وشركات توليد الكهرباء، وأنظمة
الإضاءة في حالات الطوارئ، وأنظمة الأمان.
حتى لو لم يتم شحن البطارية الشمسية على الفور، فمن الممكن استعادتها بالكامل من التفريغ العميق. مثالية للاستخدام الدوري اليومي.
أنها تظهر أداء ممتازا أثناء التصريفات الطويلة.
الميزات التكنولوجية:
بطارياتنا الشمسية عبارة عن بطاريات هلامية، وأهم ميزة لها أو مجال استخدامها هو أنها تستخدم في تطبيقات "التفريغ العميق".
تسمى بطاريات الجل "بطاريات لا تحتاج إلى صيانة" لأنها لا تتطلب إضافة الماء النقي أثناء الاستخدام.
الميزة الأكثر أهمية للبطاريات الهلامية واختلافها عن البطاريات الجافة المشحونة هي خاصية التفريغ العميق.
فما هو هذا التفريغ العميق؟ يبلغ مستوى التفريغ العميق للبطاريات الهلامية 75% مقارنة بالبطاريات الجافة أو المغمورة بالمياه. وبعبارة أكثر
وضوحا، عندما نقوم بشحن بطاريات هلامية بعد التفريغ، يكتمل الشحن دون أي ضرر للبنية الكيميائية داخلها.
عندما تفعل الشيء نفسه مع البطاريات الجافة أو المغمورة بالمياه، أي عندما تقوم بشحنها بعد التفريغ العميق، فإن عمر البطارية يقصر مع كل شحنة حيث
ستتضرر المواد الكيميائية الموجودة في البطارية مع كل شحنة.
يمكننا القول أن عمليات الشحن والتفريغ لاتؤثر على أداء البطارية
نطاق التطبيق :
مركز مراقبة الحركة الجوية
أجهزة الباركود
الات المحاسبه
الأبواب الإلكترونية
الأتمتة بمساعدة الكمبيوتر
المصعد
إضاءة المطار
أنظمة إضاءة الطوارئ
الأجهزة الإلكترونية الطبية
نظام الرادار العسكري
اجهزة طباعة الصور
الموازين الإلكترونية
منظمات الاتصال والإذاعة
إمدادات الطاقة غير المنقطعة
أنظمة الطاقة الشمسية

FZA 40-12	رقم المنتج
197 ± 2 mm (7.76 inches)	الطول
165 ± 2 mm (6.49 inches)	العرض
170 ± 2 mm (6.69 inches)	ارتفاع الحاوية
170 ± 2 mm (6.69 inches)	الإرتفاع الإجمالي (مع الطرف الكهربائي)

12V	الجهد الإبتدائي
40AH	السعة الإبتدائي (20 ساعة)
F7	طرف كهربائي قياسي	انواع الطرف الكهربائي
-	الخيار القياسي	انواع الطرف الكهربائي
ABS	الخيار القياسي	مواد الحاوية
ABS (UL94VO)	خيار مثبطات اللهب	مواد الحاوية
(20hr.1.80V/cell, 25’C / 77’F)	40.0AH/4 08A	السعة المقدرة
(10hr,1.80V/cell, 25’C / 77*F)	37.2AH/4.00A
(5hr.1.75V/cell. 25’C/77’F)	31.5AH/6.89A
(3hr.1.75V/cell. 25’C / 77’F)	31.2AH/10.4A

480A (5s)		أقصى تيار المفرغ
تقريبا 9m 0		المقاومة الداخلية
التفريغ -15 - 50 درجة (5 - 122 فهرنهايت) الشحن: 0 - 40 درجة (5 - 104 فهرنهايت) التخزين: -15 - 40 درجة (5 - 104 فهرنهايت)	معدل درجة الحرارة التشغيلية	خصائص التفريغ
25 ± 3’C (77 ± 5*F)	معدل درجة الحرارة التشغيلية الإبتدائي
تيار شحن إمتال أقل من 12.0 أمبير الجهد 14.4 فولت - 15.0 فولت عند درجة حرارة 25 درجة (77 درجة ). معامل -30mWC	دورة الإستخدام
لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت - 13.8 فولت عند 25 درجة (77 درجة ) درجة الحرارة. معامل -20mVfC	الاستخدام في وضع الاستعداد
40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%	تتأثر القدرة بالحرارة 10سنوات	تصميم صلاحية المنتج عند 20*C

Product name

Short description

Full description

<p><ul><li>Ürün Özellikleri:</li><li>Solar aküler içerisinde jel - jöle kıvamında elektrolit bulunan akülerdir.</li><li>Ağır çevresel koşullara özellikle de sıcaklığa ve titreşime dayanıklı bakımsız akülerdir. Bu yüzden denizcilik sektöründe ve güneş enerji</li><li>sistemlerinde özellikle tercih edilirler. Bakımsız Akü olarak bilinen Kuru Aküler, Solar Aküler bu sınıfa giren akülerdir. SLA Akü ( Sealed</li><li>Lead Acid ) de denilmektedir.</li><li>UPS ( Kesintisiz Güç Kaynağı ) sistemleri, telekomünikasyon, elektrik ve telefon santralleri, elektrik üretim şirketleri, acil aydınlatma</li><li>sistemleri ve güvenlik sistemlerinde VRLA Aküler kullanılır.</li><li>Solar Akü hemen şarj edilmese bile, derin deşarjdan tamamen geri döndürülebilir. Günlük çevrimsel kullanım için idealdir.</li><li>Uzun deşarjlarda mükemmel performans gösterirler.</li><li>Teknolojik Özellikleri:</li><li>Solar akülerimiz jel akülerdir, bunların en büyük özelliği veya kullanım alanı “derin deşarj” uygulamalarında kullanılıyor olmasıdır.</li><li>Jel aküleri kullandığınız süre zarfında saf su ilavesi gerektirmediğinden jel akülere “bakımsız akü” denilir.</li><li>Jel akülerin en büyük özelliği ve kuru şarjlı akülerden farkı ise derin deşarj özelliğidir.</li><li>Peki nedir bu derin deşarj? Jel akülerin derin deşarj düzeyi kuru veya sulu akülere göre %75 tir. Daha anlaşılır bir ifadeyle anlatmak</li><li>gerekirse jel aküleri, deşarj sonrası şarj ettiğimizde içerisinde bulunan kimyasal yapı herhangi bir zarar görmeden şarz tamamlanmış olur.</li><li>Aynı işlemi, kuru veya sulu akülerde yaptığınızda ise yani derin deşarj sonrası şarj yaptığınızda akü içerinde bulunan kimyasallar her</li><li>şarjda zarar göreceğinden akünün ömrü her şarjda kısalmaktadır.</li><li>Toparlamak gerekirse; jel akü için şarj – deşarj işlemi sonrası performansından ödün vermeyen aküler denilebilir.</li><li>Uygulama Alanları :</li><li>Hava Trafik Kontrol Merkezi</li><li>Barkod Cihazları</li><li>Yazar Kasalar</li><li>Elektronik Kapılar</li><li>Bilgisayar Destekli Otomasyon</li><li>Asansör</li><li>Hava Alanı Aydınlatması</li><li>Acil Durum Aydınlatma Sistemleri</li><li>Tıbbi Elektronik Cihazlar</li><li>Askeri Radar Sistemi</li><li>Fotoğraf Baskı Cihazları</li><li>Elektronik Teraziler</li><li>Haberleşme ve Yayın Kuruluşları</li><li>Kesintisiz Güç Kaynağı</li><li>Güneş Enerji Sistemleri</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="173"><col width="205"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Parça Numarası&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 153, 0); font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Parça Numarası</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 40-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 153, 0); font-size: 9pt; white-space: normal; overflow-wrap: break-word;">FZA 40-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Uzunluk&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Uzunluk</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;197 ± 2 mm (7.76 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">197 ± 2 mm (7.76 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Genişlik&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Genişlik</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;165 ± 2 mm (6.49 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">165 ± 2 mm (6.49 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Konteyner Yüksekliği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Konteyner Yüksekliği</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Toplam yükseklik\r\n   (terminalli)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Toplam yükseklik<br>(terminalli)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (6.69 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (6.69 inches)</td></tr></tbody></table></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="173"><col width="205"><col width="322"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Gerilim&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Gerilim</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Kapasite (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Kapasite (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 42px;">Terminal Tipi</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Standart Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F7&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">F7</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart Seçenek&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Standart Seçenek</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">-</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Konteyner Malzemesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 42px;">Konteyner Malzemesi</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Alev Geciktirici Seçeneği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Alev Geciktirici Seçeneği</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Alev Geciktirici Seçeneği (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Alev Geciktirici Seçeneği (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Değerlendirilmiş kapasite&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 105px;">Değerlendirilmiş kapasite</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40.0AH/4 08A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40.0AH/4 08A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20 saat 1,80V/hücre, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(20 saat 1,80V/hücre, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;37.2AH/4.00A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">37.2AH/4.00A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10 saat,1,80V/hücre, 25’C / 77*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(10 saat,1,80V/hücre, 25’C / 77*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.5AH/6.89A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.5AH/6.89A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5 saat.1,75V/hücre. 25'C/77'F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(5 saat.1,75V/hücre. 25'C/77'F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;31.2AH/10.4A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">31.2AH/10.4A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3 saat.1,75V/hücre. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">(3 saat.1,75V/hücre. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maksimum Deşarj Akımı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Maksimum Deşarj Akımı</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;480A (5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">480A (5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İç direnç&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">İç direnç</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yaklaşık 9mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Yaklaşık 9mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Deşarj Özellikleri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 84px;">Deşarj Özellikleri</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Sıcaklığı Aralığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Çalışma Sıcaklığı Aralığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C (5 - 104'F)\r\n  Depolama: -15 - 40'C (5 - 104'F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C (5 - 104'F)<br>Depolama: -15 - 40'C (5 - 104'F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Çalışma Sıcaklığı Menzil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Çalışma Sıcaklığı Menzil</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5*F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">25 ± 3’C (77 ± 5*F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Döngü Kullanımı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Döngü Kullanımı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Imtal Şarj Akımı 12.0A'den az Gerilim 14.4V - 15.0V\r\n  25'C (77'F) Sıcaklıkta. Katsayı -30mWC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Imtal Şarj Akımı 12.0A'den az Gerilim 14.4V - 15.0V<br>25'C (77'F) Sıcaklıkta. Katsayı -30mWC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Beklemede Kullanım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Beklemede Kullanım</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V\r\n25'C (77'F) Sıcaklık. Katsayı -20mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V<br>25'C (77'F) Sıcaklık. Katsayı -20mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;20*C'de Yüzen Yaşam Tasarlayın&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">20*C'de Yüzen Yaşam Tasarlayın</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sıcaklıktan Etkilenen Kapasite 10 Yıl&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Sıcaklıktan Etkilenen Kapasite 10 Yıl</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table>

Ürün Özellikleri:
Solar aküler içerisinde jel - jöle kıvamında elektrolit bulunan akülerdir.
Ağır çevresel koşullara özellikle de sıcaklığa ve titreşime dayanıklı bakımsız akülerdir. Bu yüzden denizcilik sektöründe ve güneş enerji
sistemlerinde özellikle tercih edilirler. Bakımsız Akü olarak bilinen Kuru Aküler, Solar Aküler bu sınıfa giren akülerdir. SLA Akü ( Sealed
Lead Acid ) de denilmektedir.
UPS ( Kesintisiz Güç Kaynağı ) sistemleri, telekomünikasyon, elektrik ve telefon santralleri, elektrik üretim şirketleri, acil aydınlatma
sistemleri ve güvenlik sistemlerinde VRLA Aküler kullanılır.
Solar Akü hemen şarj edilmese bile, derin deşarjdan tamamen geri döndürülebilir. Günlük çevrimsel kullanım için idealdir.
Uzun deşarjlarda mükemmel performans gösterirler.
Teknolojik Özellikleri:
Solar akülerimiz jel akülerdir, bunların en büyük özelliği veya kullanım alanı “derin deşarj” uygulamalarında kullanılıyor olmasıdır.
Jel aküleri kullandığınız süre zarfında saf su ilavesi gerektirmediğinden jel akülere “bakımsız akü” denilir.
Jel akülerin en büyük özelliği ve kuru şarjlı akülerden farkı ise derin deşarj özelliğidir.
Peki nedir bu derin deşarj? Jel akülerin derin deşarj düzeyi kuru veya sulu akülere göre %75 tir. Daha anlaşılır bir ifadeyle anlatmak
gerekirse jel aküleri, deşarj sonrası şarj ettiğimizde içerisinde bulunan kimyasal yapı herhangi bir zarar görmeden şarz tamamlanmış olur.
Aynı işlemi, kuru veya sulu akülerde yaptığınızda ise yani derin deşarj sonrası şarj yaptığınızda akü içerinde bulunan kimyasallar her
şarjda zarar göreceğinden akünün ömrü her şarjda kısalmaktadır.
Toparlamak gerekirse; jel akü için şarj – deşarj işlemi sonrası performansından ödün vermeyen aküler denilebilir.
Uygulama Alanları :
Hava Trafik Kontrol Merkezi
Barkod Cihazları
Yazar Kasalar
Elektronik Kapılar
Bilgisayar Destekli Otomasyon
Asansör
Hava Alanı Aydınlatması
Acil Durum Aydınlatma Sistemleri
Tıbbi Elektronik Cihazlar
Askeri Radar Sistemi
Fotoğraf Baskı Cihazları
Elektronik Teraziler
Haberleşme ve Yayın Kuruluşları
Kesintisiz Güç Kaynağı
Güneş Enerji Sistemleri

Parça Numarası	FZA 40-12
Uzunluk	197 ± 2 mm (7.76 inches)
Genişlik	165 ± 2 mm (6.49 inches)
Konteyner Yüksekliği	170 ± 2 mm (6.69 inches)
Toplam yükseklik (terminalli)	170 ± 2 mm (6.69 inches)

	Nominal Gerilim	12V
	Nominal Kapasite (20HR)	40AH
Terminal Tipi	Standart Terminal	F7
Terminal Tipi	Standart Seçenek	-
Konteyner Malzemesi	Alev Geciktirici Seçeneği	ABS
Konteyner Malzemesi	Alev Geciktirici Seçeneği (FR)	ABS (UL94VO)
Değerlendirilmiş kapasite	40.0AH/4 08A	(20 saat 1,80V/hücre, 25’C / 77’F)
	37.2AH/4.00A	(10 saat,1,80V/hücre, 25’C / 77*F)
	31.5AH/6.89A	(5 saat.1,75V/hücre. 25'C/77'F)
	31.2AH/10.4A	(3 saat.1,75V/hücre. 25’C / 77’F)

Maksimum Deşarj Akımı	480A (5s)
İç direnç	Yaklaşık 9mO
Deşarj Özellikleri	Çalışma Sıcaklığı Aralığı	Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C (5 - 104'F) Depolama: -15 - 40'C (5 - 104'F)
	Nominal Çalışma Sıcaklığı Menzil	25 ± 3’C (77 ± 5*F)
	Döngü Kullanımı	Imtal Şarj Akımı 12.0A'den az Gerilim 14.4V - 15.0V 25'C (77'F) Sıcaklıkta. Katsayı -30mWC
	Beklemede Kullanım	İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V 25'C (77'F) Sıcaklık. Katsayı -20mVfC
20*C'de Yüzen Yaşam Tasarlayın	Sıcaklıktan Etkilenen Kapasite 10 Yıl	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

Product name

Short description

Full description

Click to edit HTML...

Product name

Short description

Full description

Click to edit HTML...

SKU

Manufacturer part number

GTIN (global trade item number)

Customs Tariff Number

Product condition

Country of Origin

Admin comment

Product tags

Available start date

Available end date

Allow customer reviews

Show on home page

Display order

Limited to stores

Limited to customer roles

Require other products are added to the cart

Required product IDs

Automatically add these products to the cart

Is gift card

Gift card type

Recurring product

Cycle length

Cycle period

Total cycles

Shipping enabled

Delivery time

Free shipping

Additional shipping charge

USD

Quantity unit

Product Unit Id

Weight

milliliter

Length

centimeter

Width

centimeter

Height

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Tax exempt

Tax category

Is Electronic Service

Add Video

Options

Exclude first image from gallery

Add a new picture

To upload files drop them here or click.

Main media file


Title tag

Meta description

Meta keywords

URL alias

Show all (4)

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Download

Downloadable product

Download file

To upload files drop them here or click.

Version

Options

Unlimited downloads

Max. downloads

Number of days

Days

Download activation type

Has user agreement

User agreement text

Click to edit HTML...

Has sample download file

Sample download file

To upload files drop them here or click.
