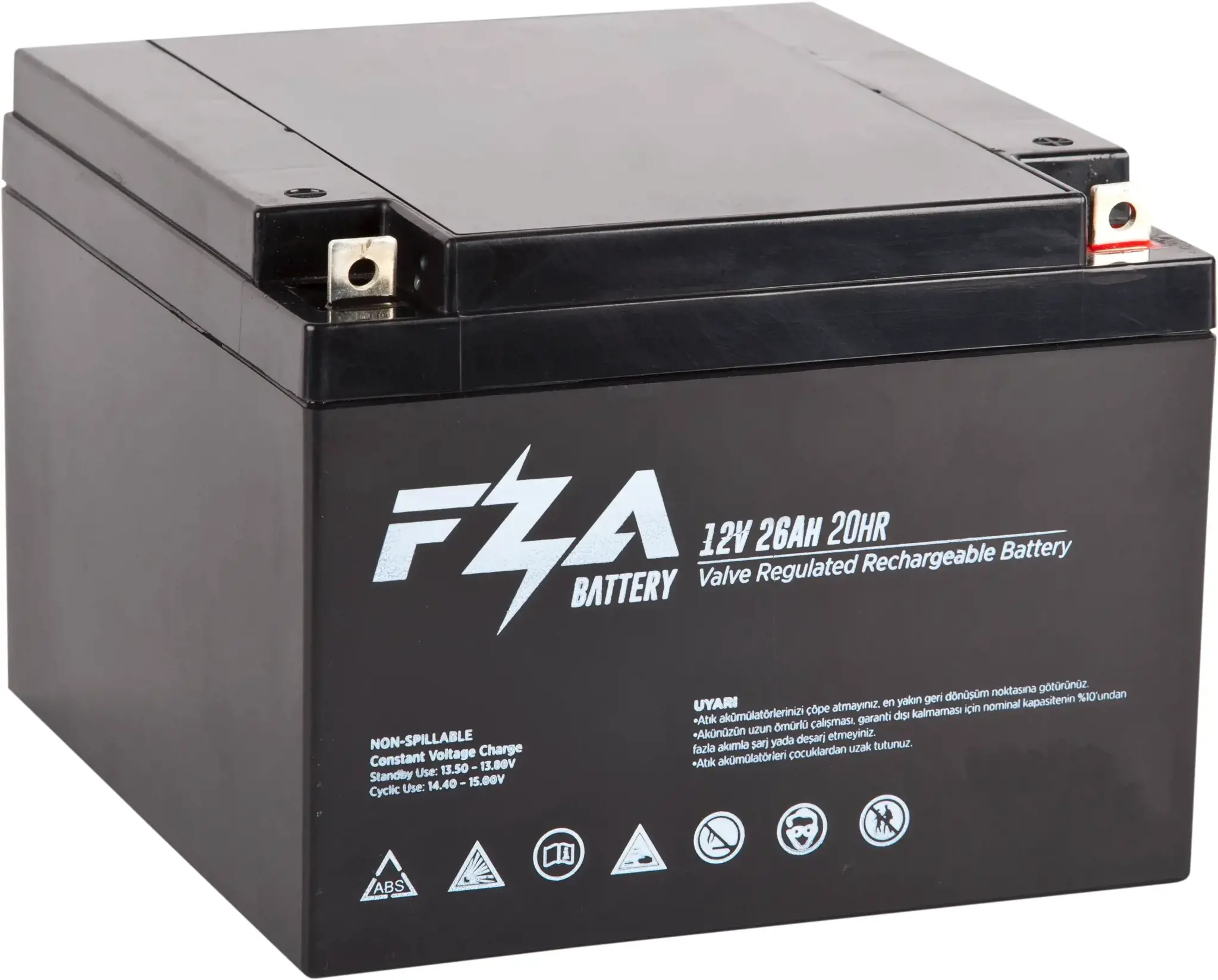

تعديل تفاصيل منتج - Dry batteries for power and cars 12V 26AH

نسخ المنتج

الرقم التعريفى

تم الإنشاء فى

6‏‏/12‏‏/2023 4:12:00 م

تم التحديث فى

20‏‏/12‏‏/2023 10:24:28 ص

الرابط الخاص بصفحة المنتج

https://alderishop.com/-12v-26ah-4/

نوع المنتج

تم النشر

الرؤية

إسم المنتج

وصف قصير

وصف كامل

<div><ul><li>product specification :</li><li>Agm batteries are dry batteries. It is safe to use.</li><li>Batteries convert electrical energy into chemical energy.</li><li>The internal structure of these batteries is different from flooded batteries</li><li>It stores itself by charging method.</li><li>They have lower electrical resistance.</li><li>There is also less acid layer compared to flooded batteries.</li><li>It has a high gas efficiency rate. It has less acidity than others.</li><li>Another advantage of Agm batteries is their high energy density.</li><li>Its use is also more flexible. It's long lasting.</li><li>It is used in many fields.</li><li>It can be easily used especially in uninterruptible power supplies and telecommunication systems.</li><li>There is no acid leakage in these batteries.</li><li>They are also safe because they emit almost no gas emissions.</li><li>Technological features:</li><li>This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.</li><li>It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.</li><li>It is a very cheap way to provide uninterrupted energy.</li><li>Agm batteries can be used especially in vehicles.</li><li>These batteries are preferred because they are easy to use and cheaper.</li><li>They are placed inside uninterruptible power supplies.</li><li>In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.</li><li>Battery life is generally 5 years.</li><li>The important thing here is the amount of heat it is exposed to.</li></ul><div>Scope of application:</div><div><br></div><div>car</div><ul><li>a truck</li><li>Mobile home farm tractor</li><li>Ambulance</li><li>boat</li><li>For operating purposes in generators</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Part Number:&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Part Number:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 26-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">FZA 26-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Length:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;265 ± 2 mm (6.52 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">265 ± 2 mm (6.52 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Width:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Width:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 2 mm (6.89 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">75 ± 2 mm (6.89 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Height:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Container Height:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ±2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">170 ±2 mm (4.92 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Total Height (with terminal):&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Total Height (with terminal):</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">170 ± 2 mm (4.92 inches)</td></tr></tbody></table><p></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="171"><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><div style="max-height: 42px;"></div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Capacity (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Capacity (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">26AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 42px;">Terminal Type</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Standard Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">F3</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Optional Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">F12</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Material&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 42px;">Container Material</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Option&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Standard Option</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Retardant Option (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Flame Retardant Option (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 105px;">Rated Capacity</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26.0AH/1.30A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">26.0AH/1.30A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(20hr.1.80V/cell. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;24 3AH/2.43A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">24 3AH/2.43A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(10hr.1.80V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22.2AH/4.44A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">22.2AH/4.44A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr,1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(5hr,1.75V/cell. 25’C/77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19.9AH/6.65A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">19.9AH/6.65A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(3hr.1.75V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td><td rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><div style="max-height: 63px;"></div></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max Discharge Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Max Discharge Current</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;390A(5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">390A(5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Internal Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 14mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Approx 14mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge Characteristics&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 84px;">Discharge Characteristics</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F)\n Storage: -15 - 40’C (5 ~ 104‘F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F)<br>Storage: -15 - 40’C (5 ~ 104‘F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">25 ± 3’C (77 ± 5’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cycle Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Cycle Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V\n at 25’C (77‘F) Temp. Coefficient -30mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V<br>at 25’C (77‘F) Temp. Coefficient -30mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standby Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Standby Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;No limit on Initial Charging Current Voltage 13.5V - 13.8V at\n 25’C (77’F) Temp. Coefficient -20mVrc&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">No limit on Initial Charging Current Voltage 13.5V - 13.8V at<br>25’C (77’F) Temp. Coefficient -20mVrc</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Design Floating Life at 20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Design Floating Life at 20°C</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity affected by Temperature 7 Years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Capacity affected by Temperature 7 Years</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table></div>

product specification :
Agm batteries are dry batteries. It is safe to use.
Batteries convert electrical energy into chemical energy.
The internal structure of these batteries is different from flooded batteries
It stores itself by charging method.
They have lower electrical resistance.
There is also less acid layer compared to flooded batteries.
It has a high gas efficiency rate. It has less acidity than others.
Another advantage of Agm batteries is their high energy density.
Its use is also more flexible. It's long lasting.
It is used in many fields.
It can be easily used especially in uninterruptible power supplies and telecommunication systems.
There is no acid leakage in these batteries.
They are also safe because they emit almost no gas emissions.
Technological features:
This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.
It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.
It is a very cheap way to provide uninterrupted energy.
Agm batteries can be used especially in vehicles.
These batteries are preferred because they are easy to use and cheaper.
They are placed inside uninterruptible power supplies.
In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.
Battery life is generally 5 years.
The important thing here is the amount of heat it is exposed to.

Scope of application:

car

a truck
Mobile home farm tractor
Ambulance
boat
For operating purposes in generators

Part Number:	FZA 26-12
Length:	265 ± 2 mm (6.52 inches)
Width:	75 ± 2 mm (6.89 inches)
Container Height:	170 ±2 mm (4.92 inches)
Total Height (with terminal):	170 ± 2 mm (4.92 inches)

	Nominal Voltage	12V
	Nominal Capacity (20HR)	26AH
Terminal Type	Standard Terminal	F3
Terminal Type	Optional Terminal	F12
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option (FR)	ABS (UL94VO)
Rated Capacity	26.0AH/1.30A	(20hr.1.80V/cell. 25’C / 77’F)
	24 3AH/2.43A	(10hr.1.80V/cell, 25’C / 77’F)
	22.2AH/4.44A	(5hr,1.75V/cell. 25’C/77’F)
	19.9AH/6.65A	(3hr.1.75V/cell, 25’C / 77’F)

Max Discharge Current	390A(5s)
Internal Resistance	Approx 14mO
Discharge Characteristics	Operating Temp Range	Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F) Storage: -15 - 40’C (5 ~ 104‘F)
	Nominal Operating Temp Range	25 ± 3’C (77 ± 5’F)
	Cycle Use	Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V at 25’C (77‘F) Temp. Coefficient -30mVfC
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77’F) Temp. Coefficient -20mVrc
Design Floating Life at 20°C	Capacity affected by Temperature 7 Years	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

إسم المنتج

وصف قصير

وصف كامل

<p></p><ul><li>product specification :</li><li>Agm batteries are dry batteries. It is safe to use.</li><li>Batteries convert electrical energy into chemical energy.</li><li>The internal structure of these batteries is different from flooded batteries</li><li>It stores itself by charging method.</li><li>They have lower electrical resistance.</li><li>There is also less acid layer compared to flooded batteries.</li><li>It has a high gas efficiency rate. It has less acidity than others.</li><li>Another advantage of Agm batteries is their high energy density.</li><li>Its use is also more flexible. It's long lasting.</li><li>It is used in many fields.</li><li>It can be easily used especially in uninterruptible power supplies and telecommunication systems.</li><li>There is no acid leakage in these batteries.</li><li>They are also safe because they emit almost no gas emissions.</li><li>Technological features:</li><li>This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.</li><li>It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.</li><li>It is a very cheap way to provide uninterrupted energy.</li><li>Agm batteries can be used especially in vehicles.</li><li>These batteries are preferred because they are easy to use and cheaper.</li><li>They are placed inside uninterruptible power supplies.</li><li>In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.</li><li>Battery life is generally 5 years.</li><li>The important thing here is the amount of heat it is exposed to.</li></ul><div>Scope of application:</div><div><br></div><div>car</div><ul><li>a truck</li><li>Mobile home farm tractor</li><li>Ambulance</li><li>boat</li><li>For operating purposes in generators</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Part Number:&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Part Number:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 26-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">FZA 26-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Length:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;265 ± 2 mm (6.52 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">265 ± 2 mm (6.52 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Width:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Width:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 2 mm (6.89 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">75 ± 2 mm (6.89 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Height:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Container Height:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ±2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ±2 mm (4.92 inches)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Total Height (with terminal):&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Total Height (with terminal):</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (4.92 inches)</td></tr></tbody></table><p></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="171"><col width="236"><col width="332"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Capacity (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Capacity (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">26AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 42px;">Terminal Type</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Standard Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">F3</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Optional Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">F12</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Material&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 42px;">Container Material</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Option&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Standard Option</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Retardant Option (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Flame Retardant Option (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 105px;">Rated Capacity</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26.0AH/1.30A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">26.0AH/1.30A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">(20hr.1.80V/cell. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;24 3AH/2.43A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">24 3AH/2.43A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">(10hr.1.80V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22.2AH/4.44A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">22.2AH/4.44A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr,1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">(5hr,1.75V/cell. 25’C/77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19.9AH/6.65A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">19.9AH/6.65A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">(3hr.1.75V/cell, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td><td rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 63px;"></div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max Discharge Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Max Discharge Current</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;390A(5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">390A(5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Internal Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 14mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Approx 14mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge Characteristics&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;"><span><div style="max-height: 84px;">Discharge Characteristics</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F)\n Storage: -15 - 40’C (5 ~ 104‘F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F)<br>Storage: -15 - 40’C (5 ~ 104‘F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Operating Temp Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Nominal Operating Temp Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">25 ± 3’C (77 ± 5’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cycle Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Cycle Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V\n at 25’C (77‘F) Temp. Coefficient -30mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V<br>at 25’C (77‘F) Temp. Coefficient -30mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standby Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Standby Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;No limit on Initial Charging Current Voltage 13.5V - 13.8V at\n 25’C (77’F) Temp. Coefficient -20mVrc&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">No limit on Initial Charging Current Voltage 13.5V - 13.8V at<br>25’C (77’F) Temp. Coefficient -20mVrc</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Design Floating Life at 20°C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Design Floating Life at 20°C</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity affected by Temperature 7 Years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Capacity affected by Temperature 7 Years</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table>

product specification :
Agm batteries are dry batteries. It is safe to use.
Batteries convert electrical energy into chemical energy.
The internal structure of these batteries is different from flooded batteries
It stores itself by charging method.
They have lower electrical resistance.
There is also less acid layer compared to flooded batteries.
It has a high gas efficiency rate. It has less acidity than others.
Another advantage of Agm batteries is their high energy density.
Its use is also more flexible. It's long lasting.
It is used in many fields.
It can be easily used especially in uninterruptible power supplies and telecommunication systems.
There is no acid leakage in these batteries.
They are also safe because they emit almost no gas emissions.
Technological features:
This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.
It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.
It is a very cheap way to provide uninterrupted energy.
Agm batteries can be used especially in vehicles.
These batteries are preferred because they are easy to use and cheaper.
They are placed inside uninterruptible power supplies.
In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.
Battery life is generally 5 years.
The important thing here is the amount of heat it is exposed to.

Scope of application:

car

a truck
Mobile home farm tractor
Ambulance
boat
For operating purposes in generators

Part Number:	FZA 26-12
Length:	265 ± 2 mm (6.52 inches)
Width:	75 ± 2 mm (6.89 inches)
Container Height:	170 ±2 mm (4.92 inches)
Total Height (with terminal):	170 ± 2 mm (4.92 inches)

	Nominal Voltage	12V
	Nominal Capacity (20HR)	26AH
Terminal Type	Standard Terminal	F3
Terminal Type	Optional Terminal	F12
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option (FR)	ABS (UL94VO)
Rated Capacity	26.0AH/1.30A	(20hr.1.80V/cell. 25’C / 77’F)
	24 3AH/2.43A	(10hr.1.80V/cell, 25’C / 77’F)
	22.2AH/4.44A	(5hr,1.75V/cell. 25’C/77’F)
	19.9AH/6.65A	(3hr.1.75V/cell, 25’C / 77’F)

Max Discharge Current	390A(5s)
Internal Resistance	Approx 14mO
Discharge Characteristics	Operating Temp Range	Discharge -15 - 50’C (5 - 122’F) Charge: 0 - 40'C(5 - 104’F) Storage: -15 - 40’C (5 ~ 104‘F)
	Nominal Operating Temp Range	25 ± 3’C (77 ± 5’F)
	Cycle Use	Inital Charging Current less than 7 8A.Voltage 14.4V - 15.0V at 25’C (77‘F) Temp. Coefficient -30mVfC
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77’F) Temp. Coefficient -20mVrc
Design Floating Life at 20°C	Capacity affected by Temperature 7 Years	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

إسم المنتج

وصف قصير

وصف كامل

<p>مواصفات المنتج :</p><ul><li>بطاريات Agm هي بطاريات جافة. وهو آمن للاستخدام.</li><li>تقوم البطاريات بتحويل الطاقة الكهربائية إلى طاقة كيميائية.</li><li>يختلف الهيكل الداخلي لهذه البطاريات عن البطاريات المغمورة بالمياه</li><li>يقوم بتخزين نفسه عن طريق طريقة الشحن.</li><li>لديهم مقاومة كهربائية أقل.</li><li>هناك أيضًا طبقة حمضية أقل مقارنة بالبطاريات المغمورة بالمياه.</li><li>لديها معدل كفاءة غاز عالية. ولها حموضة أقل من غيرها.</li><li>ميزة أخرى لبطاريات Agm هي كثافتها العالية للطاقة.</li><li>كما أن استخدامه أكثر مرونة. انها طويلة الأمد.</li><li>يتم استخدامه في العديد من المجالات.</li><li>ويمكن استخدامه بسهولة وخاصة في إمدادات الطاقة غير المنقطعة وأنظمة الاتصالات السلكية واللاسلكية.</li><li>لا يوجد تسرب حمض في هذه البطاريات.</li><li>كما أنها آمنة لأنها لا تصدر أي انبعاثات غازية تقريبًا.</li><li>الميزات التكنولوجية:</li><li>يمكن قول ذلك بالنسبة لبطاريات Agm، وخاصة بطاريات VRLA التي يتم تشريب إلكتروليتاتها بفواصل.</li><li>يتم استخدامه في العديد من الأماكن ويستخدم بشكل عام في المركبات. أشياء كثيرة في السيارة تعمل بفضل البطارية.</li><li>وهي طريقة رخيصة جدًا لتوفير الطاقة دون انقطاع.</li><li>يمكن استخدام بطاريات Agm خاصة في المركبات.</li><li>تُفضل هذه البطاريات لأنها سهلة الاستخدام وأرخص ثمنًا.</li><li>يتم وضعها داخل مصادر الطاقة غير المنقطعة.</li><li>في بعض الحالات، عندما تزداد كفاءة مصدر UPS وتنمو البطارية، يتم وضع البطارية بالخارج في مكان منفصل وتوصيلها بأجهزة UPS.</li><li>عمر البطارية بشكل عام 5 سنوات.</li><li>الشيء المهم هنا هو مقدار الحرارة التي يتعرض لها.</li></ul><p>نطاق التطبيق :</p><ul><li>سيارة</li><li>شاحنة</li><li>جرار زراعى المنزل المتنقل</li><li>سياره اسعاف</li><li>ق<span style="font-size: 0.875rem;">ارب</span></li><li>لأغراض التشغيل في المولدات</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="321"><col width="186"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 26-12&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">FZA 26-12</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رقم المنتج&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">رقم المنتج</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;265 ± 2 mm (6.52 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">265 ± 2 mm (6.52 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الطول&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الطول</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 2 mm (6.89 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">75 ± 2 mm (6.89 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;العرض&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">العرض</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ±2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">170 ±2 mm (4.92 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ارتفاع الحاوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">ارتفاع الحاوية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (4.92 inches)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">170 ± 2 mm (4.92 inches)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الإرتفاع الإجمالي\n(مع الطرف الكهربائي)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الإرتفاع الإجمالي<br>(مع الطرف الكهربائي)</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="321"><col width="186"><col width="165"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">12V</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الجهد الإبتدائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الجهد الإبتدائي</td><td rowspan="2" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">26AH</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;السعة الإبتدائي (20 ساعة)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">السعة الإبتدائي (20 ساعة)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">F3</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طرف كهربائي قياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">طرف كهربائي قياسي</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;انواع الطرف الكهربائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 42px;">انواع الطرف الكهربائي</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">F12</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الخيار القياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الخيار القياسي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">ABS</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الخيار القياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الخيار القياسي</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مواد الحاوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 42px;">مواد الحاوية</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">ABS (UL94VO)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خيار مثبطات اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">خيار مثبطات اللهب</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20hr.1.80V/cell. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">(20hr.1.80V/cell. 25’C / 77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26.0AH/1.30A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">26.0AH/1.30A</td><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;السعة المقدرة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 105px;">السعة المقدرة</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10hr.1.80V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">(10hr.1.80V/cell, 25’C / 77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;24 3AH/2.43A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">24 3AH/2.43A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5hr,1.75V/cell. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">(5hr,1.75V/cell. 25’C/77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22.2AH/4.44A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">22.2AH/4.44A</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3hr.1.75V/cell, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">(3hr.1.75V/cell, 25’C / 77’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19.9AH/6.65A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">19.9AH/6.65A</td></tr><tr style="height: 21px;"><td rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 63px;"></div></span></td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;390A(5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">390A(5s)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أقصى تيار المفرغ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">أقصى تيار المفرغ</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تقريبا 14m 0&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تقريبا 14m 0</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المقاومة الداخلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">المقاومة الداخلية</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التفريغ -15 - 50 درجة  (5 - 122 قدم) \nالشحن: 0 - 40 درجة  (5 - 104 قدم)\nالتخزين: -15 - 40 درجة  \n(5 ~ 104 فهرنهايت)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">التفريغ -15 - 50 درجة (5 - 122 قدم)<br>الشحن: 0 - 40 درجة (5 - 104 قدم)<br>التخزين: -15 - 40 درجة<br>(5 ~ 104 فهرنهايت)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معدل درجة الحرارة التشغيلية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">معدل درجة الحرارة التشغيلية</td><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خصائص التفريغ&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;"><span><div style="max-height: 84px;">خصائص التفريغ</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">25 ± 3’C (77 ± 5’F)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معدل درجة الحرارة التشغيلية الإبتدائي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">معدل درجة الحرارة التشغيلية الإبتدائي</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تيار الشحن الأولي 7 أقل من 8A. الجهد الكهربي\n 14.4 فولت - 15.0 فولت،\nعند 25 درجة  (77 فهرنهايت)\n معامل -30mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تيار الشحن الأولي 7 أقل من 8A. الجهد الكهربي<br>14.4 فولت - 15.0 فولت،<br>عند 25 درجة (77 فهرنهايت)<br>معامل -30mVfC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دورة الإستخدام&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">دورة الإستخدام</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت \n- 13.8 فولت\n25 درجة  (77 فهرنهايت) درجة الحرارة\n معامل -20mVrc&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت<br>- 13.8 فولت<br>25 درجة (77 فهرنهايت) درجة الحرارة<br>معامل -20mVrc</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الاستخدام في وضع الاستعداد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">الاستخدام في وضع الاستعداد</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تتأثر القدرة بالحرارة 7 سنوات&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تتأثر القدرة بالحرارة 7 سنوات</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;تصميم صلاحية المنتج عند 20*C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">تصميم صلاحية المنتج عند 20*C</td></tr></tbody></table><p><br></p>

مواصفات المنتج :

بطاريات Agm هي بطاريات جافة. وهو آمن للاستخدام.
تقوم البطاريات بتحويل الطاقة الكهربائية إلى طاقة كيميائية.
يختلف الهيكل الداخلي لهذه البطاريات عن البطاريات المغمورة بالمياه
يقوم بتخزين نفسه عن طريق طريقة الشحن.
لديهم مقاومة كهربائية أقل.
هناك أيضًا طبقة حمضية أقل مقارنة بالبطاريات المغمورة بالمياه.
لديها معدل كفاءة غاز عالية. ولها حموضة أقل من غيرها.
ميزة أخرى لبطاريات Agm هي كثافتها العالية للطاقة.
كما أن استخدامه أكثر مرونة. انها طويلة الأمد.
يتم استخدامه في العديد من المجالات.
ويمكن استخدامه بسهولة وخاصة في إمدادات الطاقة غير المنقطعة وأنظمة الاتصالات السلكية واللاسلكية.
لا يوجد تسرب حمض في هذه البطاريات.
كما أنها آمنة لأنها لا تصدر أي انبعاثات غازية تقريبًا.
الميزات التكنولوجية:
يمكن قول ذلك بالنسبة لبطاريات Agm، وخاصة بطاريات VRLA التي يتم تشريب إلكتروليتاتها بفواصل.
يتم استخدامه في العديد من الأماكن ويستخدم بشكل عام في المركبات. أشياء كثيرة في السيارة تعمل بفضل البطارية.
وهي طريقة رخيصة جدًا لتوفير الطاقة دون انقطاع.
يمكن استخدام بطاريات Agm خاصة في المركبات.
تُفضل هذه البطاريات لأنها سهلة الاستخدام وأرخص ثمنًا.
يتم وضعها داخل مصادر الطاقة غير المنقطعة.
في بعض الحالات، عندما تزداد كفاءة مصدر UPS وتنمو البطارية، يتم وضع البطارية بالخارج في مكان منفصل وتوصيلها بأجهزة UPS.
عمر البطارية بشكل عام 5 سنوات.
الشيء المهم هنا هو مقدار الحرارة التي يتعرض لها.

نطاق التطبيق :

سيارة
شاحنة
جرار زراعى المنزل المتنقل
سياره اسعاف
قارب
لأغراض التشغيل في المولدات

FZA 26-12	رقم المنتج
265 ± 2 mm (6.52 inches)	الطول
75 ± 2 mm (6.89 inches)	العرض
170 ±2 mm (4.92 inches)	ارتفاع الحاوية
170 ± 2 mm (4.92 inches)	الإرتفاع الإجمالي (مع الطرف الكهربائي)

12V	الجهد الإبتدائي
26AH	السعة الإبتدائي (20 ساعة)
F3	طرف كهربائي قياسي	انواع الطرف الكهربائي
F12	الخيار القياسي	انواع الطرف الكهربائي
ABS	الخيار القياسي	مواد الحاوية
ABS (UL94VO)	خيار مثبطات اللهب	مواد الحاوية
(20hr.1.80V/cell. 25’C / 77’F)	26.0AH/1.30A	السعة المقدرة
(10hr.1.80V/cell, 25’C / 77’F)	24 3AH/2.43A
(5hr,1.75V/cell. 25’C/77’F)	22.2AH/4.44A
(3hr.1.75V/cell, 25’C / 77’F)	19.9AH/6.65A

	390A(5s)	أقصى تيار المفرغ
	تقريبا 14m 0	المقاومة الداخلية
التفريغ -15 - 50 درجة (5 - 122 قدم) الشحن: 0 - 40 درجة (5 - 104 قدم) التخزين: -15 - 40 درجة (5 ~ 104 فهرنهايت)	معدل درجة الحرارة التشغيلية	خصائص التفريغ
25 ± 3’C (77 ± 5’F)	معدل درجة الحرارة التشغيلية الإبتدائي
تيار الشحن الأولي 7 أقل من 8A. الجهد الكهربي 14.4 فولت - 15.0 فولت، عند 25 درجة (77 فهرنهايت) معامل -30mVfC	دورة الإستخدام
لا يوجد حد لجهد الشحن الأولي الحالي 13.5 فولت - 13.8 فولت 25 درجة (77 فهرنهايت) درجة الحرارة معامل -20mVrc	الاستخدام في وضع الاستعداد
40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%	تتأثر القدرة بالحرارة 7 سنوات	تصميم صلاحية المنتج عند 20*C

إسم المنتج

وصف قصير

وصف كامل

<p></p><div>ürün özellikleri :</div><ul><li>Agm aküleri kuru akülerdir. Kullanımı güvenlidir.</li><li>Piller elektrik enerjisini kimyasal enerjiye dönüştürür.</li><li>Bu akülerin iç yapısı sulu akülerden farklıdır.</li><li>Şarj yöntemiyle kendini depolar.</li><li>Daha düşük elektrik direncine sahiptirler.</li><li>Ayrıca sulu akülere göre daha az asit tabakası bulunmaktadır.</li><li>Yüksek gaz verim oranına sahiptir. Diğerlerine göre daha az asiditeye sahiptir.</li><li>Agm akülerin bir diğer avantajı da yüksek enerji yoğunluklarıdır.</li><li>Kullanımı da daha esnektir. Uzun ömürlüdür.</li><li>Birçok alanda kullanılmaktadır.</li><li>Özellikle kesintisiz güç kaynakları ve telekomünikasyon sistemlerinde rahatlıkla kullanılabilir.</li><li>Bu pillerde asit sızıntısı yoktur.</li><li>Ayrıca neredeyse hiç gaz emisyonu yaymadıkları için de güvenlidirler.</li><li>Teknolojik özellikler:</li><li>Bu, Agm aküleri, özellikle de elektrolitleri ayırıcıyla emprenye edilmiş VRLA aküleri için söylenebilir.</li><li>Birçok yerde kullanılmaktadır ve genellikle araçlarda kullanılmaktadır. Arabadaki birçok şey akü sayesinde çalışır.</li><li>Kesintisiz enerji sağlamanın çok ucuz bir yoludur.</li><li>Agm aküleri özellikle araçlarda kullanılabilmektedir.</li><li>Bu piller kullanımı kolay ve ucuz olduğu için tercih edilmektedir.</li><li>Kesintisiz güç kaynaklarının içine yerleştirilirler.</li><li>Bazı durumlarda UPS kaynağının verimi arttığında ve akü büyüdüğünde akü dışarıda ayrı bir yere konularak UPS cihazlarına bağlanır.</li><li>Pil ömrü genel olarak 5 yıldır.</li><li>Burada önemli olan maruz kaldığı ısı miktarıdır.</li></ul><div>Uygulama kapsamı:</div><div><br></div><ul><li>araba</li><li>Bir kamyon</li><li>Mobil ev tarım traktörü</li><li>Ambulans</li><li>bot</li><li>Jeneratörlerde çalıştırma amaçlı</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="173"><col width="205"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Parça Numarası&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 153, 0); font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Parça Numarası</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 26-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 153, 0); font-size: 9pt; white-space: normal; overflow-wrap: break-word;">FZA 26-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Uzunluk&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Uzunluk</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;265 ± 2 mm (6.52 inç)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">265 ± 2 mm (6.52 inç)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Genişlik&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Genişlik</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 2 mm (6.89 inç)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">75 ± 2 mm (6.89 inç)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Konteyner Yüksekliği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Konteyner Yüksekliği</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ±2 mm (4.92 inç)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ±2 mm (4.92 inç)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Toplam yükseklik\r\n   (terminalli)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Toplam yükseklik<br>(terminalli)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;170 ± 2 mm (4.92 inç)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">170 ± 2 mm (4.92 inç)</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><p></p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="173"><col width="205"><col width="322"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><div style="max-height: 42px;"></div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Gerilim&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Gerilim</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Kapasite (20HR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Kapasite (20HR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">26AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Tipi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 42px;">Terminal Tipi</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Standart Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">F3</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standart Seçenek&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Standart Seçenek</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">F12</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Konteyner Malzemesi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 42px;">Konteyner Malzemesi</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Alev Geciktirici Seçeneği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Alev Geciktirici Seçeneği</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Alev Geciktirici Seçeneği (FR)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Alev Geciktirici Seçeneği (FR)</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS (UL94VO)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">ABS (UL94VO)</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Değerlendirilmiş kapasite&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 105px;">Değerlendirilmiş kapasite</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;26.0AH/1.30A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">26.0AH/1.30A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(20 saat.1.80V/hücre. 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(20 saat.1.80V/hücre. 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;24 3AH/2.43A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">24 3AH/2.43A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(10 saat 1,80V/hücre, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(10 saat 1,80V/hücre, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;22.2AH/4.44A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">22.2AH/4.44A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(5 saat,1,75V/hücre. 25’C/77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(5 saat,1,75V/hücre. 25’C/77’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;19.9AH/6.65A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">19.9AH/6.65A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(3 saat.1,75V/hücre, 25’C / 77’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">(3 saat.1,75V/hücre, 25’C / 77’F)</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td><td rowspan="3" colspan="1" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"><div style="max-height: 63px;"></div></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Maksimum Deşarj Akımı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Maksimum Deşarj Akımı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;390A(5s)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">390A(5s)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İç direnç&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">İç direnç</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Yaklaşık 14mO&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Yaklaşık 14mO</td></tr><tr style="height: 21px;"><td rowspan="4" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Deşarj Özellikleri&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;"><div style="max-height: 84px;">Deşarj Özellikleri</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Sıcaklığı Aralığı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Çalışma Sıcaklığı Aralığı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C(5 - 104'F)\n  Depolama: -15 - 40'C (5 ~ 104'F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C(5 - 104'F)<br>Depolama: -15 - 40'C (5 ~ 104'F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Çalışma Sıcaklığı Menzil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Nominal Çalışma Sıcaklığı Menzil</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 ± 3’C (77 ± 5’F)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">25 ± 3’C (77 ± 5’F)</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Döngü Kullanımı&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Döngü Kullanımı</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İlk Şarj Akımı 7 8A'den az. Gerilim 14,4V - 15,0V,\n 25'C (77'F) Sıcaklıkta. Katsayı -30mVfC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">İlk Şarj Akımı 7 8A'den az. Gerilim 14,4V - 15,0V,<br>25'C (77'F) Sıcaklıkta. Katsayı -30mVfC</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Beklemede Kullanım&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Beklemede Kullanım</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V\n  25'C (77'F) Sıcaklık. Katsayı -20mVrc&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V<br>25'C (77'F) Sıcaklık. Katsayı -20mVrc</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;20*C'de Yüzen Yaşam Tasarlayın&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">20*C'de Yüzen Yaşam Tasarlayın</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sıcaklıktan Etkilenen Kapasite 7 Yıl&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">Sıcaklıktan Etkilenen Kapasite 7 Yıl</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; overflow-wrap: break-word;">40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%</td></tr></tbody></table></google-sheets-html-origin>

ürün özellikleri :

Agm aküleri kuru akülerdir. Kullanımı güvenlidir.
Piller elektrik enerjisini kimyasal enerjiye dönüştürür.
Bu akülerin iç yapısı sulu akülerden farklıdır.
Şarj yöntemiyle kendini depolar.
Daha düşük elektrik direncine sahiptirler.
Ayrıca sulu akülere göre daha az asit tabakası bulunmaktadır.
Yüksek gaz verim oranına sahiptir. Diğerlerine göre daha az asiditeye sahiptir.
Agm akülerin bir diğer avantajı da yüksek enerji yoğunluklarıdır.
Kullanımı da daha esnektir. Uzun ömürlüdür.
Birçok alanda kullanılmaktadır.
Özellikle kesintisiz güç kaynakları ve telekomünikasyon sistemlerinde rahatlıkla kullanılabilir.
Bu pillerde asit sızıntısı yoktur.
Ayrıca neredeyse hiç gaz emisyonu yaymadıkları için de güvenlidirler.
Teknolojik özellikler:
Bu, Agm aküleri, özellikle de elektrolitleri ayırıcıyla emprenye edilmiş VRLA aküleri için söylenebilir.
Birçok yerde kullanılmaktadır ve genellikle araçlarda kullanılmaktadır. Arabadaki birçok şey akü sayesinde çalışır.
Kesintisiz enerji sağlamanın çok ucuz bir yoludur.
Agm aküleri özellikle araçlarda kullanılabilmektedir.
Bu piller kullanımı kolay ve ucuz olduğu için tercih edilmektedir.
Kesintisiz güç kaynaklarının içine yerleştirilirler.
Bazı durumlarda UPS kaynağının verimi arttığında ve akü büyüdüğünde akü dışarıda ayrı bir yere konularak UPS cihazlarına bağlanır.
Pil ömrü genel olarak 5 yıldır.
Burada önemli olan maruz kaldığı ısı miktarıdır.

Uygulama kapsamı:

araba
Bir kamyon
Mobil ev tarım traktörü
Ambulans
bot
Jeneratörlerde çalıştırma amaçlı

Parça Numarası	FZA 26-12
Uzunluk	265 ± 2 mm (6.52 inç)
Genişlik	75 ± 2 mm (6.89 inç)
Konteyner Yüksekliği	170 ±2 mm (4.92 inç)
Toplam yükseklik (terminalli)	170 ± 2 mm (4.92 inç)

	Nominal Gerilim	12V
	Nominal Kapasite (20HR)	26AH
Terminal Tipi	Standart Terminal	F3
Terminal Tipi	Standart Seçenek	F12
Konteyner Malzemesi	Alev Geciktirici Seçeneği	ABS
Konteyner Malzemesi	Alev Geciktirici Seçeneği (FR)	ABS (UL94VO)
Değerlendirilmiş kapasite	26.0AH/1.30A	(20 saat.1.80V/hücre. 25’C / 77’F)
	24 3AH/2.43A	(10 saat 1,80V/hücre, 25’C / 77’F)
	22.2AH/4.44A	(5 saat,1,75V/hücre. 25’C/77’F)
	19.9AH/6.65A	(3 saat.1,75V/hücre, 25’C / 77’F)

Maksimum Deşarj Akımı	390A(5s)
İç direnç	Yaklaşık 14mO
Deşarj Özellikleri	Çalışma Sıcaklığı Aralığı	Deşarj -15 - 50'C (5 - 122'F) Şarj: 0 - 40'C(5 - 104'F) Depolama: -15 - 40'C (5 ~ 104'F)
	Nominal Çalışma Sıcaklığı Menzil	25 ± 3’C (77 ± 5’F)
	Döngü Kullanımı	İlk Şarj Akımı 7 8A'den az. Gerilim 14,4V - 15,0V, 25'C (77'F) Sıcaklıkta. Katsayı -30mVfC
	Beklemede Kullanım	İlk Şarj Akımında Sınır Yok Gerilim 13,5V - 13,8V 25'C (77'F) Sıcaklık. Katsayı -20mVrc
20*C'de Yüzen Yaşam Tasarlayın	Sıcaklıktan Etkilenen Kapasite 7 Yıl	40’C (104’F) 103% 25’C (77’F) 100% 0’C (32’F) 86%

إسم المنتج

وصف قصير

وصف كامل

انقر لتعديل HTML ...

إسم المنتج

وصف قصير

وصف كامل

انقر لتعديل HTML ...

وحدة حفظ مخزون المنتجات

رقم الجزء الخاص بالصانع

GTIN (رقم بند التجارة العالمية)

رقم التعريفة الجمركية

حالة المنتج

بلد المنشأ

تعليق المشرف

علامات المنتج

تاريخ البدء المتاح

تاريخ الانتهاء المتاح

السماح بملاحظات العملاء

عرض على الصفحة الرئيسية

ترتيب العرض

يقتصر على المتاجر

يقتصر على أدوار العملاء

المنتجات الأخرى المطلوبه تضاف إلى العربة

الأرقام التعريفيه المطلوبه للمنتج

إضافة هذه المنتجات تلقائيًا إلى سلة التسوق

هو بطاقة هدية

نوع بطاقة الهدايا

منتج متكرر

طول دورة

فترة الدوره

إجمالى الدورات

تمكين الشحن

موعد التسليم

شحن مجانى

رسوم شحن إضافية

USD

وحدة الكمية

Product Unit Id

الوزن

milliliter

الطول

centimeter

العرض

centimeter

الإرتفاع

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

معفاة من الضرائب

فئة الضريبة

هي خدمة إلكترونية

Add Video

خيارات

إستبعاد أول صورة من المعرض

أضف صوره جديده

تحميل ملف

ملف الوسائط الرئيسي


علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

أظهر الكل (4)

علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

علامة العنوان

ميتا الوصف

كلمات دلالية

عنوان URL المستعار

تنزيل

منتج قابل للتنزيل

تحميل الملف

تحميل ملف

نسخة

خيارات

التنزيلات غير محدودة

أقصى تحميلات

عدد الأيام

أيام

تنزيل نوع التنشيط

لديه اتفاق المستخدم

نص اتفاقية المستخدم

انقر لتعديل HTML ...

يحتوي على نموذج ملف التنزيل

عينة ملف التحميل

تحميل ملف
