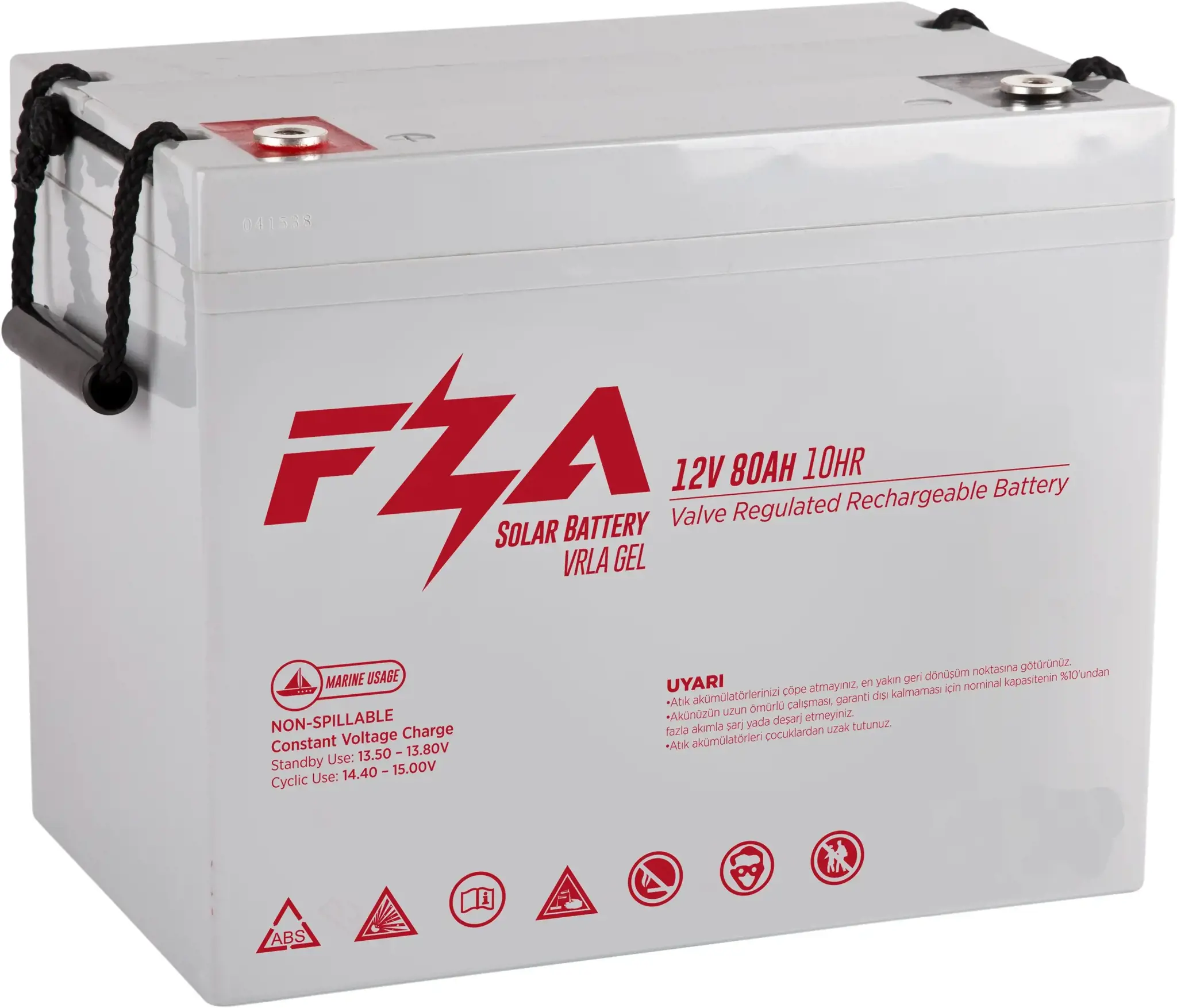

Edit product details - Dry batteries for power and cars 12V 80AH

Copy product

Created on

12/6/2023 4:12:00 PM

Updated on

12/19/2023 4:08:39 PM

URL of the product page

https://alderishop.com/dry-batteries-for-power-and-cars-12v-80ah-4/

Product type

Published

Visibility

Product name

Short description

Full description

<p><ul><li>product specification :</li><li>Agm batteries are dry batteries. It is safe to use.</li><li>Batteries convert electrical energy into chemical energy.</li><li>The internal structure of these batteries is different from flooded batteries</li><li>It stores itself by charging method.</li><li>They have lower electrical resistance.</li><li>There is also less acid layer compared to flooded batteries.</li><li>It has a high gas efficiency rate. It has less acidity than others.</li><li>Another advantage of Agm batteries is their high energy density.</li><li>Its use is also more flexible. It's long lasting.</li><li>It is used in many fields.</li><li>It can be easily used especially in uninterruptible power supplies and telecommunication systems.</li><li>There is no acid leakage in these batteries.</li><li>They are also safe because they emit almost no gas emissions.</li><li>Technological features:</li><li>This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.</li><li>It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.</li><li>It is a very cheap way to provide uninterrupted energy.</li><li>Agm batteries can be used especially in vehicles.</li><li>These batteries are preferred because they are easy to use and cheaper.</li><li>They are placed inside uninterruptible power supplies.</li><li>In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.</li><li>Battery life is generally 5 years.</li><li>The important thing here is the amount of heat it is exposed to.</li></ul><div>Scope of application:</div><div><br></div><ul><li>car</li><li>a truck</li><li>Mobile home farm tractor</li><li>Ambulance</li><li>boat</li><li>For operating purposes in generators</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="243"><col width="302"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Part Number :&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Part Number :</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FZA 80-12&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">FZA 80-12</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Length :&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Length :</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;259 Â± 2 mm ( 10.20 inches )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">259 Â± 2 mm ( 10.20 inches )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Width :&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Width :</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;168 Â± 2 mm ( 6.61 inches )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">168 Â± 2 mm ( 6.61 inches )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Height :&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Container Height :</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;208 Â± 2 mm ( 8.19 inches )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">208 Â± 2 mm ( 8.19 inches )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Total Height ( with terminal ) :&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Total Height ( with terminal ) :</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;214 Â± 2 mm ( 8.43 inches )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">214 Â± 2 mm ( 8.43 inches )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx Weight:&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Approx Weight:</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 24 kg (52.9lbs)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Approx 24 kg (52.9lbs)</td></tr></tbody></table></p><p><google-sheets-html-origin></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="180"><col width="243"><col width="302"></colgroup><tbody><tr style="height: 21px;"><td rowspan="2" colspan="1" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top;"><span><div style="max-height: 42px;"></div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">12V</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Capacity ( 10HR )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Capacity ( 10HR )</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;80AH&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">80AH</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Terminal Type&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 42px;">Terminal Type</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;F6&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">F6</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Optional Terminal&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Optional Terminal</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">-</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Container Material&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 42px;">Container Material</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standard Option&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standard Option</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Flame Retardant Option ( FR )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Flame Retardant Option ( FR )</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ABS ( UL94 : VO )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">ABS ( UL94 : VO )</td></tr><tr style="height: 21px;"><td rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Rated Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 105px;">Rated Capacity</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;83.2 AH / 4.16A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">83.2 AH / 4.16A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;( 20hr , 1.80V / cell , 25 Â° C / 77 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">( 20hr , 1.80V / cell , 25 Â° C / 77 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;80.0 AH / 8.0A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">80.0 AH / 8.0A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;( 10hr , 1.80V / cell , 25 Â° C / 77 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">( 10hr , 1.80V / cell , 25 Â° C / 77 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;69.0 AH / 13.8A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">69.0 AH / 13.8A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;( 5hr , 1.75V / cell , 25 Â° C / 77 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">( 5hr , 1.75V / cell , 25 Â° C / 77 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;62.4 AH / 20.8A&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">62.4 AH / 20.8A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;( 3hr , 1.75V / cell , 25 Â° C / 77 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">( 3hr , 1.75V / cell , 25 Â° C / 77 Â° F )</td></tr><tr style="height: 21px;"><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Max Discharge Current&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Max Discharge Current</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;960A ( 55 )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">960A ( 55 )</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Internal Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Internal Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Approx 6m0&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Approx 6m0</td><td style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;"></td></tr><tr style="height: 21px;"><td rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge Characteristics&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 189px;">Discharge Characteristics</div></span></td><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating Temp . Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 63px;">Operating Temp . Range</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Discharge : -15-50 Â° C ( 5-122 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Discharge : -15-50 Â° C ( 5-122 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Charge : 0-40 Â° C ( 5 - 104 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Charge : 0-40 Â° C ( 5 - 104 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Storage : -15-40 Â° C ( 5-104 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Storage : -15-40 Â° C ( 5-104 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Nominal Operating Temp . Range&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Nominal Operating Temp . Range</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 + 3 Â° C ( 77 + 5 Â° F )&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">25 + 3 Â° C ( 77 + 5 Â° F )</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cycle Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Cycle Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Inital Charging Current less than 24.0A . Voltage\r\n 14.4V - 15.0V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -30mV / \&quot; C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">Inital Charging Current less than 24.0A . Voltage<br>14.4V - 15.0V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -30mV / " C</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Standby Use&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Standby Use</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;No limit on Initial Charging Current Voltage\r\n 13.5V - 13.8V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -20mV / Â° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">No limit on Initial Charging Current Voltage<br>13.5V - 13.8V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -20mV / Â° C</td></tr><tr style="height: 21px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity affected by Temperature&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;"><span><div style="max-height: 63px;">Capacity affected by Temperature</div></span></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;40 Â° C ( 104 Â° F ) 103 %&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">40 Â° C ( 104 Â° F ) 103 %</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;25 Â° C ( 77 Â° F ) 100 %&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">25 Â° C ( 77 Â° F ) 100 %</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0 Â° C ( 32 Â° F ) 86 %&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">0 Â° C ( 32 Â° F ) 86 %</td></tr><tr style="height: 21px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Design Floating Life at 20 Â° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; color: rgb(0, 0, 0); font-family: Arial; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; white-space: normal; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">Design Floating Life at 20 Â° C</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10 Years&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; color: rgb(0, 0, 0); font-family: Arial; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; white-space: normal; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt;">10 Years</td></tr></tbody></table>

product specification :
Agm batteries are dry batteries. It is safe to use.
Batteries convert electrical energy into chemical energy.
The internal structure of these batteries is different from flooded batteries
It stores itself by charging method.
They have lower electrical resistance.
There is also less acid layer compared to flooded batteries.
It has a high gas efficiency rate. It has less acidity than others.
Another advantage of Agm batteries is their high energy density.
Its use is also more flexible. It's long lasting.
It is used in many fields.
It can be easily used especially in uninterruptible power supplies and telecommunication systems.
There is no acid leakage in these batteries.
They are also safe because they emit almost no gas emissions.
Technological features:
This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.
It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.
It is a very cheap way to provide uninterrupted energy.
Agm batteries can be used especially in vehicles.
These batteries are preferred because they are easy to use and cheaper.
They are placed inside uninterruptible power supplies.
In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.
Battery life is generally 5 years.
The important thing here is the amount of heat it is exposed to.

Scope of application:

car
a truck
Mobile home farm tractor
Ambulance
boat
For operating purposes in generators

Part Number :	FZA 80-12
Length :	259 Â± 2 mm ( 10.20 inches )
Width :	168 Â± 2 mm ( 6.61 inches )
Container Height :	208 Â± 2 mm ( 8.19 inches )
Total Height ( with terminal ) :	214 Â± 2 mm ( 8.43 inches )
Approx Weight:	Approx 24 kg (52.9lbs)

	Nominal Voltage	12V
	Nominal Capacity ( 10HR )	80AH
Terminal Type	Standard Terminal	F6
Terminal Type	Optional Terminal	-
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option ( FR )	ABS ( UL94 : VO )
Rated Capacity	83.2 AH / 4.16A	( 20hr , 1.80V / cell , 25 Â° C / 77 Â° F )
	80.0 AH / 8.0A	( 10hr , 1.80V / cell , 25 Â° C / 77 Â° F )
	69.0 AH / 13.8A	( 5hr , 1.75V / cell , 25 Â° C / 77 Â° F )
	62.4 AH / 20.8A	( 3hr , 1.75V / cell , 25 Â° C / 77 Â° F )

Max Discharge Current	960A ( 55 )
Internal Resistance	Approx 6m0
Discharge Characteristics	Operating Temp . Range	Discharge : -15-50 Â° C ( 5-122 Â° F )
		Charge : 0-40 Â° C ( 5 - 104 Â° F )
		Storage : -15-40 Â° C ( 5-104 Â° F )
	Nominal Operating Temp . Range	25 + 3 Â° C ( 77 + 5 Â° F )
	Cycle Use	Inital Charging Current less than 24.0A . Voltage 14.4V - 15.0V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -30mV / " C
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25 Â° C ( 77 Â° F ) Temp . Coefficient -20mV / Â° C
	Capacity affected by Temperature	40 Â° C ( 104 Â° F ) 103 %
		25 Â° C ( 77 Â° F ) 100 %
		0 Â° C ( 32 Â° F ) 86 %
Design Floating Life at 20 Â° C	10 Years
