Edit product details -

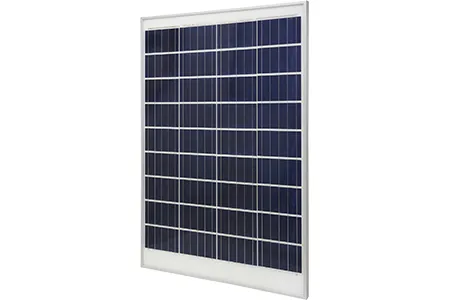

Solar Panels 100 Watt
Preview
Save
Save and Continue Edit
Copy product
Delete
ID
Created on
12/6/2023 4:12:00 PM
Updated on
12/19/2023 5:27:19 PM
URL of the product page
https://alderishop.com/solar-panels-100-watt-4/
Product type
Simple product
Grouped product
Bundled product
Published
Visibility
Fully visible
In search results
On product detail pages
Not visible
Product template
Default Product Template
Standard
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Product name
Short description
Full description
<div>product specification</div><ul><li>Our solar panels are long lasting and consist of mono or polycrystalline cells.</li><li>Designed to operate with high maintenance-free efficiency and in direct sunlight, the solar panels consist of a series of polycrystalline or monocrystalline cells sandwiched between layers of long-lasting tempered glass and EVA layers.</li><li>TPT and electrically connected. Once the solar panels are fully encapsulated, anodized aluminum frames are installed, which will provide them with structural strength.</li><li>In this way, easy installation on the panels is ensured.</li></ul><div>Technological features:</div><div>Electrical properties:</div><ul><li>Maximum power: 100 watts</li><li>Open circuit voltage (VOC): 22V</li><li>Short circuit current (ISC): 6 A</li><li>Maximum voltage at load (VPM): 12.8V</li><li>Maximum load current (IMP): 5.5A</li><li>Maximum system voltage: 1000V</li></ul><div>Mechanical properties:</div><ul><li>Dimensions: 1016 x 676 mm</li><li>Weight: 9.5 kg</li><li>Glass: 3.2mm thick low-iron toughened glass</li><li>Frame: Anodized aluminum frame</li><li>Cell: Polycrystalline cell 156.75 x 156.75</li><li>Junction box: IP-65-67</li></ul><div>Scope of application:</div><ul><li>car</li><li>a truck</li><li>Tractor</li><li>Mobile home</li><li>Ambulance</li><li>boat</li><li>For operating purposes in generators</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="243"><col width="302"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Yield"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Yield</td><td data-sheets-value="{"1":2,"2":"18.8% Class A Cell"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">18.8% Class A Cell</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Weight"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Weight</td><td data-sheets-value="{"1":2,"2":"9.5 kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">9.5 kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Cell Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Cell Type</td><td data-sheets-value="{"1":2,"2":"Polycrystalline Cell 156.75 x 156.75"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Polycrystalline Cell 156.75 x 156.75</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Glass Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Glass Type</td><td data-sheets-value="{"1":2,"2":"3.2mm Low Iron Tempered Glass"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3.2mm Low Iron Tempered Glass</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Frame"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Frame</td><td data-sheets-value="{"1":2,"2":"Anodized Aluminum Frame"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Anodized Aluminum Frame</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Junction Box"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Junction Box</td><td data-sheets-value="{"1":2,"2":"IP-65-67"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">IP-65-67</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Measurement"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Measurement</td><td data-sheets-value="{"1":2,"2":"1016 x 676 mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1016 x 676 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. System Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. System Voltage</td><td data-sheets-value="{"1":2,"2":"1000V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1000V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Strength"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Strength</td><td data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Power Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Power Voltage</td><td data-sheets-value="{"1":2,"2":"18.2 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">18.2 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Power Current"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Power Current</td><td data-sheets-value="{"1":2,"2":"5.5 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">5.5 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Open Circuit Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Open Circuit Voltage</td><td data-sheets-value="{"1":2,"2":"22 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">22 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Short Circuit Current"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Short Circuit Current</td><td data-sheets-value="{"1":2,"2":"6 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">6 A</td></tr></tbody></table>
product specification
Our solar panels are long lasting and consist of mono or polycrystalline cells.
Designed to operate with high maintenance-free efficiency and in direct sunlight, the solar panels consist of a series of polycrystalline or monocrystalline cells sandwiched between layers of long-lasting tempered glass and EVA layers.
TPT and electrically connected. Once the solar panels are fully encapsulated, anodized aluminum frames are installed, which will provide them with structural strength.
In this way, easy installation on the panels is ensured.
Technological features:
Electrical properties:
Maximum power: 100 watts
Open circuit voltage (VOC): 22V
Short circuit current (ISC): 6 A
Maximum voltage at load (VPM): 12.8V
Maximum load current (IMP): 5.5A
Maximum system voltage: 1000V
Mechanical properties:
Dimensions: 1016 x 676 mm
Weight: 9.5 kg
Glass: 3.2mm thick low-iron toughened glass
Frame: Anodized aluminum frame
Cell: Polycrystalline cell 156.75 x 156.75
Junction box: IP-65-67
Scope of application:
car
a truck
Tractor
Mobile home
Ambulance
boat
For operating purposes in generators
Yield
18.8% Class A Cell
Weight
9.5 kg
Cell Type
Polycrystalline Cell 156.75 x 156.75
Glass Type
3.2mm Low Iron Tempered Glass
Frame
Anodized Aluminum Frame
Junction Box
IP-65-67
Measurement
1016 x 676 mm
Max. System Voltage
1000V
Max. Strength
100 W
Max. Power Voltage
18.2 V
Max. Power Current
5.5 A
Open Circuit Voltage
22 V
Short Circuit Current
6 A
Product name
Short description
Full description
<div>product specification</div><ul><li>Our solar panels are long lasting and consist of mono or polycrystalline cells.</li><li>Designed to operate with high maintenance-free efficiency and in direct sunlight, the solar panels consist of a series of polycrystalline or monocrystalline cells sandwiched between layers of long-lasting tempered glass and EVA layers.</li><li>TPT and electrically connected. Once the solar panels are fully encapsulated, anodized aluminum frames are installed, which will provide them with structural strength.</li><li>In this way, easy installation on the panels is ensured.</li></ul><div>Technological features:</div><div>Electrical properties:</div><ul><li>Maximum power: 100 watts</li><li>Open circuit voltage (VOC): 22V</li><li>Short circuit current (ISC): 6 A</li><li>Maximum voltage at load (VPM): 12.8V</li><li>Maximum load current (IMP): 5.5A</li><li>Maximum system voltage: 1000V</li></ul><div>Mechanical properties:</div><ul><li>Dimensions: 1016 x 676 mm</li><li>Weight: 9.5 kg</li><li>Glass: 3.2mm thick low-iron toughened glass</li><li>Frame: Anodized aluminum frame</li><li>Cell: Polycrystalline cell 156.75 x 156.75</li><li>Junction box: IP-65-67</li></ul><div>Scope of application:</div><ul><li>car</li><li>a truck</li><li>Tractor</li><li>Mobile home</li><li>Ambulance</li><li>boat</li><li>For operating purposes in generators</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="243"><col width="302"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Yield"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Yield</td><td data-sheets-value="{"1":2,"2":"18.8% Class A Cell"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">18.8% Class A Cell</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Weight"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Weight</td><td data-sheets-value="{"1":2,"2":"9.5 kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">9.5 kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Cell Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Cell Type</td><td data-sheets-value="{"1":2,"2":"Polycrystalline Cell 156.75 x 156.75"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Polycrystalline Cell 156.75 x 156.75</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Glass Type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Glass Type</td><td data-sheets-value="{"1":2,"2":"3.2mm Low Iron Tempered Glass"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">3.2mm Low Iron Tempered Glass</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Frame"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Frame</td><td data-sheets-value="{"1":2,"2":"Anodized Aluminum Frame"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Anodized Aluminum Frame</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Junction Box"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Junction Box</td><td data-sheets-value="{"1":2,"2":"IP-65-67"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">IP-65-67</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Measurement"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Measurement</td><td data-sheets-value="{"1":2,"2":"1016 x 676 mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1016 x 676 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. System Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. System Voltage</td><td data-sheets-value="{"1":2,"2":"1000V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1000V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Strength"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Strength</td><td data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Power Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Power Voltage</td><td data-sheets-value="{"1":2,"2":"18.2 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">18.2 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Power Current"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Max. Power Current</td><td data-sheets-value="{"1":2,"2":"5.5 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">5.5 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Open Circuit Voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Open Circuit Voltage</td><td data-sheets-value="{"1":2,"2":"22 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">22 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Short Circuit Current"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">Short Circuit Current</td><td data-sheets-value="{"1":2,"2":"6 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">6 A</td></tr></tbody></table>
product specification
Our solar panels are long lasting and consist of mono or polycrystalline cells.
Designed to operate with high maintenance-free efficiency and in direct sunlight, the solar panels consist of a series of polycrystalline or monocrystalline cells sandwiched between layers of long-lasting tempered glass and EVA layers.
TPT and electrically connected. Once the solar panels are fully encapsulated, anodized aluminum frames are installed, which will provide them with structural strength.
In this way, easy installation on the panels is ensured.
Technological features:
Electrical properties:
Maximum power: 100 watts
Open circuit voltage (VOC): 22V
Short circuit current (ISC): 6 A
Maximum voltage at load (VPM): 12.8V
Maximum load current (IMP): 5.5A
Maximum system voltage: 1000V
Mechanical properties:
Dimensions: 1016 x 676 mm
Weight: 9.5 kg
Glass: 3.2mm thick low-iron toughened glass
Frame: Anodized aluminum frame
Cell: Polycrystalline cell 156.75 x 156.75
Junction box: IP-65-67
Scope of application:
car
a truck
Tractor
Mobile home
Ambulance
boat
For operating purposes in generators
Yield
18.8% Class A Cell
Weight
9.5 kg
Cell Type
Polycrystalline Cell 156.75 x 156.75
Glass Type
3.2mm Low Iron Tempered Glass
Frame
Anodized Aluminum Frame
Junction Box
IP-65-67
Measurement
1016 x 676 mm
Max. System Voltage
1000V
Max. Strength
100 W
Max. Power Voltage
18.2 V
Max. Power Current
5.5 A
Open Circuit Voltage
22 V
Short Circuit Current
6 A
Product name
Short description
Full description
<div>مواصفات المنتج</div><ul><li>تتميز الألواح الشمسية لدينا بأنها طويلة الأمد وتتكون من خلايا أحادية أو متعددة البلورات. </li><li>تتكون الألواح الشمسية، المصممة للعمل بكفاءة عالية دون صيانة وفي ضوء الشمس المباشر، من سلسلة خلايا متعددة البلورات أو أحادية البلورات موضوعة بين طبقات من الزجاج المقسى طويل الأمد وطبقات EVA</li><li>وTPT ومتصلة كهربائيًا. بمجرد أن يتم تغليف الألواح الشمسية بالكامل، يتم تركيب إطارات من الألومنيوم المؤكسد، مما سيوفر لها القوة الهيكلية.</li><li>بهذه الطريقة، يتم ضمان سهولة التركيب على الألواح.</li></ul><div>الميزات التكنولوجية:</div><div>الخصائص الكهربائية:</div><ul><li>الطاقة القصوى: 100 واط</li><li>جهد الدائرة المفتوحة (VOC): 22 فولت</li><li>تيار الدائرة القصيرة (ISC): 6 أ</li><li>أقصى جهد عند التحميل (VPM): 12.8 فولت</li><li>الحد الأقصى لتيار الحمل (IMP): 5.5 أمبير</li><li>الحد الأقصى لجهد النظام: 1000 فولت</li></ul><div>الخواص الميكانيكية:</div><ul><li>الأبعاد: 1016 × 676 ملم</li><li>الوزن: 9.5 كجم</li><li>الزجاج: زجاج مقوى منخفض الحديد بسمك 3.2 ملم</li><li>الإطار: إطار من الألومنيوم المؤكسد</li><li>الخلية: خلية متعددة البلورات 156.75 × 156.75</li><li>صندوق التوصيل: IP-65-67</li></ul><div>نطاق التطبيق :</div><ul><li>سيارة</li><li>شاحنة</li><li>جرار زراعى</li><li>المنزل المتنقل</li><li>سياره اسعاف</li><li>قارب</li><li>لأغراض التشغيل في المولدات</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="328"><col width="199"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"18.8% خلية فئة A"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">18.8% خلية فئة A</td><td data-sheets-value="{"1":2,"2":"الكفاءة"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">الكفاءة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"9.5 كغ"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">9.5 كغ</td><td data-sheets-value="{"1":2,"2":"الثقل"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">الثقل</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"خلية متعددة البلورات 156.75 × 156.75"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">خلية متعددة البلورات 156.75 × 156.75</td><td data-sheets-value="{"1":2,"2":"نوع الخلايا"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">نوع الخلايا</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"3.2 ملم زجاج مقسى منخفض الحديد"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">3.2 ملم زجاج مقسى منخفض الحديد</td><td data-sheets-value="{"1":2,"2":"نوع الزجاج"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">نوع الزجاج</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"إطار من الألومنيوم المؤكسد"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">إطار من الألومنيوم المؤكسد</td><td data-sheets-value="{"1":2,"2":"الإطار"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">الإطار</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"IP-65-67"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">IP-65-67</td><td data-sheets-value="{"1":2,"2":"مربع التقاطع"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">مربع التقاطع</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1016 x 676 mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">1016 x 676 mm</td><td data-sheets-value="{"1":2,"2":"القياس"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">القياس</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"1000V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">1000V</td><td data-sheets-value="{"1":2,"2":"جهد النظام الأعلى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">جهد النظام الأعلى</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">100 W</td><td data-sheets-value="{"1":2,"2":"القوة الأعلى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">القوة الأعلى</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"18.2 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">18.2 V</td><td data-sheets-value="{"1":2,"2":"جهد الطاقة الأعلى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">جهد الطاقة الأعلى</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"5.5 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">5.5 A</td><td data-sheets-value="{"1":2,"2":"تيار الطاقة الأعلى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">تيار الطاقة الأعلى</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"22 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: right;">22 V</td><td data-sheets-value="{"1":2,"2":"جهد الدائرة المفتوحة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">جهد الدائرة المفتوحة</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"6 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word; text-align: right;">6 A</td><td data-sheets-value="{"1":2,"2":"تيار الدائرة القصيرة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">تيار الدائرة القصيرة</td></tr></tbody></table>
مواصفات المنتج
تتميز الألواح الشمسية لدينا بأنها طويلة الأمد وتتكون من خلايا أحادية أو متعددة البلورات.
تتكون الألواح الشمسية، المصممة للعمل بكفاءة عالية دون صيانة وفي ضوء الشمس المباشر، من سلسلة خلايا متعددة البلورات أو أحادية البلورات موضوعة بين طبقات من الزجاج المقسى طويل الأمد وطبقات EVA
وTPT ومتصلة كهربائيًا. بمجرد أن يتم تغليف الألواح الشمسية بالكامل، يتم تركيب إطارات من الألومنيوم المؤكسد، مما سيوفر لها القوة الهيكلية.
بهذه الطريقة، يتم ضمان سهولة التركيب على الألواح.
الميزات التكنولوجية:
الخصائص الكهربائية:
الطاقة القصوى: 100 واط
جهد الدائرة المفتوحة (VOC): 22 فولت
تيار الدائرة القصيرة (ISC): 6 أ
أقصى جهد عند التحميل (VPM): 12.8 فولت
الحد الأقصى لتيار الحمل (IMP): 5.5 أمبير
الحد الأقصى لجهد النظام: 1000 فولت
الخواص الميكانيكية:
الأبعاد: 1016 × 676 ملم
الوزن: 9.5 كجم
الزجاج: زجاج مقوى منخفض الحديد بسمك 3.2 ملم
الإطار: إطار من الألومنيوم المؤكسد
الخلية: خلية متعددة البلورات 156.75 × 156.75
صندوق التوصيل: IP-65-67
نطاق التطبيق :
سيارة
شاحنة
جرار زراعى
المنزل المتنقل
سياره اسعاف
قارب
لأغراض التشغيل في المولدات
18.8% خلية فئة A
الكفاءة
9.5 كغ
الثقل
خلية متعددة البلورات 156.75 × 156.75
نوع الخلايا
3.2 ملم زجاج مقسى منخفض الحديد
نوع الزجاج
إطار من الألومنيوم المؤكسد
الإطار
IP-65-67
مربع التقاطع
1016 x 676 mm
القياس
1000V
جهد النظام الأعلى
100 W
القوة الأعلى
18.2 V
جهد الطاقة الأعلى
5.5 A
تيار الطاقة الأعلى
22 V
جهد الدائرة المفتوحة
6 A
تيار الدائرة القصيرة
Product name
Short description
Full description
<div>ürün özellikleri</div><ul><li>Güneş panellerimiz uzun ömürlü olup mono veya polikristal hücrelerden oluşmaktadır.</li><li>Bakım gerektirmeden yüksek verimlilikle ve doğrudan güneş ışığında çalışacak şekilde tasarlanan güneş panelleri, uzun ömürlü temperli cam katmanları ve EVA katmanları arasına sıkıştırılmış bir dizi polikristal veya monokristal hücreden oluşur.</li><li>TPT ve elektriksel olarak bağlı. Güneş panelleri tamamen kapsüllendikten sonra, onlara yapısal dayanıklılık sağlayacak anodize alüminyum çerçeveler takılır.</li><li>Bu sayede panellere kolay montaj sağlanır.</li></ul><div>Teknolojik özellikler:</div><div>Elektriksel özellikler:</div><ul><li>Maksimum güç: 100 watt</li><li>Açık devre voltajı (VOC): 22V</li><li>Kısa devre akımı (ISC): 6 A</li><li>Yükte maksimum voltaj (VPM): 12,8V</li><li>Maksimum yük akımı (IMP): 5,5A</li><li>Maksimum sistem voltajı: 1000V</li></ul><div>Mekanik özellikler:</div><ul><li>Boyutlar: 1016 x 676 mm</li><li>Ağırlık: 9,5 kg</li><li>Cam: 3,2 mm kalınlığında düşük demirle sertleştirilmiş cam</li><li>Çerçeve: Eloksallı alüminyum çerçeve</li><li>Hücre: Çok kristalli hücre 156,75 x 156,75</li><li>Bağlantı kutusu: IP-65-67</li></ul><div>Uygulama kapsamı:</div><ul><li>araba</li><li>Bir kamyon</li><li>Traktör</li><li>Seyyar ev</li><li>Ambulans</li><li>bot</li><li>Jeneratörlerde çalıştırma amaçlı</li></ul><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="164"><col width="224"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Verim"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Verim</td><td data-sheets-value="{"1":2,"2":"% 18,8 A Sinif Hücre"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">% 18,8 A Sinif Hücre</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Ağırlık"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Ağırlık</td><td data-sheets-value="{"1":2,"2":"9.5 kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">9.5 kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Hücre Tipi"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Hücre Tipi</td><td data-sheets-value="{"1":2,"2":"Polykristal Hücre 156,75 x 156,75"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Polykristal Hücre 156,75 x 156,75</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Cam Tipi"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Cam Tipi</td><td data-sheets-value="{"1":2,"2":"3,2 mm Düşük Demirli Temperli Cam"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">3,2 mm Düşük Demirli Temperli Cam</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Çerçeve"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Çerçeve</td><td data-sheets-value="{"1":2,"2":"Eloksal Alüminyum Çerçeve"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">Eloksal Alüminyum Çerçeve</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Bağlantı Kutusu"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Bağlantı Kutusu</td><td data-sheets-value="{"1":2,"2":"IP-65-67"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top;">IP-65-67</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Ölçü"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Ölçü</td><td data-sheets-value="{"1":2,"2":"1016 x 676 mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1016 x 676 mm</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Sistem Voltaji"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Max. Sistem Voltaji</td><td data-sheets-value="{"1":2,"2":"1000V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">1000V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Güç"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Max. Güç</td><td data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Güç Voltaji"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Max. Güç Voltaji</td><td data-sheets-value="{"1":2,"2":"18.2 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">18.2 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Max. Güç Akımı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Max. Güç Akımı</td><td data-sheets-value="{"1":2,"2":"5.5 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">5.5 A</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Açık Devre Voltaji"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Açık Devre Voltaji</td><td data-sheets-value="{"1":2,"2":"22 V"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom;">22 V</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Kısa Devre Akımı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; white-space: normal; overflow-wrap: break-word; text-align: center;">Kısa Devre Akımı</td><td data-sheets-value="{"1":2,"2":"6 A"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-size: 9pt; white-space: normal; overflow-wrap: break-word;">6 A</td></tr></tbody></table>
ürün özellikleri
Güneş panellerimiz uzun ömürlü olup mono veya polikristal hücrelerden oluşmaktadır.
Bakım gerektirmeden yüksek verimlilikle ve doğrudan güneş ışığında çalışacak şekilde tasarlanan güneş panelleri, uzun ömürlü temperli cam katmanları ve EVA katmanları arasına sıkıştırılmış bir dizi polikristal veya monokristal hücreden oluşur.
TPT ve elektriksel olarak bağlı. Güneş panelleri tamamen kapsüllendikten sonra, onlara yapısal dayanıklılık sağlayacak anodize alüminyum çerçeveler takılır.
Bu sayede panellere kolay montaj sağlanır.
Teknolojik özellikler:
Elektriksel özellikler:
Maksimum güç: 100 watt
Açık devre voltajı (VOC): 22V
Kısa devre akımı (ISC): 6 A
Yükte maksimum voltaj (VPM): 12,8V
Maksimum yük akımı (IMP): 5,5A
Maksimum sistem voltajı: 1000V
Mekanik özellikler:
Boyutlar: 1016 x 676 mm
Ağırlık: 9,5 kg
Cam: 3,2 mm kalınlığında düşük demirle sertleştirilmiş cam
Çerçeve: Eloksallı alüminyum çerçeve
Hücre: Çok kristalli hücre 156,75 x 156,75
Bağlantı kutusu: IP-65-67
Uygulama kapsamı:
araba
Bir kamyon
Traktör
Seyyar ev
Ambulans
bot
Jeneratörlerde çalıştırma amaçlı
Verim
% 18,8 A Sinif Hücre
Ağırlık
9.5 kg
Hücre Tipi
Polykristal Hücre 156,75 x 156,75
Cam Tipi
3,2 mm Düşük Demirli Temperli Cam
Çerçeve
Eloksal Alüminyum Çerçeve
Bağlantı Kutusu
IP-65-67
Ölçü
1016 x 676 mm
Max. Sistem Voltaji
1000V
Max. Güç
100 W
Max. Güç Voltaji
18.2 V
Max. Güç Akımı
5.5 A
Açık Devre Voltaji
22 V
Kısa Devre Akımı
6 A
