Description
- Very convenient thanks to its operating model which you can open and close horizontally or vertically.
- Thanks to its working form, you can easily use it on windows and doors.

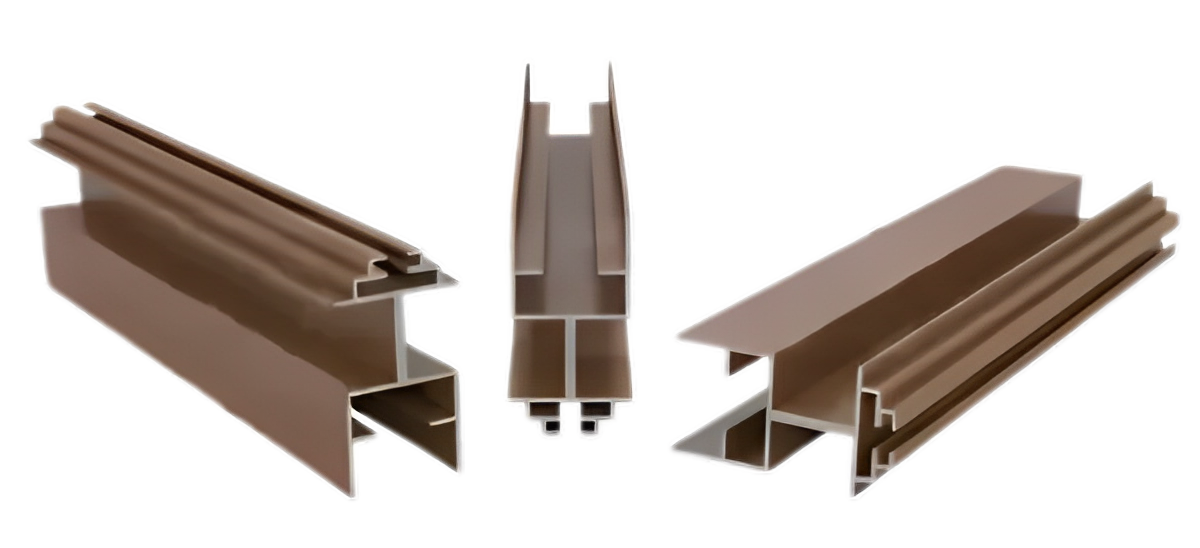

- High quality aluminum is used
- The tulle will not be torn, removed or punctured during use.
- Flies and other pests cannot pass through mosquito nets or tulle.
- It has a very elegant design.

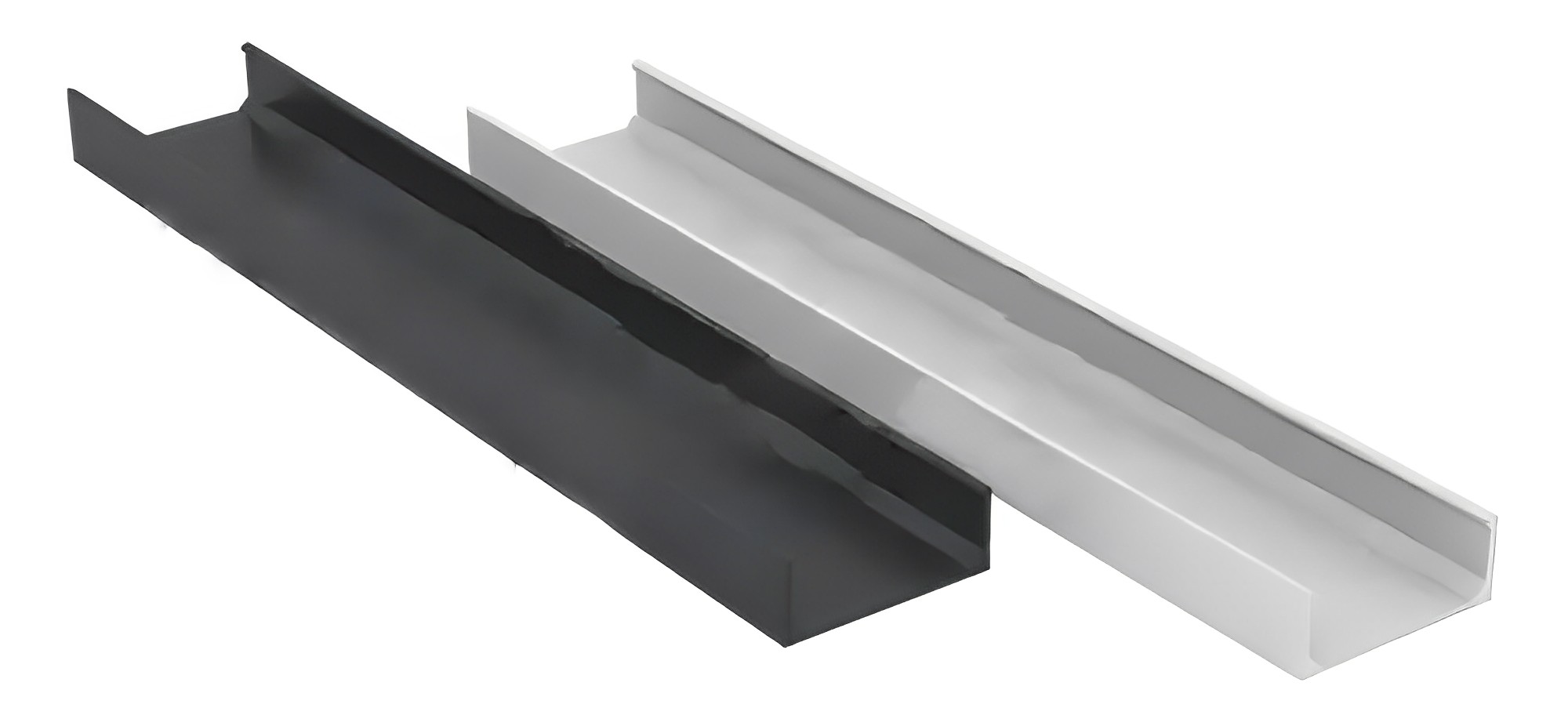

- Fixing piece: It is generally used in door grilles. It is not deformed due to its solid feature, ensuring long time use. It is ideal for use
- in public areas such as garden and balcony exits.
- There are 3 color options: white, gray and oxide.
- Fixing piece: It is the piece that allows the folded tulle to move thanks to the wheel attachments attached to the head parts that are
- compatible with the net. Thanks to its special design, it locks the tulle inside and ensures the longevity of the tulle.

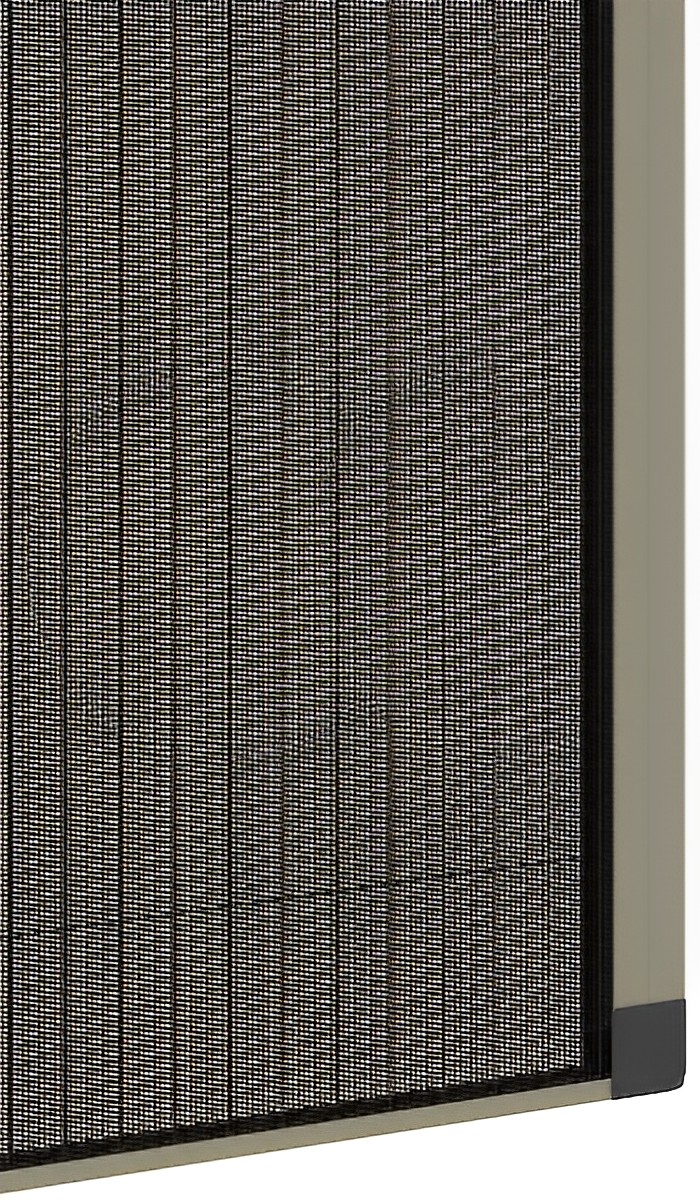

- 17 and 19 mm folded mesh
- Fabric structure: pleated
- Colour: grey-black
- Warp yarn diameter: 0.3+||-0.02mm
- Finishing density (ends||inch) warp: 18
- Area weight (g||m2): 70 g||m2: +||-5 g||m2
- Composition: polyester
- Breaking strength (N||25mm) Stap: >180 : >160
- Standard(m): from 2m||2.2m||2.4m||2.7m||3m
- Standard piece length (m): from 26m: +||- 1m
- Heat resistance: -10° ||+50°
- Piece Length: Available upon request

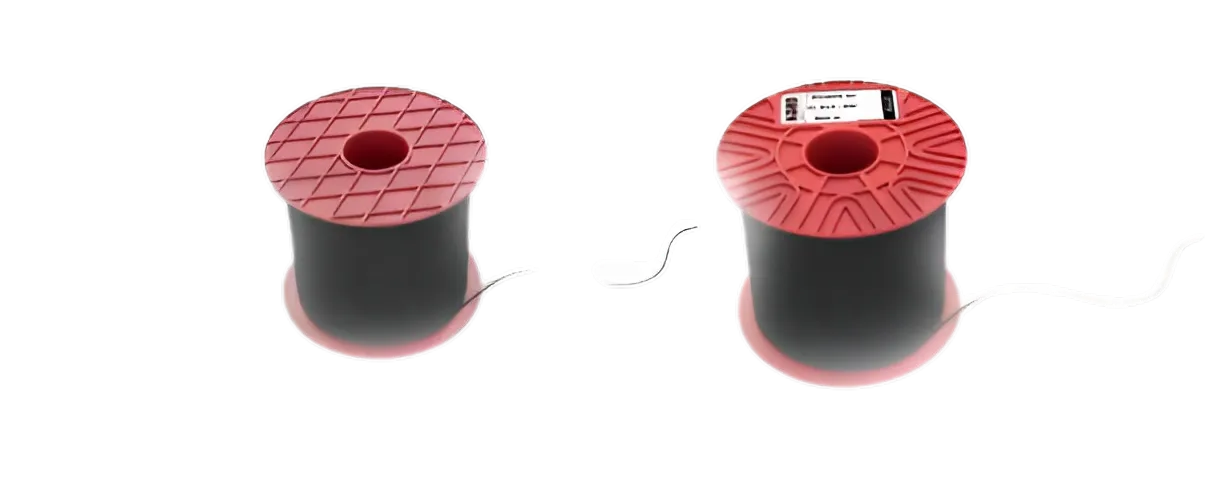

- 19mm PVC tape
- The PVC folded tape is glued to the mesh tulle and provides the connection between the tulle and the aluminum.
- The most important feature of this product is that it is made of heat-resistant PVC. The double-sided tape on it does not lose its properties in outdoor weather conditions,

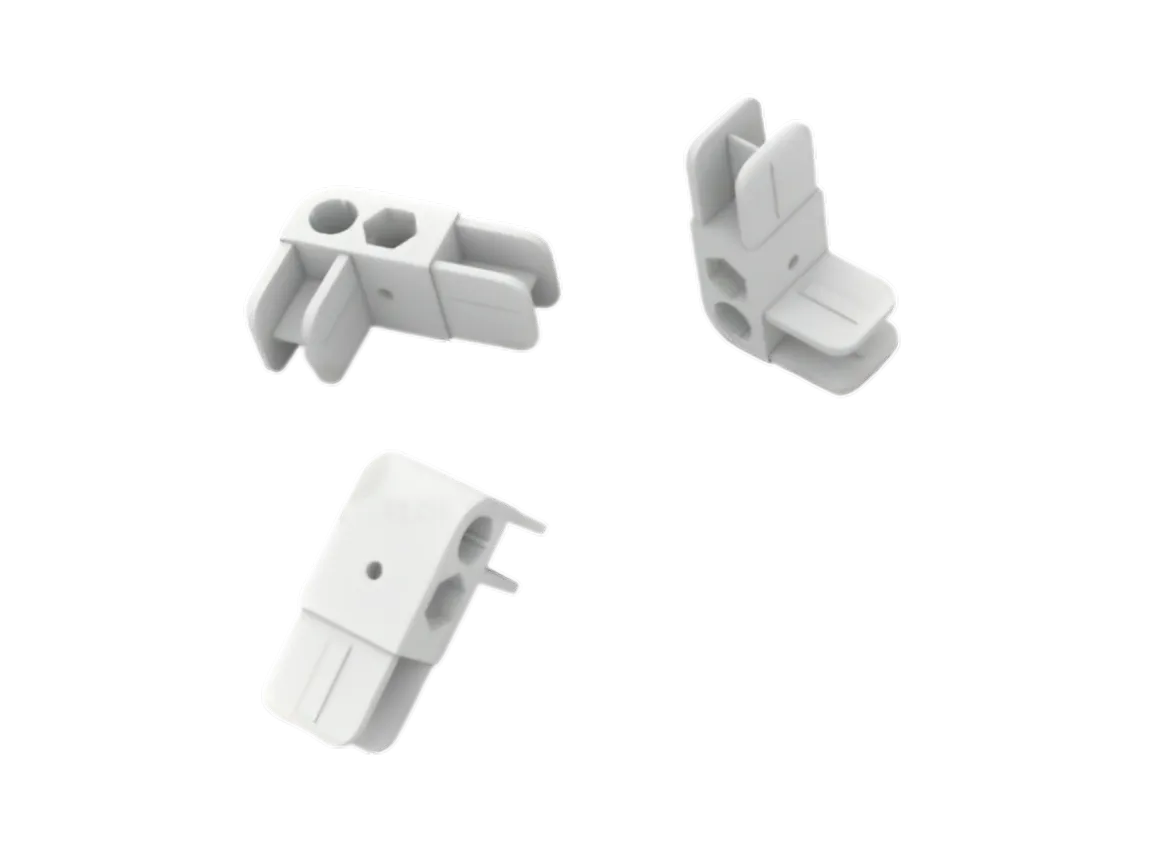

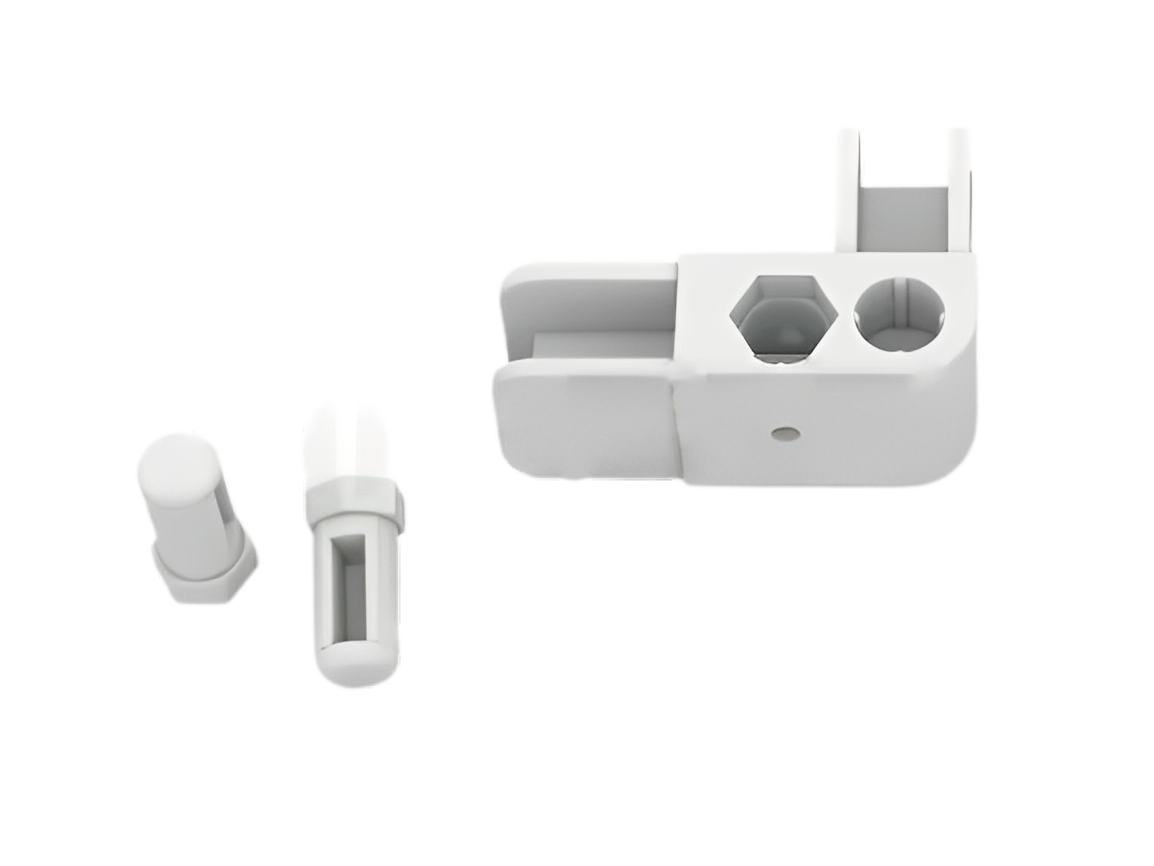

- Corner wedge
- It is produced using the original Mobelin raw material used to join the horizontal and vertical case profile sections.

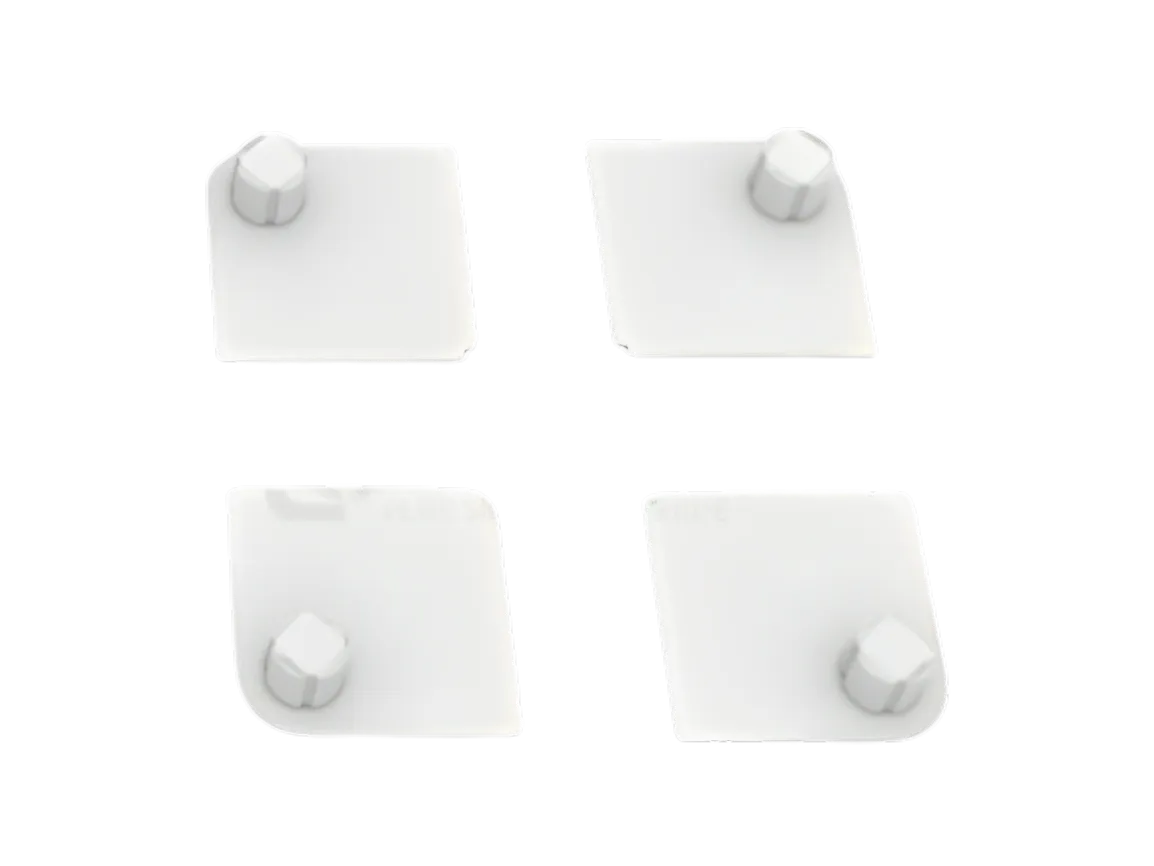

- Corner covers
- It is used to cover screw holes for corner attachments at the end of the assembly and provides an aesthetic appearance.

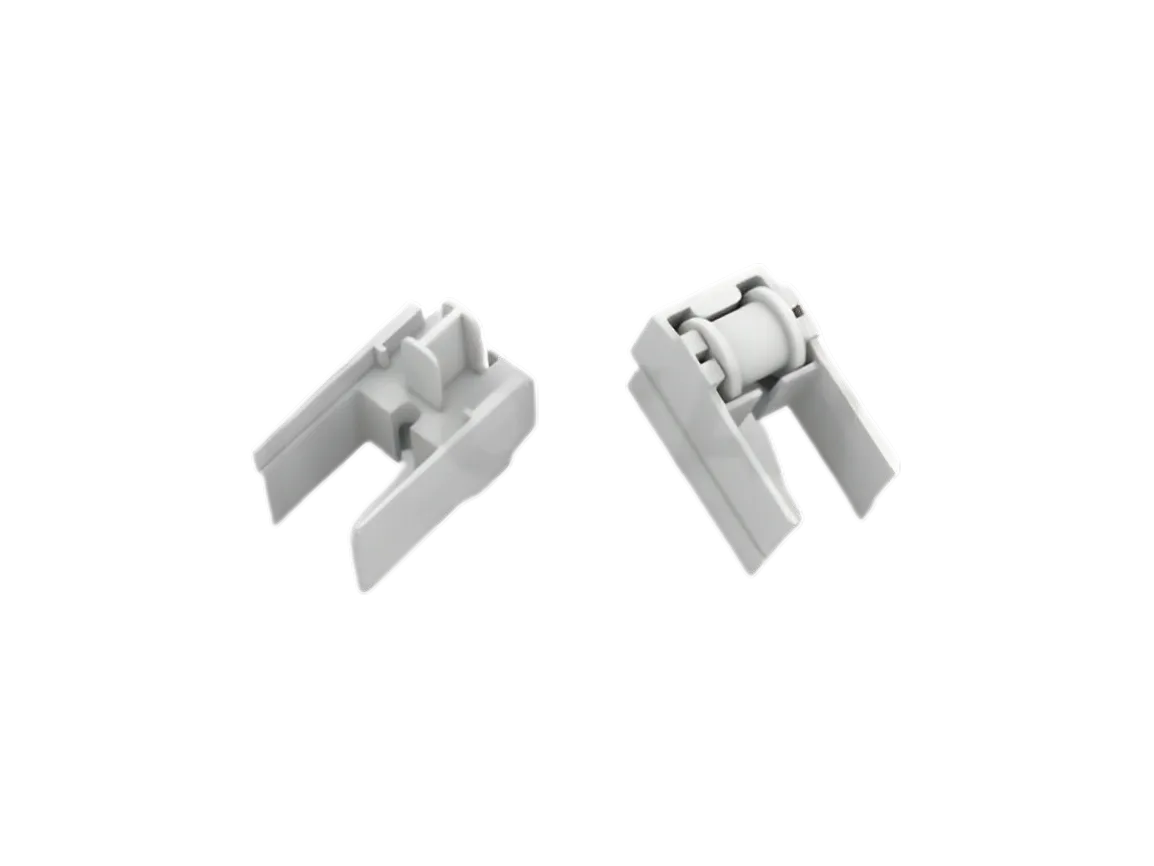

- wheel bearing
- It is used in the head parts of the wing shape used horizontally and vertically in the system. It is a plastic injection product that allows
- easy opening and closing thanks to the compact raw material and iron pin system it contains. section
- It is a plastic injection product that can be easily disassembled and installed, and is used in window frames and window sashes.
- Pin combination
- The lock pin, which provides pressure to the folded screen wire rope passing through the central point of the corner wedge used in a combination of vertical and horizontal profiles, thanks to the vertical protrusions used around it, is a plastic injection product made using special printing technology and original raw materials.
- Network fixing rope
- The mesh ropes, which are one of the most important components of flying screen systems, undergo numerous finishing processes to ensure the mechanism operates smoothly.
- In order to prevent deformation of the tulle system during use, it is subjected to heat treatment, which reduces its elongation and increases its resistance to friction.

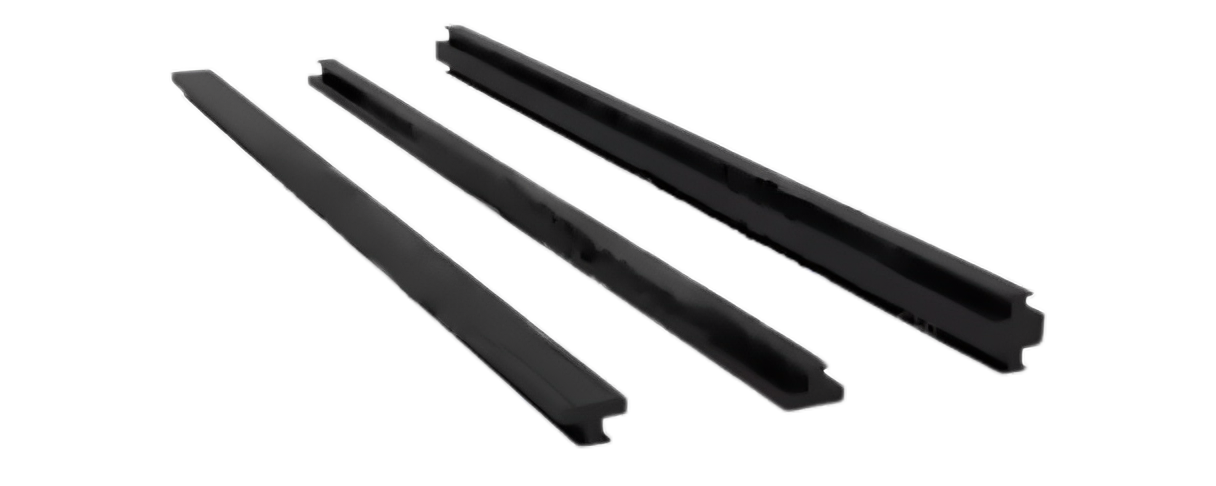

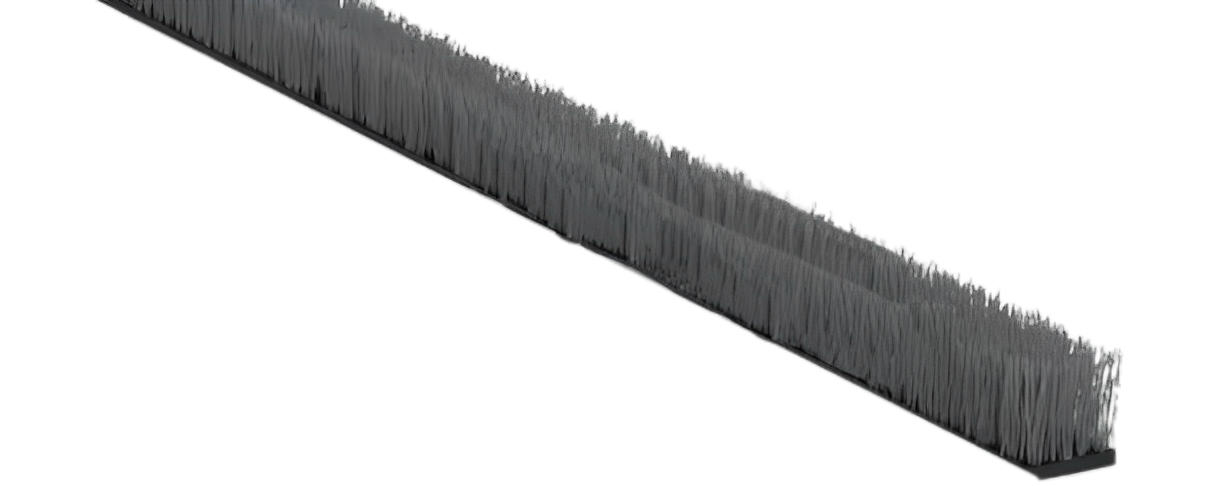

- Bristle wick
- It is used to close the special gap used for the magnetic part of the mounting clips used in the standard grille of doors and windows. They
- provide a beautiful appearance and prevent dust and contamination that may occur on the grille

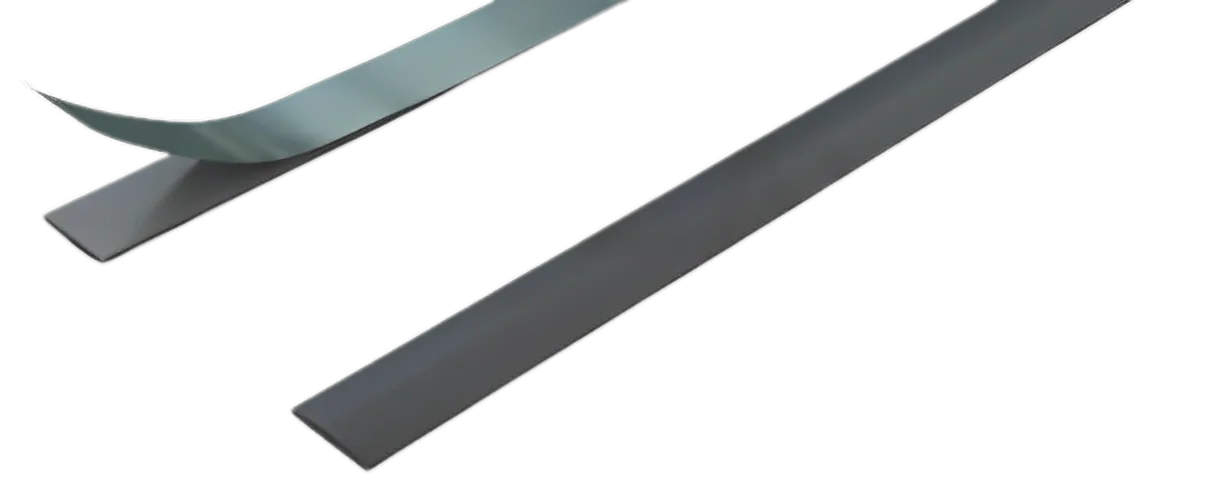

- Magnet fuse
- Flat and triangle magnets; It provides ease of use, and double-sided wings are used. Magnets are used to combine the two wings, and are
- connected to the special channel for installation and ensure the operation of the system.
- One of the features of the triple magnet is important in eliminating errors that may occur during production and do not prevent the system from working.

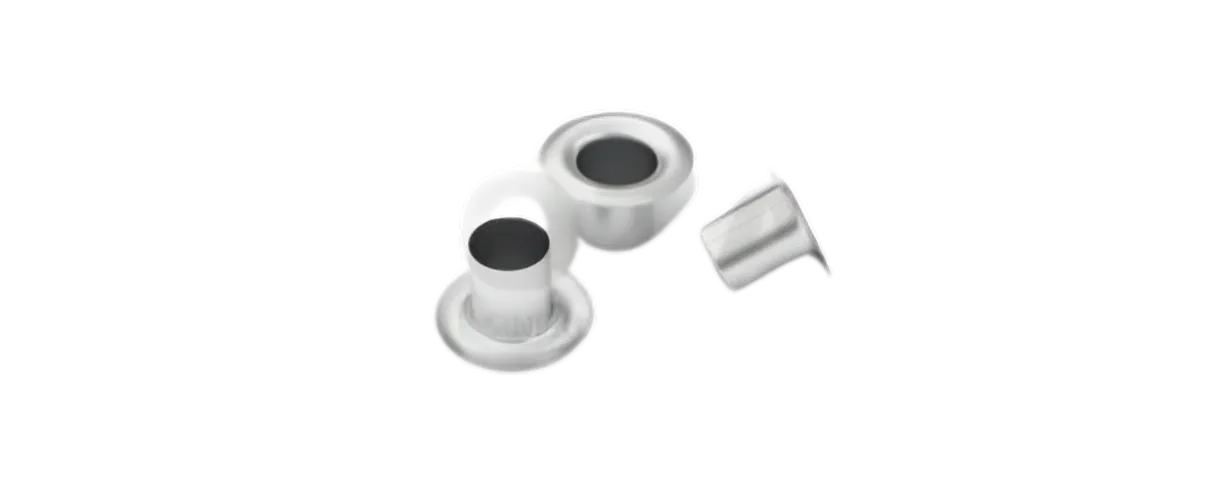

- Fixation capsule
- Specially coated metal capsule that you can use in grilles and curtain products. The product is made of sheet metal and has an aluminum coating.
