Description

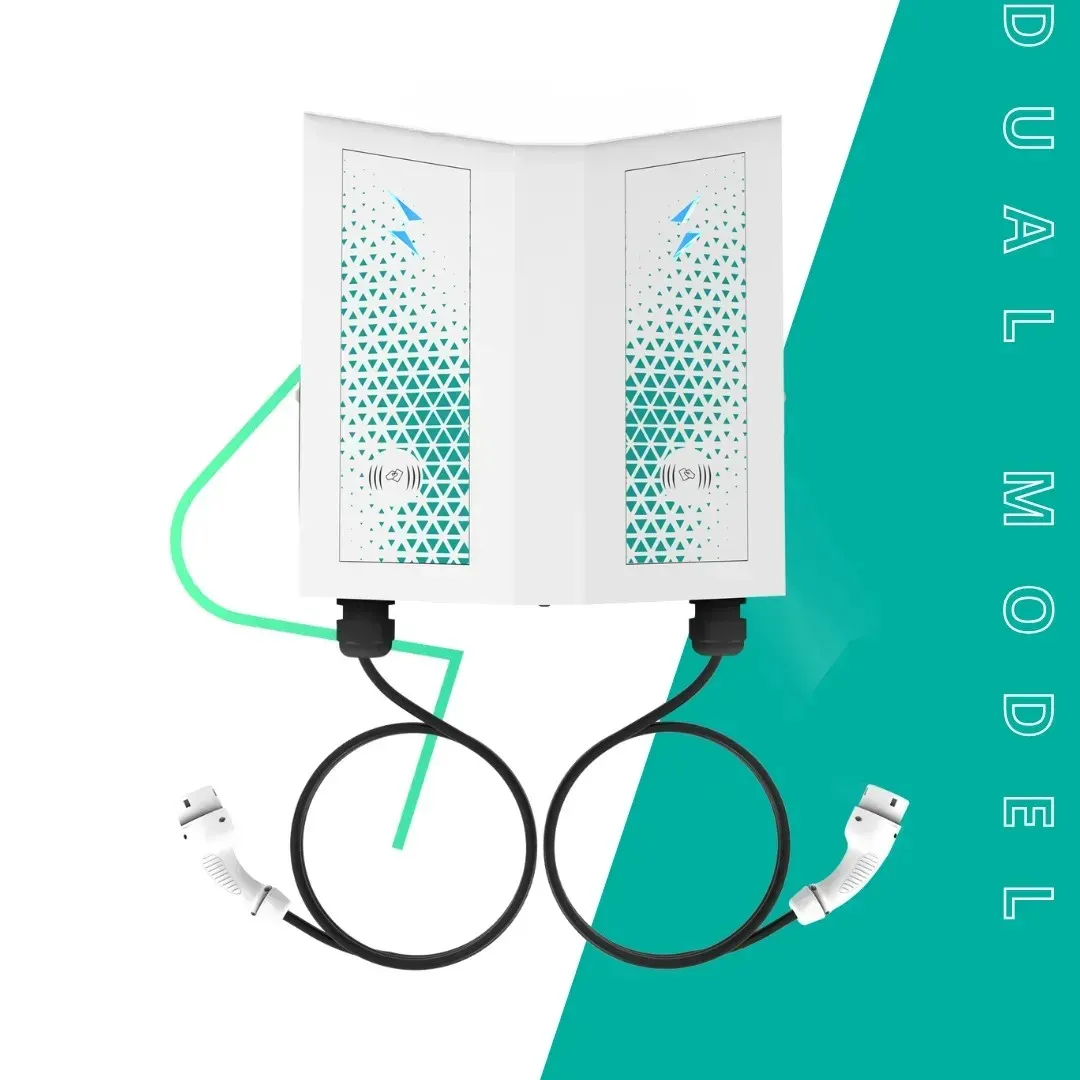

- Dual Basic Model AC charging stations offer you safe and smart charging solutions in your business or home.
- The Dual Basic Model is an affordable solution that is compatible with all electric vehicles, offers industrial-level electrical protection,
- suitable for both residential and commercial use.
- This series is user-friendly with its wired dual socket, Wi-Fi interface and easy wall or floor mounting options.
- Load control: Compatibility with smart building energy systems
- Design: phase 22 kW+ up to 22 kW / 32 A
- Connectivity: Authorization via RFID or app
- Connectors: IEC 62196 Type1 / Type2 Plug with Cable Optional: GB/T
- Technical information:

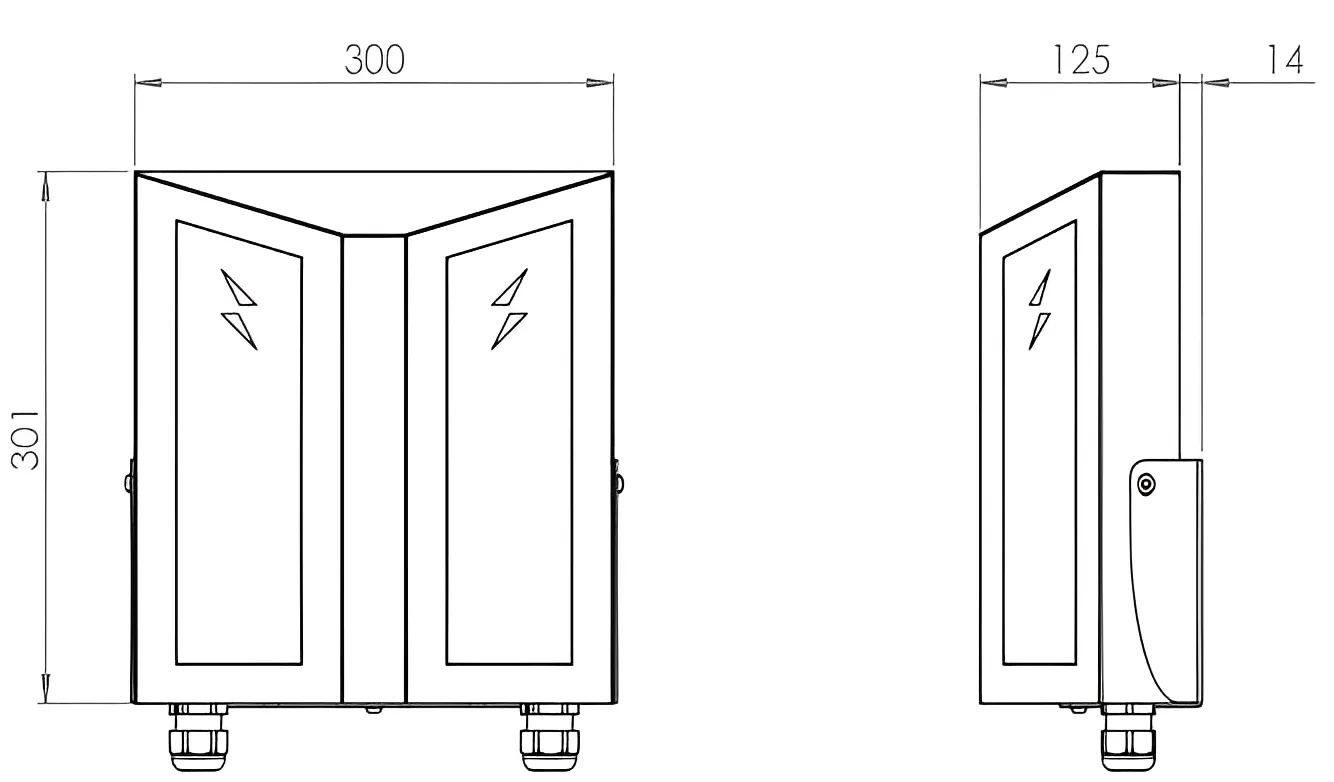

FEATURE CATEGORY PRODUCT FEATURE BASIC 7,4 KW BASIC 11 KW BASIC 22 KW Electrical PropertiesMaximum Power 7,4 kW + 7,4 kW 11 kW + 11 kW 22 kW + 22 kW Voltage Range 230VAC±15% 400VAC ±15% 400VAC±15% Maximum Current 11A+11A * 3FAZ 16A+16A* 3FAZ 32A +32A* 3FAZ Connection Compatibility Ac Type2 Sökel, IEC 62196-1/2 , IEC 61851 -1 - GB/T (Optional) Power Entry Rating 400 Vac ±15% 50/60 Hz, 370A * 3FAZ Connection 3P - N - PE Power Factor >0.98 Productivity >%95 Internal Protection Residual Current Protection Board FeaturesCable Length IEC 62196 Type 1 / Type 2 Plug with Cord Measurement MID Meter (Eichrecht Compatible) (Optional) Materiel Metal Board Degree of Protection IP54 Impact Protection IK10 Cooler Air Cooled Body Dimension 301 x 300 x 125 mm Foot Size 1406 x200 x 120 mm Weight (Net) Net Weight (With Cable): 12 kg Interface & Connection FeaturesScreen - RFID Reader 13.56 MHZ Mifare (Optional) LAN Connection - WLAN Connection 802,11ac Mobile Connection - Environmental FeaturesHeat -35°C to +55°C Moisture 5% - 95% Relative Humidity Altitude 0-4000 m
