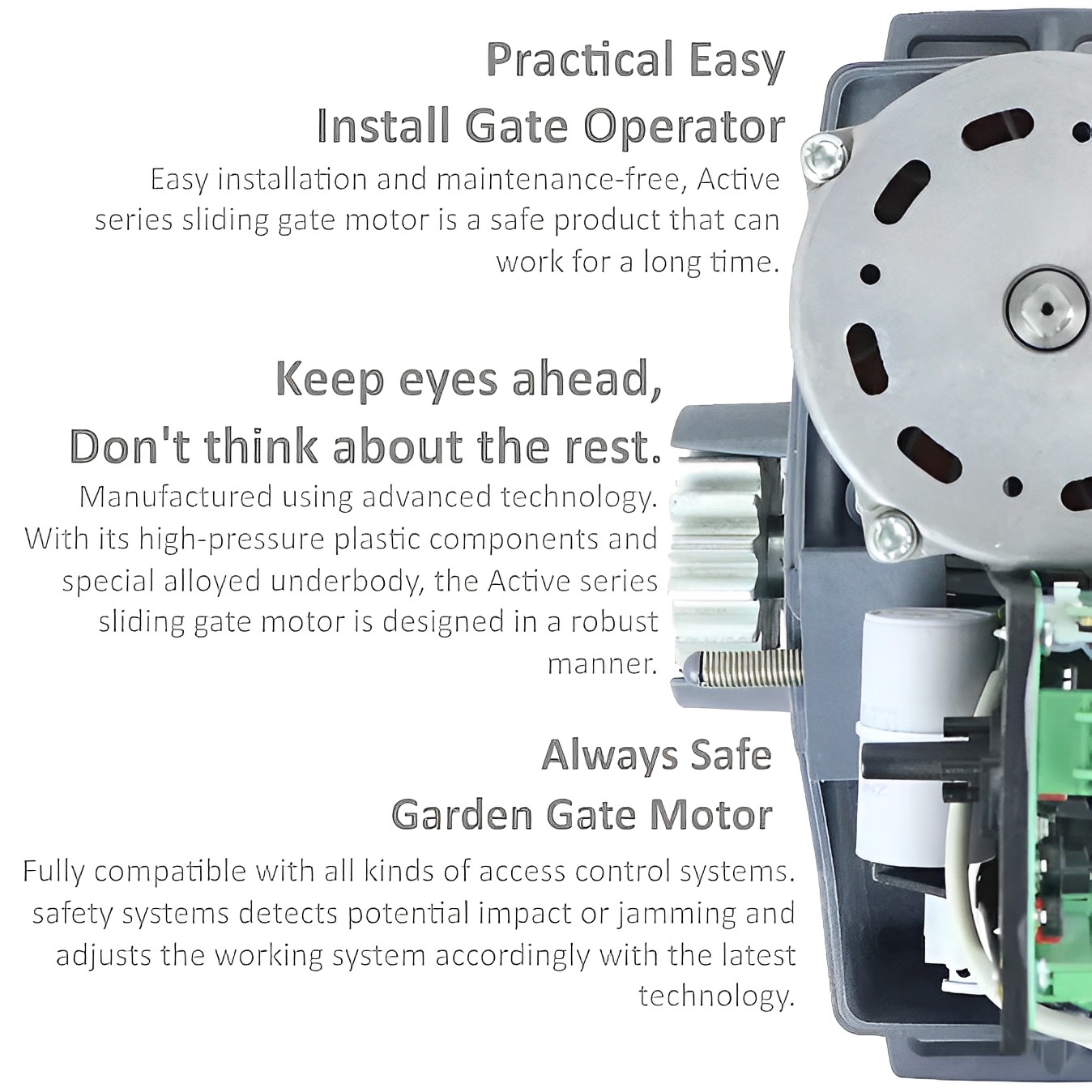

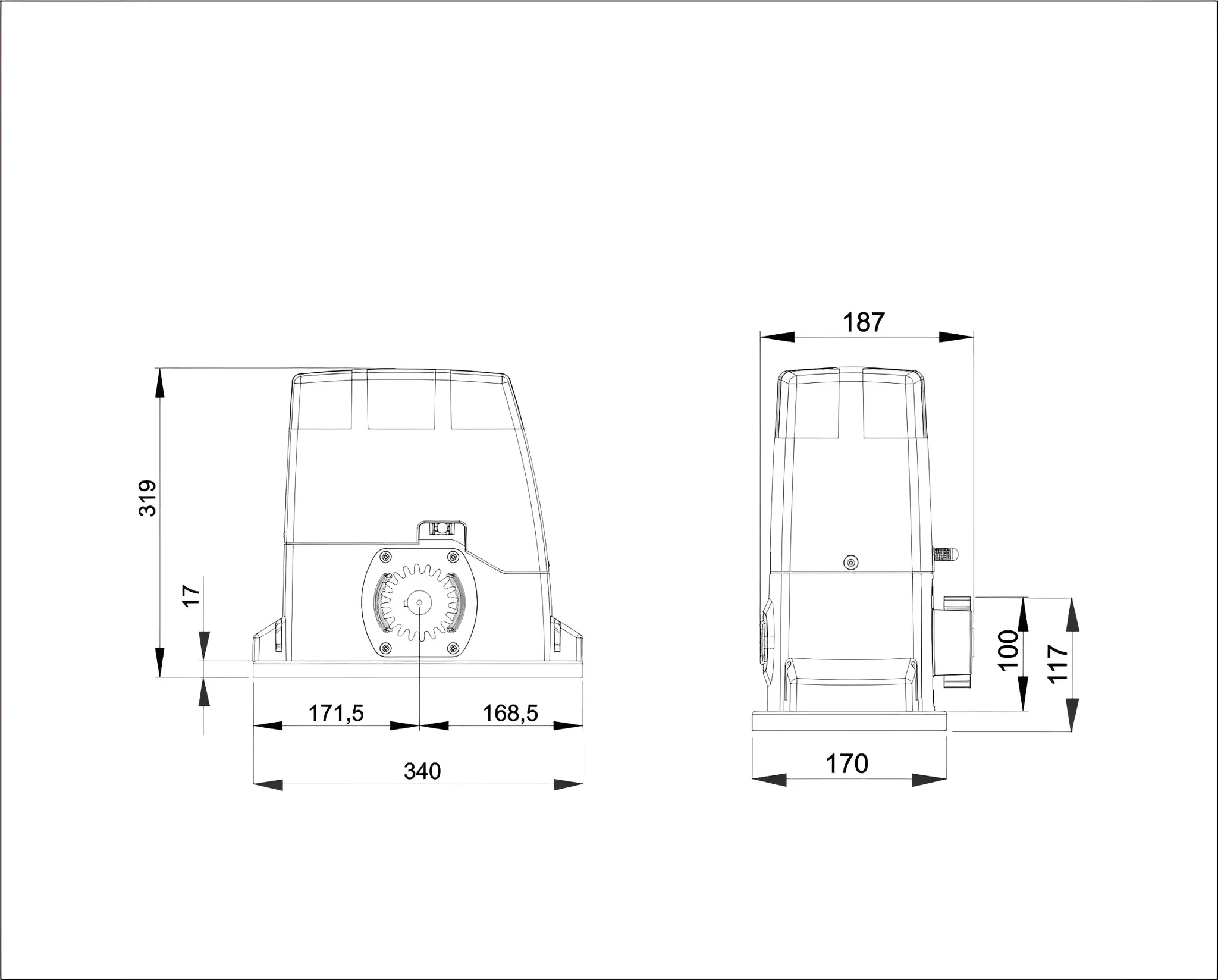

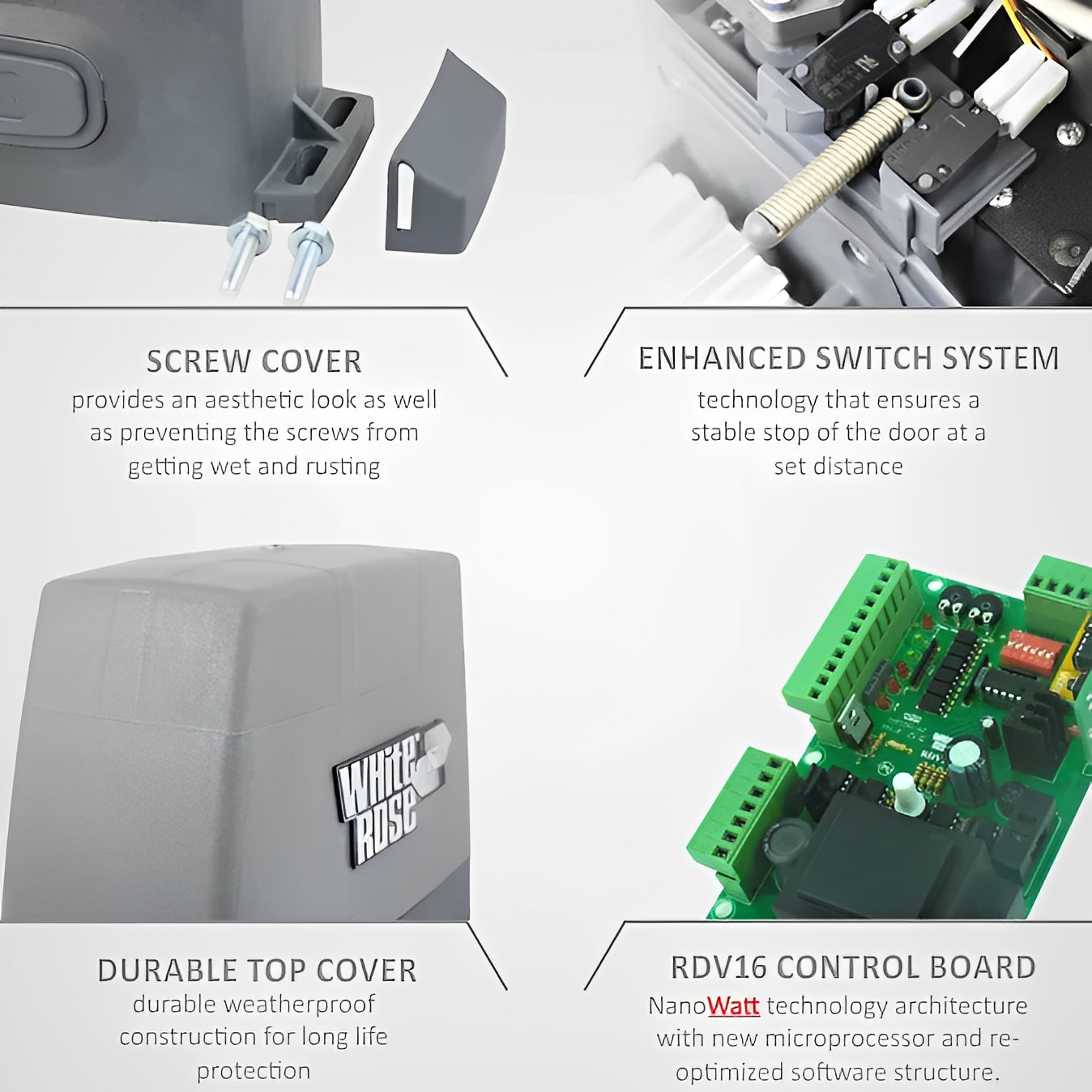

DescriptionReviews Description The engine was produced for ease of installation and no maintenance requiredIt is a safe product that can work for a long time.Manufactured using advanced technologyIt is sturdily designed with high-pressure plastic parts and a special alloy lower body.Product Dimensions: 340 x 319 x 187 inchesTechnical information:TypeAC 600AC 600 SAC 1000DC 400Maximum gate weight600 Kg600 Kg1000 Kg400 KgProtection ratingIP54Power supply230 V 50/60 HzMotor voltage230 V 50/60 Hz24 VControl unitRDV 16 / OHM70HAY 5RDV 16 / OHM71H - TECH 71Current draw1 A2.1 A2 A10 A maxMaximum power280 W500 W550 W380 WOpening time10m / dk20m / dk10m / dk12m / dkMaximum torque58 Nm73 Nm103 Nm40 NmContinuously of operation75 %75 %75 %100 %Pulling power700 N950 N2100 N680 NLimit switch typeElectromechanicalPinion module4 ( Z18 )Pinion rotation speed46rpm92rpm46rpm46rpmSlow DownNot availableAvailableNot availableAvailableManual useWith personal keyWorking temperature70 ° C maxMotor weight9,6 Kg12 Kg12 Kg7,8 Kg Reviews Be the first to review this item There are no reviews yet
