Automatic barrier gate - 25 meters length

Be the first to review this item Items In Box Not Applicable

Order your products and your quote will be sent within 24 hours

Container

Wholesale only Alternate Text

Share this product on social media

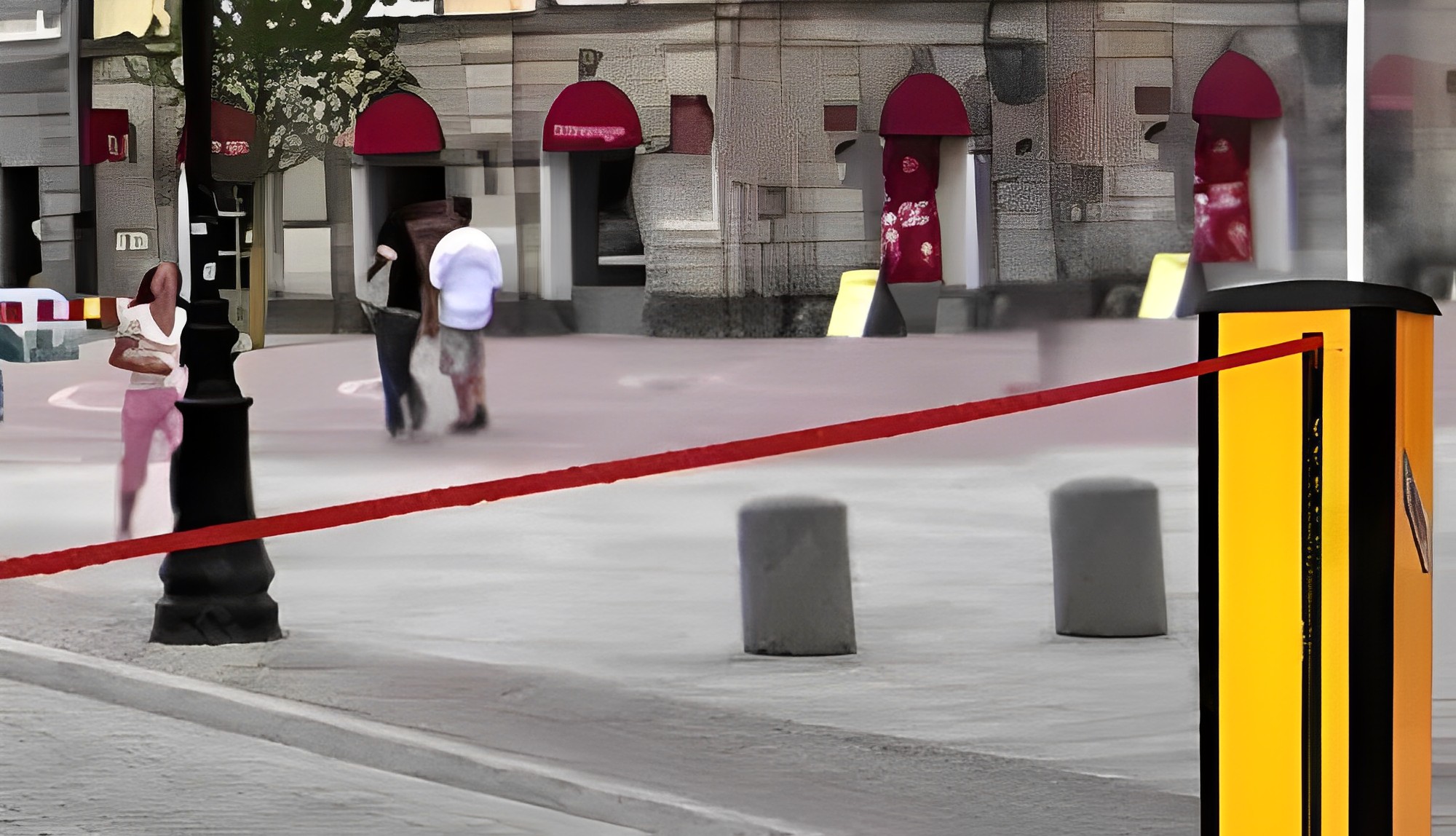

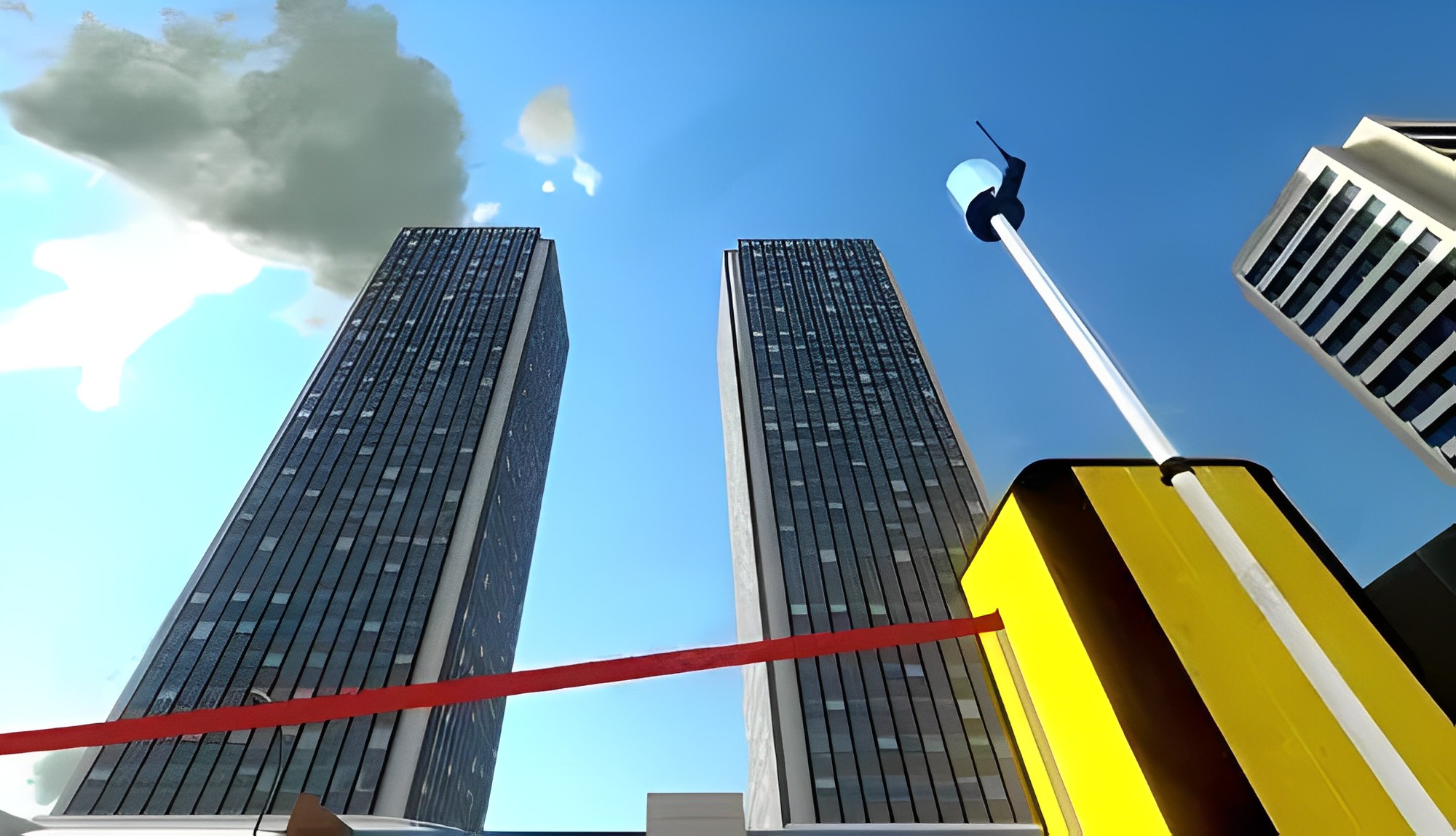

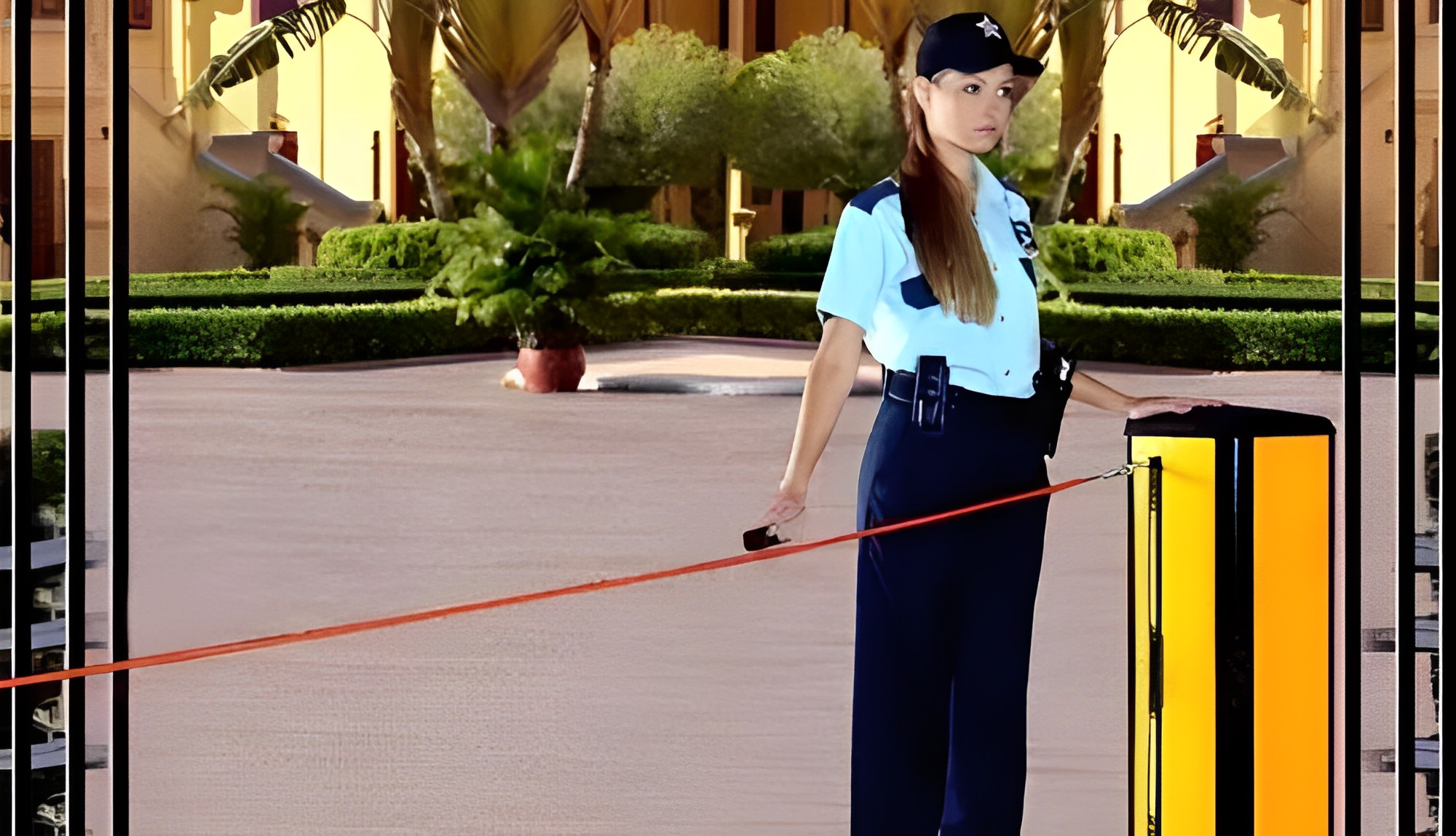

It operates upon tensioning and laying out the rope.
It easily closes an area of 25 meter which is difficult to be closed by other systems.
Preferable in multiple vehicle parking facilities, as it's capable to lift the rope up and down in a very short time.

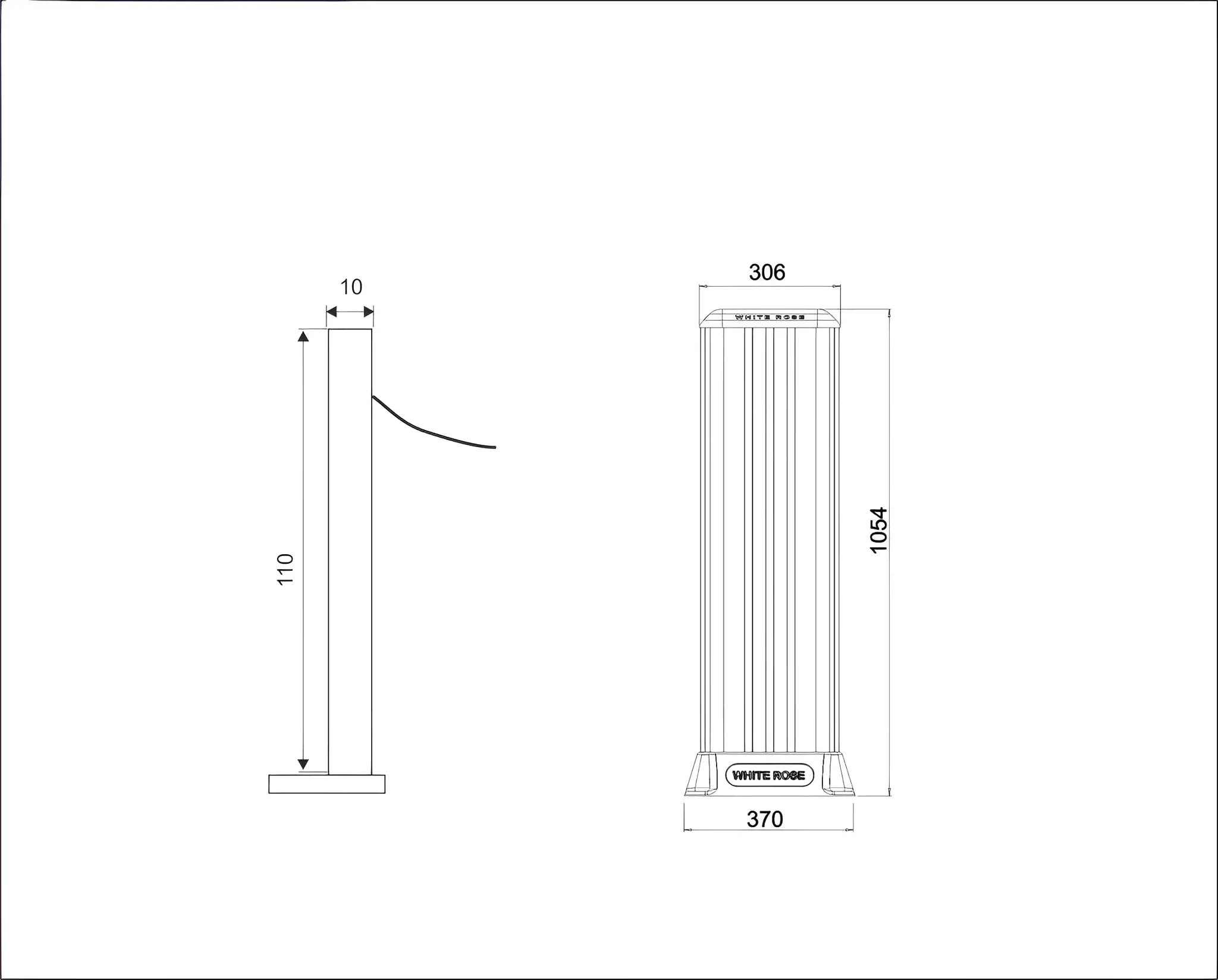

Product Dimensions: 1054 x 370 x 306

Technical information:

Type	LN-25
Maximum chain distance	25mt
Protection rating	IP54
Power supply	230 V 50/60 Hz
Motor voltage	24 V
Control unit	H-TECH 70
Average current	2 A
Maximum power	250 W
Opening time	7sn
Maximum torque	286 Nm
Continuously of operation	100%
Limit switch type	Electromechanical
Impact reaction	Current control regulator
Slow down	Available
Manual use	Switch on Reductor Wireless safety photocell
Safety system Working temperature	-20°C min +70°C max
Chain barrier weight	40 Kg
