Description

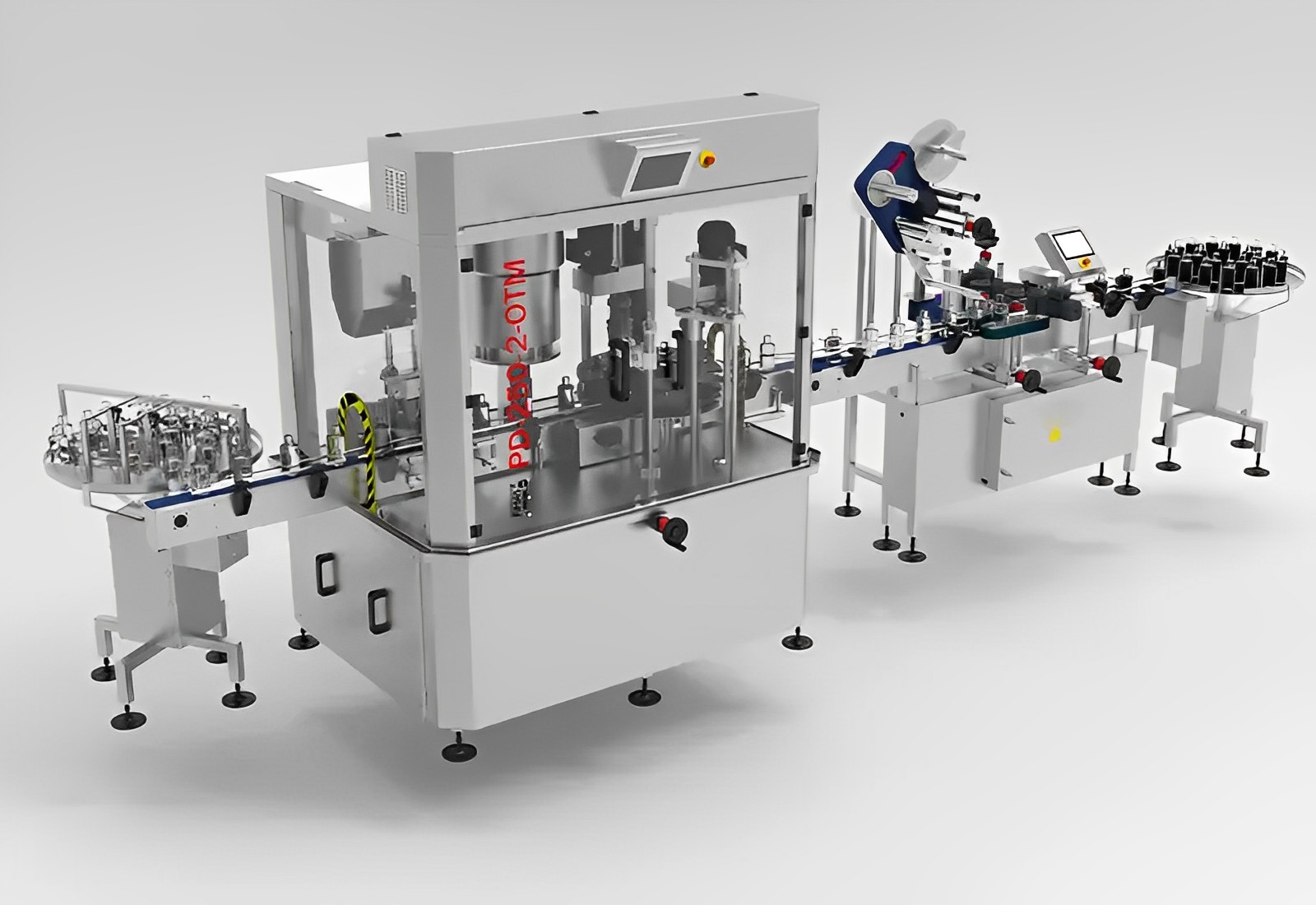

- These are machines designed for filling liquid or semi-liquid products into bottles, jars, cans and drums.
- Packaging system options must match the chemical properties of the product to be packed.
- Packing machines suit a wide production range; Food, medicine, beverage, chemistry, paint, cosmetics, cleaning products, disinfectants, etc.
- Volumetric fillers for liquid water consistency products, servo-driven in semi-liquid products where product density is high or rapid filling is required, weight-based filling system (load cell) in fillers where precision is required in filling large volumes, and flow meter fillers in drum fillers The can holds between 5-1000 liters of semi-fluid liquid and is used for filling liquids that require high speed.
- The vacuum filling system can only be used with water-based liquid and foam products.
- The system works by sucking in the air in the bottle and allowing the product to flow with atmospheric pressure to the area being vacuumed, where turbulence in the bottle is prevented and the product is prevented from foaming even if it has been vacuumed.
- Another advantage of the system is that all bottles are filled evenly.
- Although the internal volumes of the bottles are different, the product levels inside are the same.
- Any excess in any bottle is sucked out by the suction nozzle and returned to the filling tank.
- It can be used on plastic and glass bottles.
- It is produced entirely from PVC coating and titanium alloy in products, and entirely from stainless steel in products such as food and beverage.
- Filling volumes are adjusted by adjusting the position of the pistons up or down.
- All filling speeds and settings are controlled via the touch screen.
- The filling range is 5-50ml, 10-100ml, 100-1000ml, 500-5000ml.
- It can also be produced according to medium packing quantities.
- Double packing option can be added.
- It is used to fill 1000-5000 bottles per hour.
- Maximum filling accuracy 0.5%.
- Made entirely of rust-resistant material.
- Trouble detection and warning systems are available on the display: low air pressure, sensor failure, other system faults, etc.
- It works based on weight.
- Depending on the chemical properties of the product, it is directed to the product filling nozzles directly from the production tank with a pump or by placing a boiler in the machine.
- It can be designed to be used for case filling from 5 to 30kg, drum filling from 50 to 250kg, and tank filling from 200 to 1200kg.
- It weighs 20 grams at low filling speeds and 50 grams at high filling speeds.
- The first 95% of the product is filled quickly, and the last 5% is filled slowly.
- The filling quantity can be adjusted on the screen and saved.
- It is a filling system based on counting the product with flow meters as it flows through hoses and pipes.
- The machine is easy to clean, has a wide range of products in terms of taste and smell, and can be easily switched from one product to another.
- It is suitable for products that require quick filling.
- Filling accuracy: max. 0.3% motor oil, flavored beverages, dairy products, oils, etc.
- The filling quantity ranges between 3000-5000 per hour.
