Description
- Product features :
- Agm batteries are dry batteries. And it is safe to use. Batteries convert electrical energy into chemical energy. The internal structure of
- these batteries is different from flooded batteries. It stores itself by charging method. They have lower electrical resistance. There is
- also lower acid stratification compared to flooded batteries. It has a high gas efficiency rate. And it has a lower acidity than others.
- Another feature of Agm batteries is their high power density. Its use is also more flexible. It is long lasting. It is used in many areas.
- It can be easily used especially in uninterruptible power supplies and telecommunication systems. These batteries do not leak acid. It is
- also safe because it has almost no gas emissions.
- Technological Features:
- This can be said for Agm batteries, especially VRLA batteries whose electrolyte is impregnated with separators. It is used in many places
- and is generally used in vehicles. Many things in the vehicle function thanks to the battery. And it is a very cheap method of providing
- uninterrupted energy. Agm batteries can be used especially in vehicles. These batteries are preferred because they are both easy to use and
- cheaper. They are placed inside uninterruptible power supplies. In some cases, when the efficiency of the UPS source increases and the
- battery grows, the battery is placed outside in a separate place and connected to the UPS devices. Battery life is generally 5 years. The
- important thing here is how much heat it is exposed to.
- Scope of application :
- Car
- Truck
- Tractor
- Caravan
- Ambulance
- Boat
- For Starting Purposes in Generators

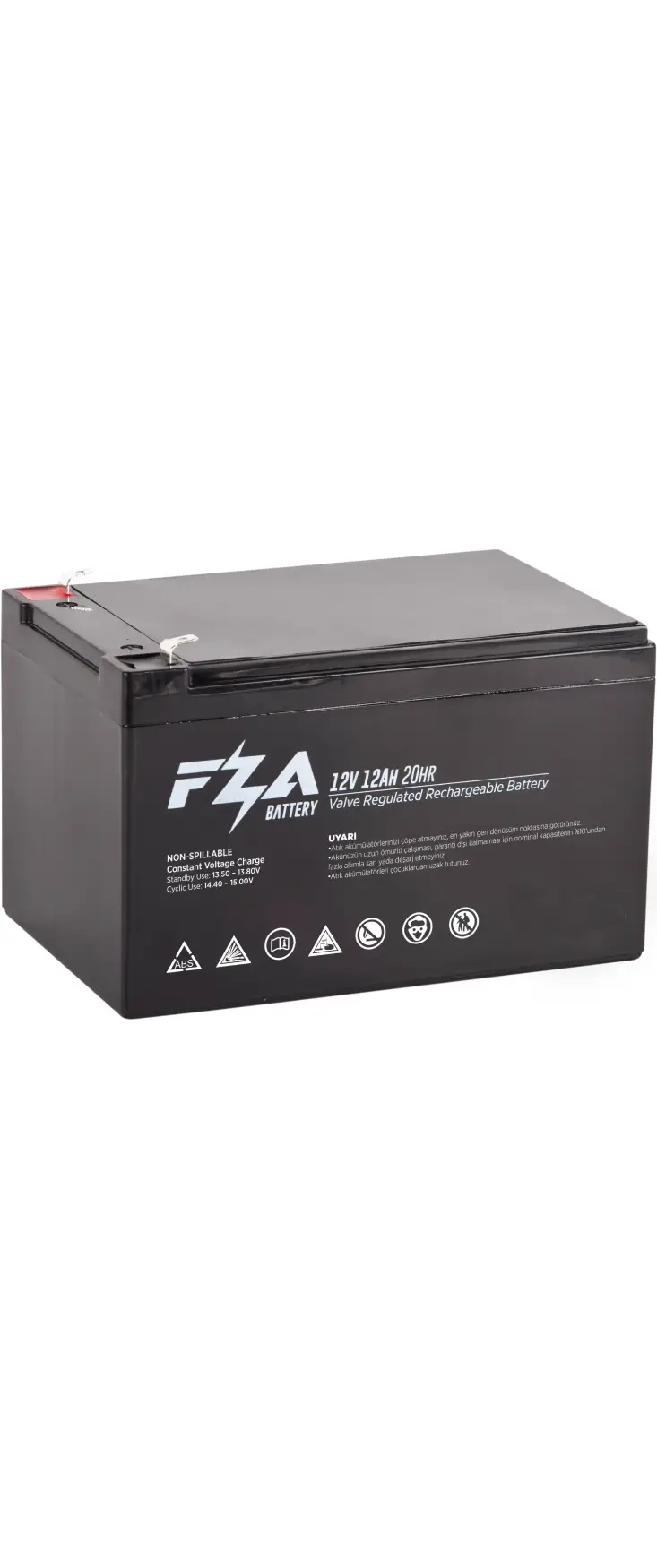

Part Number: FZA 12-12 Length: 151 ±2mm( 5.95 inches) Width: 98 12 mm ( 3.85 inches) Container Height: 95 ±2 mm ( 3.74 inches) Total Height (with terminal): 101 ±2mm( 3.98 inches) Approx Weight: Approx 3.30 kg (7.94lbs) Nominal Voltage 12V Nominal Capacity (20HR) 12AH Terminal TypeStandard Terminal F1 Optional Terminal F2 Container MaterialStandard Option ABS Flame Retardant Option (FR) ABS (UL94 VO) Rated Capacity12 0AH/0 60A (20hr. 1 80V/cetl. 25'C / 77’F) 112AH/1 12A (lOhr. 1 80V/cell. 25’C/77’F) 1O2AH/2O4A (5hr. 1 75V/ceB. 25'C / 77’F) 9 2AH/3 06A (3hr. 1 75V/ceB. 25'C / 77’F) 7 54AH/7 54A (1hr. 1.60V/cei. 25’C/7FF) Max Discharge Current 180A(5s) Internal Resistance Approx 14mQ Discharge CharacteristicsOperating Temp. RangeDiecharge: -15 ~ 50‘C Charge: 0 - 40°C Storage: -15 - 40'C Nominal Operating Temp. Range 25+3°C (77+5°F ) Cycle Uoe Inital Charging Current less than 3.8A Voltage 14 4V ' 15 OV at 25’C (77’F) Temp Coefficient -30mVfC Standby Use No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77’F) Temp Coefficient -20mVfC Capacity affect by Temperature40‘C 103% 25"C 100% 0'C 86% Design Floating Life at 20°C 5 Years
