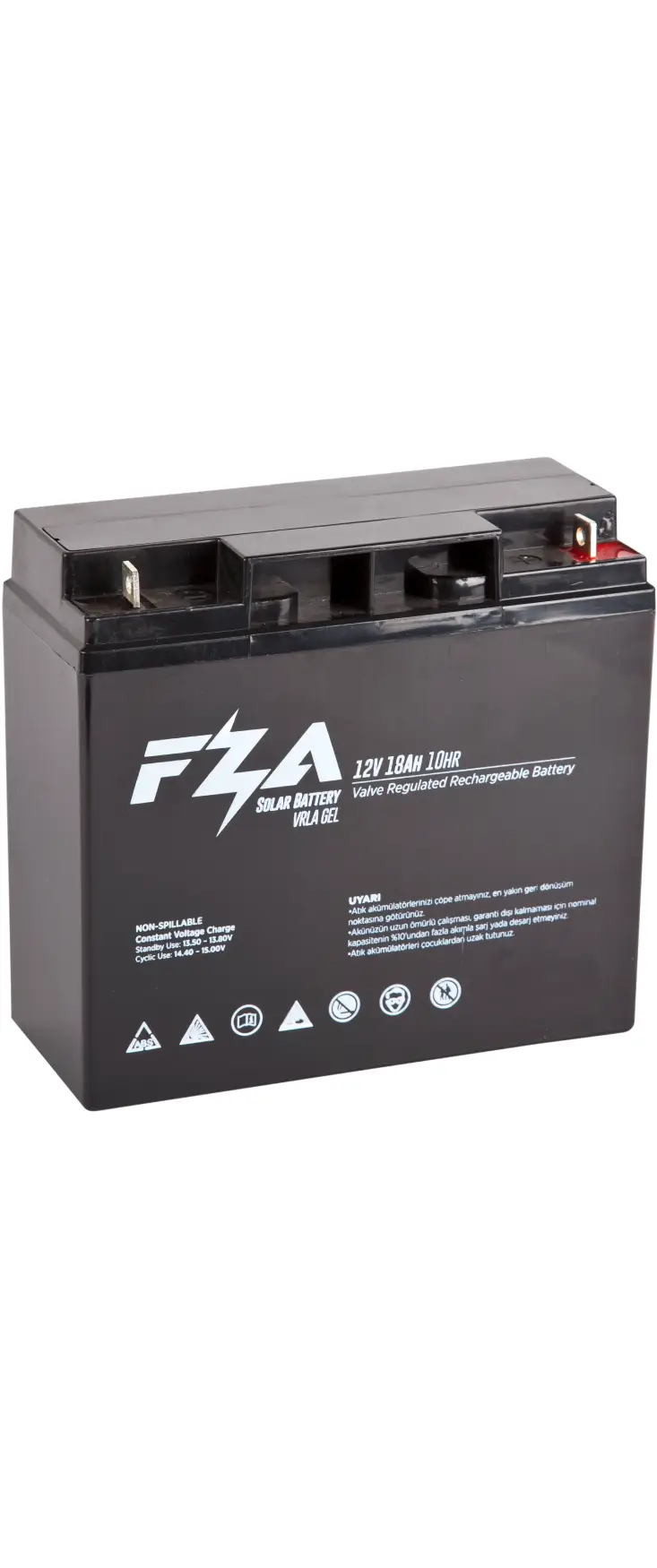

Dry batteries for power and cars 12V 18AH

Be the first to review this item Items In Box Not Applicable

Order your products and your quote will be sent within 24 hours

Unit

Wholesale only Alternate Text

Share this product on social media

product specification :

Agm batteries are dry batteries. It is safe to use.
Batteries convert electrical energy into chemical energy.
The internal structure of these batteries is different from flooded batteries.
It stores itself by charging method.
They have lower electrical resistance.
There is also less acid layer compared to flooded batteries.
It has a high gas efficiency rate. It has less acidity than others.
Another advantage of Agm batteries is their high energy density. Also
Its use is more flexible. It's long lasting.
It is used in many fields.
It can be easily used especially in uninterruptible power supplies and telecommunication systems.
There is no acid leakage in these batteries. They are also safe because they emit almost no gas emissions.
Technological features:
This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated. It is used in many places and is used in many ways
General in vehicles.
Many things in the car work thanks to the battery. It is a very cheap way to provide uninterrupted energy.
Agm batteries can be used especially in vehicles.
These batteries are preferred because they are easy to use and cheaper.
They are placed inside uninterruptible power supplies.
In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.
Battery life is generally 5 years.
The important thing here is the amount of heat it is exposed to.

Scope of application:

	Nominal Voltage	12V
	Nominal Capacity (10HR)	18 AH
Terminal Type	Standard Terminal	F3
Container Material	Standard Option	ABS
Container Material	Flame Retardant Option (FR)	UL94-V0
Rated Capacity	18 0AH/0 90A	(20hr,1 80V/cell 25’C/77'F)
	16 7AH/1 67A	(10hr.1.80V/cell. 25"C/7FF)
	15.3AH/3 06A	(5hr,1 75V/ce1l, 25*C / 77“F)
	13.8AH/4 59A 11 3AH/11 3A	(3hr.1.75V/cell.25vC/77-F) (1hr,1 60V/cell,25'C/77BF)
Max Discharge Current	270A (5s>
Internal Resistance	Approx 16mD
Discharge Characteristics	Operating Temp. Range	Discharge: -15 - 50’C
		Charge: 0 - 40’C
		Storage: -15-40’C
	Nominal Operating Temp Range	25 t 3’C
	Cycle Use	Initial Charging Current less than 3.9A Voltage 14,4V - 15.0V Temp Coefficient -30mV/’C
	Standby Use	No limit on Initial Charging Current Voltage 13.5V - 13.8V Temp Coefficient -20mV/’C
	Capacity affect by Temperature	40‘C 103%
		25’C 100%
		0’C 86%
Design Floating Life at 20*C	5Years

There are no reviews yet
