Description
- product specification :
- Agm batteries are dry batteries. It is safe to use.
- Batteries convert electrical energy into chemical energy.
- The internal structure of these batteries is different from flooded batteries
- It stores itself by charging method.
- They have lower electrical resistance.
- There is also less acid layer compared to flooded batteries.
- It has a high gas efficiency rate. It has less acidity than others.
- Another advantage of Agm batteries is their high energy density.
- Its use is also more flexible. It's long lasting.
- It is used in many fields.
- It can be easily used especially in uninterruptible power supplies and telecommunication systems.
- There is no acid leakage in these batteries.
- They are also safe because they emit almost no gas emissions.
- Technological features:
- This can be said for Agm batteries, especially VRLA batteries whose electrolytes are separator impregnated.
- It is used in many places and is generally used in vehicles. Many things in the car work thanks to the battery.
- It is a very cheap way to provide uninterrupted energy.
- Agm batteries can be used especially in vehicles.
- These batteries are preferred because they are easy to use and cheaper.
- They are placed inside uninterruptible power supplies.
- In some cases, when the efficiency of the UPS source increases and the battery grows, the battery is placed outside in a separate place and connected to the UPS devices.
- Battery life is generally 5 years.
- The important thing here is the amount of heat it is exposed to.
Scope of application:
- car
- a truck
- Mobile home farm tractor
- Ambulance
- boat
- For operating purposes in generators

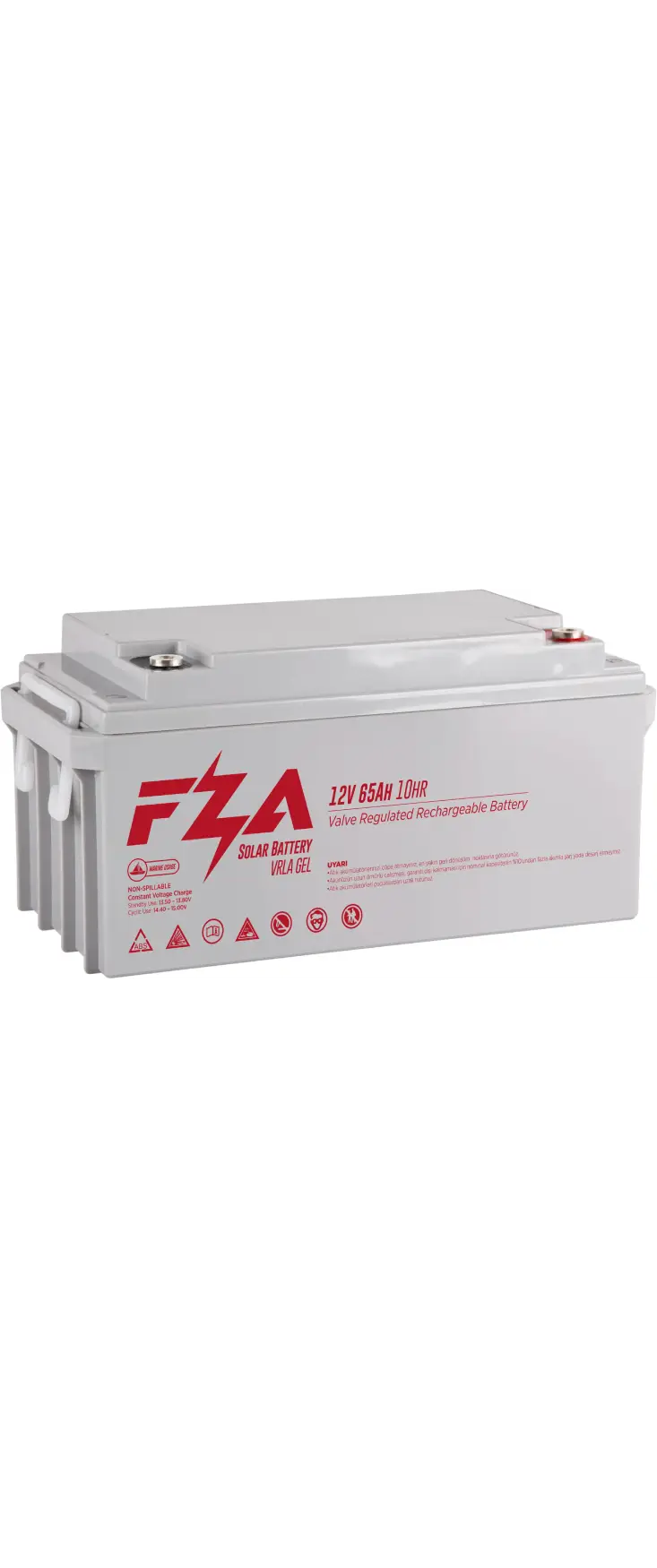

| Part Number : | FZA 65-12 |
| Length : | 348 ± 2 mm ( 13.70 inches ) |
| Width : | 167 ± 2 mm ( 6.57 inches ) |
| Container Height : | 178 ± 2 mm ( 7.01 inches ) |
| Total Height ( with terminal ) : | 178 ± 2 mm ( 7.01 inches ) |
| Approx Weight: | Approx 20 kg (42.3lbs) |
| Nominal Voltage | 12V | |
| Nominal Capacity ( 20HR ) | 65AH | |
Terminal Type | Standard Terminal | F10 |
| Optional Terminal | F6 | |
Container Material | Standard Option | ABS |
| Flame Retardant Option ( FR ) | ABS ( UL94 : VO ) | |
Rated Capacity | 65.0 AH / 3.40A | ( 20hr , 1.80V / cell , 25 ° C / 77 ° F ) |
| 62.5.0 AH / 6.50A | ( 10hr , 1.80V / cell , 25 ° C / 77 ° F ) | |
| 56.0 AH / 11.2A | ( Shr , 1.75V / cell , 25 ° C / 77 ° F ) | |
| 48.9 AH / 16.3A | ( 3hr , 1.75V / cell , 25 ° C / 77 ° F ) | |
| Max Discharge Current | 780A ( 56 ) | |
| Internal Resistance | Approx 7.3m | |
Discharge Characteristics | Operating Temp . Range | Discharge : -15-50 ° C ( 5-122 ° F ) |
| Charge : 0-40 ° C ( 5 - 104 ° F ) | ||
| Storage : -15-40 ° C ( 5 - 104 ° F ) | ||
| Nominal Operating Temp . Range | 25 ± 3 ° C ( 77 ± 5 ° F ) | |
| Cycle Use | Inital Charging Current less than 19.5A.Voltage 14.4V - 15.0V at 25 ° C ( 77 ° F ) Temp . Coefficient -30mV / " C | |
| Standby Use | No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25 ° C ( 77 ° F ) Temp . Coefficient -20mV / " C | |
| Capacity affected by Temperature | 40 ° C ( 104 ° F ) 103 % | |
| 25 ° C ( 77 ° F ) 100 % | ||
| 0 ° C ( 32 ° F ) 86 % | ||
| Design Floating Life at 20 ° C | 10 Years |
