Description
- Product features :
- Agm batteries are dry batteries. And it is safe to use. Batteries convert electrical energy into chemical energy. The internal structure of
- these batteries is different from flooded batteries. It stores itself by charging method. They have lower electrical resistance. There is
- also lower acid stratification compared to flooded batteries. It has a high gas efficiency rate. And it has a lower acidity than others.
- Another feature of Agm batteries is their high power density. Its use is also more flexible. It is long lasting. It is used in many areas.
- It can be easily used especially in uninterruptible power supplies and telecommunication systems. These batteries do not leak acid. It is
- also safe because it has almost no gas emissions.
- Technological Features:
- This can be said for Agm batteries, especially VRLA batteries whose electrolyte is impregnated with separators. It is used in many places
- and is generally used in vehicles. Many things in the vehicle function thanks to the battery. And it is a very cheap method of providing
- uninterrupted energy. Agm batteries can be used especially in vehicles. These batteries are preferred because they are both easy to use and
- cheaper. They are placed inside uninterruptible power supplies. In some cases, when the efficiency of the UPS source increases and the
- battery grows, the battery is placed outside in a separate place and connected to the UPS devices. Battery life is generally 5 years. The
- important thing here is how much heat it is exposed to.
- Scope of application :
- Car
- Truck
- Tractor
- Caravan
- Ambulance
- Boat
- For Starting Purposes in Generators

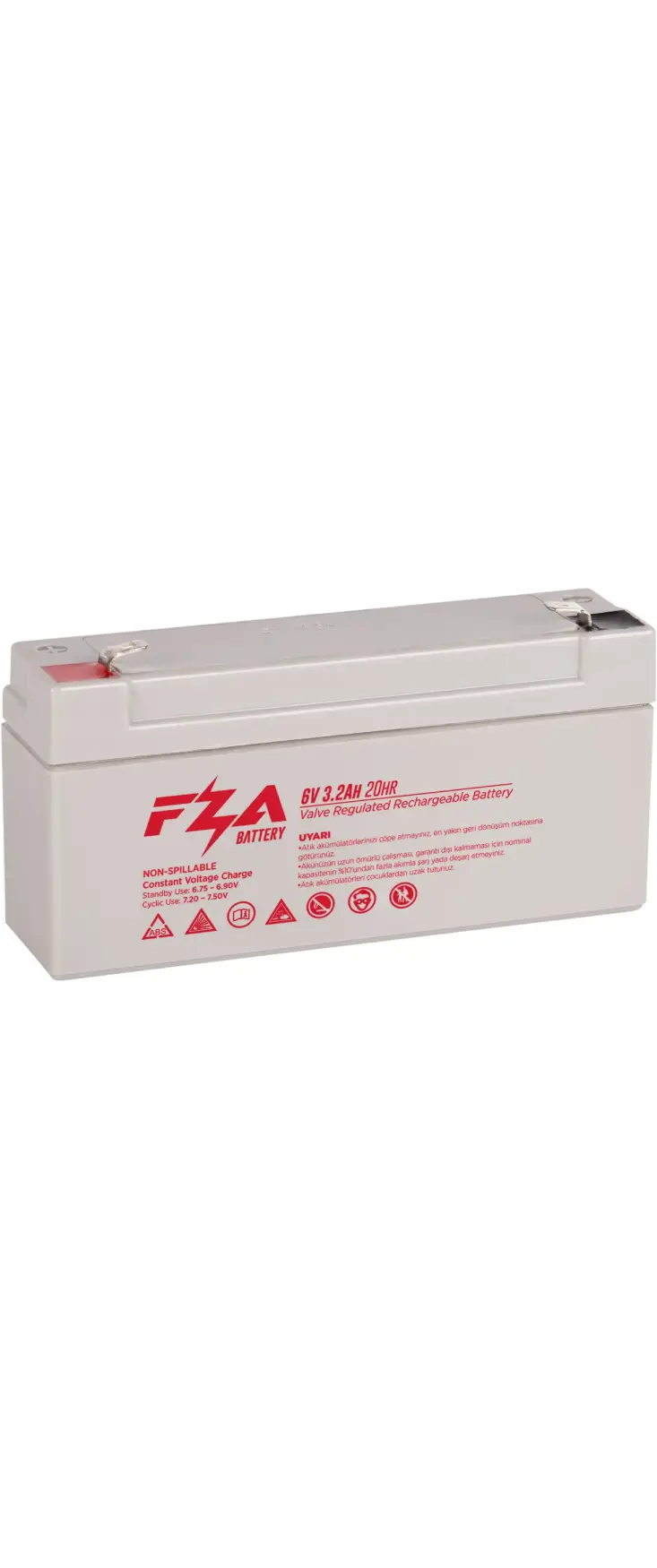

| Part Number: | FZA 3.2-6 |
| Length: | 134 ± 2 mm (5.27 inches) |
| Width: | 34 ± 2 mm (1.34 inches) |
| Container Height: | 60 ± 2 mm (2.36inches) |
| Total Height (With terminal): | 66 ± 2 mm (2.60 inches) |
| Approx Weight: | Approx 0.65kg (1.48lbs) |
| Nominal Voltage | 6V | |
| Nominal Capacity (20HR) | 3.2 AH | |
Terminal Type | Standard Terminal | F1 |
| Optional Terminal | - | |
Container Material | Standard Option | ABS |
| Flame Retardant Option (FR) | UL94VO | |
Rated Capacity | 3 40 AH/0 16A | (20hr, 1 80V/cell, 25’C / 77’F) |
| 2 98AH/0.298A | (lOhr, 1.80V/cell. 25’C / 77’F) | |
| 2 70 AH/O54A | (5hr 1.75V/cell, 25’C/77’F) | |
| 2 46 AHA) 82A | (3hr. 1.75V/cel, 25’C/77°F) | |
| 2.01 AH/2 01A | (1hr. 1 60V/cell. 25’C / 77’F) | |
| Max Discharge Current | 48A (5s) | |
| Internal Resistance | Approx 28mO | |
Discharge Characteristics | Operating Temp. Range | Diecharge: -15 ~ 50‘C |
| Charge: 0 - 40°C | ||
| Storage: -15 - 40'C | ||
| Nominal Operating Temp. Range | 25+3°C (77+5°F ) | |
| Cycle Uoe | Initial Chargog Current less than OJA.Voltage 7.2V - 7.5V at 25’C (77* F) Temp. Coefficient -15mVfC | |
| Standby Use | No limit on Initial Charging Current Voltage 6.75V - 6.9V at 25’C (77’F) Temp. Coefficient-10mV/*C | |
Capacity affect by Temperature | 40‘C 103% | |
| 25"C 100% | ||
| 0'C 86% | ||
| Design Floating Life at 20°C | 5 Years | |
