Hydraulic road barrier - IWA14 certified

Be the first to review this item Items In Box Not Applicable

Order your products and your quote will be sent within 24 hours

Container

Wholesale only Alternate Text

Share this product on social media

Armor series Road Blocker is a state of the art product and bears superior technology features.

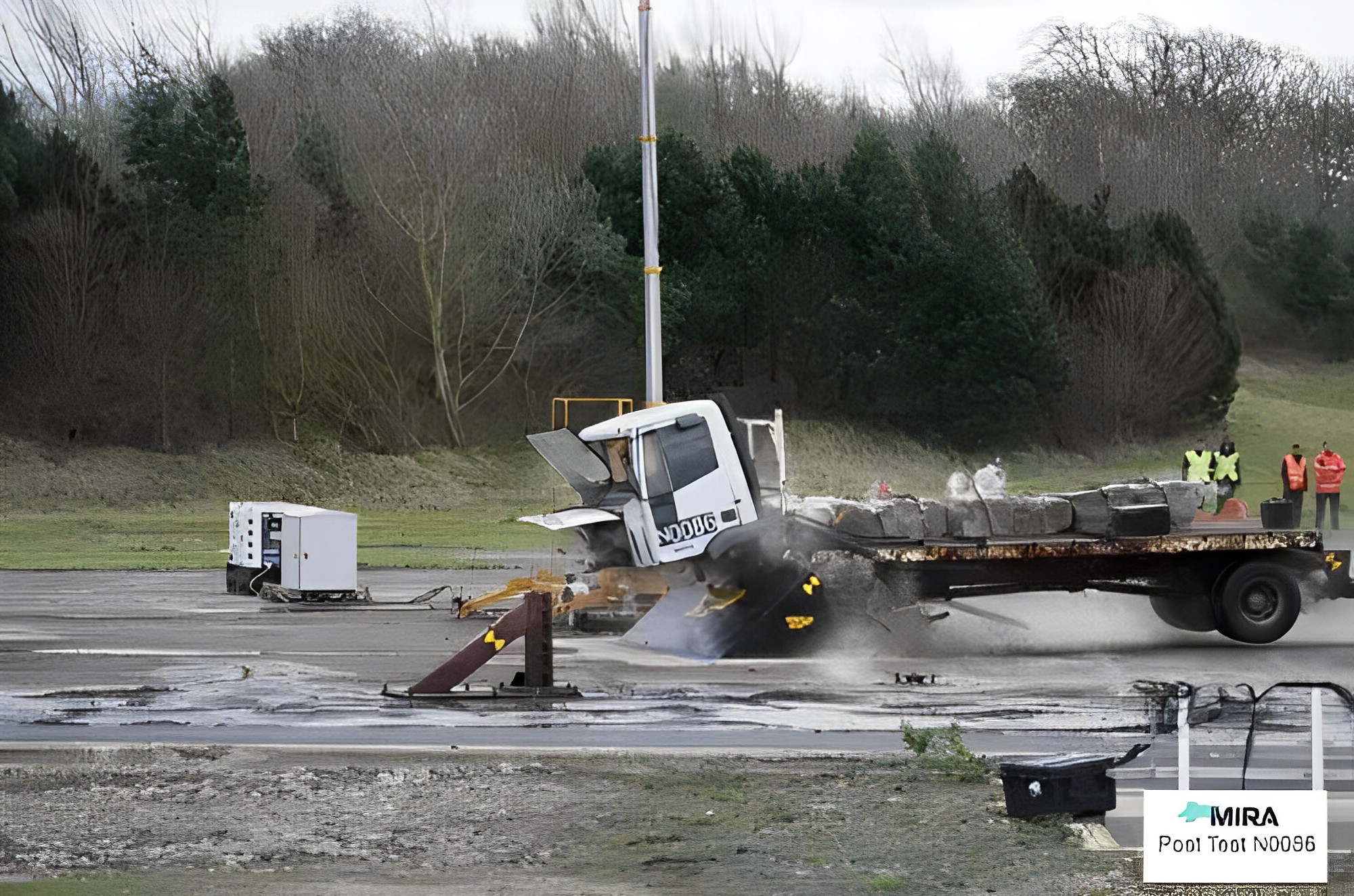

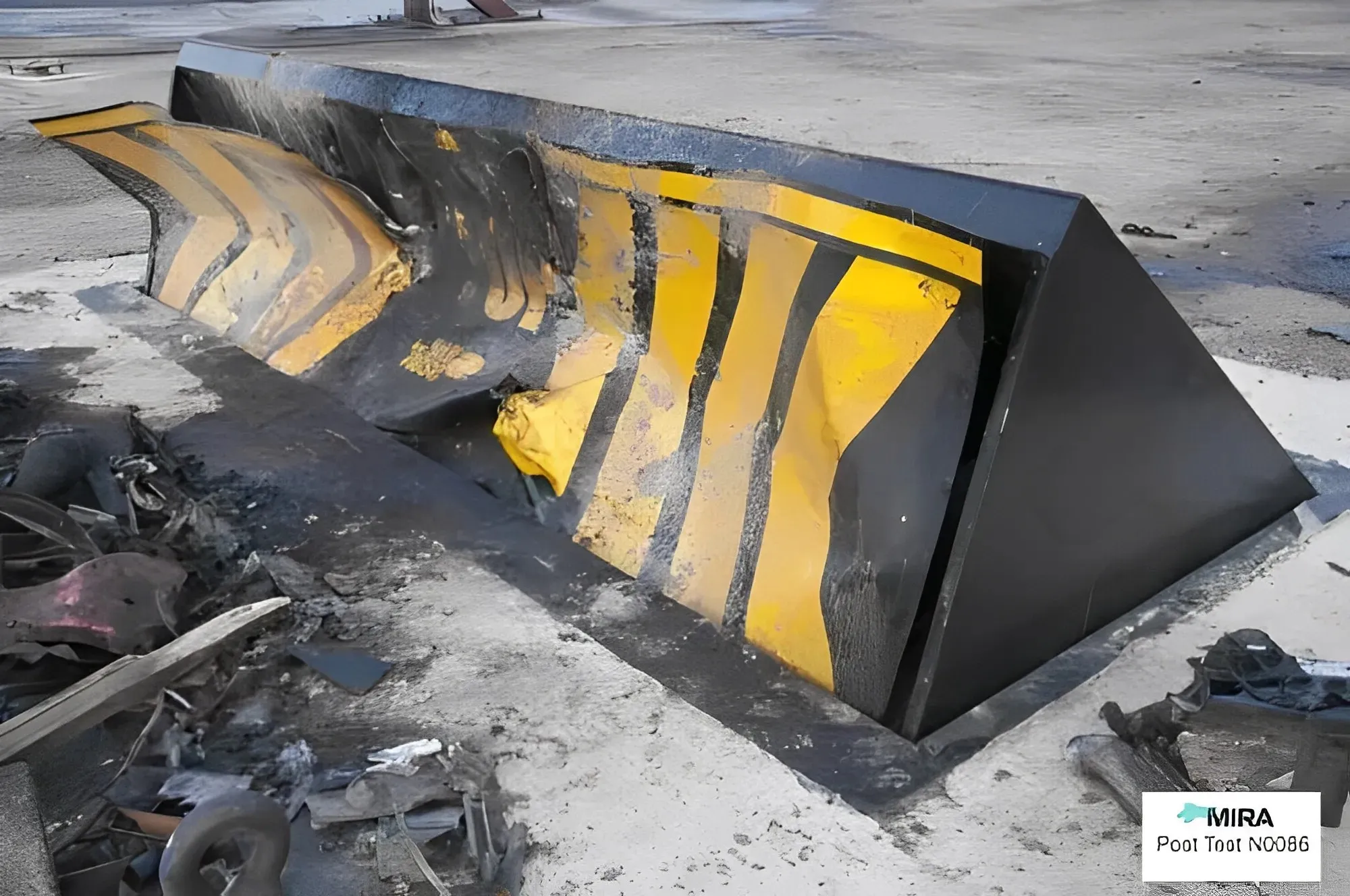

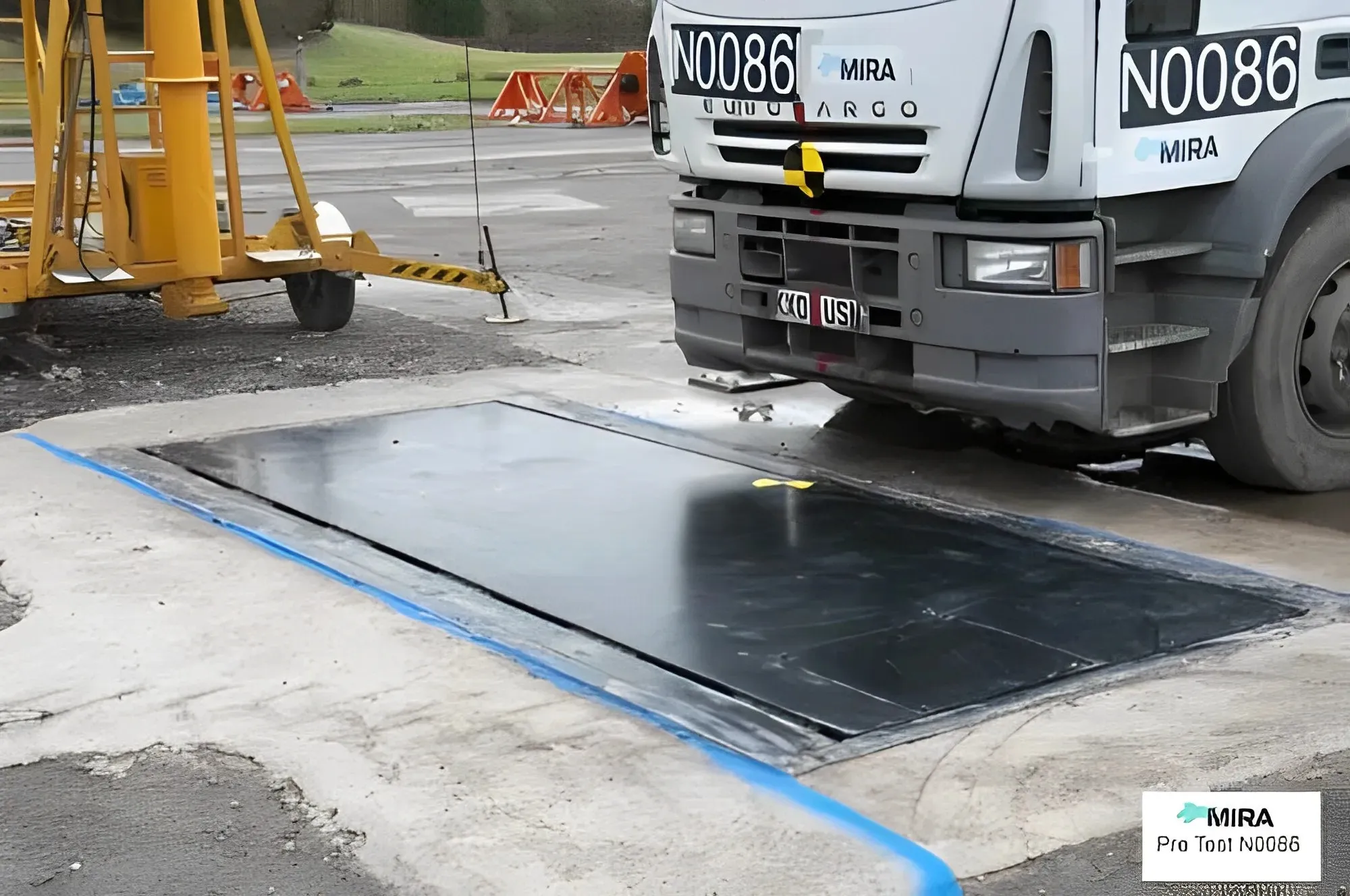

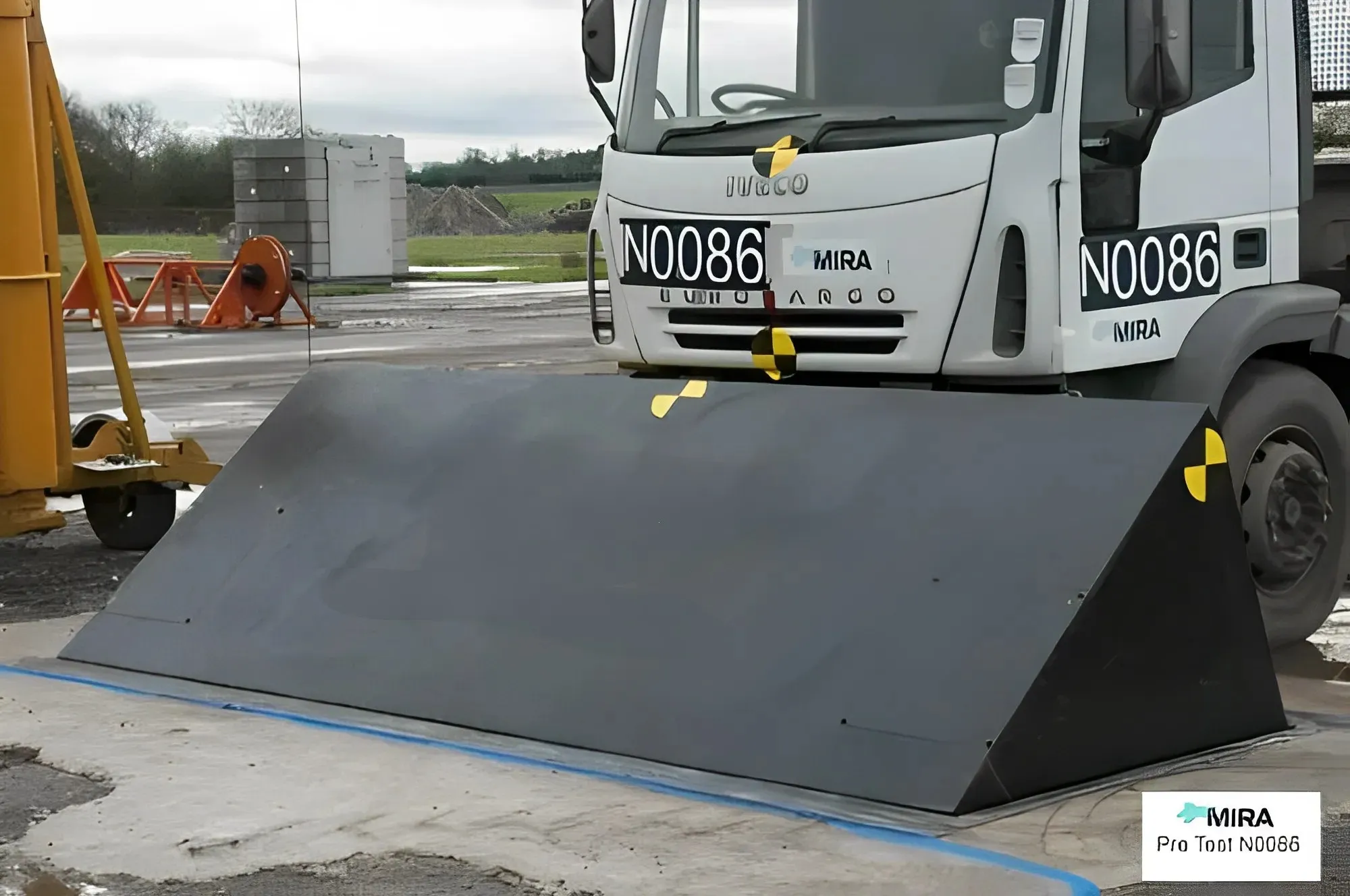

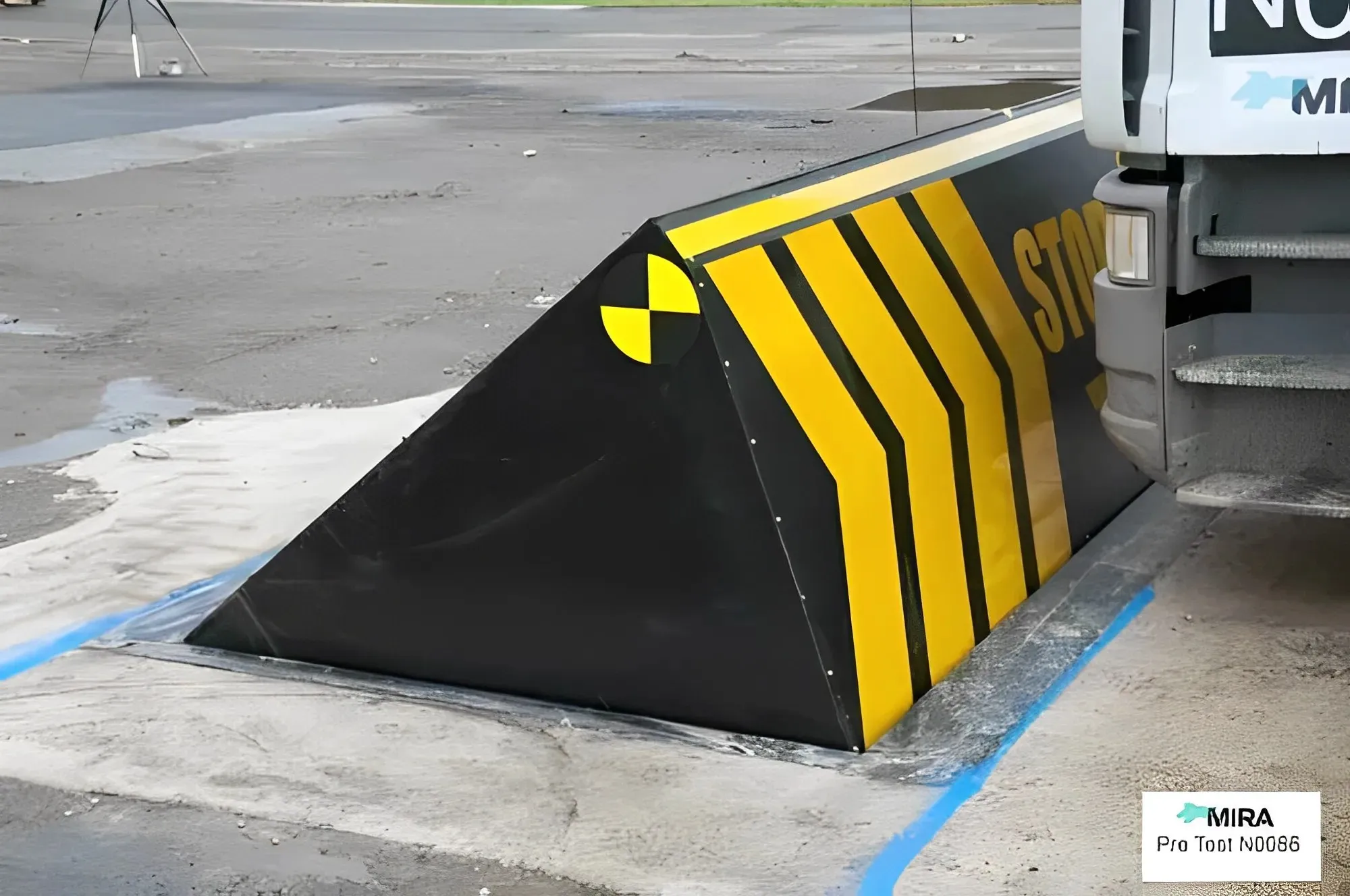

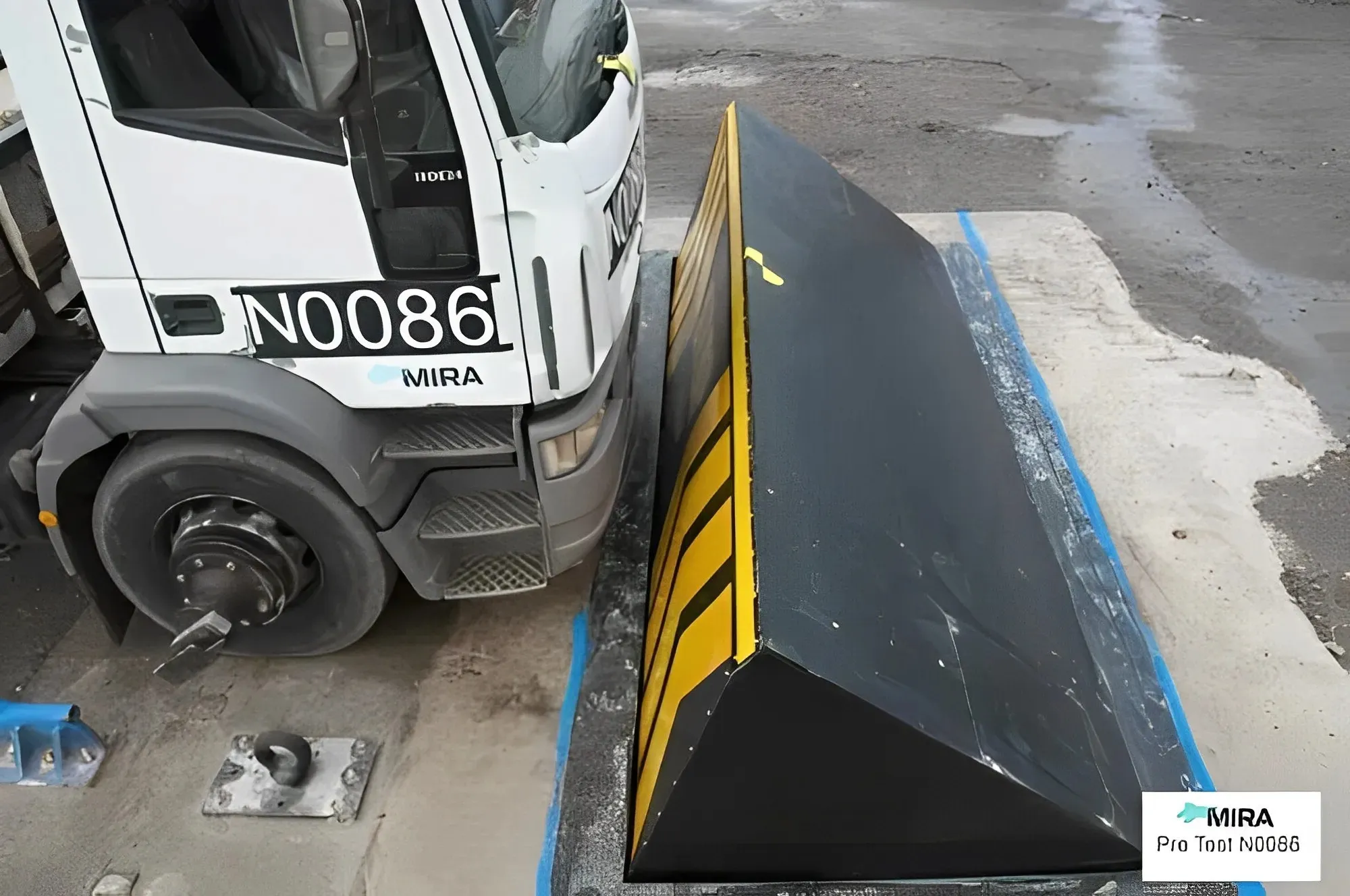

A truck of 12 tons at 81kmh speed was used on IWA 14 N3D crash test and the result was a success.

Technical information:

Type	ARMOR SERIES
Model	WAS200	WAS300	WAS400	WAS500	WAS600

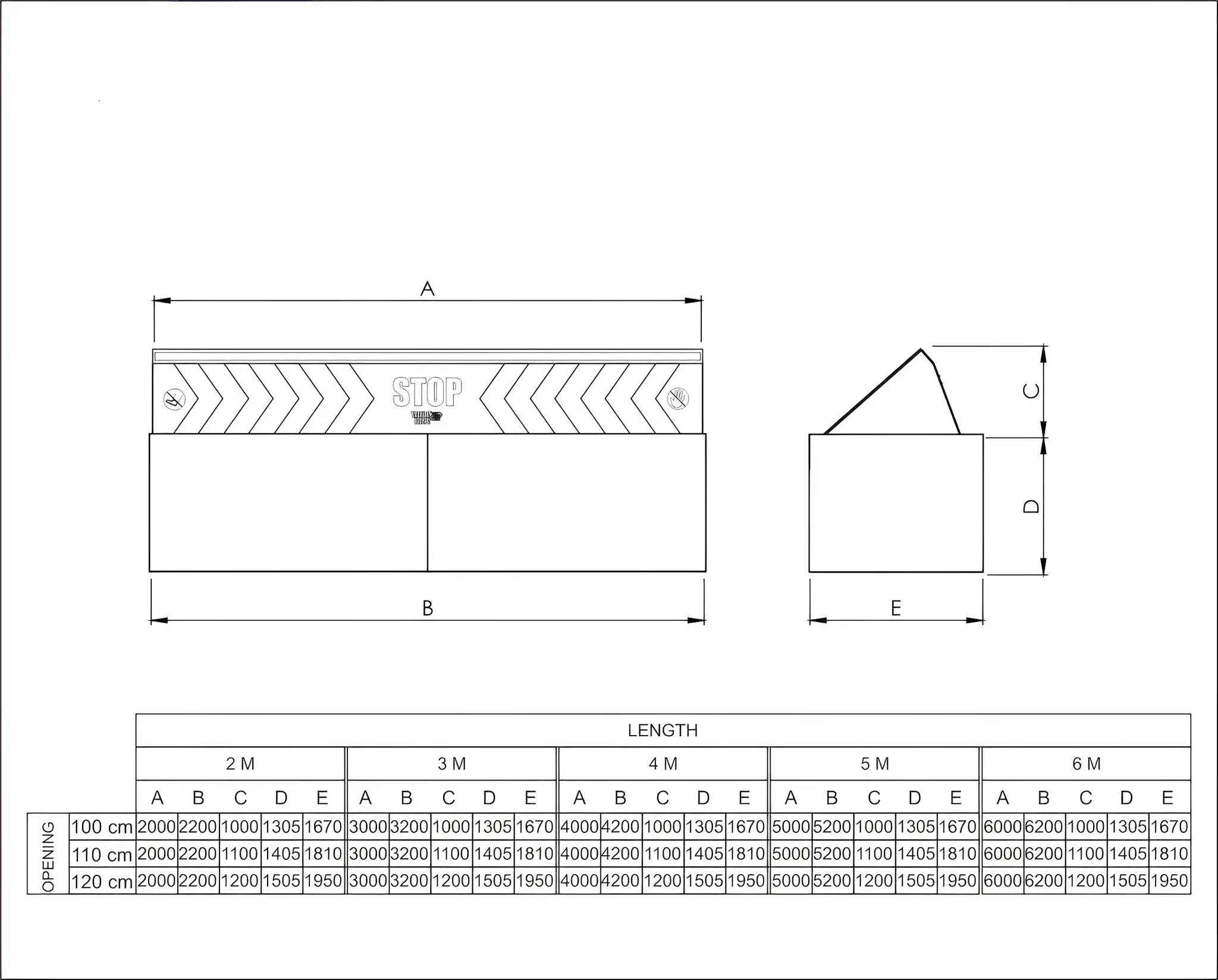

Length	2 mt	3 mt	4 mt	5 mt	6 mt
Movable Part	S355JR quality sheet - Upper sheet 10mm
Working System	Hydraulic
Power Supply	380 V 3 Phases 50/60 Hz
Control System	12 input-8 output PLC
Current	15 A
AC Motor Power	5,5 KW
DC Motor Power	Not Available
IP Standard	54
Number of piston	Double Piston
Opening Time (AC Motor)	4-6 sn
Opening Time (DC Motor)	Not Available
Duty Cycle	1
Limit Switch Type	Adjustable engine working period
Working Pressure Min	30 Bar
Working Pressure Max	180 Bar
Manual Opening	Global Valve
Manual Closing	Handle Pump
Hydraulic Oil Type	32 or 46 number hydraulic oil
Oil Tank (Lt.)	130 Lt.
Warning Light	Power Solar Red Led assembled on side ironsheets
Hydraulic Hose	3/8 R2 330 Bar
Working Temperature	-20°C min +70°C max
Accumulator Supply	Not Available
Emergency Close	Not Available
Water Drainage Pump	Not Available
Crash Test	IWA 14 N3D Crash Test Certificate
