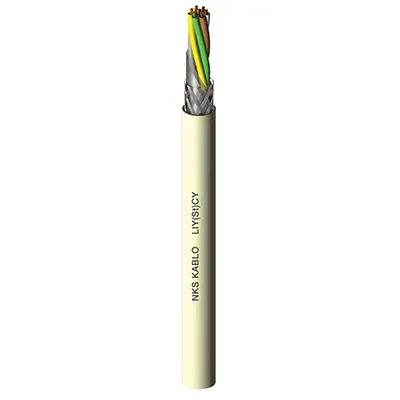

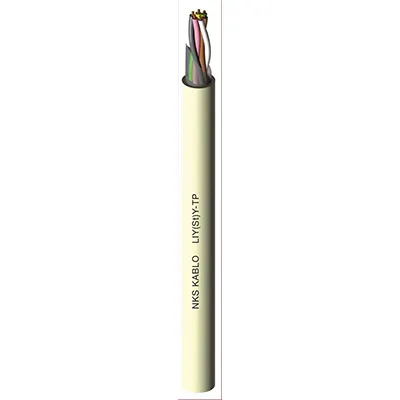

Cable structure

Conductor

IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper

Insulation

DIN VDE 0207 - YI2 PVC

Stranding

Cores are twisted in layers at regular intervals

Insulation Color Coding

DIN 47100

Seperetor

PES BAND

Screen1

AL-PES BAND

Screen2

Tinned copper braid

Sheath

DIN VDE 0207 Bölüm 5 RAL 7032

Technicial Specifications

Conductor Resistance

0.14 mm² = 148 Ω.Km

0.22 mm² = 96 Ω.Km

0.25 mm² = 79.9 Ω.Km

0.34 mm² = 56 Ω.Km

0.50 mm² = 39 Ω.Km

0.75 mm² = 26 Ω.Km

1.00 mm² = 19.5 Ω.Km

1.50 mm² = 13.3 Ω.Km

2.50 mm² = 7.98 Ω.Km

Insulation Resistance

> 200 MΩ / Km

Operating voltage

0.14 mm² = 350 V

≤  0.22 mm² = 500 V

Test Voltage

0.50 mm² < = 1500 V

0.50 mm² ≥= 2000 V

Effective Capacity

0.14 mm² = 90 nF/km

0.22 mm² = 100 nF/km

0.25 mm² = 100 nF/km

0.34 mm² = 110 nF/km

0.50 mm² = 120 nF/km

0.75 mm² = 120 nF/km

1.00 mm² = 120 nF/km

1.50 mm² = 120 nF/km

2.50 mm² = 120 nF/km

Operating temperature

-30°C ~ +80°C

Flame Test

IEC 60332-1-2 & EN 50265-2-1

min. Bending Radius

Fixed Fixed Laying 6,5 x D

Movable Flexible 15 x D
