Description
- Product features:
- Solar batteries are batteries that contain a jelly-like electrolyte.
- They are maintenance-free batteries that are resistant to harsh environmental conditions, especially temperature and vibration. That's why
- they are especially preferred in the marine industry and solar energy systems. Dry Batteries, known as Maintenance-Free Batteries, and Solar
- Batteries are batteries that fall into this class. It is also called SLA Battery (Sealed Lead Acid).
- VRLA Batteries are used in UPS (Uninterruptible Power Supply) systems, telecommunications, electricity and telephone power plants,
- electricity generation companies, emergency lighting systems and security systems.
- Even if the Solar Battery is not charged immediately, it can be fully recovered from deep discharge. Ideal for daily cyclic use.
- They show excellent performance during long discharges.
- Technological Features:
- Our solar batteries are gel batteries, their most important feature or usage area is that they are used in "deep discharge" applications.
- Gel batteries are called "maintenance-free batteries" because they do not require the addition of pure water during use.
- The most important feature of gel batteries and their difference from dry charged batteries is their deep discharge feature.
- So what is this deep discharge? The deep discharge level of gel batteries is 75% compared to dry or flooded batteries. To put it more
- clearly, when we charge gel batteries after discharge, the charging is completed without any damage to the chemical structure inside them.
- When you do the same thing with dry or flooded batteries, that is, when you charge them after deep discharge, the life of the battery
- shortens with each charge as the chemicals in the battery will be damaged with each charge.
- To summarize; can be said that charging and discharging operations do not affect the battery performance.
- Scope of application :
- Air Traffic Control Center
- Barcode Devices
- Cash Registers
- Electronic Doors
- Computer Aided Automation
- elevator
- Airport Lighting
- Emergency Lighting Systems
- Medical Electronic Devices
- Military Radar System
- Photo Printing Devices
- Electronic Scales
- Communication and Broadcasting Organizations
- Uninterruptible power supply
- Solar Energy Systems

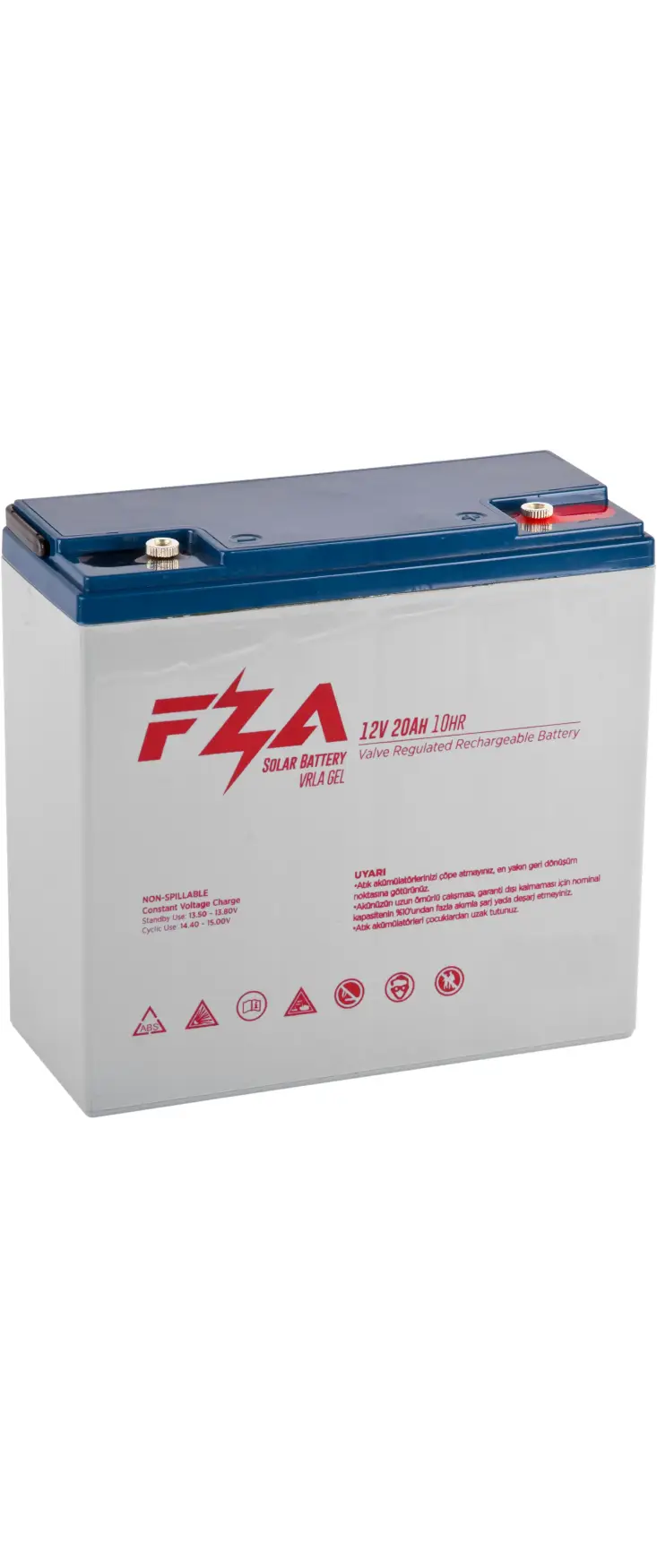

| Part Number: | FZA 20-12 |
| Length: | 181.5 ± 2 mm (5.95 inches) |
| Width: | 77 ± 2 mm (3.85 inches) |
| Container Height: | 167.5 ± 2 mm (3.74 inches) |
| Total Height (with terminal): | 167.5 ± 2 mm (3.98 inches) |
| Approx Weight: | Approx 7 kg |
| Nominal Voltage | 12V | |
| Nominal Capacity (20HR) | 20AH | |
Terminal Type | Standard Terminal | F3 |
| Optional Terminal | F12 | |
Container Material | Standard Option | ABS |
| Flame Retardant Option (FR) | ABS (UL94 VO) | |
Rated Capacity | 20 0AH/1 00A | (20hr. 1 80V/cetl. 25'C / 77’F) |
| 18 6AH/1 86A | (lOhr. 1 80V/cell. 25’C/77’F) | |
| 17 0AH/3 40A | (5hr. 1 75V/ceB. 25'C / 77’F) | |
| 16.3 AHA 10A | (3hr. 1 75V/ceB. 25'C / 77’F) | |
| 12 56AH/12 56A | (1hr. 1.60V/cei. 25’C/7FF) | |
| Max Discharge Current | 300A (5s) | |
| Internal Resistance | Approx 15mQ | |
Discharge Characteristics | Operating Temp. Range | Diecharge: -15 ~ 50‘C |
| Charge: 0 - 40°C | ||
| Storage: -15 - 40'C | ||
| Nominal Operating Temp. Range | 25 ± 3‘C (77 ± 5’F) | |
| Cycle Uoe | Inrtal Charging Current less than 6.0A Voltage 14 4V - 15 OV at 25’C (77’F) Temp Coefficient -30m VfC | |
| Standby Use | No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25’C (77‘F) Temp Coefficient -20mVrC | |
Capacity affect by Temperature | 40‘C 103% | |
| 25"C 100% | ||
| 0'C 86% | ||
| Design Floating Life at 20°C | 5 Years | |
